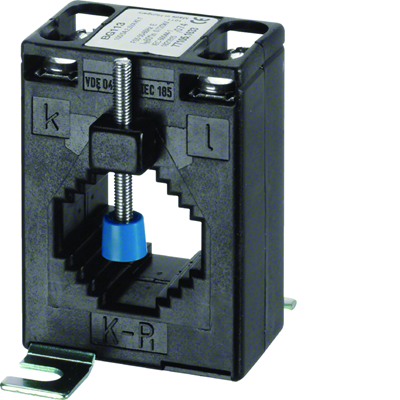

Current transformer 100/5A 2.5VA class 1 SRA01005
local index:
AUK009HAGE
Catalog No:
SRA01005
EAN code:
4049857139316
Price:
39,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current transformers
- Secondary current: 5 A,
- Primary current range: 50 to 2000 A,
- used in indirect current measurement systems (electricity meters, multifunction meters),
- accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
- measuring input (primary side of the transformer) for round conductors and bars,
- can be mounted on a flat surface or on a 35 mm DIN rail.
Technical data
-
Rated frequency [Hz]50/60
-
Accuracy class1
-
ConnectionScrew
-
Height [mm]70
-
PKWIU27.11.42.0
-
Depth [mm]thirty
-
Rated insulation voltage [V]3000
-
Width [mm]49.5
-
Gear100:5
Other technical data
-
ModelAttachable current transformer
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Snap mountingYes
-
Number of primary inputs1
-
Rated primary current100 A
-
Rated secondary apparent power2.5 VA
-
With shock protectionYes
-
With copper railNo
Bulk packaging
| A kind of package | Pakiet | Paleta | Karton | |
| Quantity | 60 pcs. | 1440 pcs. | 1 pcs. | 1 pcs. |
| Weight (kg) | 12,715 | 320,200 | 0,199 | 0,205 |
| Width (m) | 0,290 | 0,800 | 0,046 | 0,046 |
| Length (m) | 0,155 | 0,550 | 0,058 | 0,058 |
| Depth (m) | 0,400 | 1,200 | 0,073 | 0,073 |
