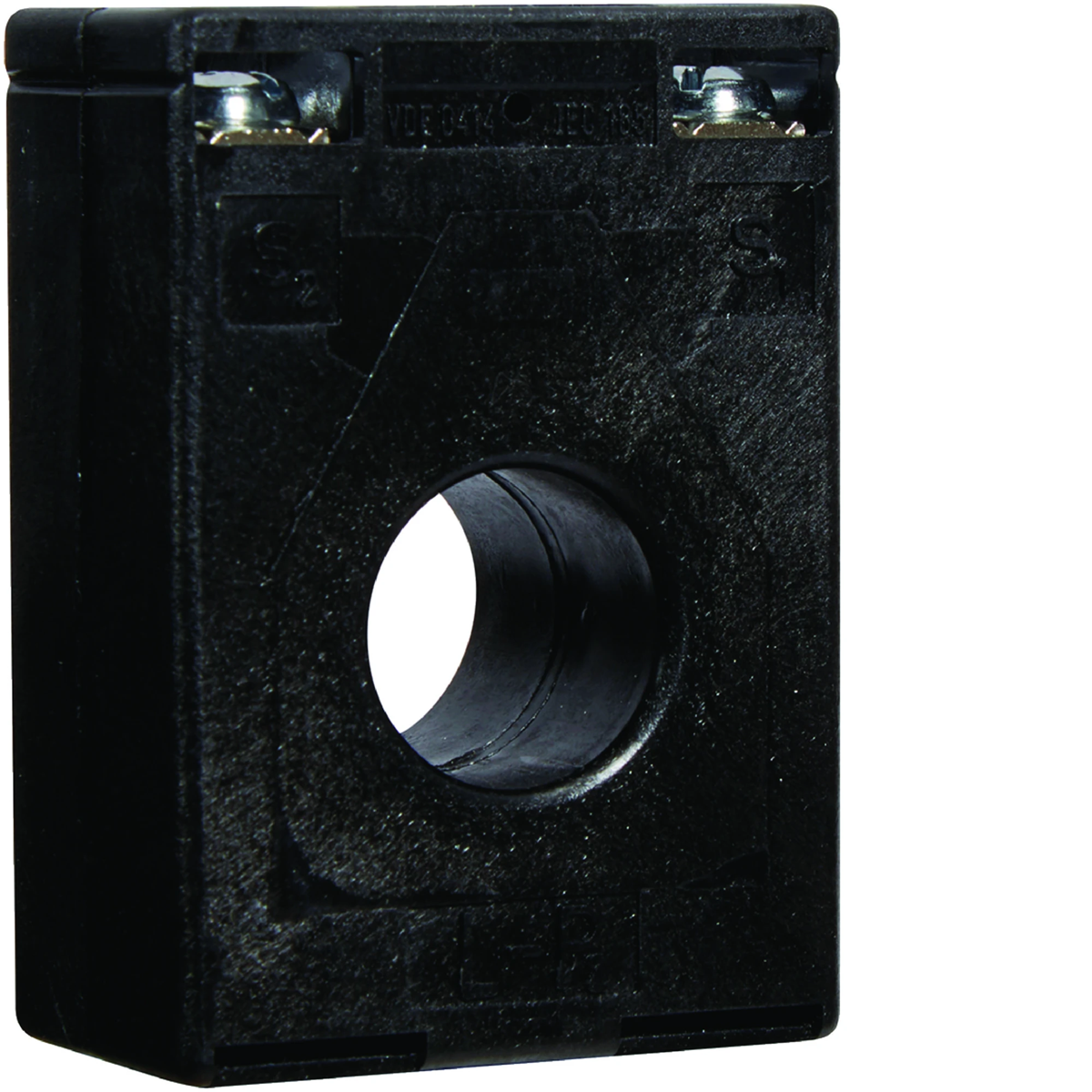

Current transformer 100/5 1-phase class 1 LVZ00SE100-5K1
local index:
AUK039HAGE
Catalog No:
LVZ00SE100-5K1
EAN code:
4049857055135
Price:
50,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Current transformer 100/5 1-phase class 1
Technical data
-
Rated frequency [Hz]60
-
Depth [mm]thirty
-
Input power [VA]2.5
-
Level of securityIP10
-
Connection typeScrew connection
-
Operating temperature range [°C]from -40 to 40
-
Gear100;5
-
storage temperature [°C]from -40 to 75
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.11.42.0
-
Length [mm]50
-
Power [VA]2.5
-
InstallationOn the TH-35 rail
-
Width [mm]49.5
-
Height [mm]70
-
Accuracy [s]1
-
Opening diameter [mm]21
-
Rated insulation voltage [kV]3
-
Conductor cross-section (wire) [mm²]0.5 - 6
Other technical data
-
ModelPipe stick current converter
-
Rated secondary current5 A
-
Overcurrent limiting factorFS 5
-
Opening diameter21 mm
-
Number of primary inputs1
-
Rated primary current100 A
-
Rated secondary apparent power2.5 VA
-
With shock protectionYes
-
With copper railNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 1 pcs. | 1080 pcs. |
| Weight (kg) | 0,255 | 298,400 |
| Width (m) | 0,055 | 0,800 |
| Length (m) | 0,045 | 0,450 |
| Depth (m) | 0,075 | 1,200 |
