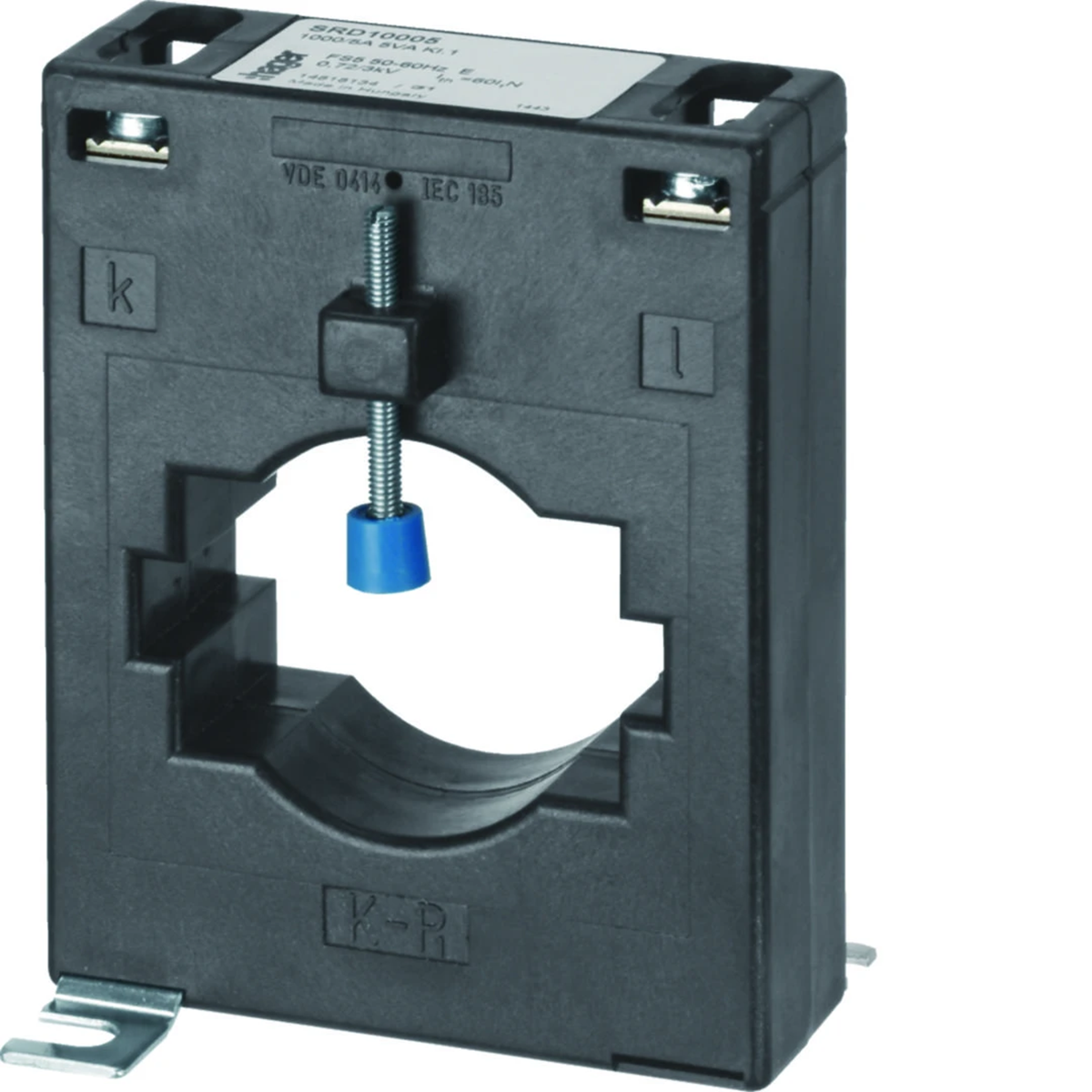

Current transformer 1000/5A 5VA class 1 SRD10005

local index:
AUK004HAGE
Catalog No:
SRD10005
EAN code:
4049857139392
Manufacturer: HAGER
Rated frequency [Hz]: 50/60
Depth [mm]: thirty
Accuracy class: 1
Price:
47,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Current transformers
secondary current: 5 A,
primary side current range: from 50 to 2000 A,
used in indirect current measurement systems (electricity meters, multifunction meters),
accuracy class of current transformers: from 0.5 to 3 - depends on the power consumption of the secondary circuit of the transformer,
measuring input (primary side of the transformer) for round conductors and busbars,
can be mounted on a flat surface or on a 35 mm DIN rail.

Technical data

  • Rated frequency [Hz]
    50/60
  • Accuracy class
    1
  • Width [mm]
    85
  • Height [mm]
    108
  • Gear
    1000;5
  • Depth [mm]
    thirty
  • Rated insulation voltage [V]
    3000
  • Working temperature [°C]
    -40 to 40
  • Connection type
    Screw connection
  • PKWIU
    27.11.42.0

Other technical data

  • Model
    Attachable current transformer
  • Rated secondary current
    5 A
  • Overcurrent limiting factor
    FS 5
  • Opening diameter
    45 mm
  • With copper rail
    No
  • Rated primary current
    1000 A
  • Rated secondary apparent power
    5 VA
  • With shock protection
    Yes
  • Snap mounting
    Yes
  • Number of primary inputs
    1

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 240 pcs.
Weight (kg) 0,270 0,355 3,785 113,840
Width (m) 0,085 0,115 0,290 0,800
Length (m) 0,108 0,065 0,120 0,680
Depth (m) 0,030 0,140 0,400 1,200
