agardio.manager Power supply 24 V DC, 2.5 A at t = 70 C HTG911H
local index:
AUU004HAGE
Catalog No:
HTG911H
EAN code:
3250613114480
Price:
145,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

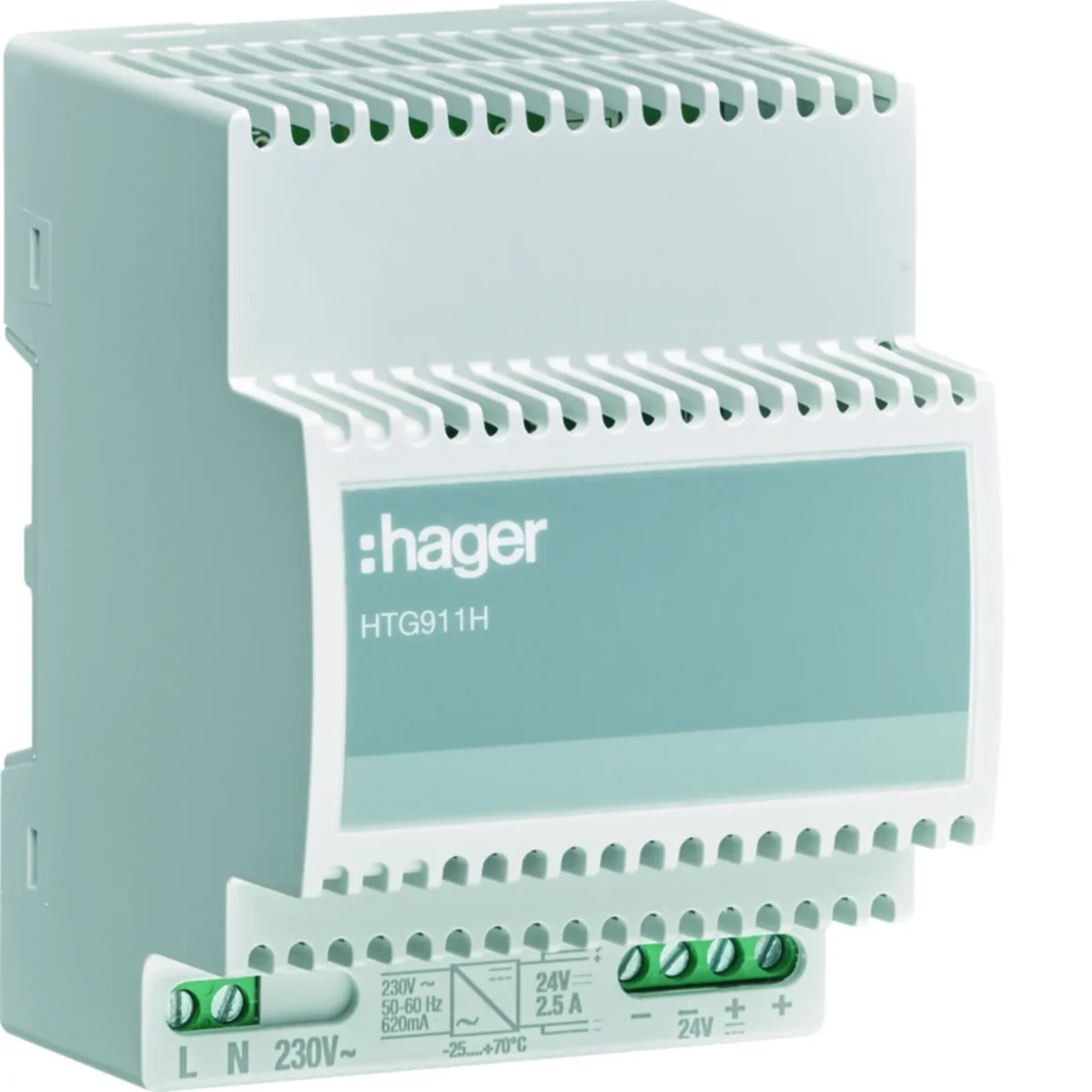

agardio.manager Power supply 24 V DC, 2.5 A at t = 70 C
Technical data
-
Depth [mm]63
-
Level of securityIP20
-
Width [mm]71
-
Height [mm]93
-
Rated output voltage [V]24
-
Supply voltage typeAC
-
Input power [VA]70
-
power loss [W]60
-
Connection typeScrew connection
-
Rated switching voltage [V]196/264
-
Number of modules4
-
PKWIU27.90.41.0
Other technical data
-
Voltage type (supply voltage)AC
-
Max. output current 12.5 A
-
Max. output current 30 A
-
Nominal value output voltage 124 V
-
Nominal value output current 20 A
-
Short-circuit-proofYes
-
Rated supply voltage AC 60 Hz196 ... 264 V
-
Output voltage stabilizedNo
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionYes
-
Built-in width71 mm
-
Direct mounting possibleNo
-
Height93 mm
-
Suitable for safety functionsYes
-
Performance level according to EN ISO 13849-1None
-
1st secondary output voltage24 ... 24 V
-
Max. output current 20 A
-
Secondary voltage adjustableNo
-
Nominal value output current 12.5 A
-
Nominal value output current 30 A
-
Rated supply voltage AC 50 Hz196 ... 264 V
-
Rated supply voltage DC0 ... 0 V
-
Power output6 W
-
Type of electric connectionScrew connection
-
Wall mounting possibleNo
-
Width in number of modular spacings4
-
Built-in height0 mm
-
Width71 mm
-
Depth63 mm
-
SIL according to IEC 61508None
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 24 pcs. | 576 pcs. |
| Weight (kg) | 0,218 | 0,242 | 6,188 | 171,512 |
| Width (m) | 0,072 | 0,080 | 0,320 | 0,800 |
| Length (m) | 0,093 | 0,080 | 0,215 | 1,050 |
| Depth (m) | 0,068 | 0,105 | 0,360 | 1,200 |
