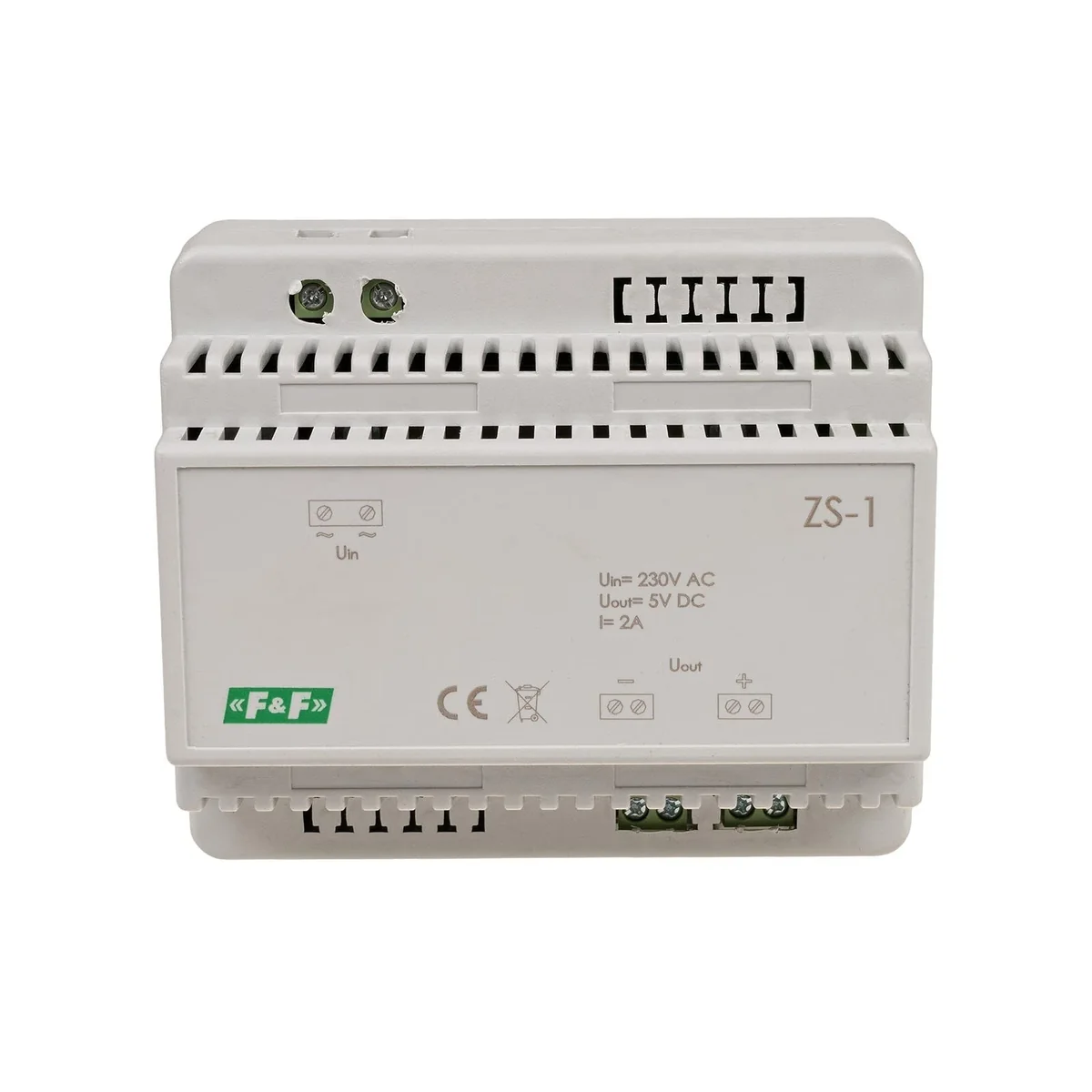

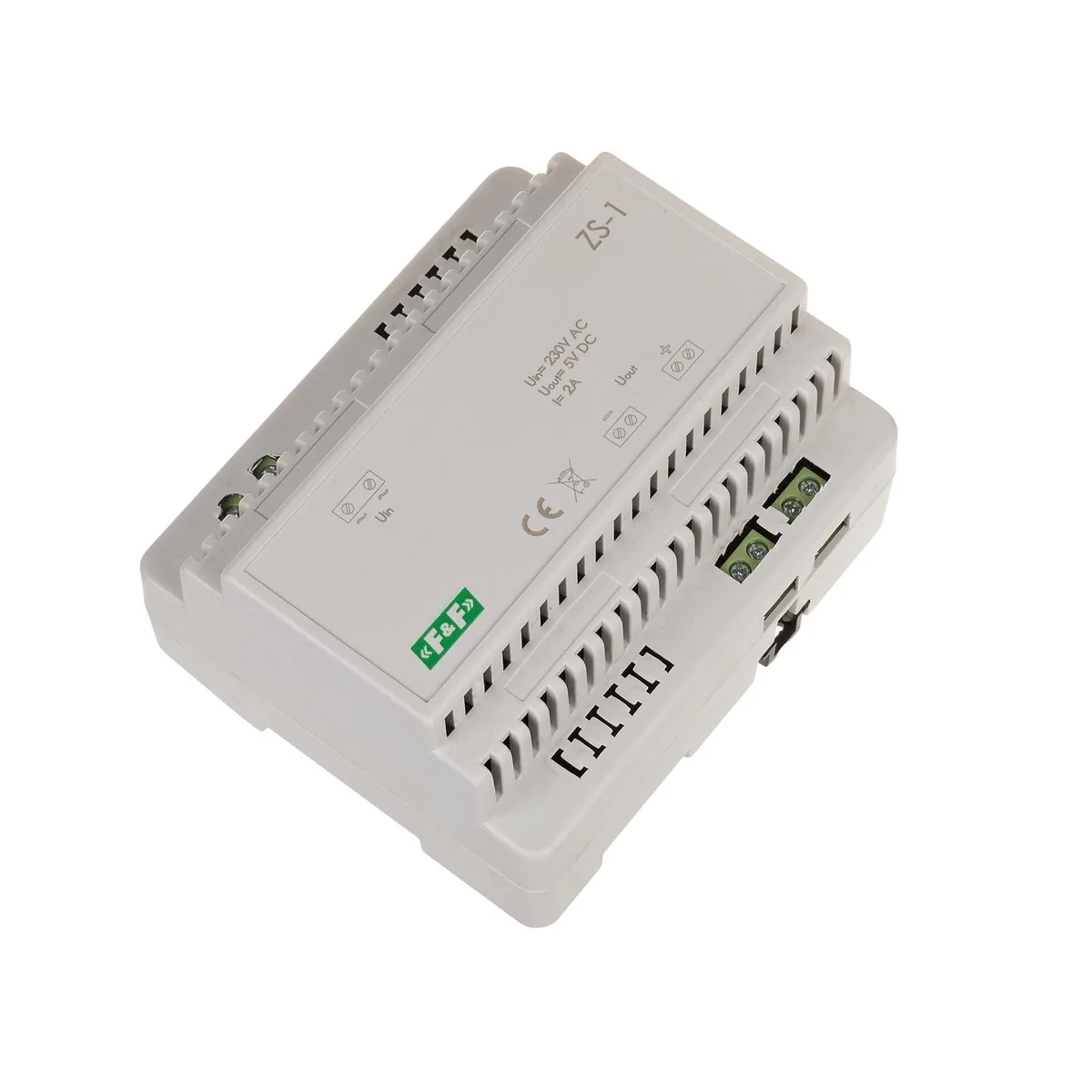

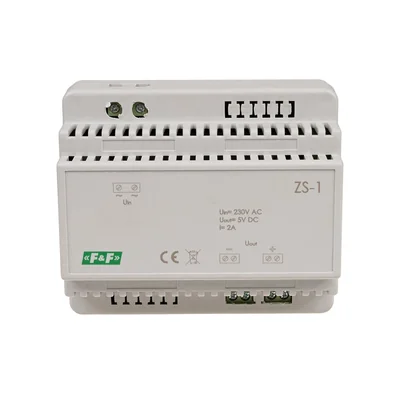

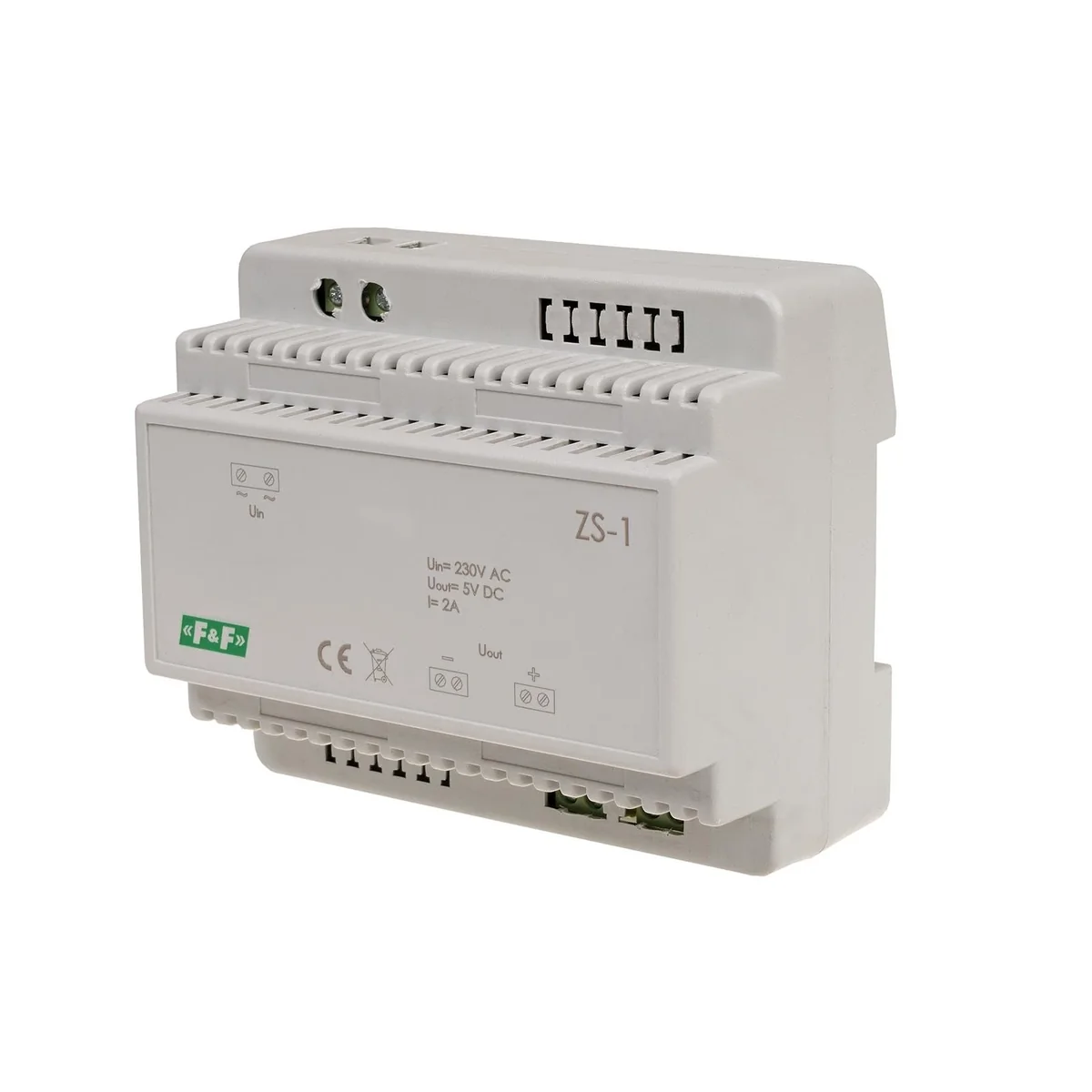

5V ZS-1 stabilized power supply ZS-1

local index:
AUU011FIFQ
Catalog No:
ZS-1
EAN code:
5908312595977
Manufacturer: F&F
Output power [W]: 12W
Installation: On the TH-35 rail
Input voltage [V]: 230
Price:
42,23 €
gross / pcs.
(including VAT 23%)
76,78 € gross/kg.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Caution!
A long-term overload will result in a loss of voltage at the output due to the activation of the thermal fuse inside the stabilizer. After cooling down, the power supply automatically returns to operation.

Technical data

  • Output power [W]
    12W
  • Input voltage [V]
    230
  • Working temperature [°C]
    -10-40
  • Weight [g]
    550
  • Package height [mm]
    150
  • Package weight [kg]
    0.55
  • PKWIU
    27.11.42.0
  • Installation
    On the TH-35 rail
  • connection
    2.5mm screw terminals
  • Ripple
    <3mVrms
  • Dimensions
    6 modules (105mm)
  • Package width [mm]
    130
  • Input voltage [V]
    230

Other technical data

  • Voltage type (supply voltage)
    AC
  • Max. output current 1
    2 A
  • Rated supply voltage AC 50 Hz
    230 ... 230 V
  • Output voltage stabilized
    Yes
  • Stabilized
    No
  • Rail mounting possible
    Yes
  • Modular version
    Yes
  • Built-in width
    105 mm
  • Direct mounting possible
    No
  • Height
    89 mm
  • Degree of protection (IP)
    IP20
  • 1st secondary output voltage
    5 ... 5 V
  • Secondary voltage adjustable
    No
  • Rated supply voltage AC 60 Hz
    0 ... 0 V
  • Power output
    12 W
  • Type of electric connection
    Screw-/spring clamp connection
  • Wall mounting possible
    No
  • Width in number of modular spacings
    6
  • Built-in height
    65 mm
  • Width
    105 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,670
Width (m) 0,105
Length (m) 0,120
Depth (m) 0,070
