340-20 Ethernet CANopen2 processor BMXP3420302

local index:
AUS020SCHN
Catalog No:
BMXP3420302
EAN code:
3595864024455

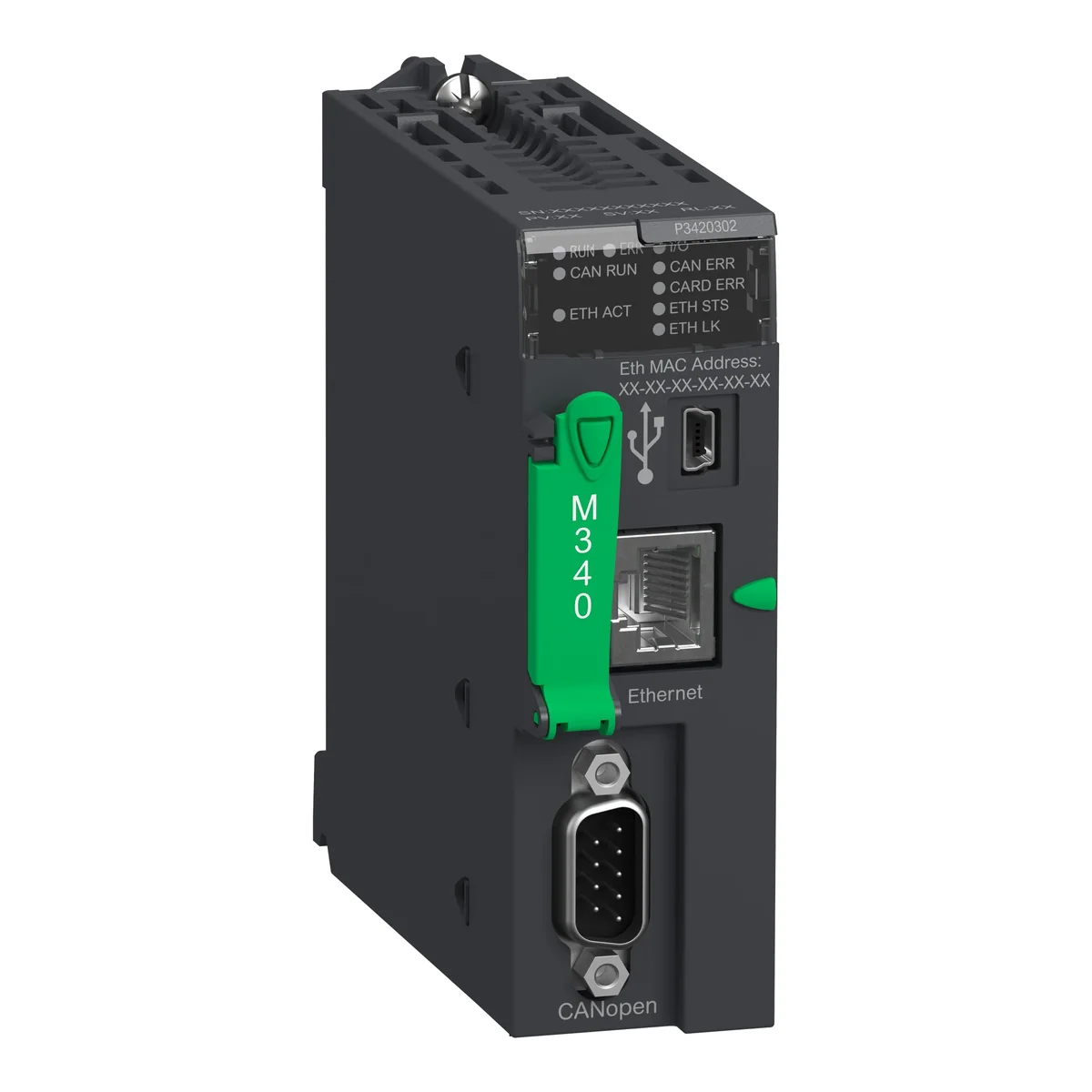

340-20 Ethernet CANopen2 processor
340-20 Ethernet CANopen2 processor

Click on the photo to enlarge

Manufacturer: SCHNEIDER ELECTRIC
Rated voltage [V]: 24
See full description
Price:
1982,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

340-20 Ethernet CANopen2 processor

Technical data

  • Rated voltage [V]
    24
  • PKWIU
    26.20.13.0

Other technical data

  • Supply voltage DC
    24 ... 24 V
  • Number of relay outputs
    0
  • Model
    Modular
  • Number of HW-interfaces industrial Ethernet
    2
  • Number of HW-interfaces RS-232
    1
  • Number of HW-interfaces RS-485
    1
  • Number of HW-interfaces parallel
    0
  • Number of HW-interfaces other
    4
  • Number of analogue inputs
    256
  • Number of digital outputs
    1024
  • Supporting protocol for TCP/IP
    Yes
  • Supporting protocol for CAN
    Yes
  • Supporting protocol for ASI
    Yes
  • Supporting protocol for Modbus
    Yes
  • Supporting protocol for DeviceNet
    No
  • Supporting protocol for LON
    No
  • Supporting protocol for PROFINET CBA
    No
  • Supporting protocol for Foundation Fieldbus
    No
  • Supporting protocol for AS-Interface Safety at Work
    No
  • Supporting protocol for INTERBUS-Safety
    No
  • Supporting protocol for SafetyBUS p
    No
  • Radio standard Bluetooth
    No
  • Radio standard GPRS
    No
  • Radio standard UMTS
    No
  • System accessory
    No
  • With display
    No
  • Memory size
    4096 kB
  • Rail mounting possible
    Yes
  • Front built-in possible
    Yes
  • Suitable for safety functions
    Yes
  • Performance level according to EN ISO 13849-1
    None
  • Appendant operation agent (Ex ib)
    No
  • Explosion safety category for dust
    None
  • Height
    100 mm
  • Voltage type (supply voltage)
    DC
  • Max. number of time switches
    0
  • Processing time (1K, binary operation)
    12 ms
  • Number of interfaces PROFINET
    0
  • Number of HW-interfaces RS-422
    0
  • Number of HW-interfaces USB
    1
  • Number of HW-interfaces wireless
    0
  • Number of analogue outputs
    256
  • Number of digital inputs
    1024
  • With optical interface
    No
  • Supporting protocol for PROFIBUS
    No
  • Supporting protocol for INTERBUS
    No
  • Supporting protocol for KNX
    No
  • Supporting protocol for Data-Highway
    No
  • Supporting protocol for SUCONET
    No
  • Supporting protocol for PROFINET IO
    No
  • Supporting protocol for SERCOS
    No
  • Supporting protocol for EtherNet/IP
    Yes
  • Supporting protocol for DeviceNet Safety
    No
  • Supporting protocol for PROFIsafe
    No
  • Supporting protocol for other bus systems
    No
  • Radio standard WLAN 802.11
    No
  • Radio standard GSM
    No
  • IO link master
    No
  • Redundancy
    No
  • Type of memory
    NVRAM
  • Additional program memory possible
    Yes
  • Wall mounting/direct mounting
    Yes
  • Rack-assembly possible
    Yes
  • SIL according to IEC 61508
    None
  • Appendant operation agent (Ex ia)
    No
  • Explosion safety category for gas
    None
  • Width
    35 mm
  • Depth
    160 mm
