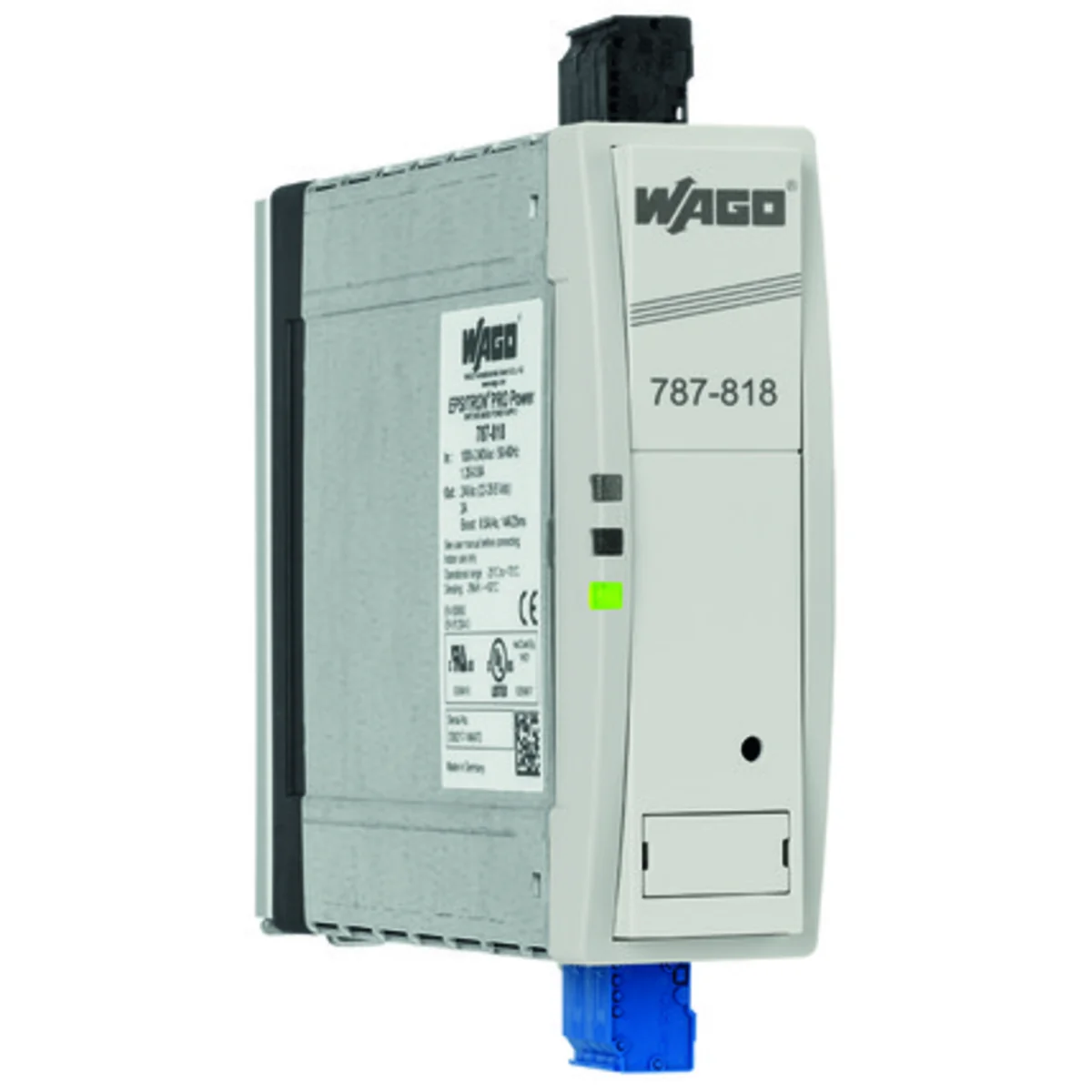

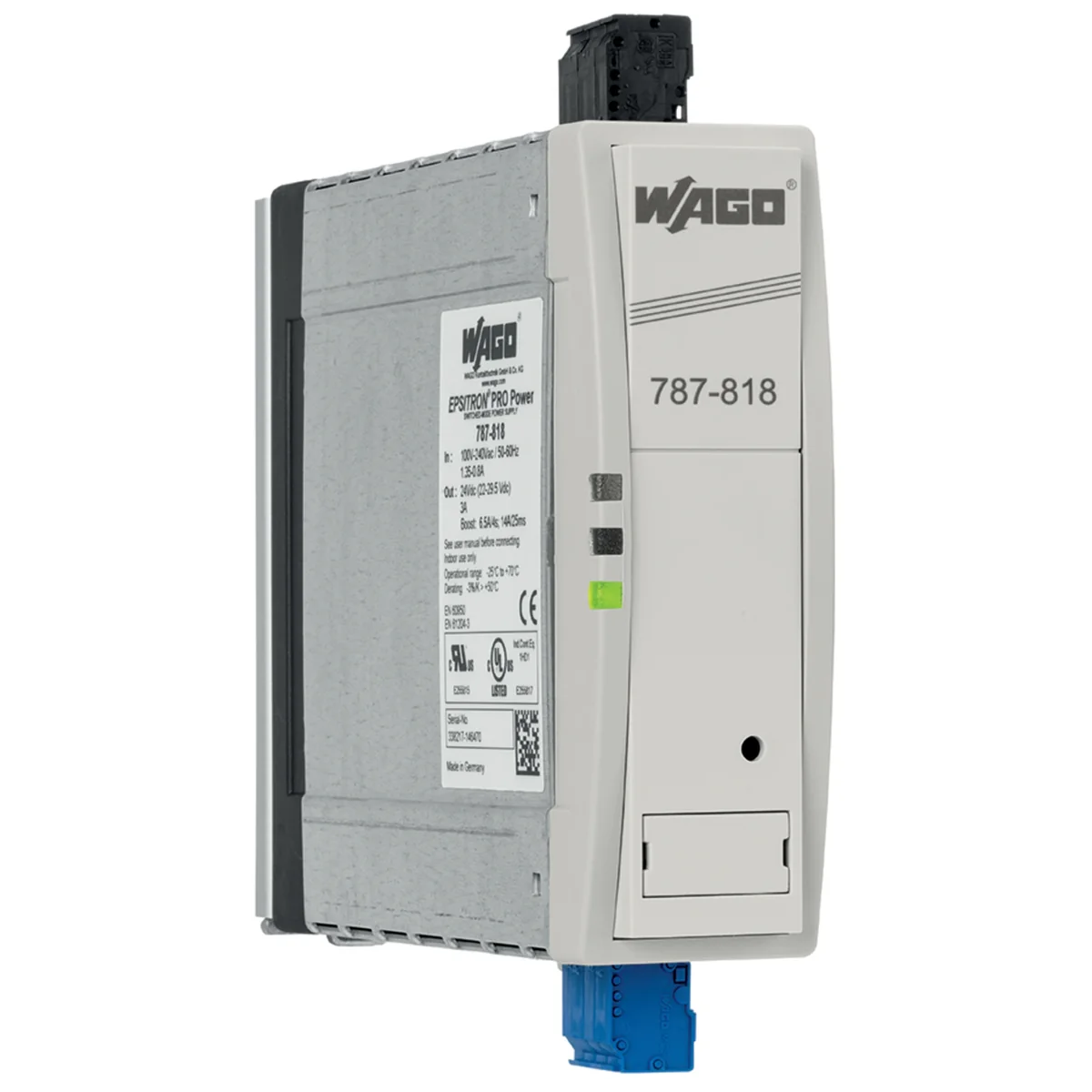

230V/24V 3A power adapter 787-818
local index:
AUU036WAGO
Catalog No:
787-818
EAN code:
4045454998097
Price:
182,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Original clocked power supply with Power Boost and Top Boost. The integrated stand by input ensures controlled output shutdown and reduces power consumption to a minimum. Enclosed for installation in a control cabinet.
Status indication by LED.
Input voltage range 85 - 264 V/AC, 120 - 350 V/DC
Status indication by LED.
Input voltage range 85 - 264 V/AC, 120 - 350 V/DC
Technical data
-
Additional featuresNo-load protection
-
Power [W]72
-
Test voltage [kV]2.2/4.2
-
Switching current [A]thirty
-
Series787
-
Width [mm]12
-
Height[mm]64
-
Depth [mm]100
-
InstallationOn the TH-35 rail
-
leakage current [mA]1
-
Gauge [AWG]28
-
Level of securityIP20
-
Handle1
Other technical data
-
Voltage type (supply voltage)AC/DC
-
Max. output current 13 A
-
Nominal value output voltage 124 V
-
Short-circuit-proofYes
-
Rated supply voltage AC 60 Hz85 ... 264 V
-
Output voltage stabilizedYes
-
Type of electric connectionSpring clamp connection
-
Wall mounting possibleNo
-
Width in number of modular spacings2
-
Width40 mm
-
Depth163 mm
-
Degree of protection (IP)IP20
-
1st secondary output voltage22 ... 29.5 V
-
Secondary voltage adjustableYes
-
Nominal value output current 13 A
-
Rated supply voltage AC 50 Hz85 ... 264 V
-
Rated supply voltage DC120 ... 350 V
-
StabilizedYes
-
Rail mounting possibleYes
-
Modular versionNo
-
Direct mounting possibleNo
-
Height163 mm
-
Suitable for safety functionsNo
Manufacturer details
-
ManufacturerWAGO ELWAG Sp. z o.o.
-
Address50-506 Wrocław Piękna 58A
-
E-mail
-
Tax identification number8961025689
-
GLN4017332000000
Bulk packaging
| A kind of package | Karton |
| Quantity | 1 pcs. |
| Weight (kg) | 1,072 |
| Volume (m3) | 0,000 |
| Width (m) | 0,192 |
| Length (m) | 0,207 |
| Depth (m) | 0,102 |
