Symmetric electric strike with memory low current 280mA for 12VDC OR-EZ-4030

Name: Symmetric electric strike with memory low current 280mA for 12VDC
Brand: ORNO POLSKA
SKU: IEE171ORNO
Price: 76.03 PLN
Availability: InStock

Índice local:

IEE171ORNO

Número de catálogo:

OR-EZ-4030

Código EAN:

5908254803970

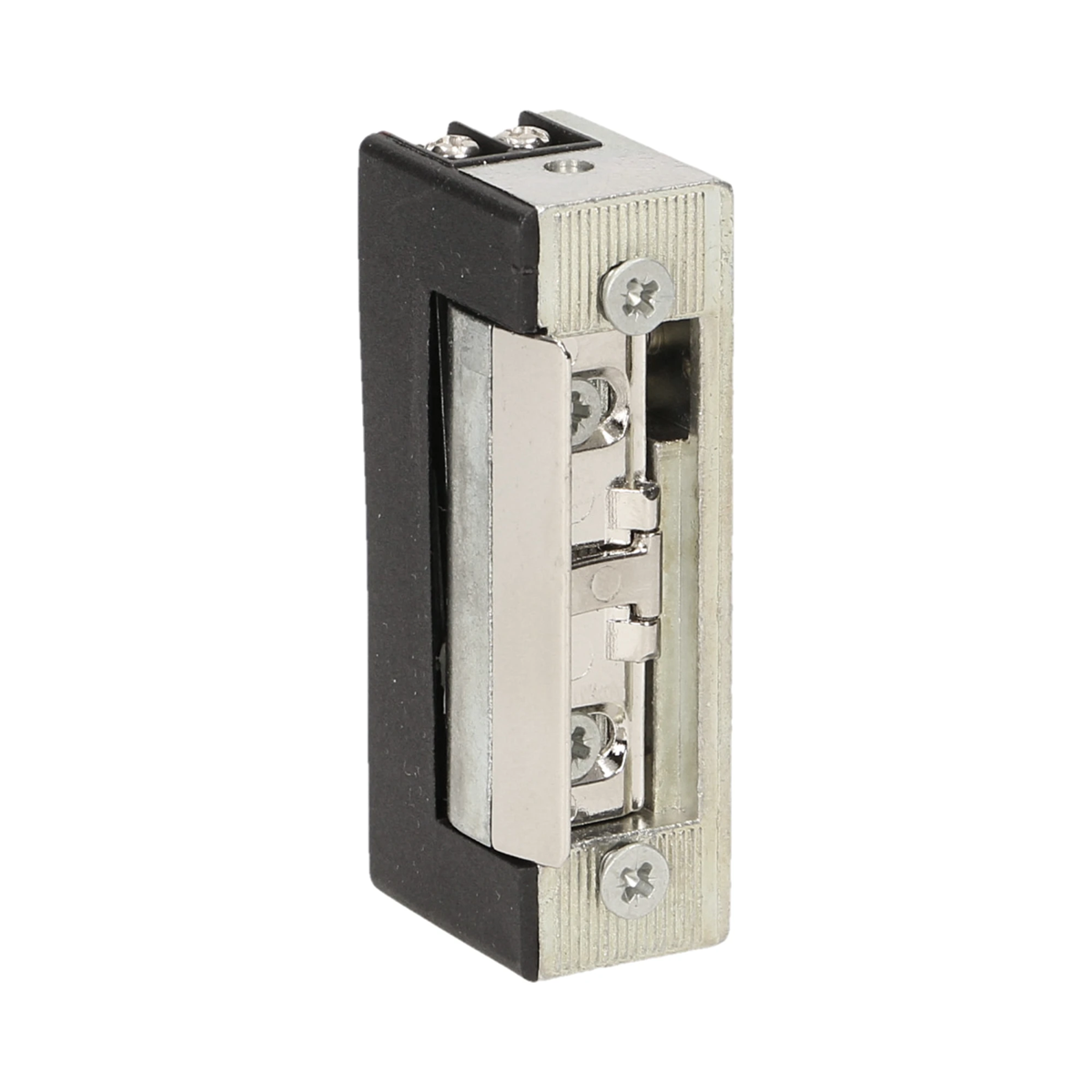

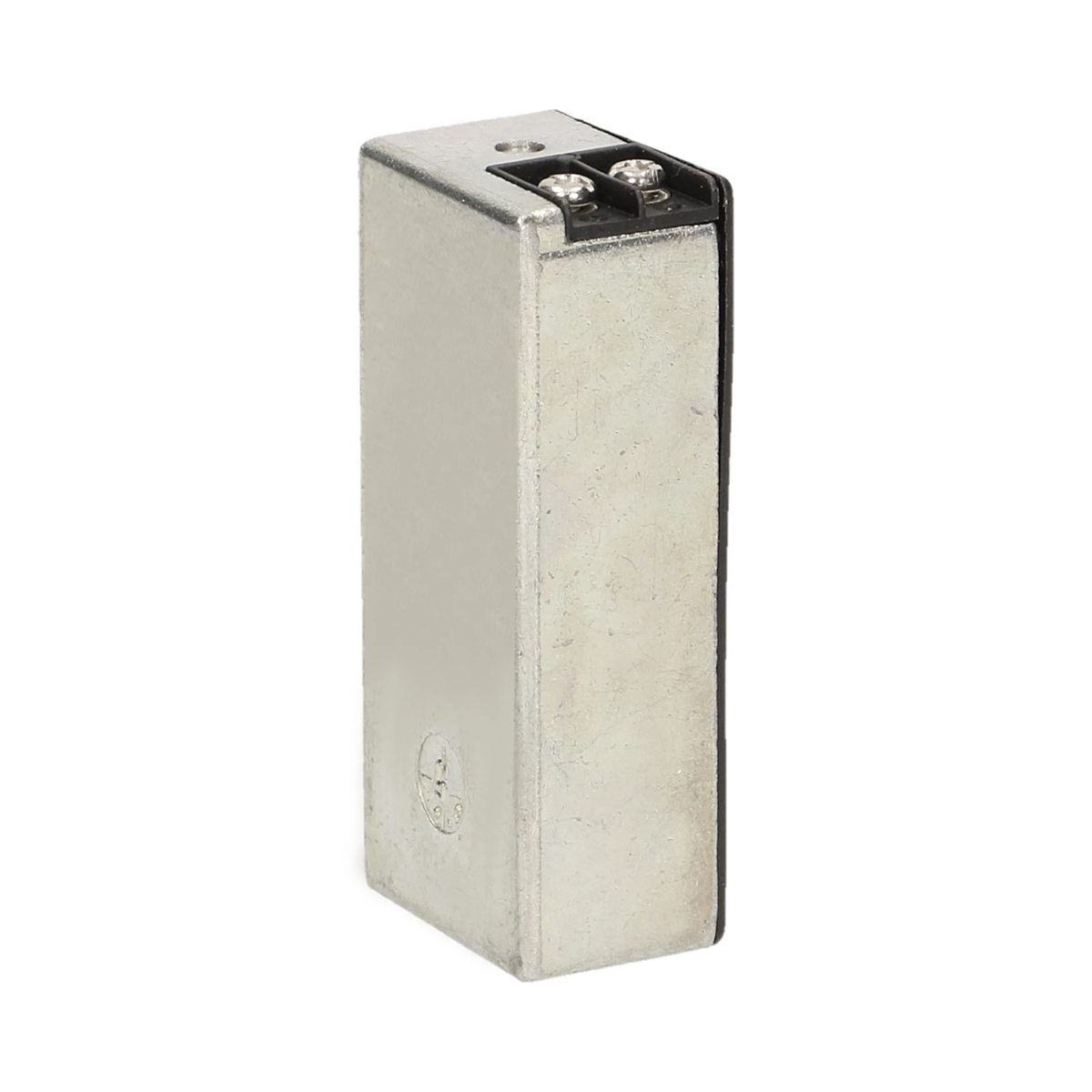

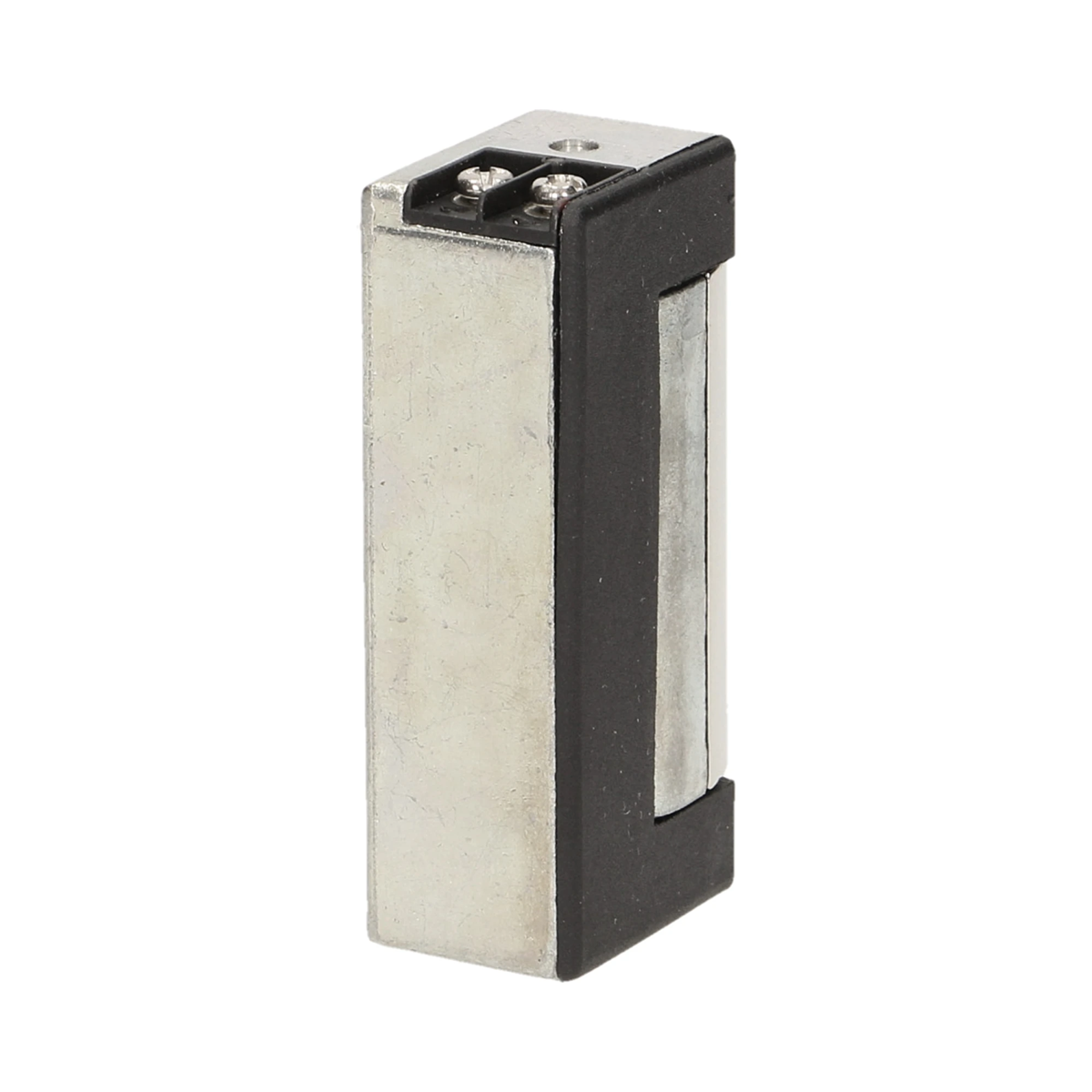

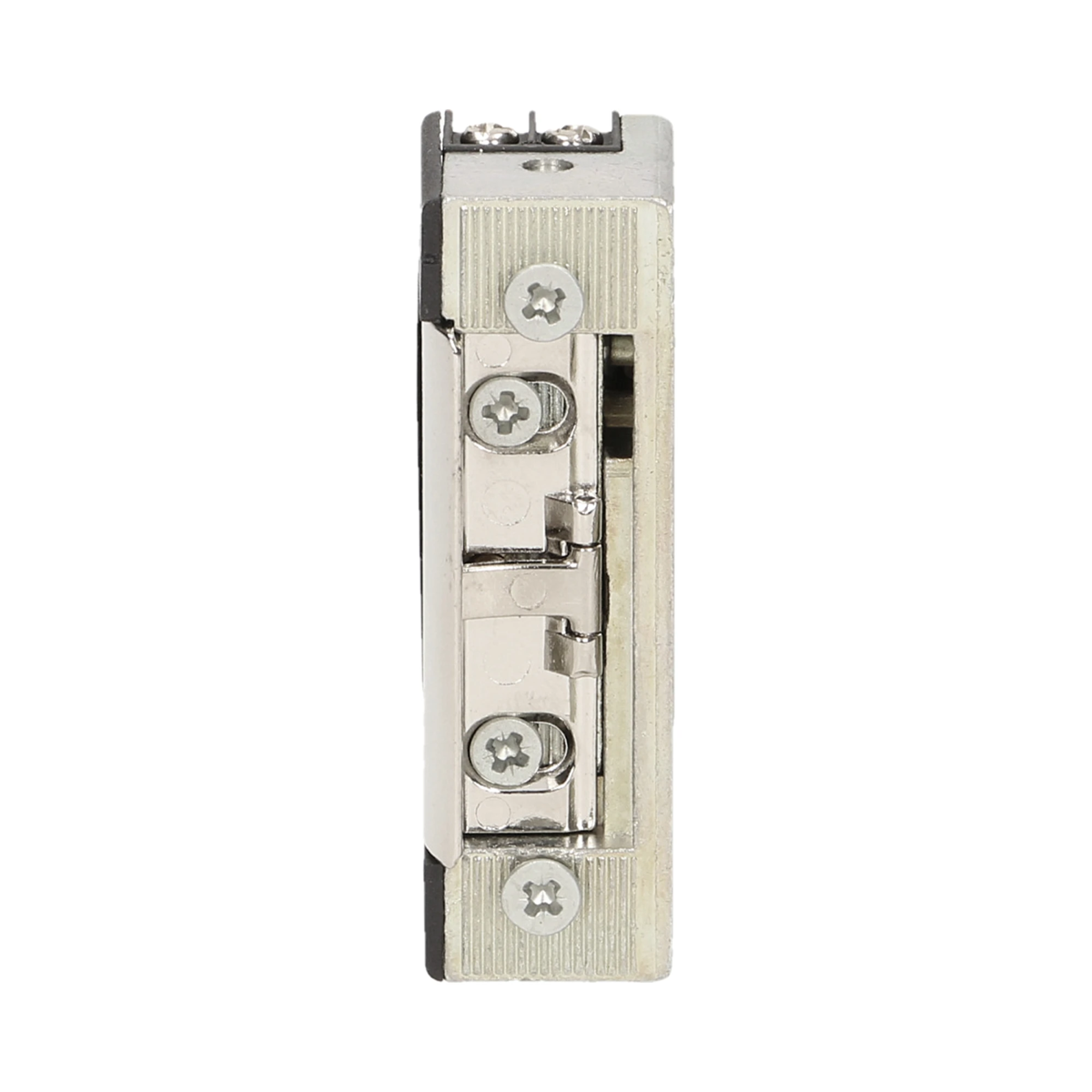

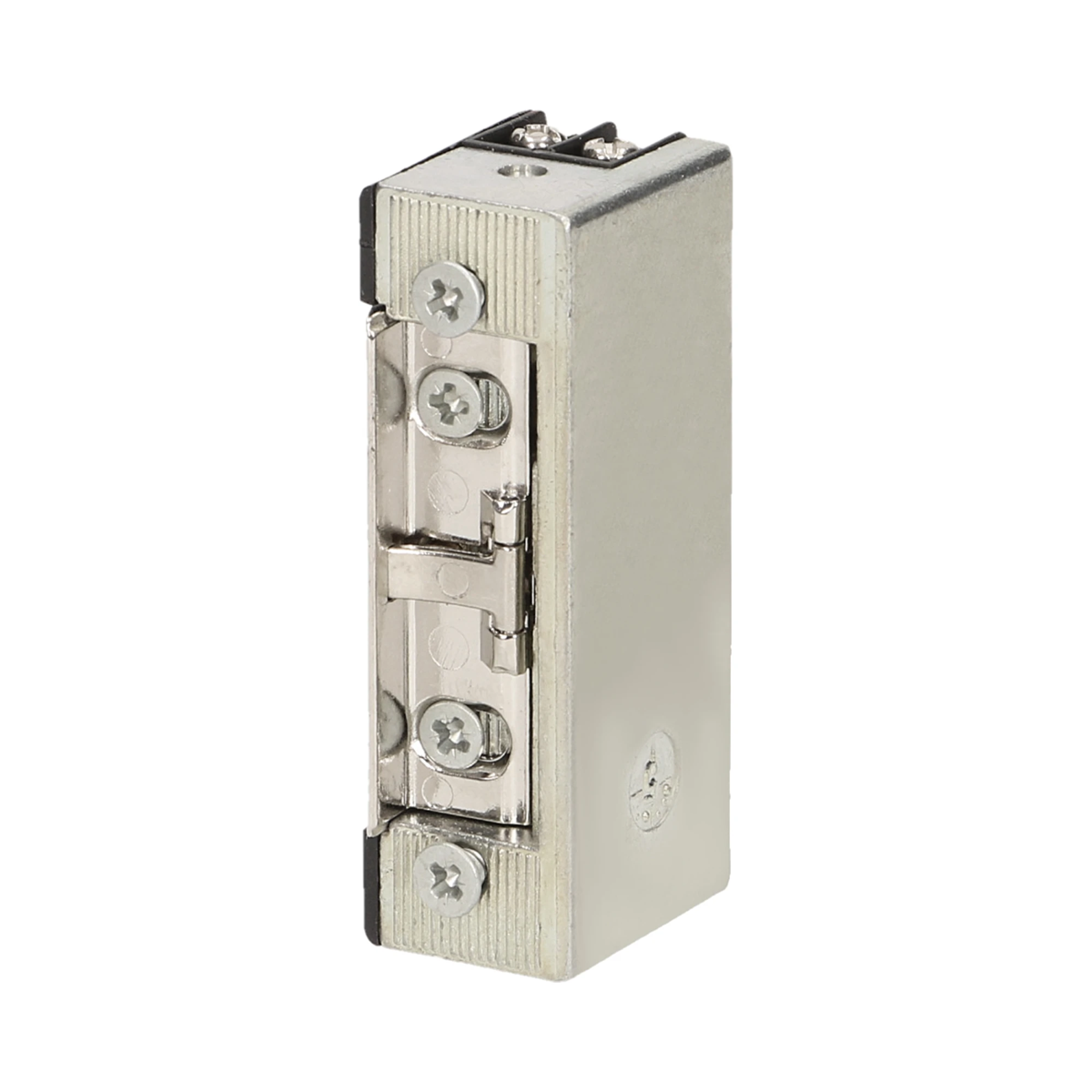

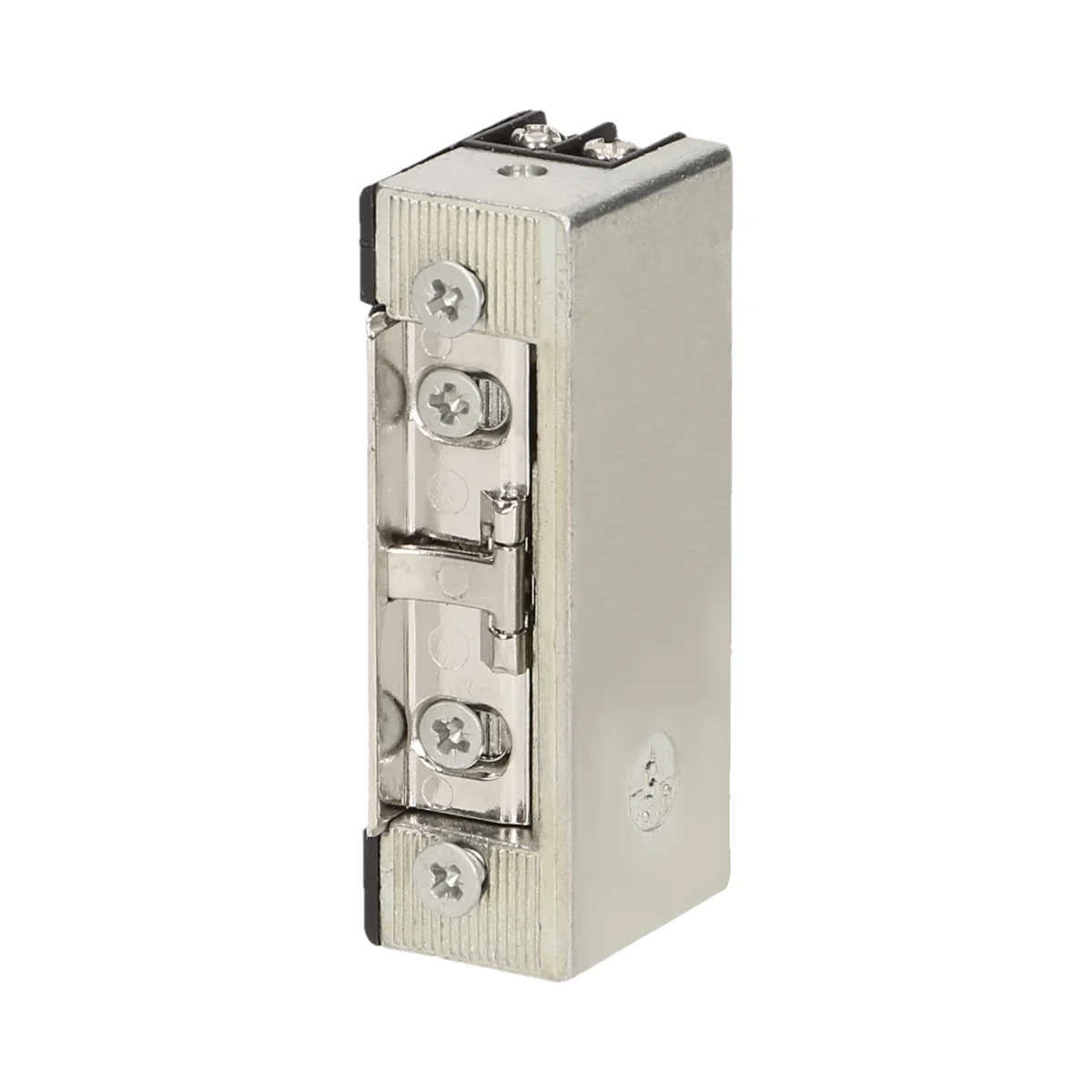

Symmetric electric strike with memory low current 280mA for 12VDC

Haga clic en la foto para ampliar

Fabricante: ORNO POLSKA

Depth [mm]: 21

Width [mm]: 29

Height [mm]: 69

Ver descripción completa

Precio:

76,03 zł

gross / uds.

(IVA incluido 23%)

Accesible 21 uds.

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Archivos para descargar

Descripción del producto

Symmetric electric strike with memory LOW CURRENT from the manufacturer ORNO. The product catalog number is OR-EZ-4030. Electric strike the symmetrical OR-EZ-4030 is equipped with an additional memory function that allows you to control the electric strike by giving a short voltage pulse, after which the latch opening status is maintained mechanically until the door is opened. After closing the door, the latch locks automatically. The electric strike is equipped with a LOW-CURRENT coil with a wide voltage range, consuming a current of 280mA for 12V DC and 250mA for 12V AC.

Current consumption during operation: 280mA / 12VDC.
Opening direction: right/left.
Supply voltage: 10-24 V AC/DC.
