SAGITTA MULTI Two-family intercom set, 2-wire, surface-mounted, white OR-DOM-SG-919

local index:
IEE004ORNO
Catalog No:
OR-DOM-SG-919
EAN code:
5901752484092
Manufacturer: ORNO POLSKA
External panel depth [mm]: thirty
Uniphone depth [mm]: 40
Color: White
Price:
107,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The OR-DOM-SG-919 SAGITTA MULTI intercom set is intended for installation in two-family houses with two flats. It has the option of creating a 2, 3 or 4 family system.
The great advantage of this set is the two-wire installation between the uniphones and the external panel (there is no need to additionally power the electric strike).
The device has all the basic functions of the intercom, additionally enables for controlling the automatic gate.

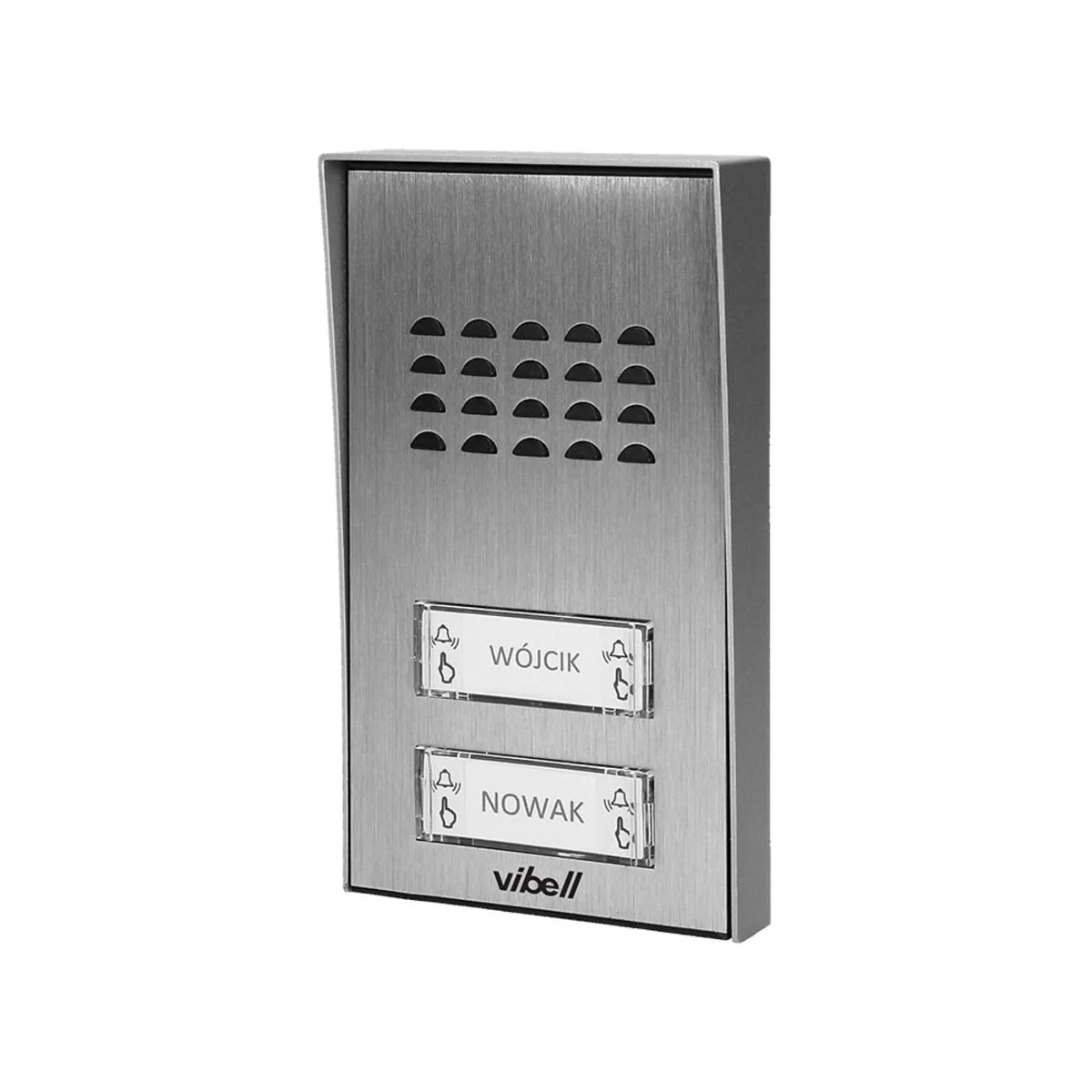

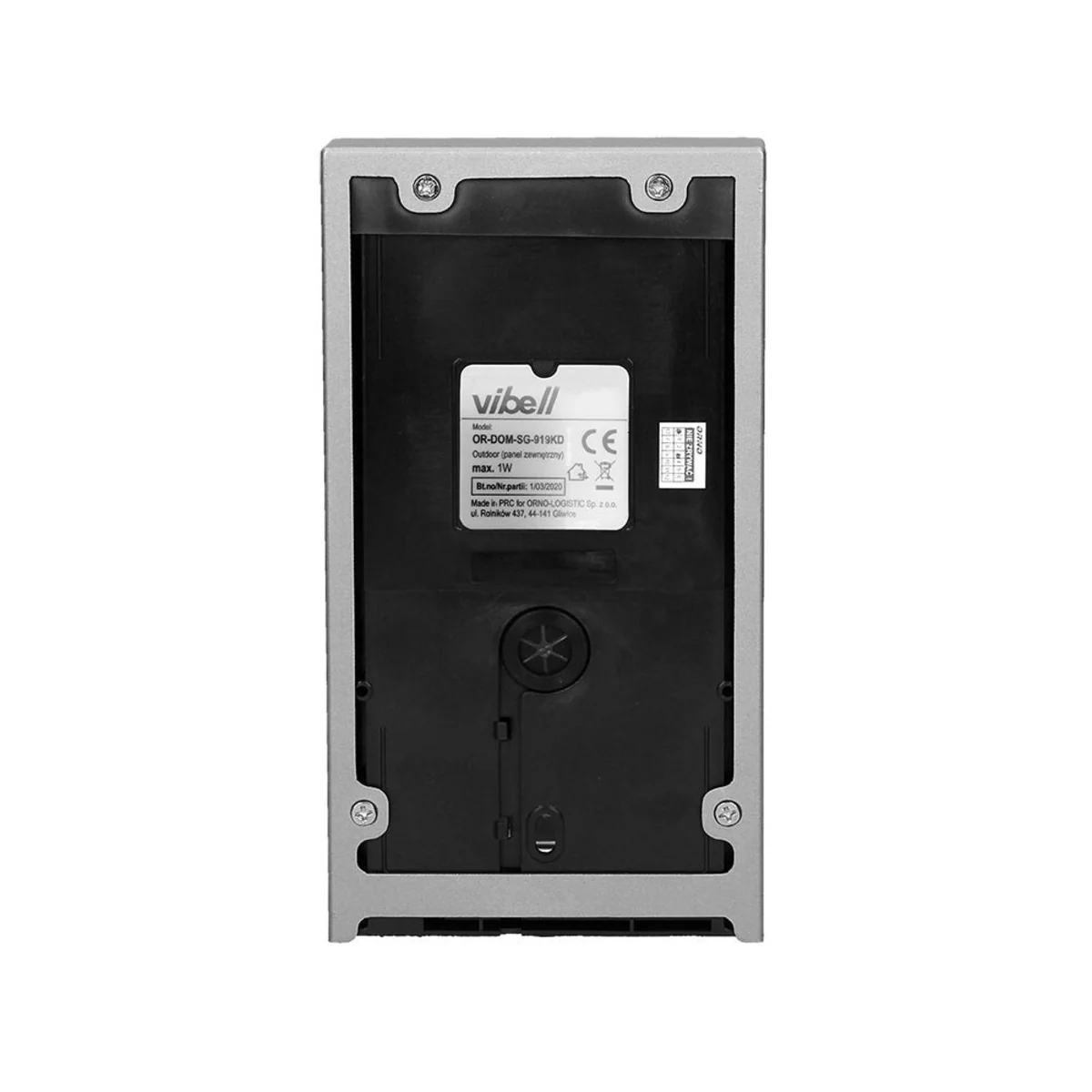

External panel:
  • surface mounting (protective roof included)
  • direct control of the electric strike
  • electric strike not required additional power supply
  • backlit namespace
  • dimensions: 96 x 180 x 30 mm (width/height/depth)

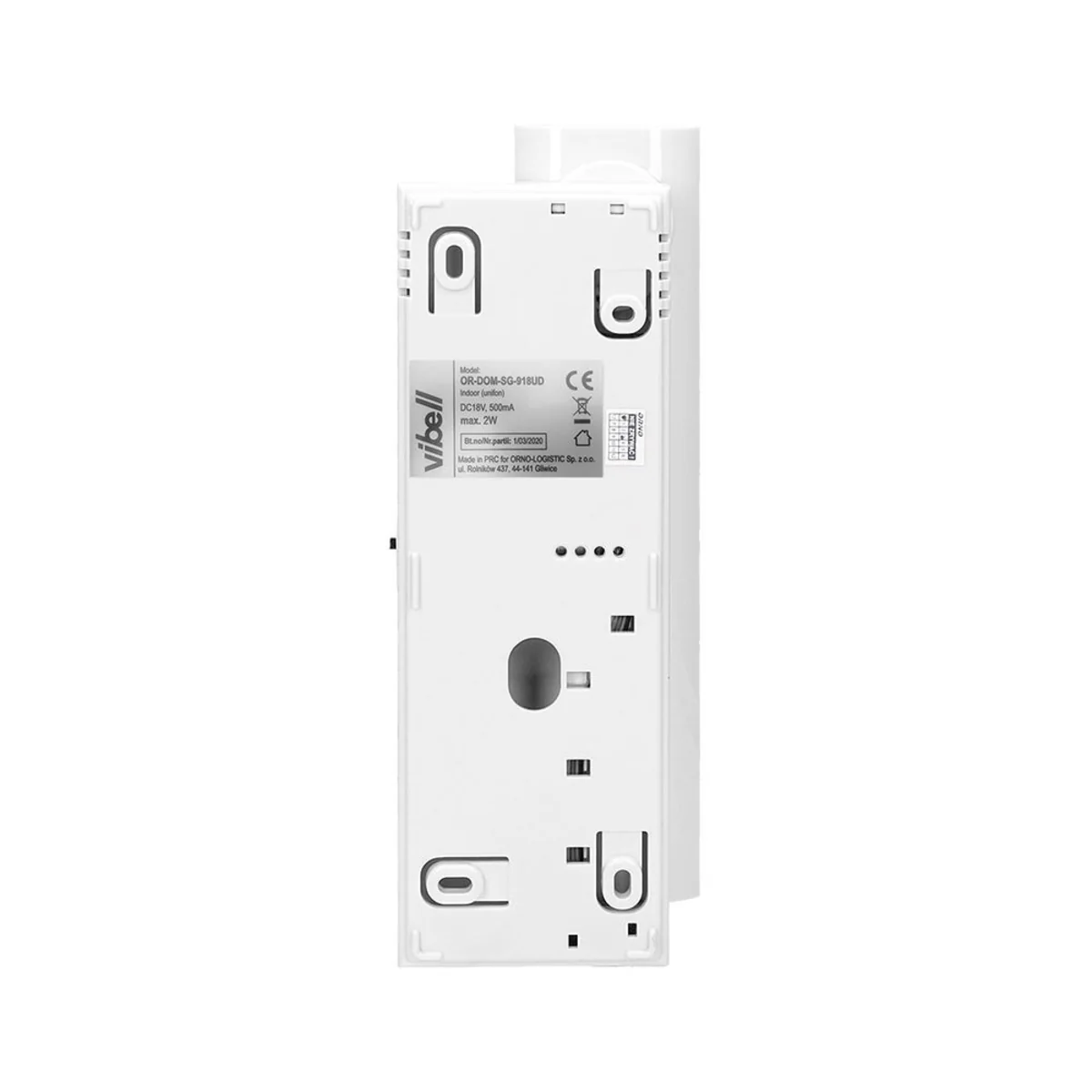

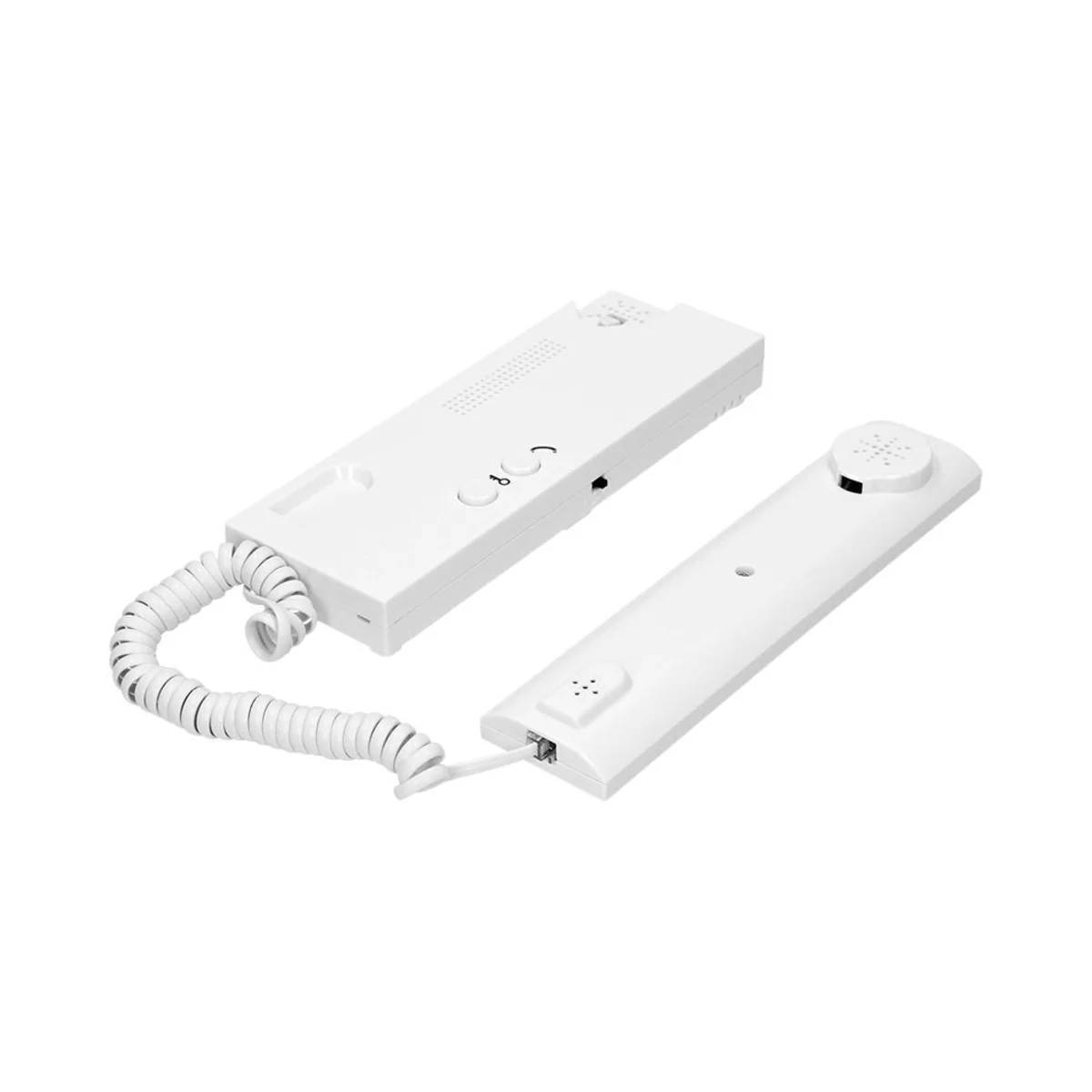

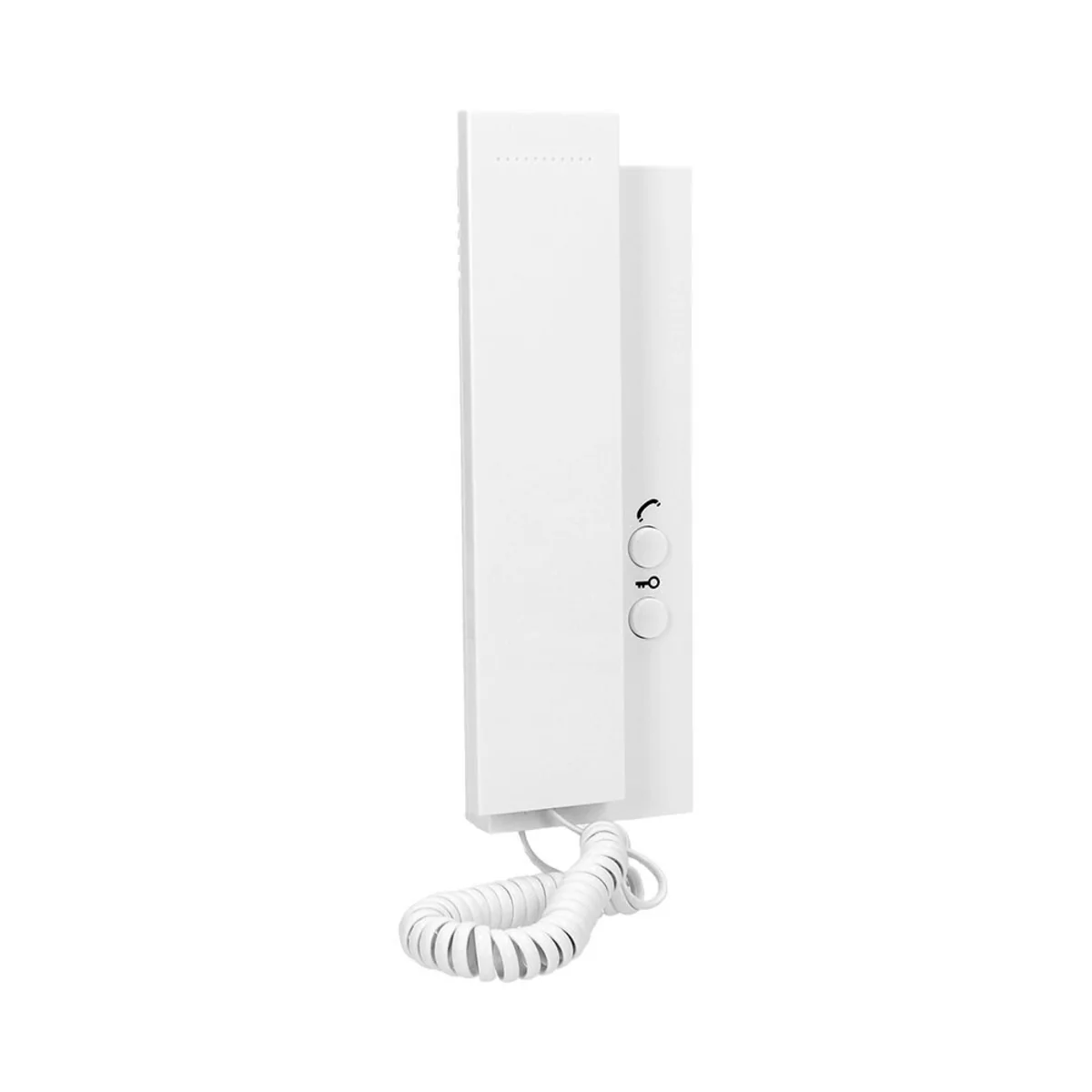

< br />Uniphone:

  • 2-wire connection
  • additional gate control
  • ringer volume adjustment
  • intercom function (in within one subscriber) after using an additional uniphone
  • dimensions: 70 x 210 x 40 mm (width/height/depth)


Intercom set SAGITTA MULTI consists of:

  • external panel (cassette) - 1 pc.
  • protective roof - 1 pc.
  • uniphone - 2 pcs.
  • 18V DC power supply for DIN rail - 1 pc.

Technical data

  • External panel depth [mm]
    thirty
  • Color
    White
  • External panel width [mm]
    96
  • Type
    Intercoms
  • Uniphone height [mm]
    210
  • PKWIU
    26.30.23.0
  • Uniphone depth [mm]
    40
  • Family
    SAGITTA MULTI
  • Uniphone width [mm]
    70
  • External panel height [mm]
    180
  • Power
    18V DC power adapter
