ELUVIO Single-family intercom set, handsfree, black OR-DOM-RE-914/B

local index:
IEE027ORNO
Catalog No:
OR-DOM-RE-914/B
EAN code:
5901752483903
Manufacturer: ORNO POLSKA
External panel depth [mm]: 41.5
Uniphone depth [mm]: 26
Color: Gray
Price:
46,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

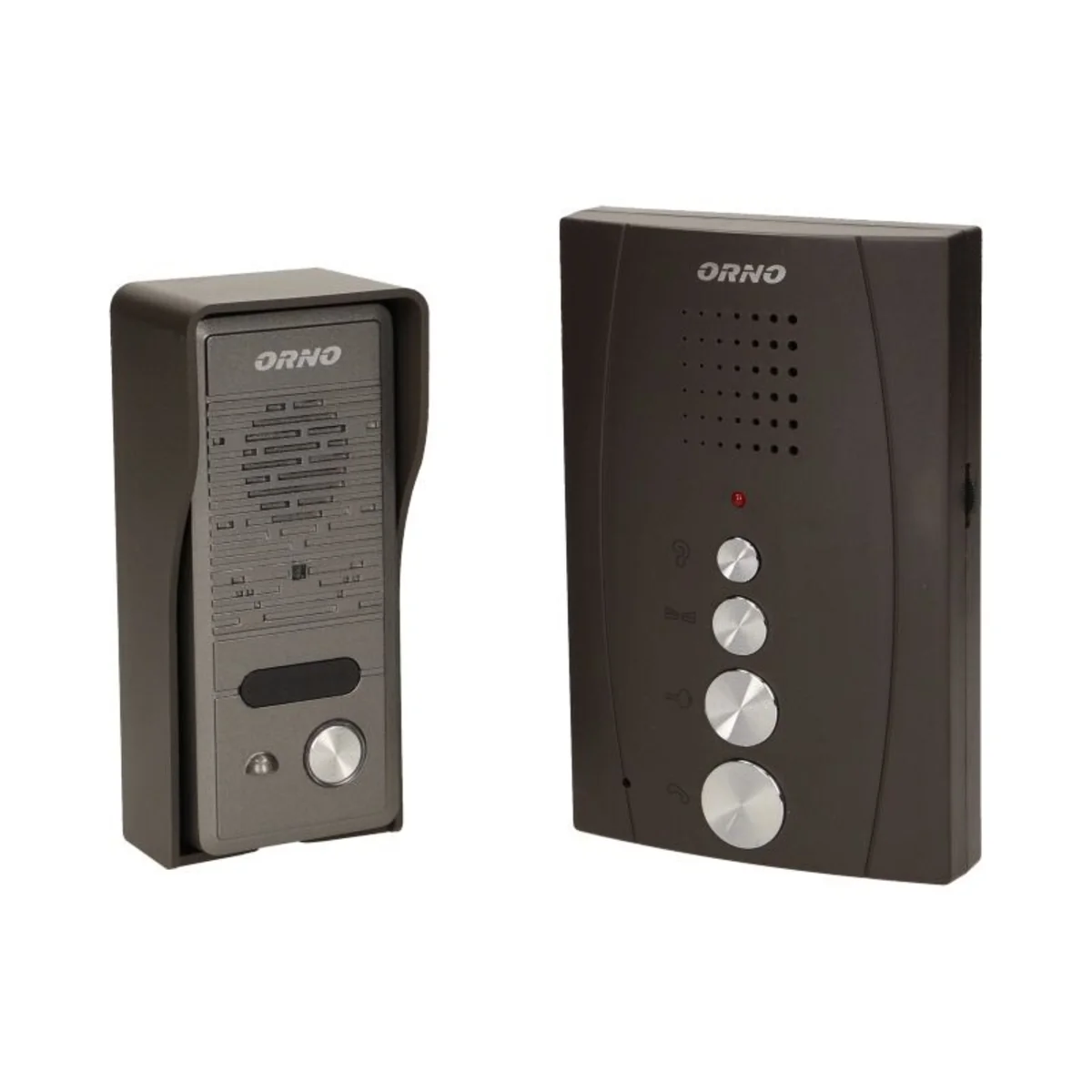

Intercom set OR-DOM-RE-914 -Orno Polska- This intercom set is designed for single-family houses. The set is equipped with a speakerphone (handsetless). The gate cassette is characterized by quick and easy surface mounting. The cassette in the OR-DOM-RE-914 set is made of aluminum resistant to external weather conditions. The intercom set is connected using four wires (electric strike powered directly from the cassette). The Orno Polska OR-DOM-RE-914 set consumes a minimum amount of electricity in standby mode.

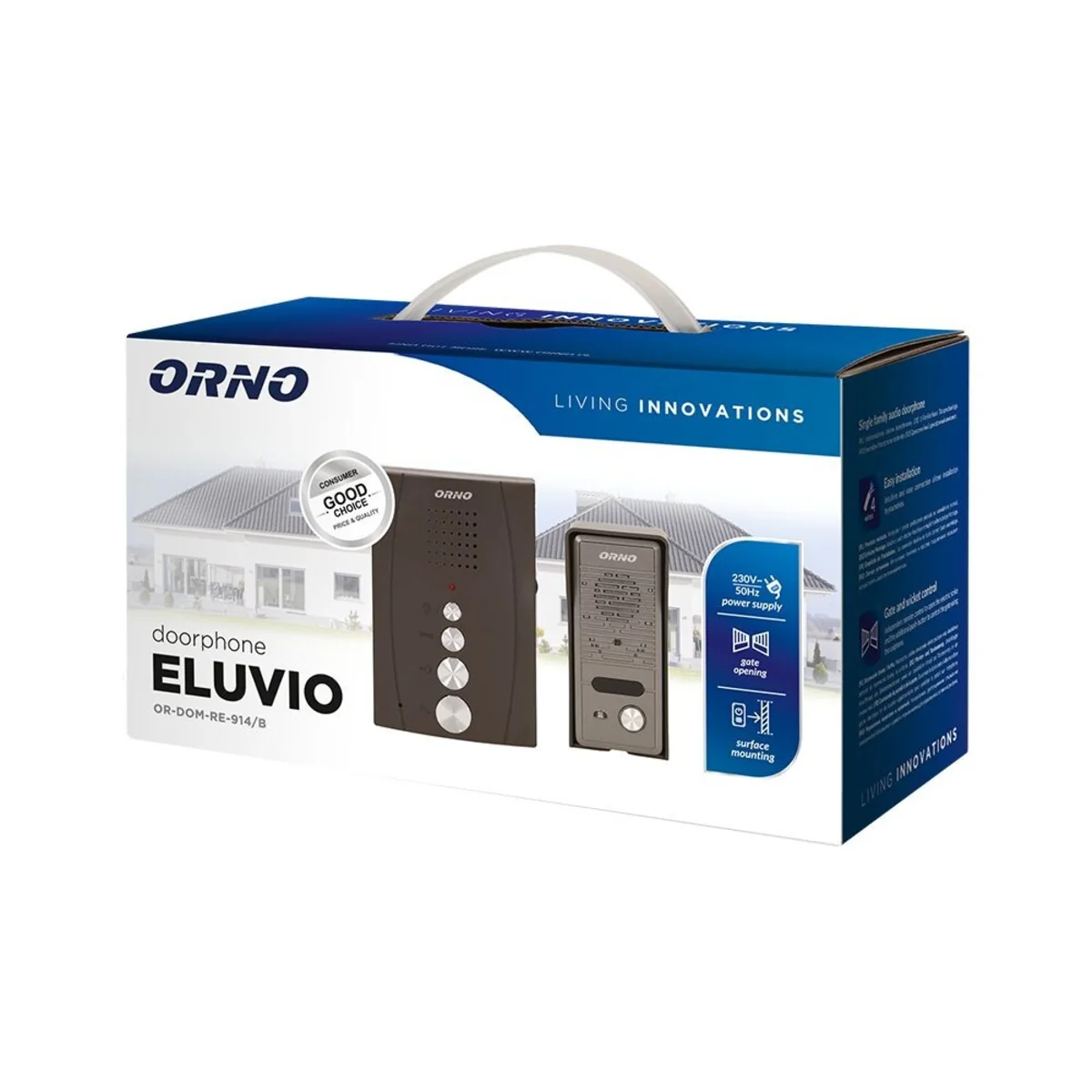

The Orno OR-DOM-RE-914 intercom set includes:
  • OR-DOM-RE-914UD - Interphone uniphone three-wire - 1 pc.
  • OR-DOM-RE-914KD - Doorphone cassette with aluminum casing - 1 pc.
  • Protective roof - for surface mounting - 1 pc.

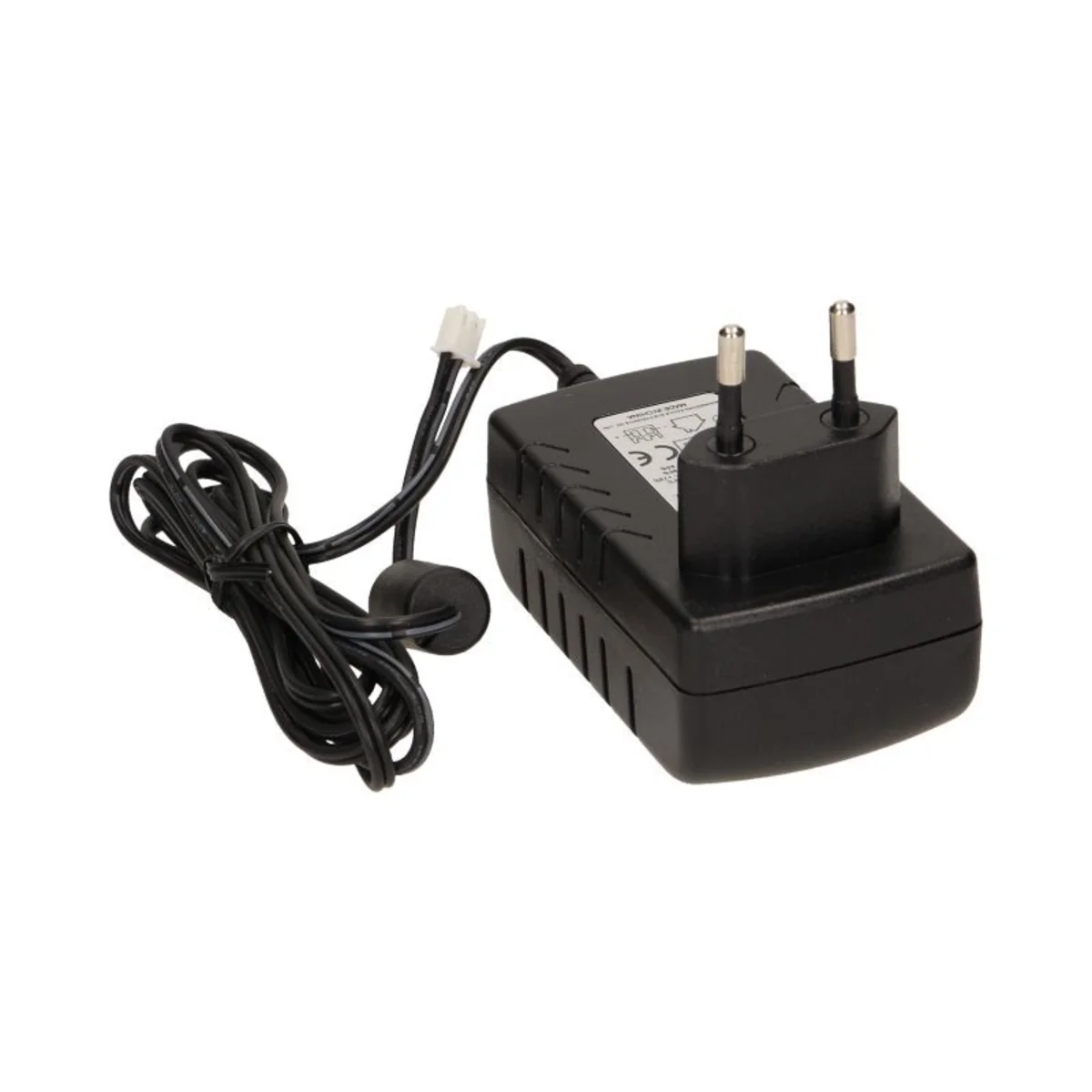

  • 12V/1A DC power supply - 1 pc.

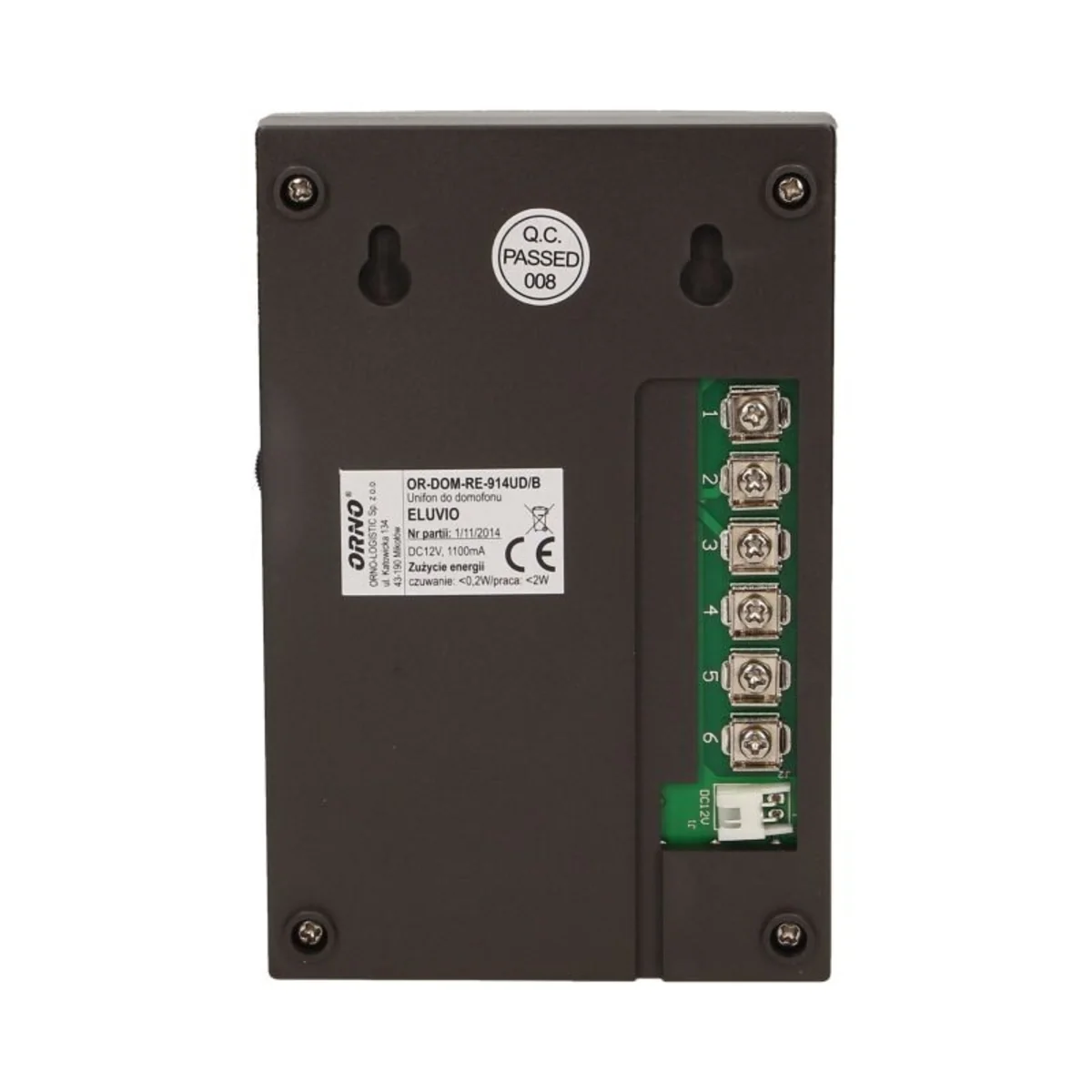

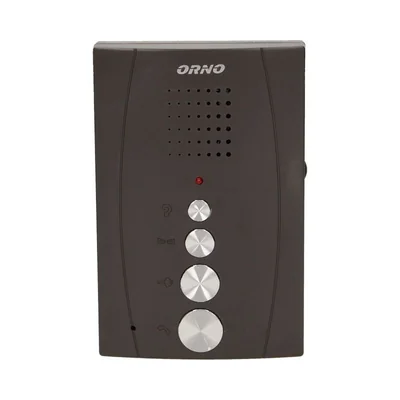

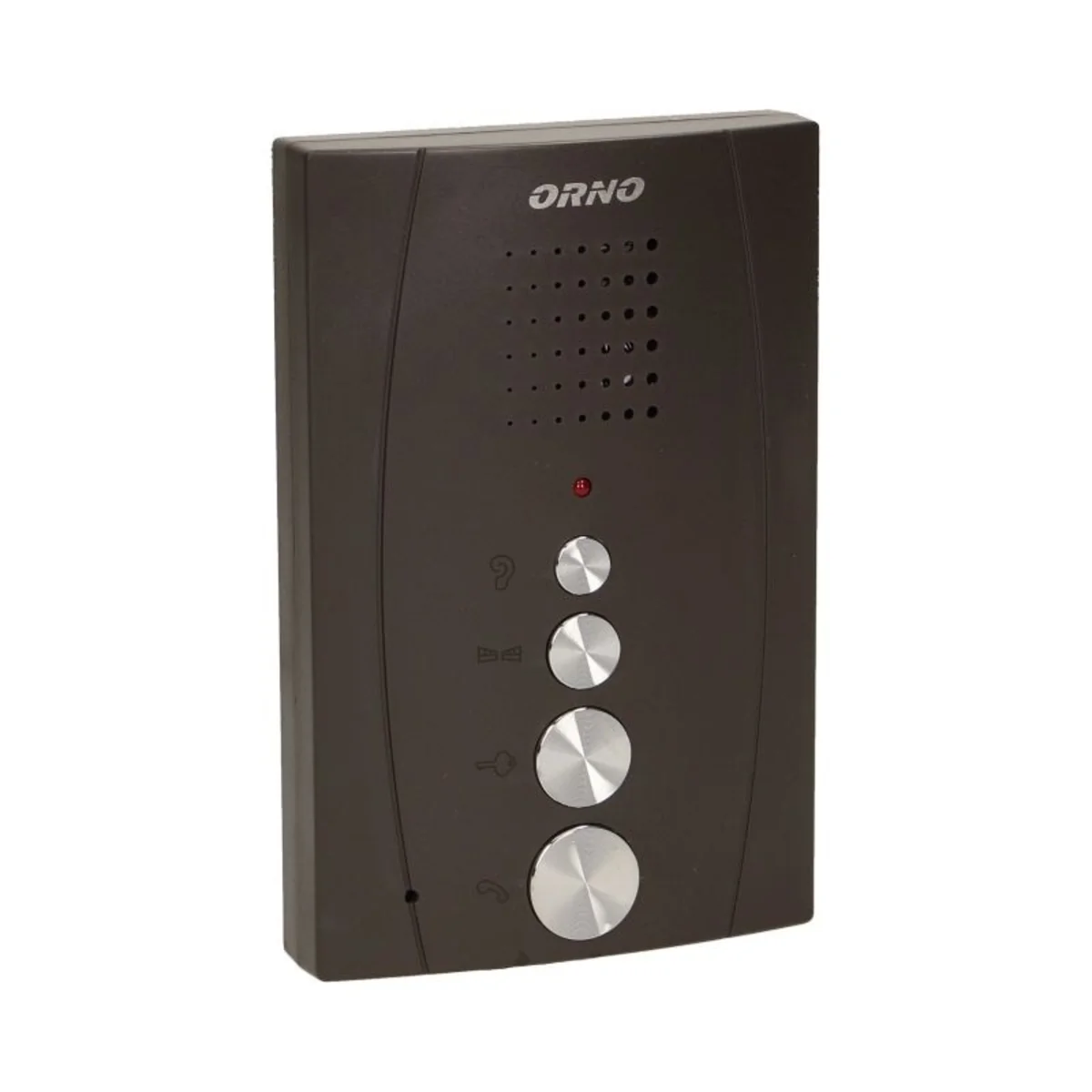

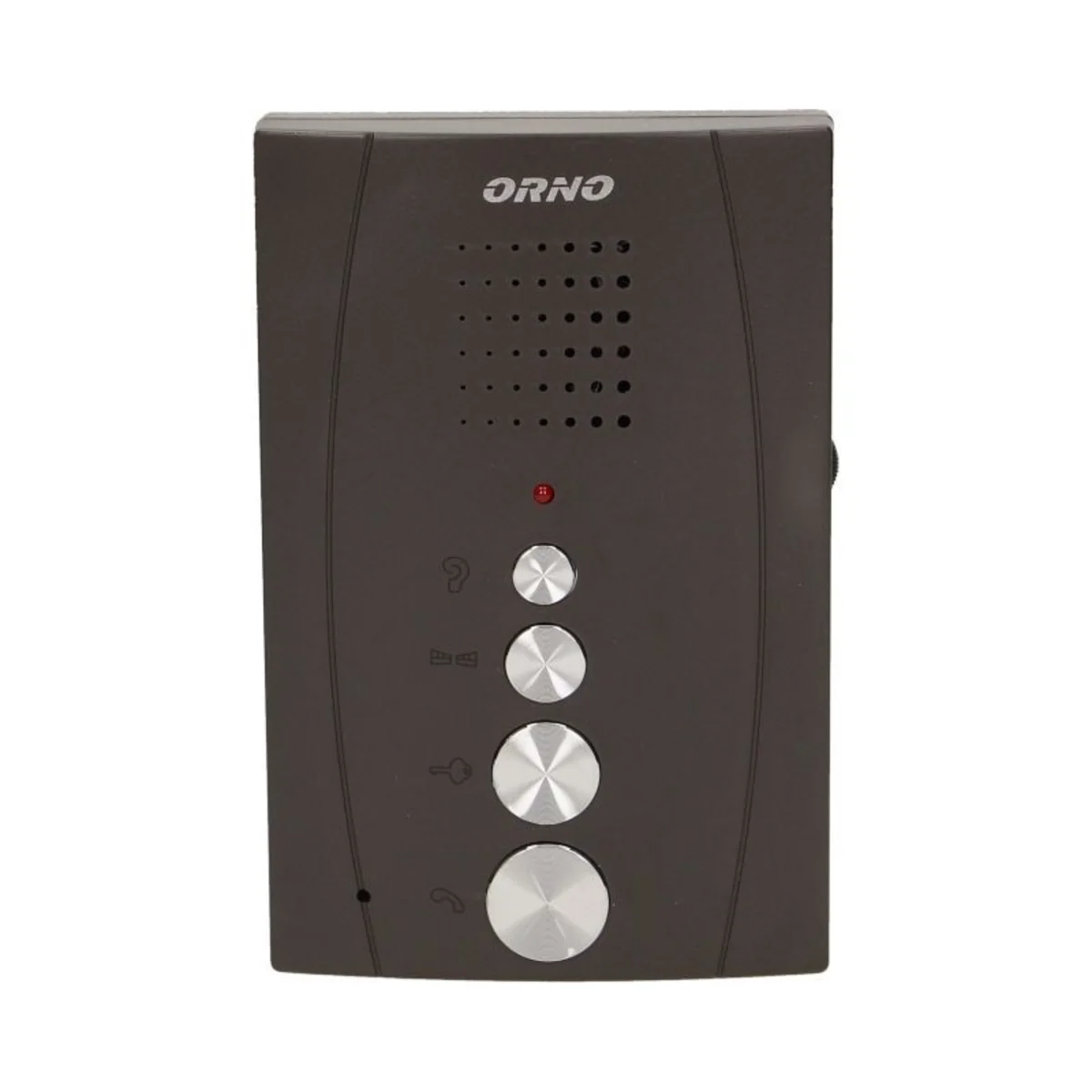

Orno OR-DOM-RE-914UD interphone
OR-DOM-RE-914UD - Uniphone Orno Polska hands-free (handsetless) made of high-quality white plastic, which ensures good durability of the device. The OR DOM RE 914UD uniphone works in a four-wire system (the electric door strike is powered from the cassette).
The most important parameters of the OR DOM RE 914UD:

  • speakerphone
  • system 4 wired (electric door strike powered from the cassette)
  • small dimensions of the device, thin plastic housing in white color
  • automatic gate control function (swing gate, sliding gate, garage gate)
  • smooth volume control
  • powered by 12VDC adapter (included in the set)
  • dimensions: 90 x 137 x 26 mm

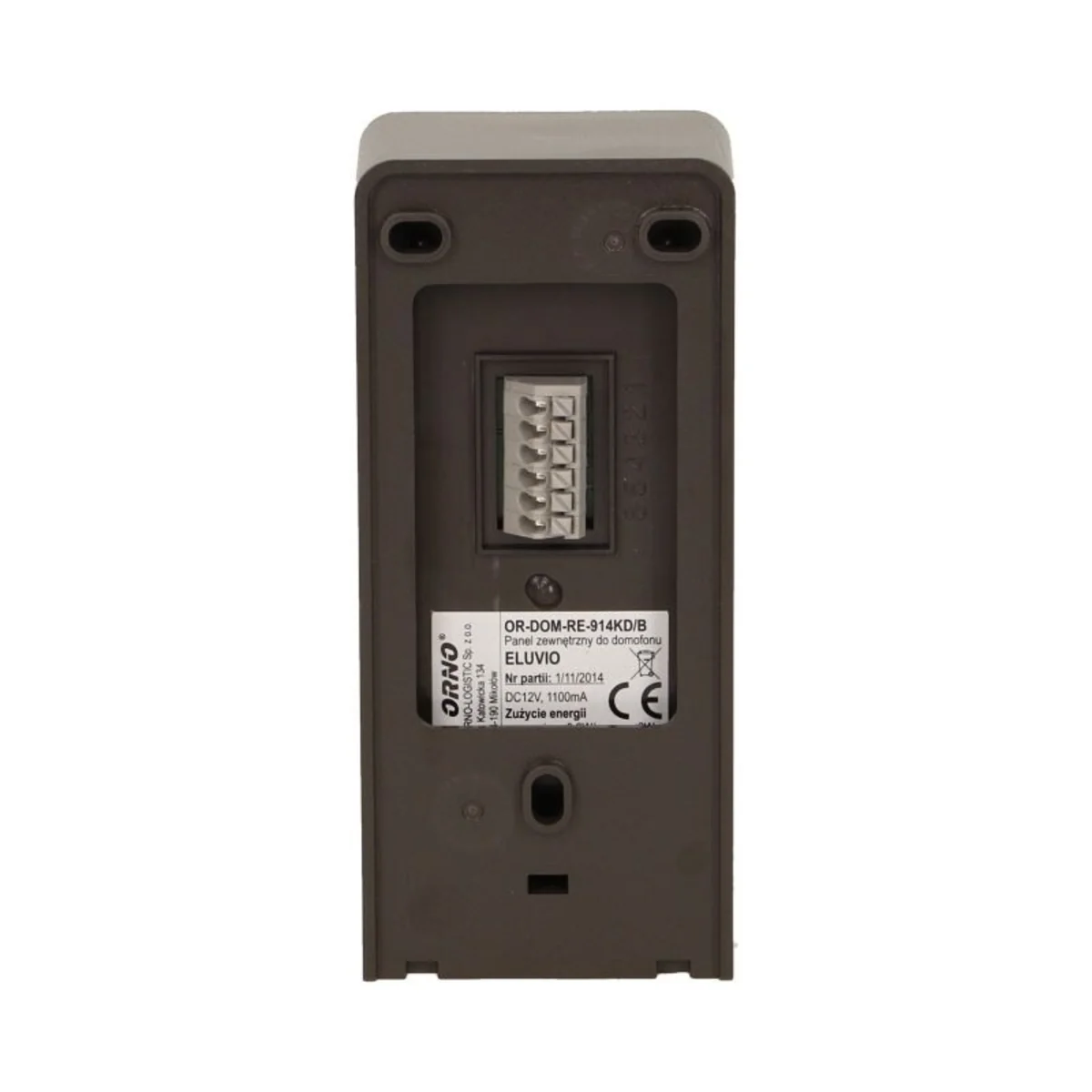

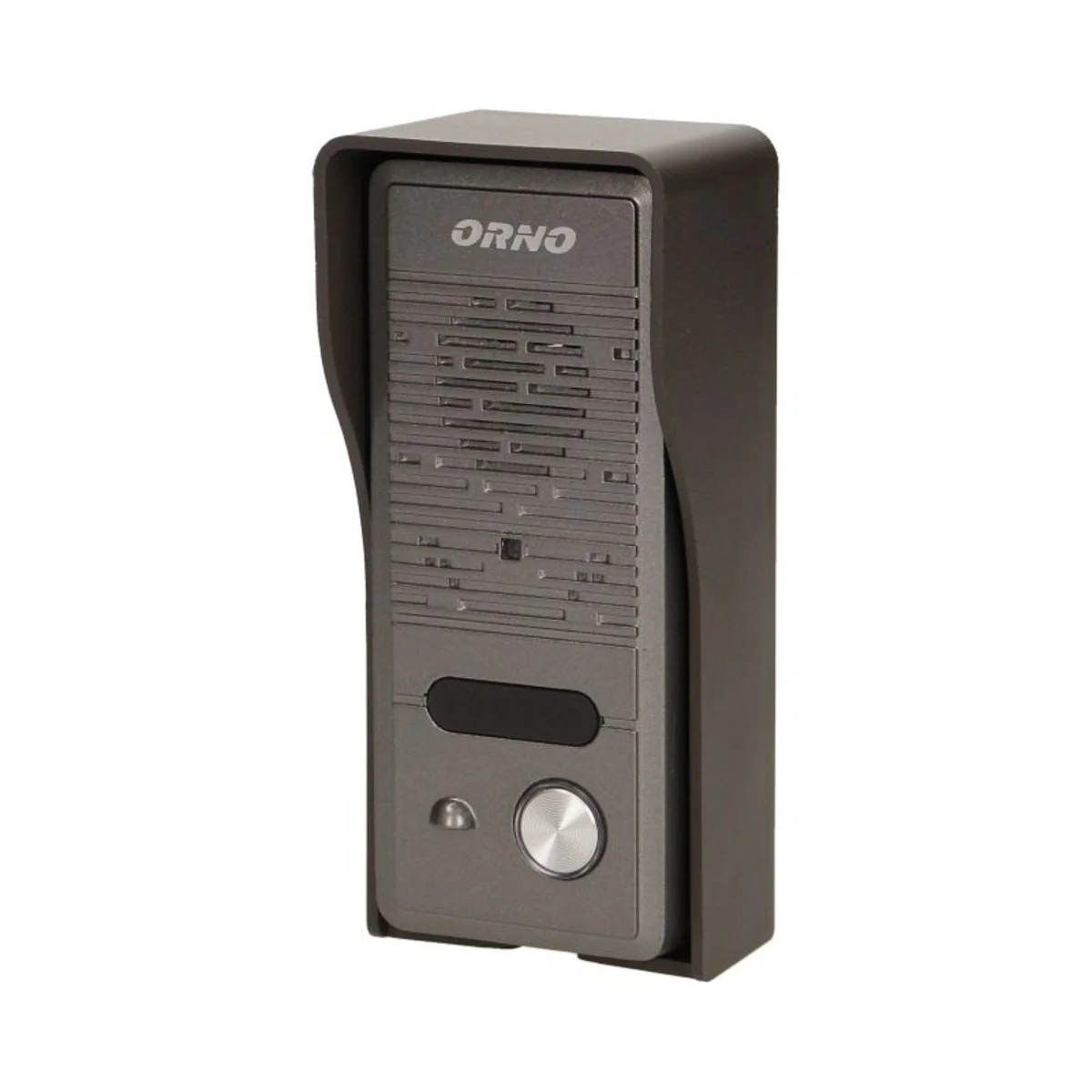

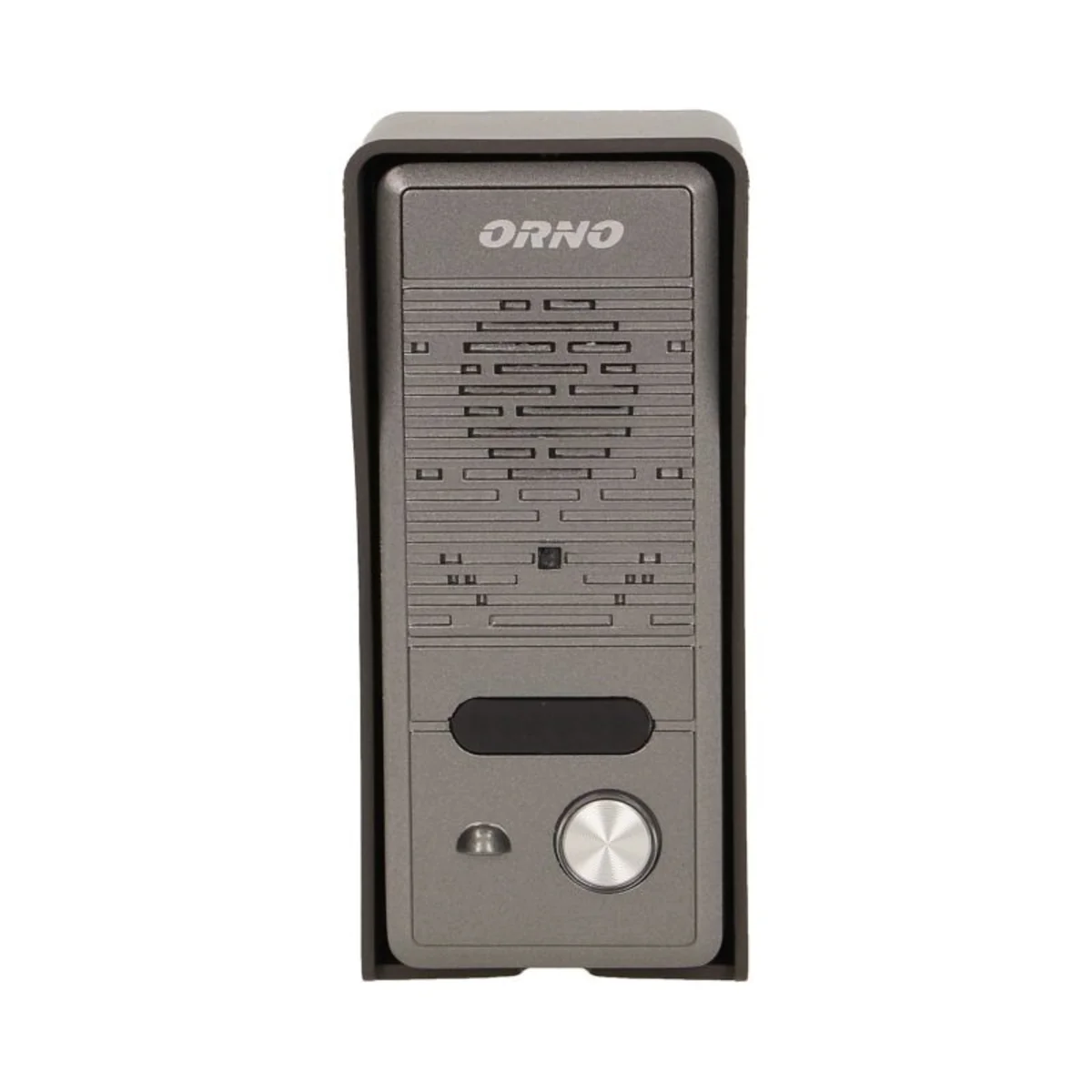

Doorphone cassette OR-DOM-RE-914KD
The doorphone cassette OR DOM RE 914KD Orno Polska is adapted for surface mounting. The set includes a protective roof that extends the life of the device. The housing is made of aluminum, which ensures resistance to harsh weather conditions. OR-DOM-RE-914KD consumes a small amount of electricity in standby mode.
The most important parameters of OR-DOM-RE-914KD:

  • casing made of aluminum
  • quick and easy surface mounting
  • electric strike powered and controlled directly from the cassette
  • dimensions: 56 x 124 x 41.5 mm

Technical data

  • External panel depth [mm]
    41.5
  • Color
    Gray
  • External panel width [mm]
    56
  • Type
    Intercoms
  • Uniphone height [mm]
    137
  • PKWIU
    26.30.23.0
  • Uniphone depth [mm]
    26
  • Family
    ELUVIA
  • Uniphone width [mm]
    90
  • External panel height [mm]
    124
  • Power
    12V DC power supply
