DB-THERMO demo board WMPLDBTHERMO

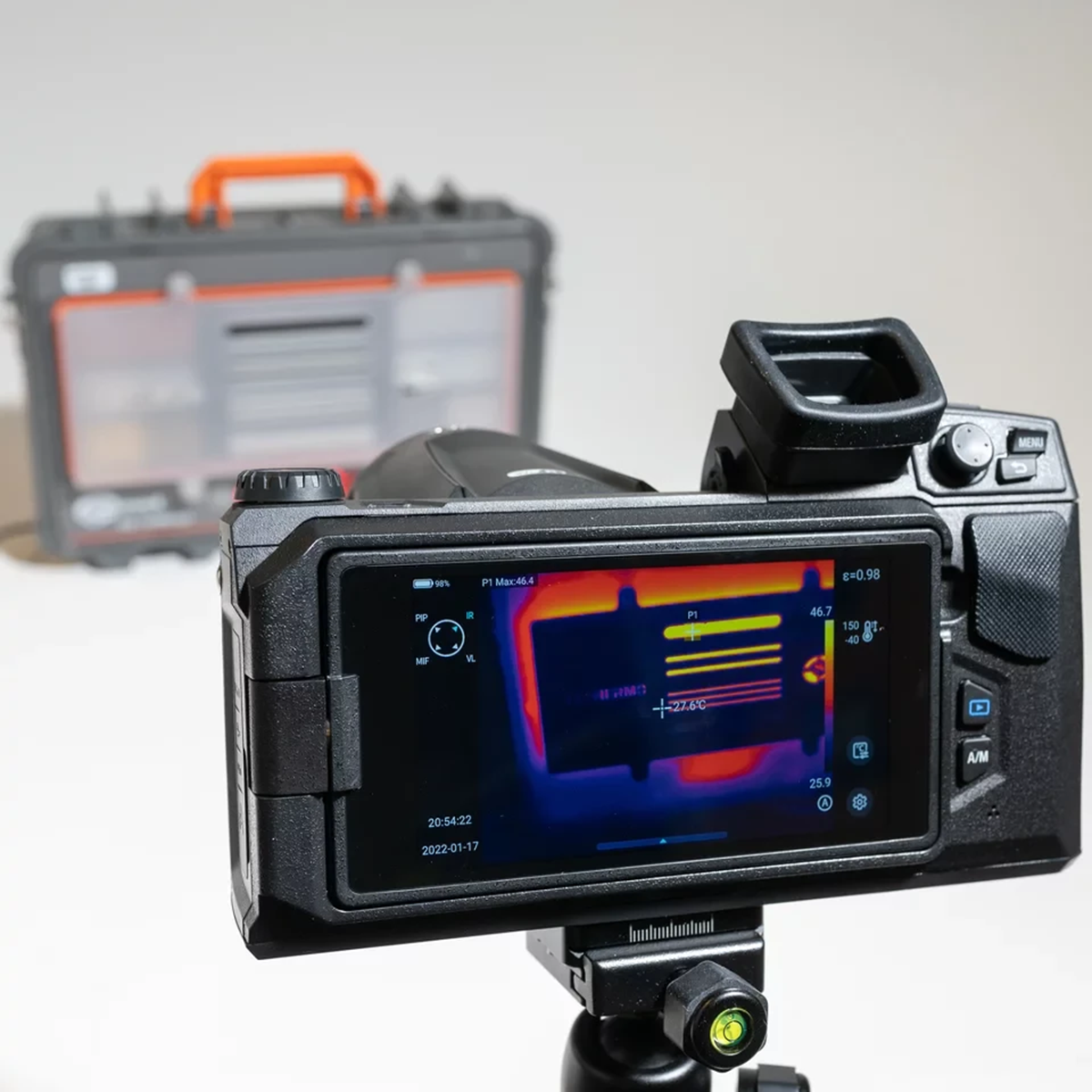

The DB-THERMO board is an indispensable device during any training in temperature measurement using the non-contact method, and in the field of thermal imaging with the use of thermal imaging cameras. DB-THERMO allows you to understand the phenomena related to the emissivity of various materials and the impact of the type of surface on the temperature measurement.

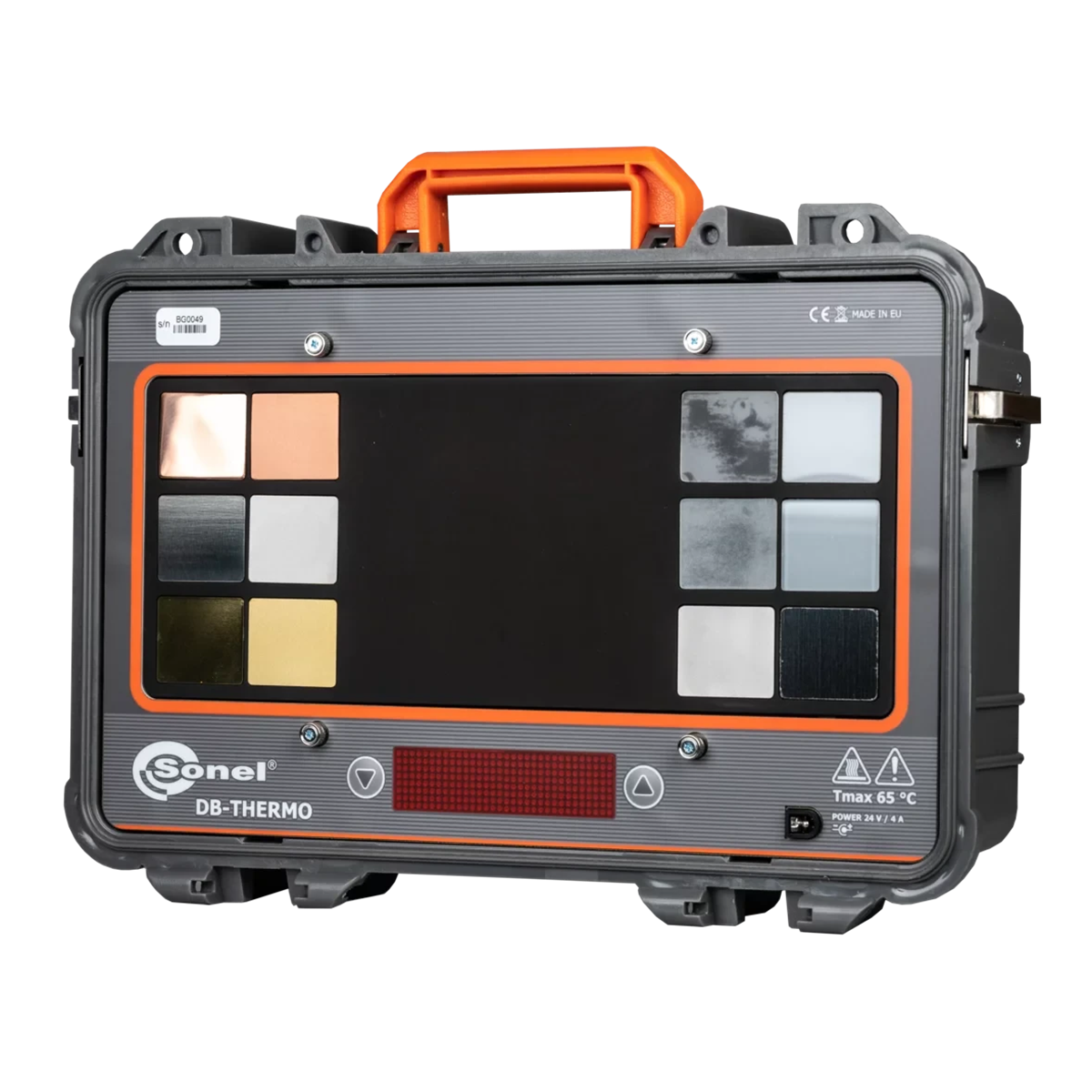

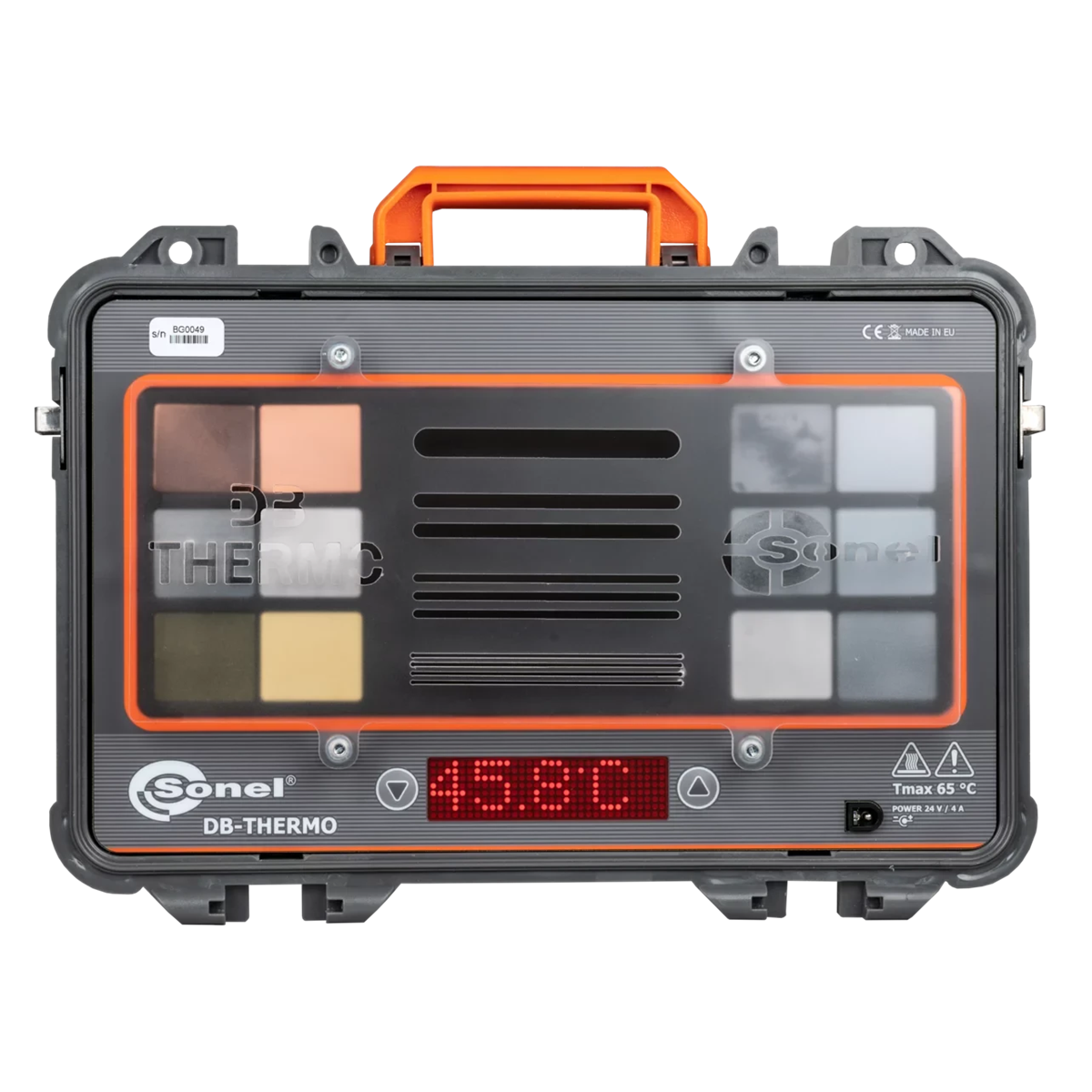

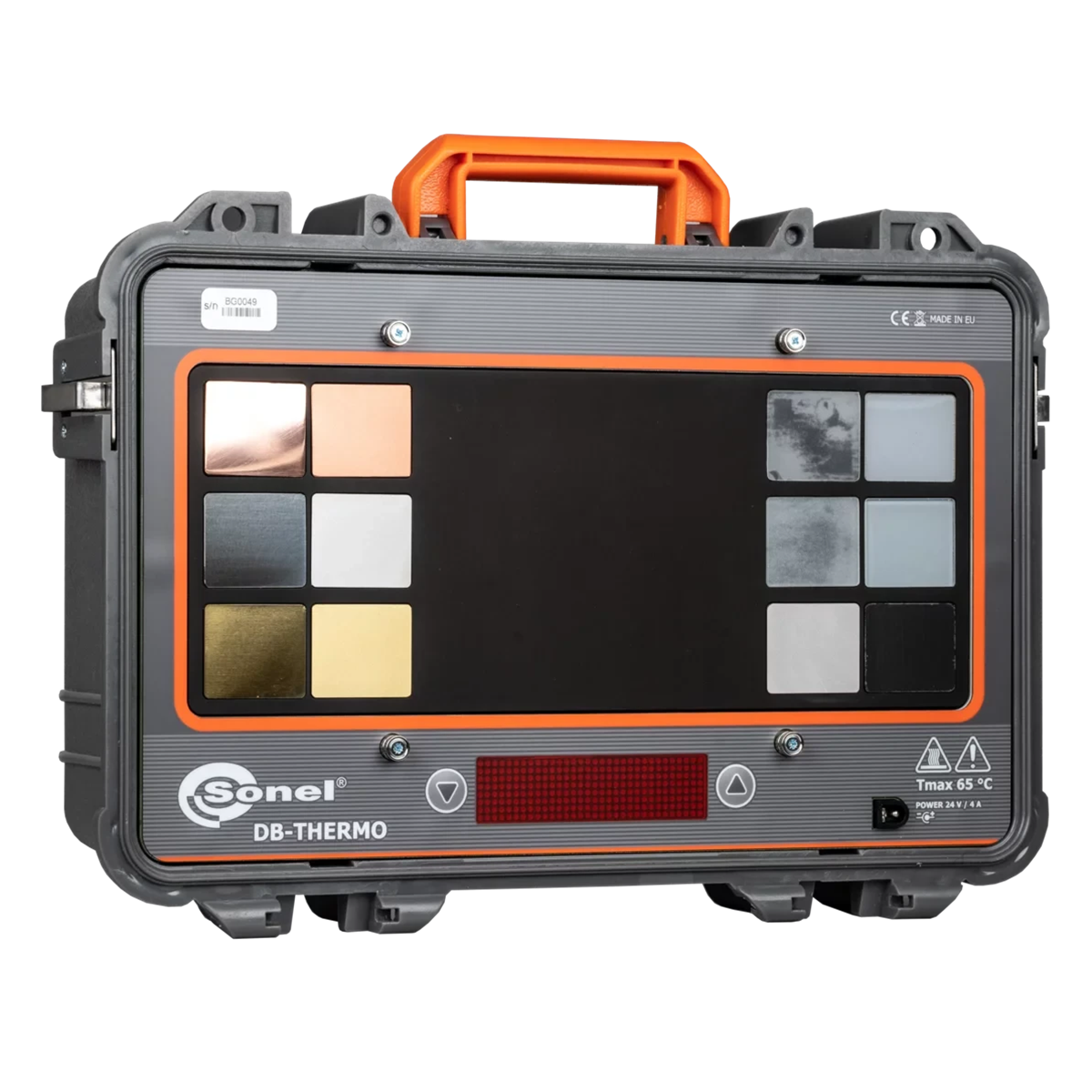

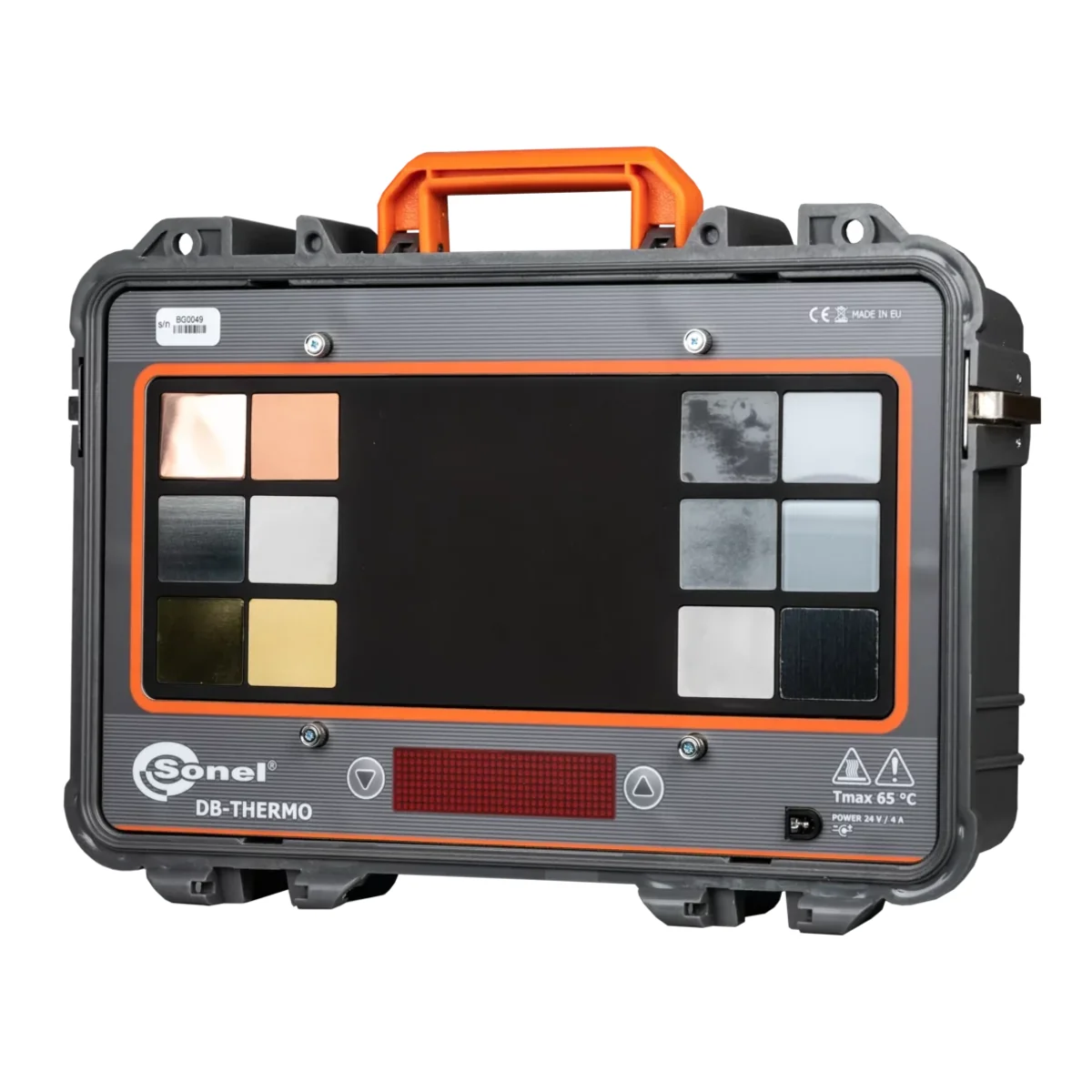

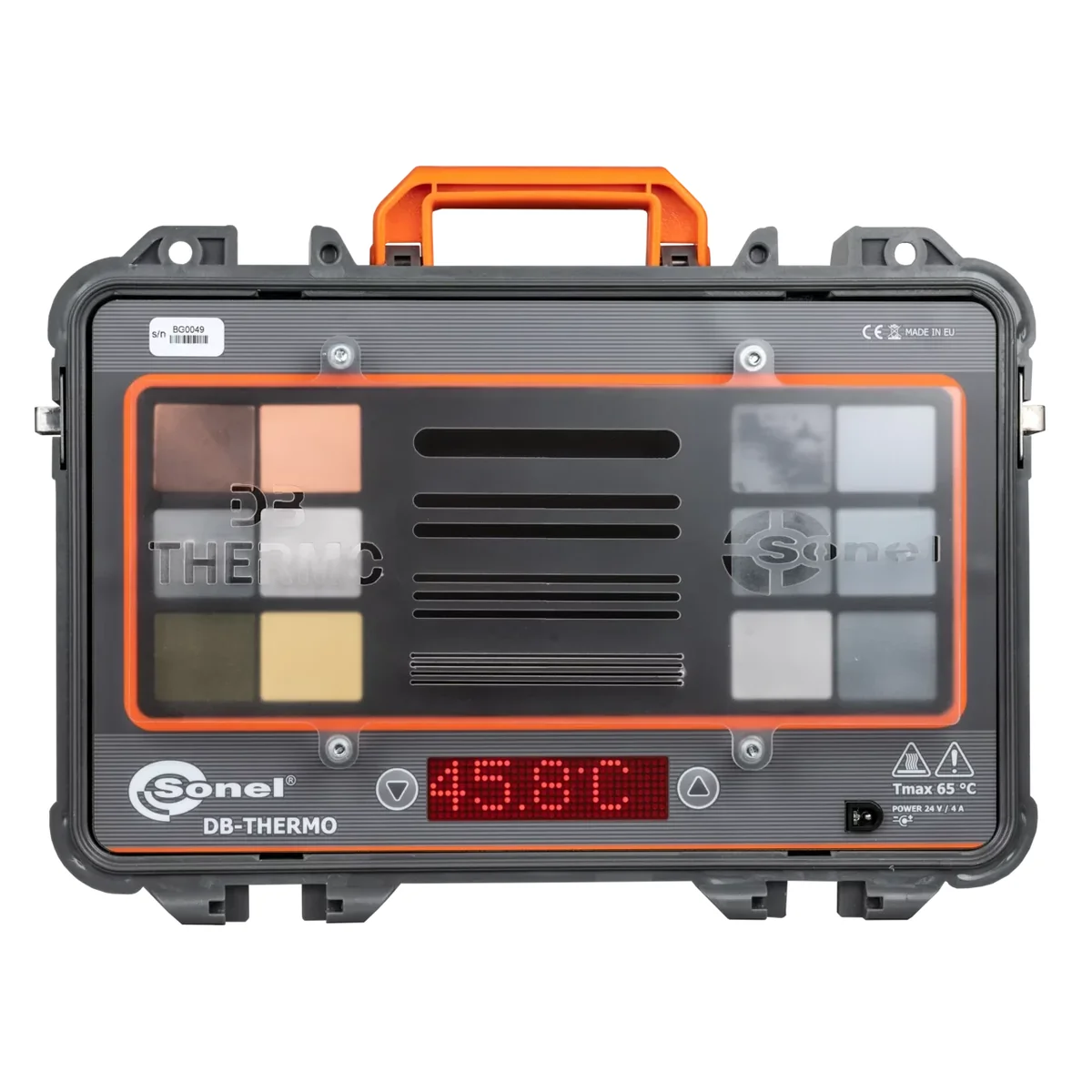

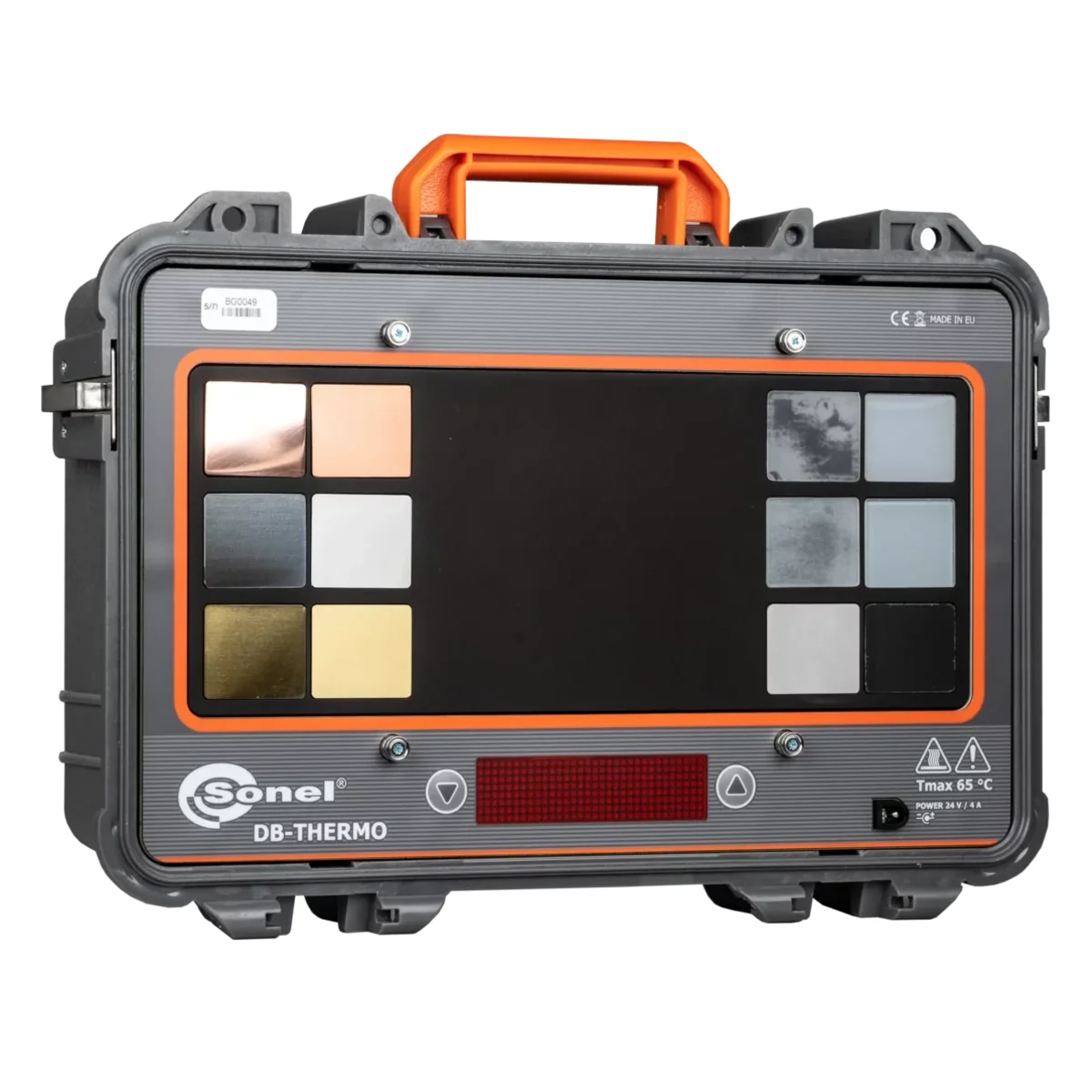

DB-THERMO has a heating plate with an emissivity of 0.96 and plates of various typical materials with a matte and polished surface. The temperature of the heating plate is monitored by a programmable controller. The user can choose the temperature in the range of 40 – 60 °C. The current temperature of the board is shown by the LED display.

Technical parameters:

• power consumption max.: 250 VA,
• accuracy board temperature indication: ±1%,
• resolution of temperature indications: 0.1 °C,
• resolution of temperature settings: 0.1 °C,
• hysteresis : ±3 °C,
• temperature stabilization time: < 3min.

Electrical safety:

• protection: 2 x F1A 250 V,
• thermal protection: 75 °C.

Other data:

• power supply: 230 V AC,
• display: LED, 4 digits (11mm) with graphic icons,
• dimensions of the heating plate: 275 x 110 mm,
