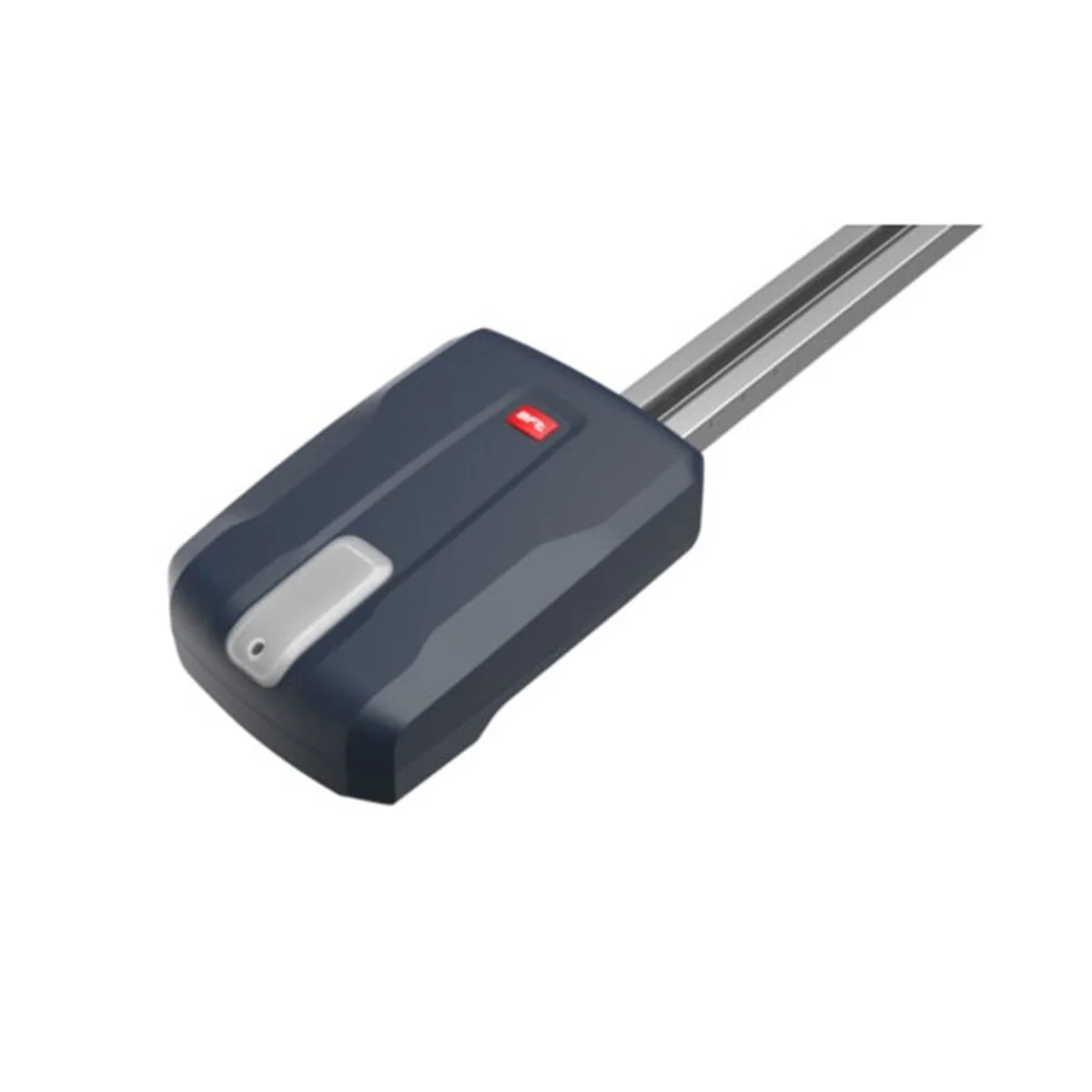

BOTTICELLI SMART BT Actuator for sectional garage doors up to 80kg 24V 200W 850N 13m² IP20 P915212 00002

Actuator for sectional garage doors with tractive force 80kg for a maximum door area of 13m²

Features:

• Fast and powerful engines - quick opening to minimize waiting time and intensive use of automation for all kinds of applications
• Improved quick mechanical assembly - even by one person thanks to the new fast Autoset procedure
• Encoder and exclusive D-Track force management system - for safe installation in all conditions

Technologies:

• Precise, direct and reliable BFT powered by 24V for optimal performance with timely adjustable slowdown during closing and opening. Its fundamental aspect is safety, guaranteeing instant stopping and changing the direction of travel in the event of encountering obstacles. Technology efficiency is a guarantee of product reliability
• U-Link - One communication platform for all types of PBXs and receivers. Innovative communication systems developed by BFT, together with solutions based on wireless connections in the field of automation, integrate with each other through the new communication protocol of the U-link system. It is a technology invented and designed to operate using special gates for each type of physical device and communication protocol. In order to maximize the efficiency of the installer, both during installation and maintenance, BFT is able to propose solutions based on Bluetooth data transfer systems in the local environment and TCP/IP for remote connections. U-link guarantees an absolutely stable standard and correct communication, as well as complete data protection thanks to the two-level encryption offered by both the cryptography system and protocol password, as well as the following communication system. - U-link is the "heart" technology platform BFT products - The U-link technology is based on an open solution: by changing B-Eba, a gateway developed by BFT, it is possible to adapt it to different communication languages. - The U-link platform is flexible: it can work with or without a network connection, depending on the installed B-Eba gateway; - U-link enables remote maintenance of products thanks to two-way communication - U-link is a scalable solution: it is possible to add an infinite number of objects to one U-link network - U-link enables the implementation of groups of products: it is possible to combine groups of different B-Eba gates to enable control of a single or group of products with which they are associated. U-link is an innovation that turns products into BFT solutions
• ER ready - New coding system for direct remote cloning Based on microprocessor technology, the system allows you to clone any MITTO remote control and turn it into a PITTO REPLAY remote control. The first radio remote control "will pass" the co-pilot with the correct code to be automatically stored in the receiver when used for the first time. And thanks to the use of the Rolling Code secure data transmission system, maximum safety is ensured during all these procedures
• EE link - For fast and safe programming. EELINK is a system developed by BFT; thanks to the connection with hand-held programmers (Unipro, Uniradio and Proxima), it allows you to transfer data from automatic machines to personal computers and vice versa. In this way, the EEdbase or U-base, the databases stored in the mounted installations, are constantly updated. Thanks to this software, it is possible to assign the necessary address data to each installation, such as: the dignity and contact information of the owner, the data of the maintenance technician and the owner of each remote control, as well as many other information. With EElink, you just need to press a few buttons to easily manage your customer park or preventive maintenance. It also makes things that used to be complicated much easier: for example, reconfiguring a control module or radio receiver when it is replaced, or configuring a control panel, whether it is a standard or customized configuration< /li>
• D-Track  - Necessary stimulus for safe operation. This intelligent torque management system is based on BFT microprocessor technology. By downloading data from various indicators, it updates the level of thrust necessary to perform the maneuver. D-Track also makes it easier for the installer to implement the certificates required by law. Traditional control units do not read the exact position of the gate and consequently assume a constant level of pushing force, not guaranteeing a stable sensitivity during opening and closing movement. BFT devices register even the slightest fluctuations in the force of the gate or door caused, for example, by temperature differences or wear; thus provide the engine with regular information about the optimal torque. A traditional control panel would not be able to detect fluctuations in the required push force and would start signaling the presence of non-existent obstacles. The BFT system therefore guarantees the maximum degree of safety of the installation and its reliable operation, regardless of climatic conditions, temperature or degree of mechanical wear
