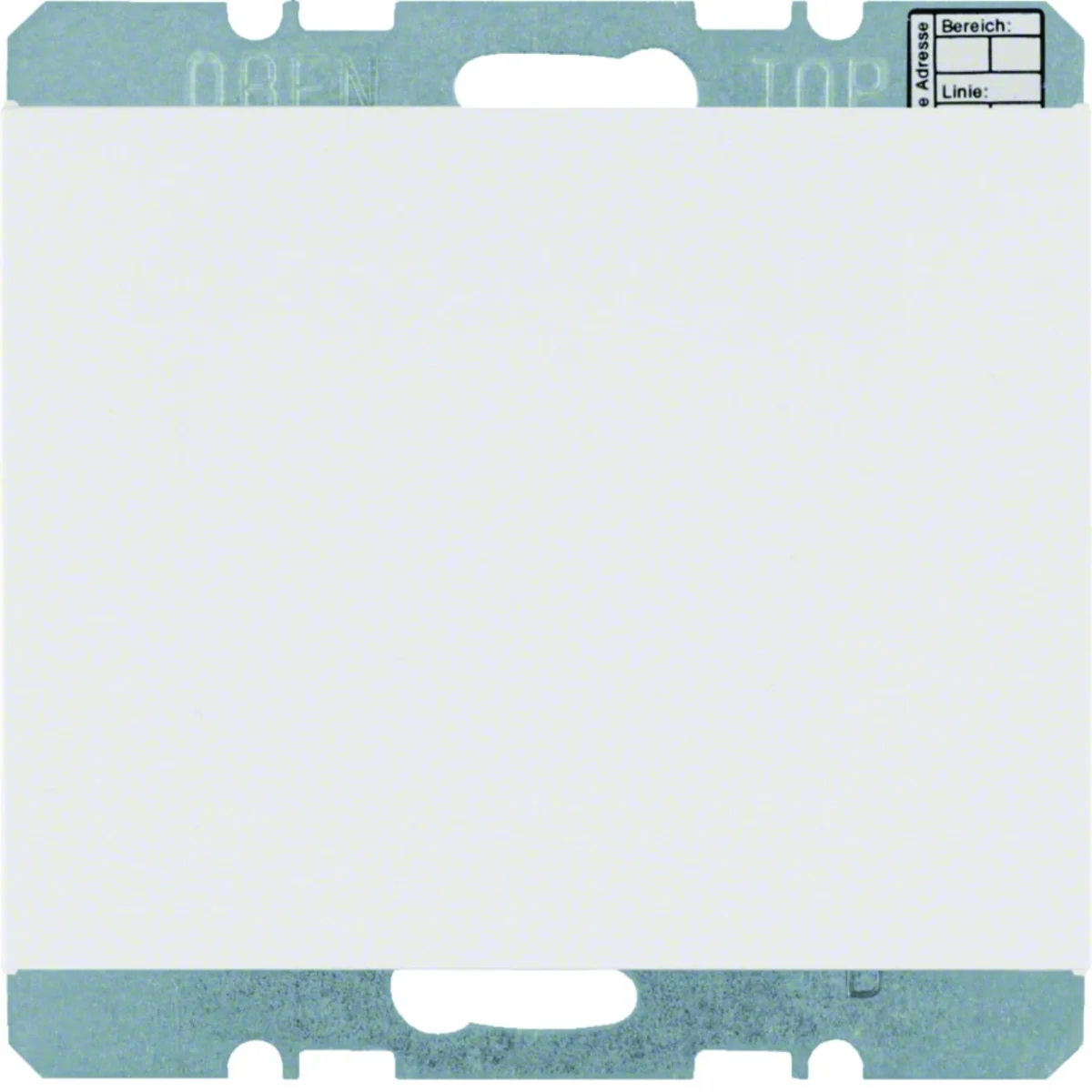

KNX SYSTEM K.1 CO2 sensor with humidity measurement and temperature controller glossy white 75441379
local index:
PRC012HAGE
Catalog No:
75441379
EAN code:
4011334451020
Price:
533,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
CO2 sensorwith humidity measurement and temperature controller, KNX system series. Main design line: KNX - Berker K.1.
Controls and indicators
- with programming button and red programming LED
Connections
- with 2 independent digital inputs for potential-free contacts
Connection< /strong>
- bus connection via connection terminals
Equipment
- heating or cooling it is possible in 2 modes
- for heating or air conditioning
- for single room control
Series characteristics:
The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.
Technical data
-
Halogen freeNO
-
SurfaceGloss
-
Operating temperature range [°C]from -5 to 45
-
Operating voltage via DC bus [V]21 - 32
-
PKWIU26.51.70.0
-
MaterialPlastic Metal
-
FamilyKNX SYSTEM
-
Surface finishNatural
-
Bus current consumption (data transmission) [mA]12.5
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Mounting methodFlush-mounted
-
With anti-theft/dismantling protectionYes
-
With displayNo
-
Material qualityOther
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
Manual set point settingNo
-
Parallel-service possibleNo
-
With bus connectionYes
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Assembly arrangementBasic element with central cover plate
-
With local operationNo
-
With LED indicationNo
-
MaterialOther
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
Presence buttonNo
-
Degree of protection (IP)IP20
-
Class of the temperature controlIV
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,114 | 0,115 | 4,580 | 169,560 |
| Width (m) | 0,070 | 0,090 | 0,300 | 0,800 |
| Length (m) | 0,050 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,070 | 0,085 | 0,400 | 1,200 |
