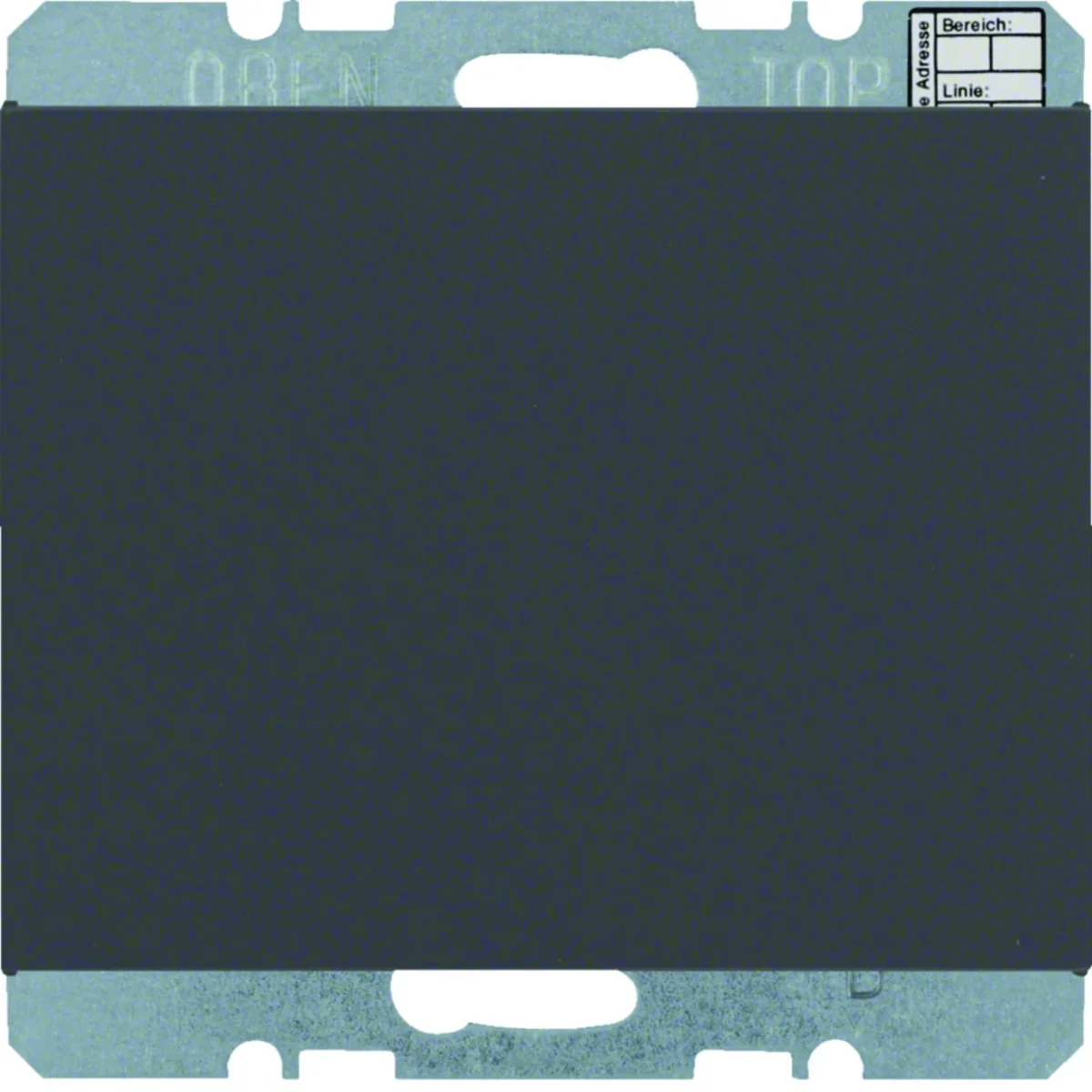

KNX SYSTEM K.1 CO2 sensor with humidity measurement and temperature controller anthracite matt 75441375

Lokaler Index:
PRC011HAGE
Katalognummer:
75441375
EAN-Code:
4011334451037
Hersteller: HAGER
Halogen free: NO
Material: Plastic | Metal
Surface: Matt
Preis:
2 728,14 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 10 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

CO2 sensorwith humidity measurement and temperature controller, KNX system series. Main design line: KNX - Berker K.1.

Controls and indicators

  • with programming button and red programming LED

Connections

  • with 2 independent digital inputs for potential-free contacts

Connection< /strong>

  • bus connection via connection terminals

Equipment

  • heating or cooling it is possible in 2 modes
  • for heating or air conditioning
  • for single room control

Series characteristics:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technische Daten

  • Halogen free
    NO
  • Surface
    Matt
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    26.51.70.0
  • Material
    Plastic Metal
  • Family
    KNX SYSTEM
  • Surface finish
    Lacquered
  • Bus current consumption (data transmission) [mA]
    12.5

Weitere technische Daten

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    Flush-mounted
  • With anti-theft/dismantling protection
    Yes
  • With display
    No
  • Material
    Other
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No
  • Manual set point setting
    Yes
  • Parallel-service possible
    No
  • With bus connection
    Yes
  • Standby power consumption (solstandby)
    0.375 W
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Assembly arrangement
    Basic element with central cover plate
  • With local operation
    No
  • With LED indication
    No
  • Number of digital inputs
    2
  • Material quality
    Other
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • External sensor
    No
  • Presence button
    No
  • Degree of protection (IP)
    IP20
  • Class of the temperature control
    IV
  • Min. depth of built-in installation box
    26 mm

Hersteller-Details

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 1 stk. 36 stk. 1152 stk.
Gewicht (kg) 0,115 4,580 169,560
Breite (m) 0,080 0,300 0,800
Länge (m) 0,070 0,220 1,050
Tiefe (m) 0,080 0,400 1,200
