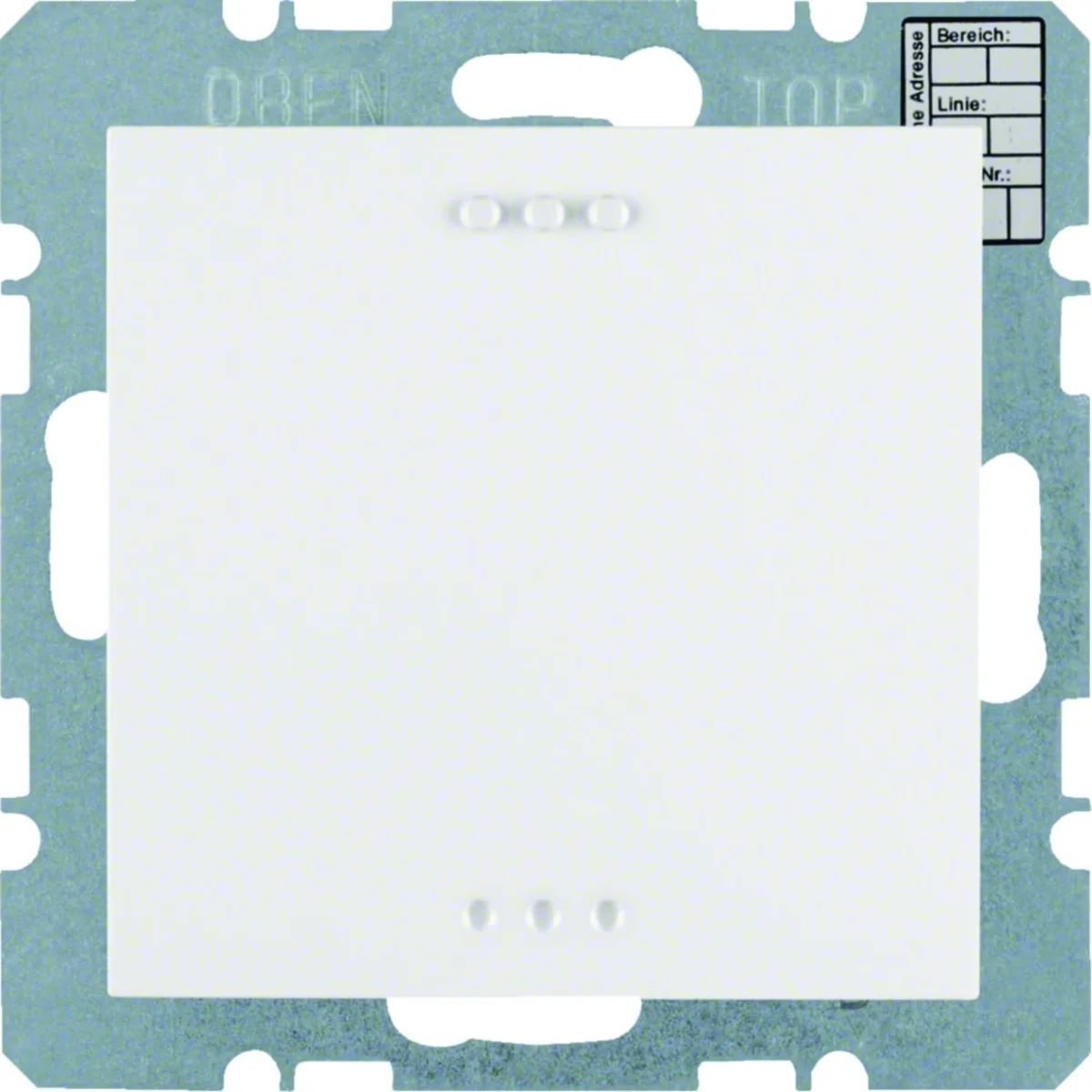

KNX SYSTEM B.SQUARE CO2 sensor with humidity measurement and temperature controller glossy white 75441359

local index:
PRC008HAGE
Catalog No:
75441359
EAN code:
4011334450948
Manufacturer: HAGER
Halogen free: NO
Material: Plastic | Metal
Surface: Gloss
Price:
531,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CO2 sensorwith humidity measurement and temperature controller, KNX system series. Main design line: KNX - Berker B.Kwadrat.

Controls and indicators

  • with programming button and red programming LED

Connections

  • with 2 independent digital inputs for potential-free contacts

Connection< /strong>

  • bus connection via connection terminals

Equipment

  • heating or cooling is possible in 2 modes
  • for heating or air conditioning
  • for single room control

Series characteristics:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    26.51.70.0
  • Material
    Plastic Metal
  • Family
    KNX SYSTEM
  • Surface finish
    Natural
  • Bus current consumption (data transmission) [mA]
    12.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    Flush-mounted
  • With anti-theft/dismantling protection
    Yes
  • With display
    No
  • Material quality
    Other
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Manual set point setting
    No
  • Parallel-service possible
    No
  • With bus connection
    Yes
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Assembly arrangement
    Basic element with central cover plate
  • With local operation
    No
  • With LED indication
    No
  • Material
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Presence button
    No
  • Degree of protection (IP)
    IP20
  • Class of the temperature control
    IV

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,086 0,111 4,261 156,342
Width (m) 0,070 0,084 0,300 0,800
Length (m) 0,050 0,070 0,225 1,050
Depth (m) 0,070 0,085 0,400 1,200
