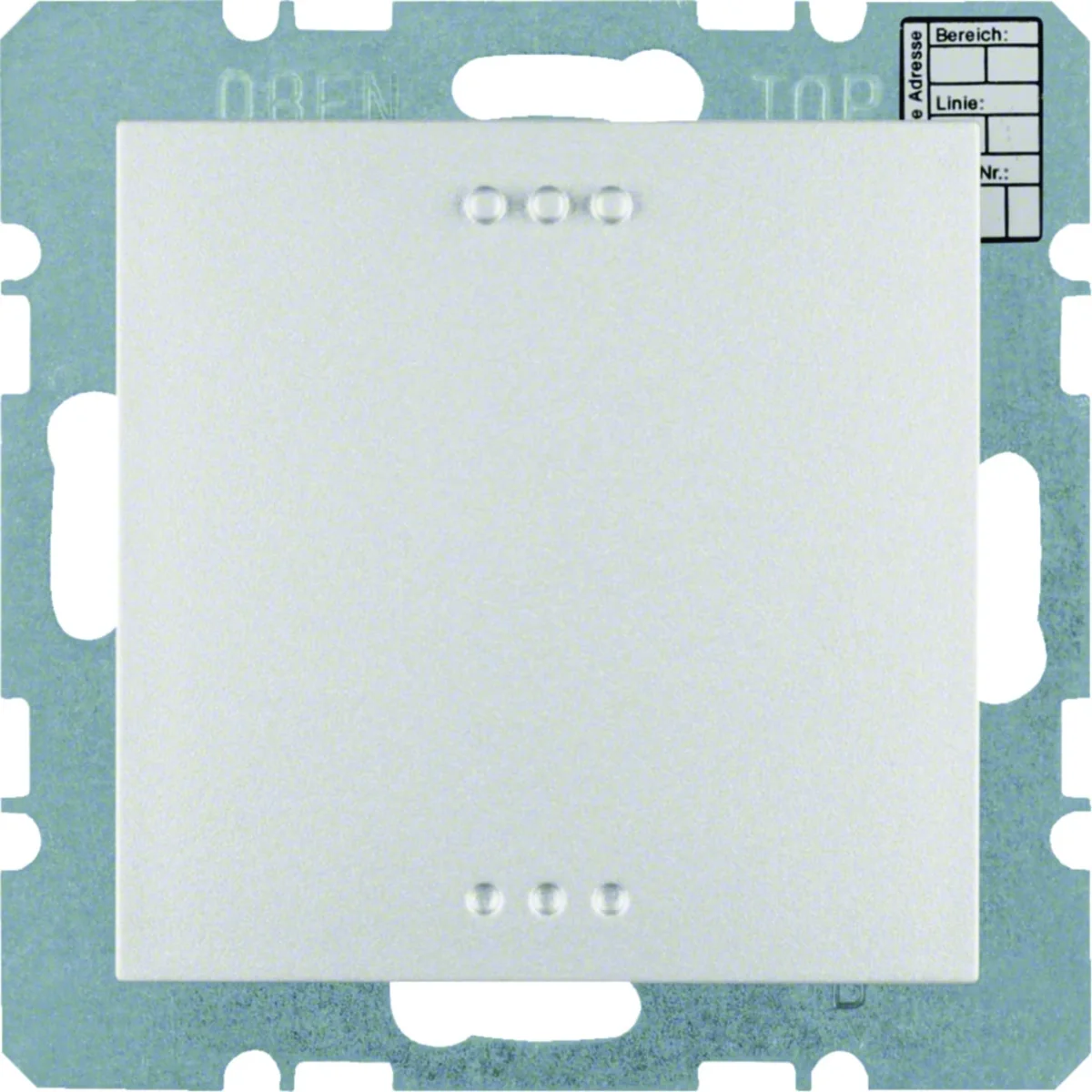

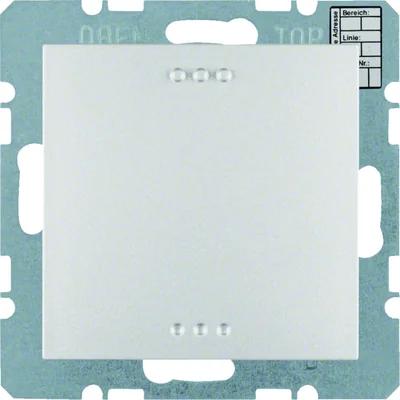

KNX SYSTEM B.KWADRAT/B.3/B.7 CO2 sensor with humidity measurement and temperature controller matt aluminum 75441383

local index:
PRC013HAGE
Catalog No:
75441383
EAN code:
4011334450979
Manufacturer: HAGER
Halogen free: NO
Material: Plastic | Metal
Surface: Matt
Price:
540,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CO2 sensorwith humidity measurement and temperature controller, KNX system series. Main design line: KNX - Berker B.Kwadrat/B.3/B.7.

Controls and indicators

  • with programming button and red programming LED

Connections

  • with 2 independent digital inputs for potential-free contacts

Connection

  • bus connection via connection terminals

Accessories

< ul>
  • heating or cooling is possible in 2 modes
  • for heating or air conditioning
  • for single room control
  • Characteristics series:

    The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

    Technical data

    • Halogen free
      NO
    • Surface
      Matt
    • Operating temperature range [°C]
      from -5 to 45
    • Operating voltage via DC bus [V]
      21 - 32
    • PKWIU
      26.51.70.0
    • Material
      Plastic Metal
    • Family
      KNX SYSTEM
    • Surface finish
      Lacquered
    • Bus current consumption (data transmission) [mA]
      12.5

    Other technical data

    • Bus system KNX
      Yes
    • Bus system radio frequent
      No
    • Bus system Powernet
      No
    • Radio frequent bidirectional
      No
    • Mounting method
      Flush-mounted
    • With anti-theft/dismantling protection
      Yes
    • With display
      No
    • Material quality
      Other
    • Surface finishing
      Matt
    • RAL-number (similar)
      9006
    • Manual set point setting
      No
    • Parallel-service possible
      No
    • With bus connection
      Yes
    • Bus system KNX-RF (Radio Frequent)
      No
    • Bus system LON
      No
    • Other bus systems
      None
    • Assembly arrangement
      Basic element with central cover plate
    • With local operation
      No
    • With LED indication
      No
    • Material
      Other
    • Surface protection
      Lacquered
    • Colour
      Aluminium
    • Transparent
      No
    • Presence button
      No
    • Degree of protection (IP)
      IP20
    • Class of the temperature control
      IV

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
    Weight (kg) 0,109 0,129 5,089 182,838
    Width (m) 0,070 0,084 0,300 0,800
    Length (m) 0,050 0,070 0,225 1,050
    Depth (m) 0,070 0,085 0,400 1,200
