KNX SYSTEM B.KWADRAT/B.3/B.7 CO2 sensor with humidity measurement and temperature controller anthracite matt 75441385

Name: KNX SYSTEM B.KWADRAT/B.3/B.7 CO2 sensor with humidity measurement and temperature controller anthracite matt
Brand: HAGER
SKU: PRC014HAGE
Price: 523.99 PLN

local index:

PRC014HAGE

Catalog No:

75441385

EAN code:

4011334450962

KNX SYSTEM B.KWADRAT/B.3/B.7 CO2 sensor with humidity measurement and temperature controller anthracite matt

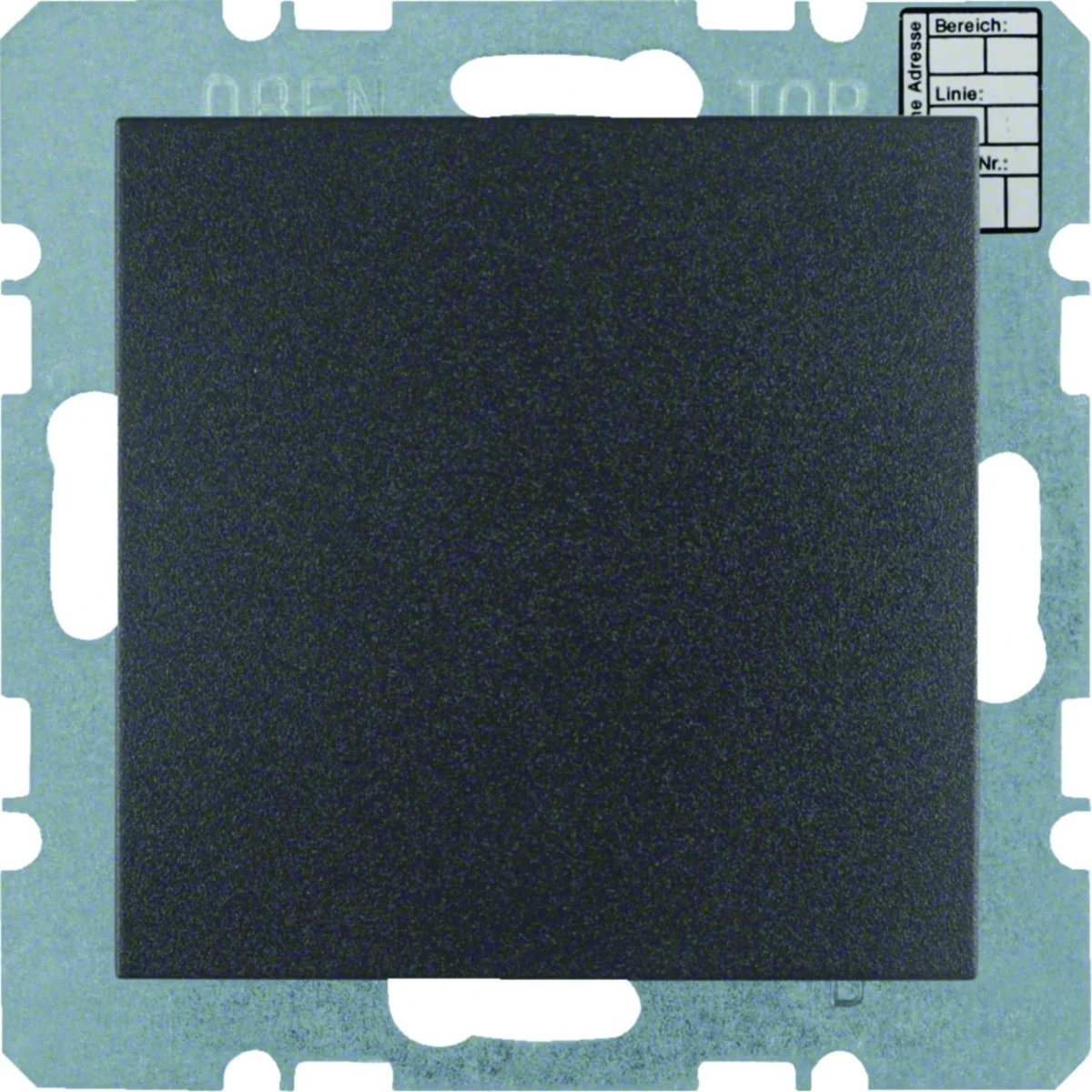

Click on the photo to enlarge

Manufacturer: HAGER

Halogen free: NO

Material: Plastic | Metal

Surface: Matt

See full description

Price:

523,99 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

CO2 sensorwith humidity measurement and temperature controller, KNX system series. Main design line: KNX - Berker B.Kwadrat/B.3/B.7.

Controls and indicators

with programming button and red programming LED

Connections

with 2 independent digital inputs for potential-free contacts

Connection

bus connection via connection terminals

Accessories

< ul>

heating or cooling is possible in 2 modes

for heating or air conditioning

for single room control

Characteristics series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

Halogen free

NO
Surface

Matt
Operating temperature range [°C]

from -5 to 45
Operating voltage via DC bus [V]

21 - 32
PKWIU

26.51.70.0

Material

Plastic Metal
Family

KNX SYSTEM
Surface finish

Natural
Bus current consumption (data transmission) [mA]

12.5

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
Mounting method

Flush-mounted
With anti-theft/dismantling protection

Yes
With display

No
Material quality

Other
Surface finishing

Matt
RAL-number (similar)

7021
Manual set point setting

No
Parallel-service possible

No
With bus connection

Yes

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Assembly arrangement

Basic element with central cover plate
With local operation

No
With LED indication

No
Material

Other
Surface protection

Untreated
Colour

Anthracite
Transparent

No
Presence button

No
Degree of protection (IP)

IP20
Class of the temperature control

IV

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,119	0,144	5,449	194,358
Width (m)	0,070	0,084	0,300	0,800
Length (m)	0,050	0,070	0,225	1,050
Depth (m)	0,070	0,085	0,400	1,200
