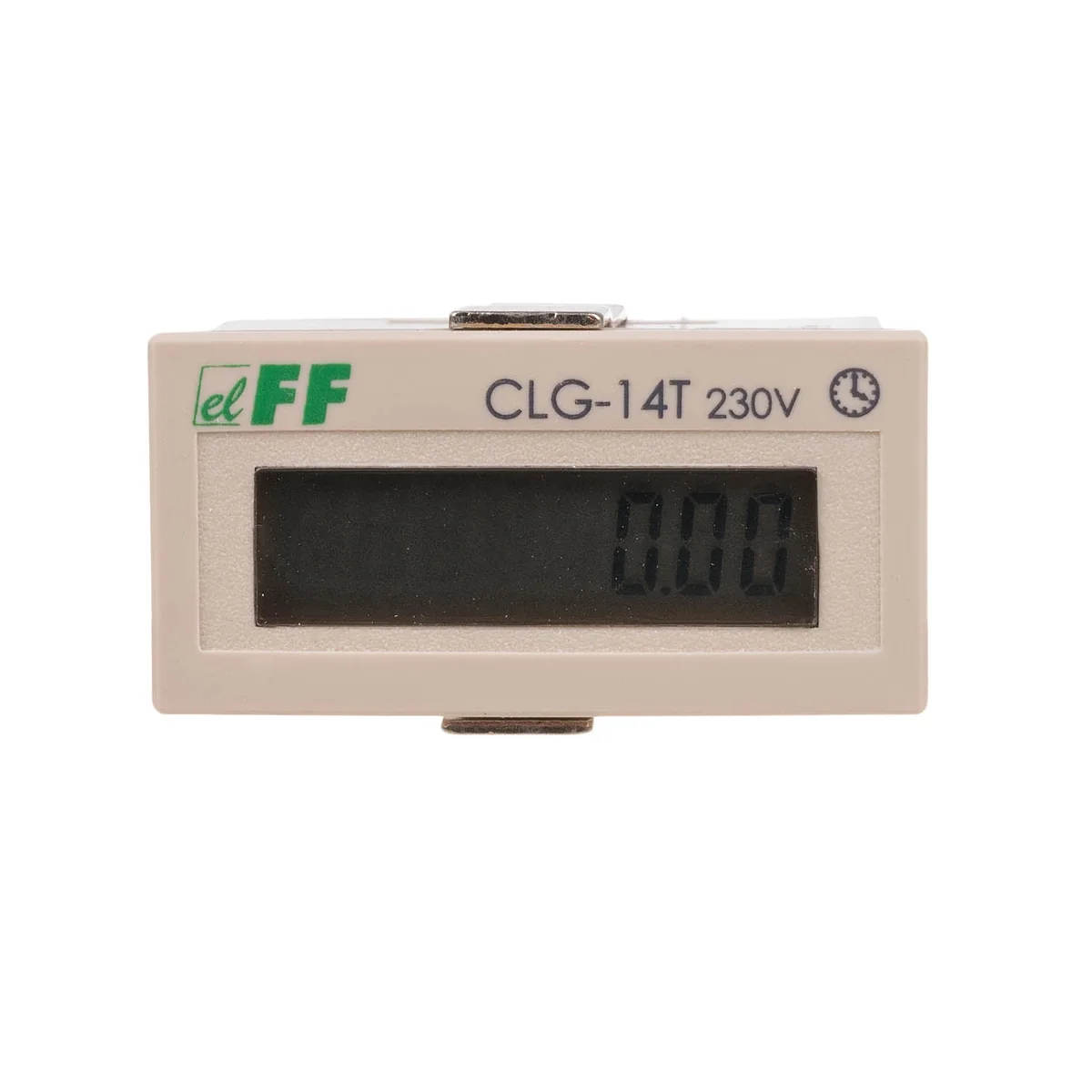

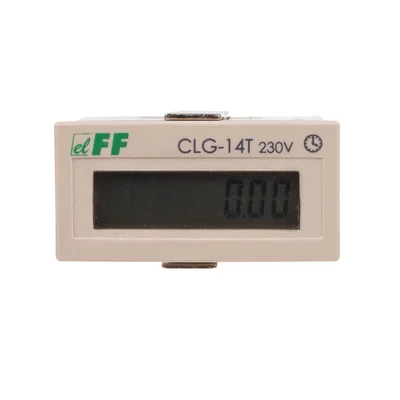

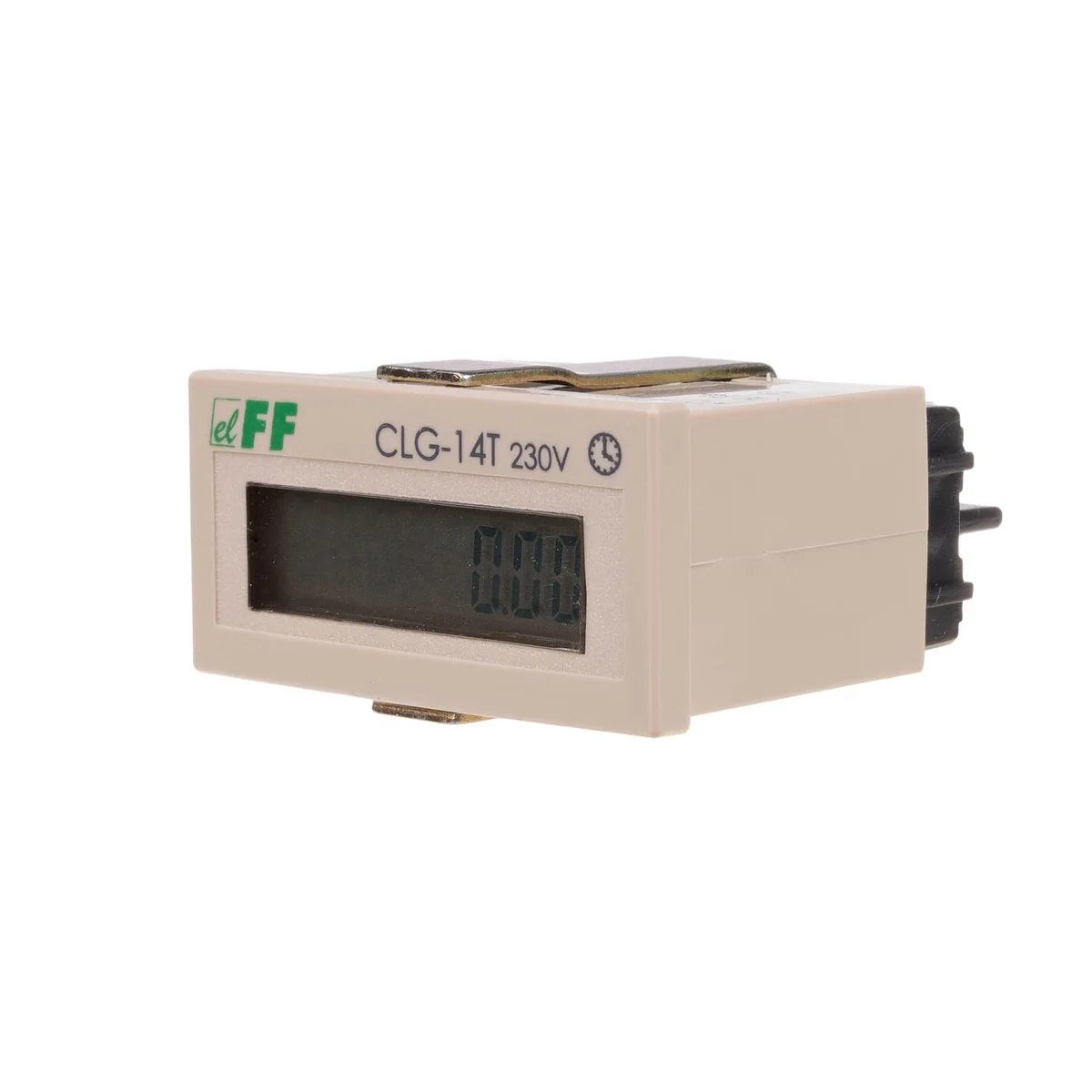

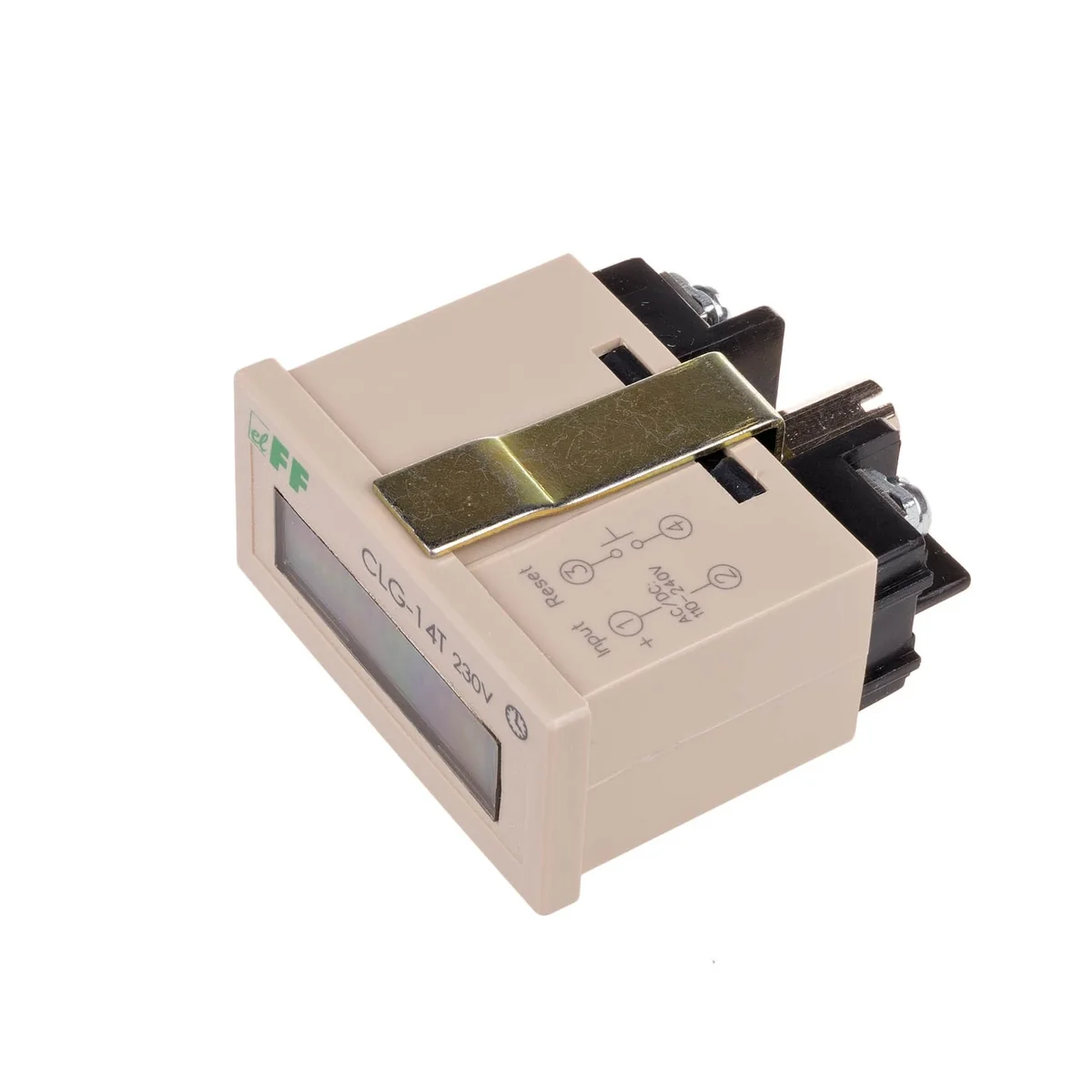

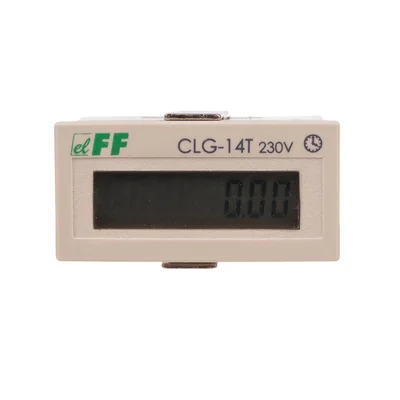

Working time counter without reset 230V AC CLG-14T

local index:
NPM006FIFQ
Catalog No:
CLG-14T
EAN code:
5908312592525
Manufacturer: F&F
Accuracy [min]: 1
Depth [mm]: 52
Counting input voltage [V]: 110-240
Price:
28,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The working time counter is used to count the number of working hours in automatic production processes or the number of working hours of devices which, due to safety requirements and operational efficiency, have a specific service life, i.e. the operational capacity that must not be exceeded (e.g. advanced drive units, specialized radioactive lamps , etc.).

Technical data

  • Accuracy [min]
    1
  • Counting input voltage [V]
    110-240
  • Working temperature [°C]
    -10-40
  • RESET reset input
    Non-voltage type
  • display
    8 characters / h=6.7mm
  • Package height [mm]
    48
  • Package weight [kg]
    0.4
  • Depth [mm]
    52
  • Width [mm]
    24
  • Battery life
    10 years
  • Height [mm]
    48
  • Power
    Internal battery
  • Package width [mm]
    24
  • PKWIU
    26.51.64.0

Other technical data

  • Model
    Digital
  • Reset function
    Reset-input
  • Number of digits
    8
  • Voltage type
    AC/DC
  • Width
    48 mm
  • Built-in depth
    52 mm
  • Count area
    999999 h
  • Operation indication
    Yes
  • Input voltage
    110 ... 240 V
  • Type of drive
    Quartz
  • Height
    24 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,067
Width (m) 0,050
Length (m) 0,060
Depth (m) 0,030
