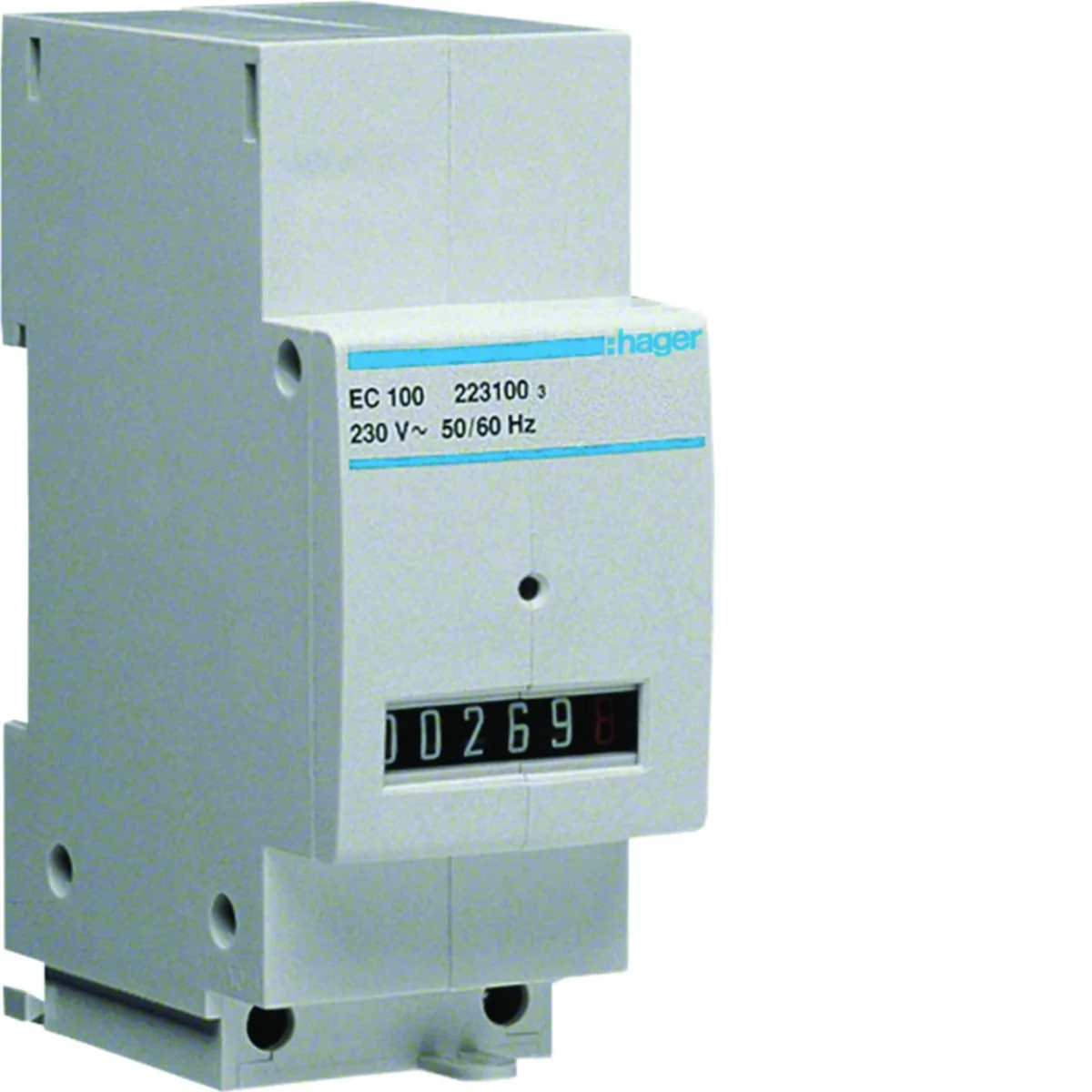

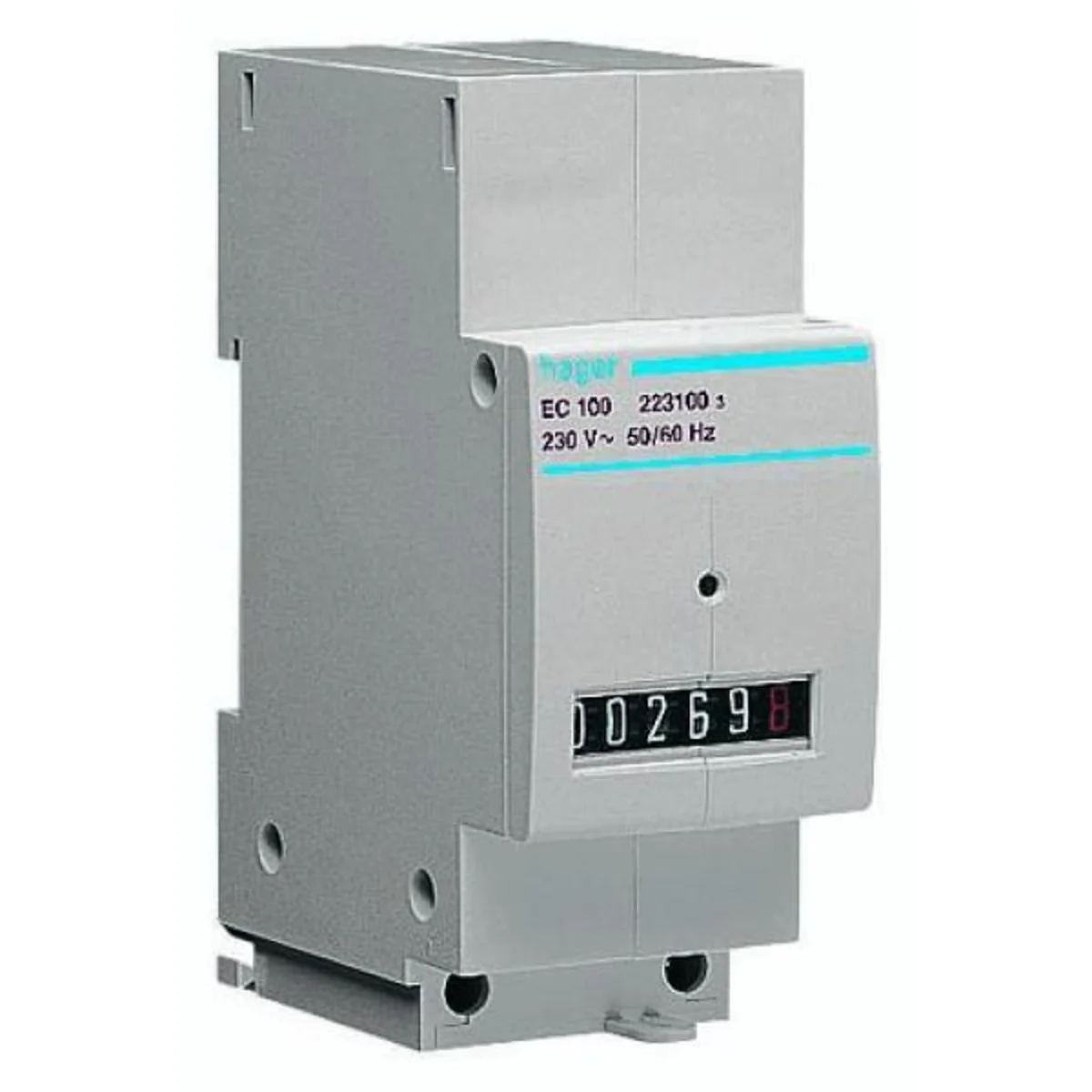

Working hours counter EC100
local index:
NPL035HAGE
Catalog No:
EC100
EAN code:
3250612231003
Price:
61,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
After applying the voltage, counting is performed in 1/10h intervals. It is not possible to delete the indications of the working hours counter.
Technical data
-
Depth [mm]60
-
Width [mm]35
-
Number of modules2
-
Number of modules2
-
Height [mm]90
-
PKWIU26.51.64.0
Other technical data
-
Mounting methodDIN rail
-
Count area99999 h
-
Operation indicationYes
-
Voltage typeAC
-
Type of driveMains synchronous
-
Width35 mm
-
Width in number of modular spacings2
-
Front plate width35 mm
-
Diameter panel opening45 mm
-
ModelAnalogue
-
Reset functionReset push button
-
Number of digits6
-
Frequency input voltage50 ... 50 Hz
-
Accuracy per day360 s
-
Height90 mm
-
Built-in depth60 mm
-
Front plate height90 mm
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,083 | 0,090 | 6,000 | 167,000 |
| Width (m) | 0,035 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,040 | 0,215 | 1,050 |
| Depth (m) | 0,064 | 0,095 | 0,360 | 1,200 |
