F&F

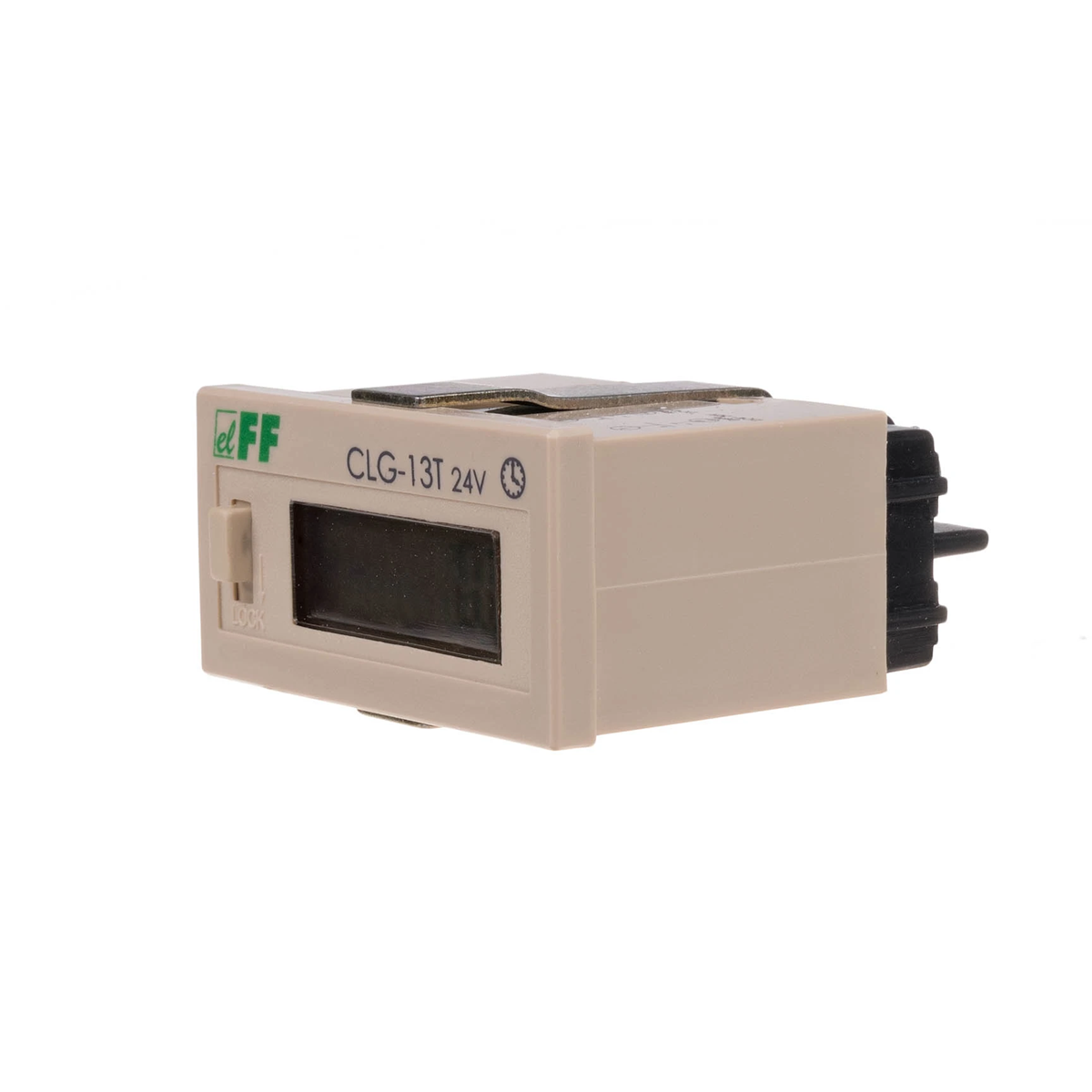

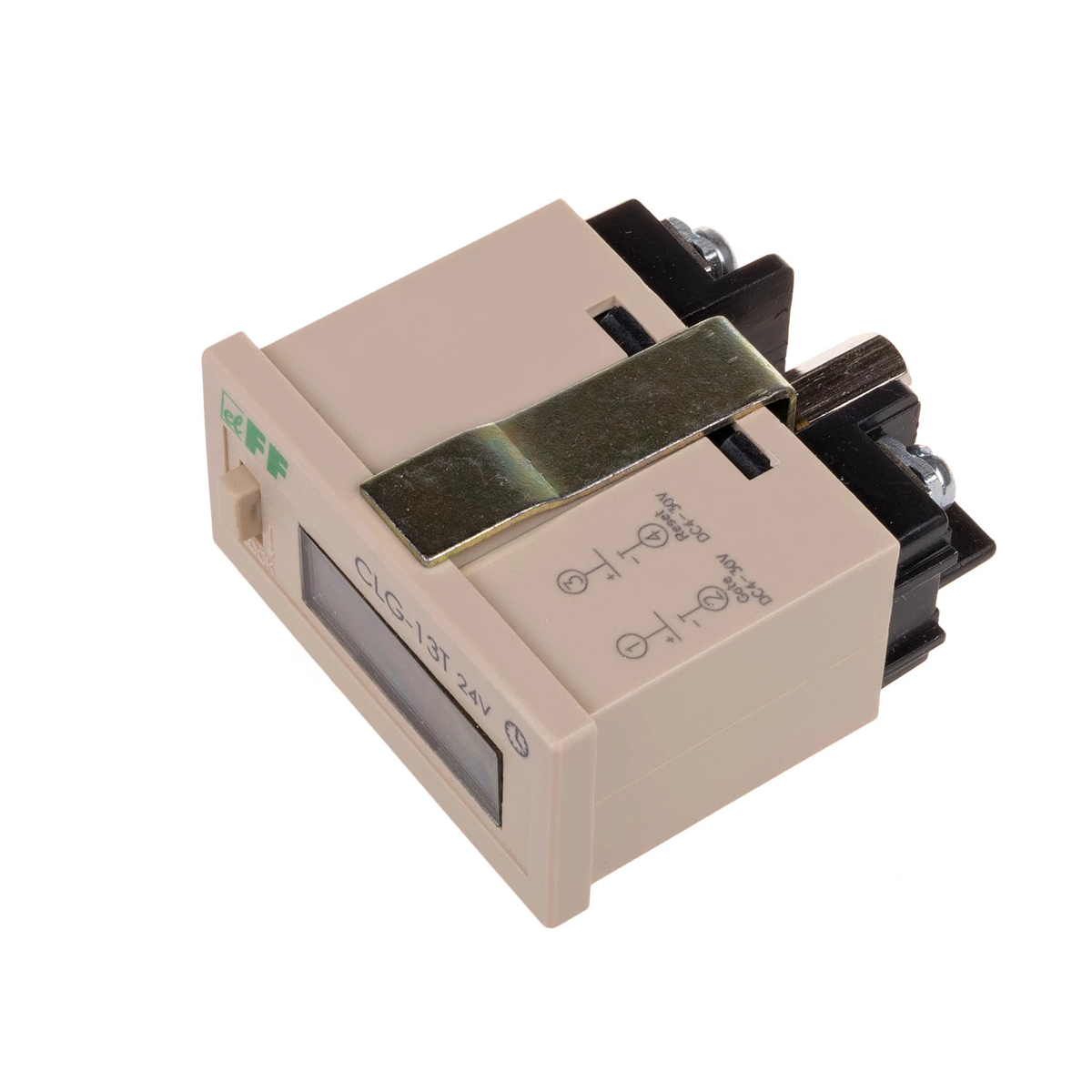

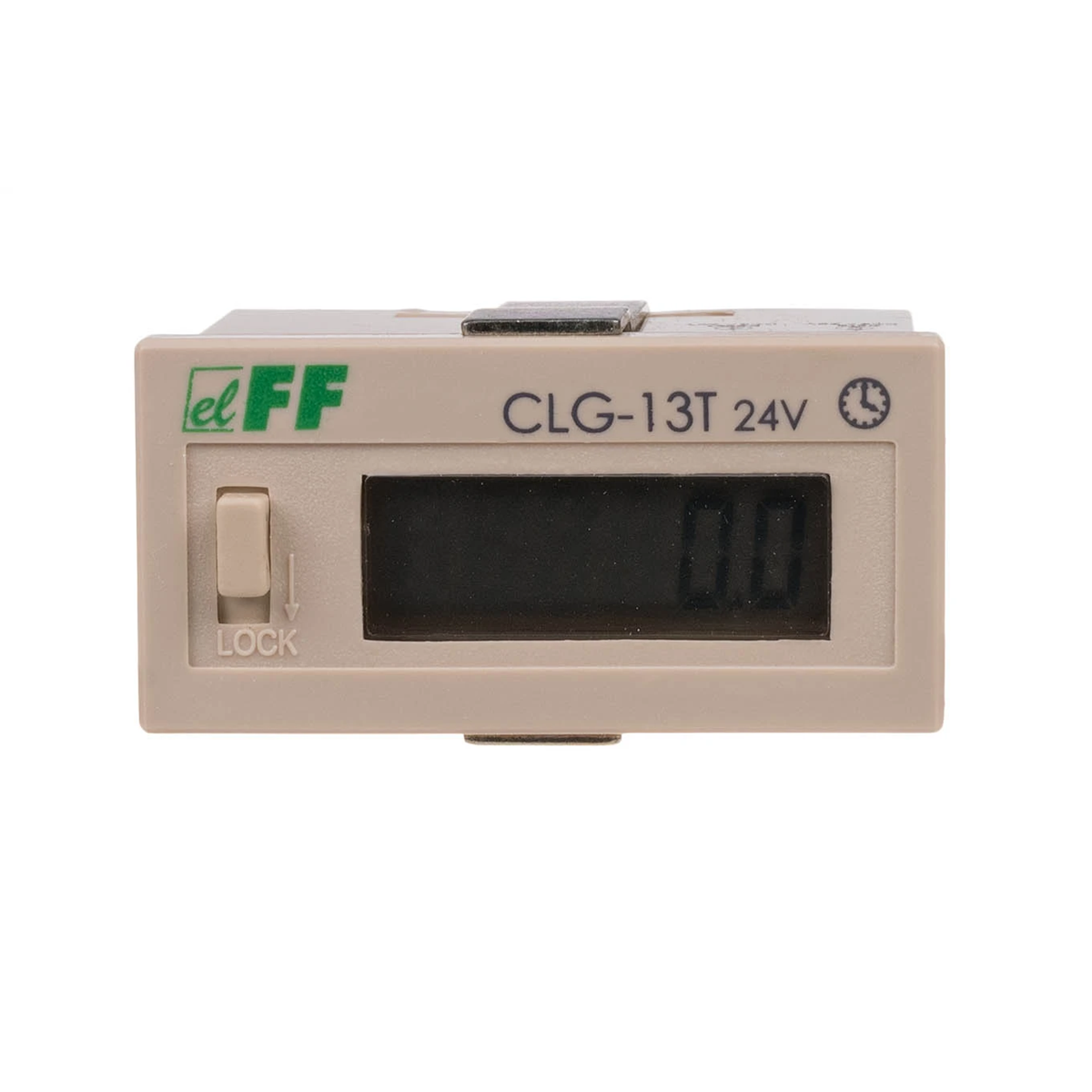

Working hours counter CLG-13T/24 CLG-13T-24V

local index:
NPL008FIFQ
Catalog No:
CLG-13T-24V
EAN code:
5908312591870
Price:
28,98 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The working time counter is used to count the number of working hours in automatic production processes or the number of working hours of devices which, due to safety requirements and operational efficiency, have a specific service life, i.e. the operational capacity that must not be exceeded (e.g. advanced drive units, specialized radioactive lamps , etc.).

Technical data

  • Indication accuracy
    0.1h (6min)
  • Counting input voltage [V]
    4-30
  • Working temperature [°C]
    -10-40
  • RESET reset input
    4-30
  • display
    6 characters / h=6.7mm
  • Package height [mm]
    48
  • Package weight [kg]
    0.15
  • Depth [mm]
    52
  • Width [mm]
    24
  • Battery life
    10 years
  • Height [mm]
    48
  • Power
    Internal battery
  • Package width [mm]
    24

Other technical data

  • Model
    Digital
  • Reset function
    Reset push button/-input
  • Number of digits
    6
  • Frequency input voltage
    50 ... 50 Hz
  • Width
    48 mm
  • Built-in depth
    52 mm
  • Count area
    999999 h
  • Operation indication
    yes
  • Voltage type
    AC/DC
  • Type of drive
    Quartz
  • Height
    24 mm
