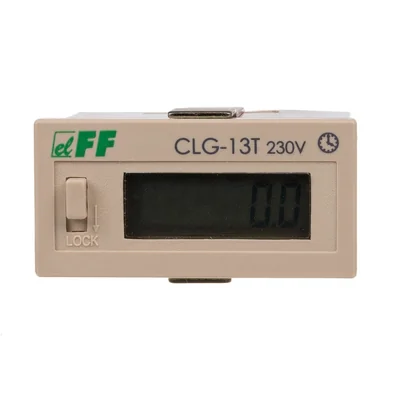

Working hours counter CLG-13T/230 CLG-13T

Index local:
NPL006FIFQ
Numéro de catalogue:
CLG-13T
Code EAN:
5908312591863
Producteur: F&F
Indication accuracy: 0.1h (6min)
Depth [mm]: 52
Counting input voltage [V]: 110-240
Prix:
157,08 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

The working time counter is used to count the number of working hours in automatic production processes or the number of working hours of devices that, due to safety requirements and operational efficiency, have a specific service life, i.e. the operational capacity that must not be exceeded (e.g. advanced drive units, specialized radioactive lamps , etc.).

Données techniques

  • Indication accuracy
    0.1h (6min)
  • Counting input voltage [V]
    110-240
  • Working temperature [°C]
    -10-40
  • RESET reset input
    Non-voltage type
  • display
    6 characters / h=6.7mm
  • Package height [mm]
    48
  • Package weight [kg]
    0.4
  • Depth [mm]
    52
  • Width [mm]
    24
  • Battery life
    10 years
  • Height [mm]
    48
  • Power
    Internal battery
  • Package width [mm]
    24
  • PKWIU
    26.51.64.0

Autres données techniques

  • Mounting method
    Front mounting
  • Count area
    99999.9 h
  • Operation indication
    Yes
  • Input voltage
    110 ... 240 V
  • Frequency input voltage
    110 ... 230 Hz
  • Accuracy per day
    15 s
  • Height
    24 mm
  • Degree of protection (IP)
    IP20
  • Model
    Digital
  • Reset function
    Reset push button/-input
  • Number of digits
    6
  • Voltage type
    AC
  • Type of drive
    Quartz
  • Width
    48 mm
  • Built-in depth
    52 mm

Détails du fabricant

  • Producteur
    F&F Filipowski S.K.
  • Adresse
    95-200 Pabianice Konstantynowska 79/81 Polska

Emballage en vrac

Une sorte de paquet Sztuka
Quantité 1 pcs.
poids (kg) 0,067
Largeur (m) 0,050
Longueur (m) 0,060
Profondeur (m) 0,030
