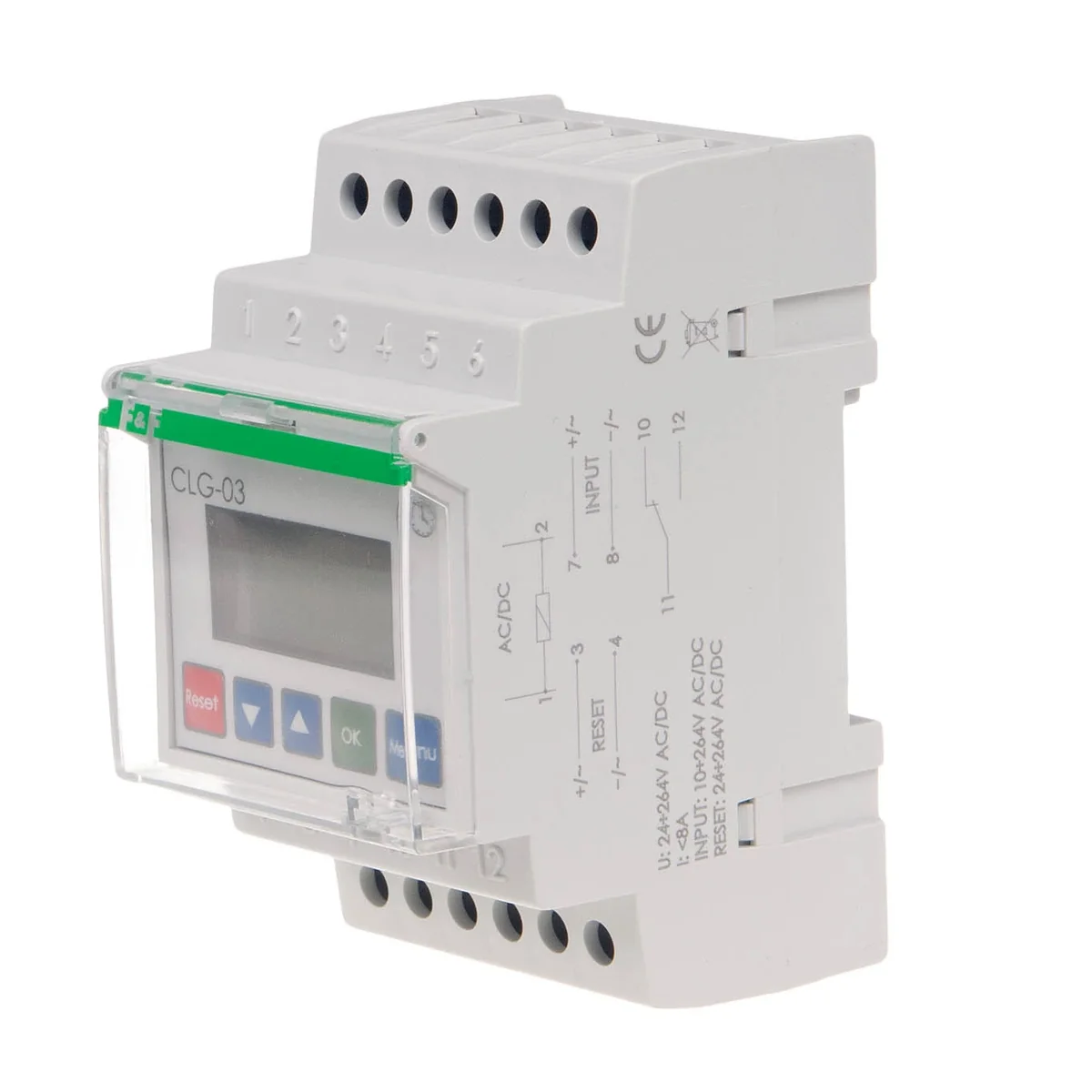

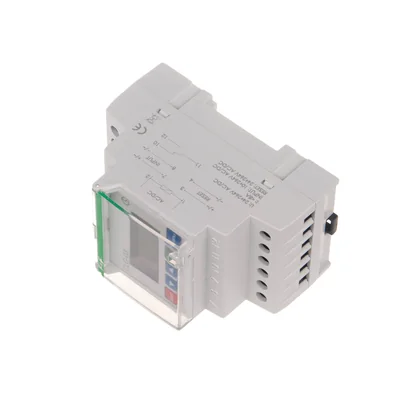

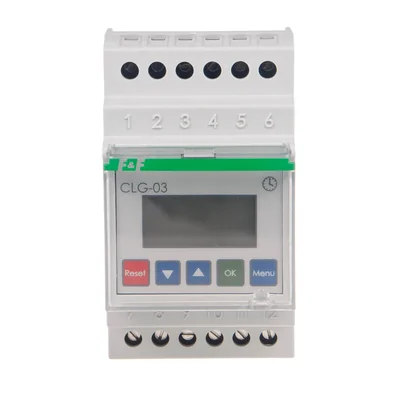

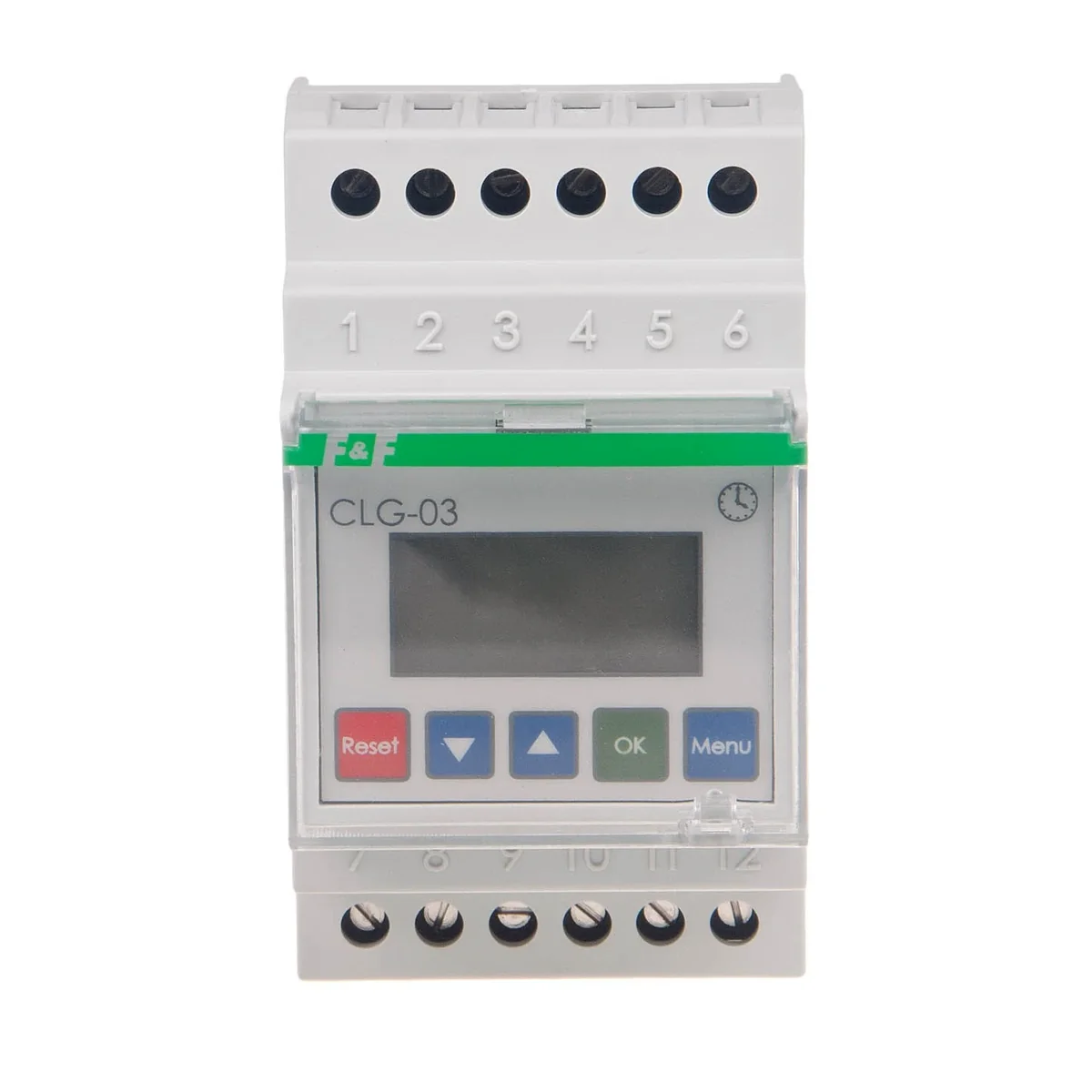

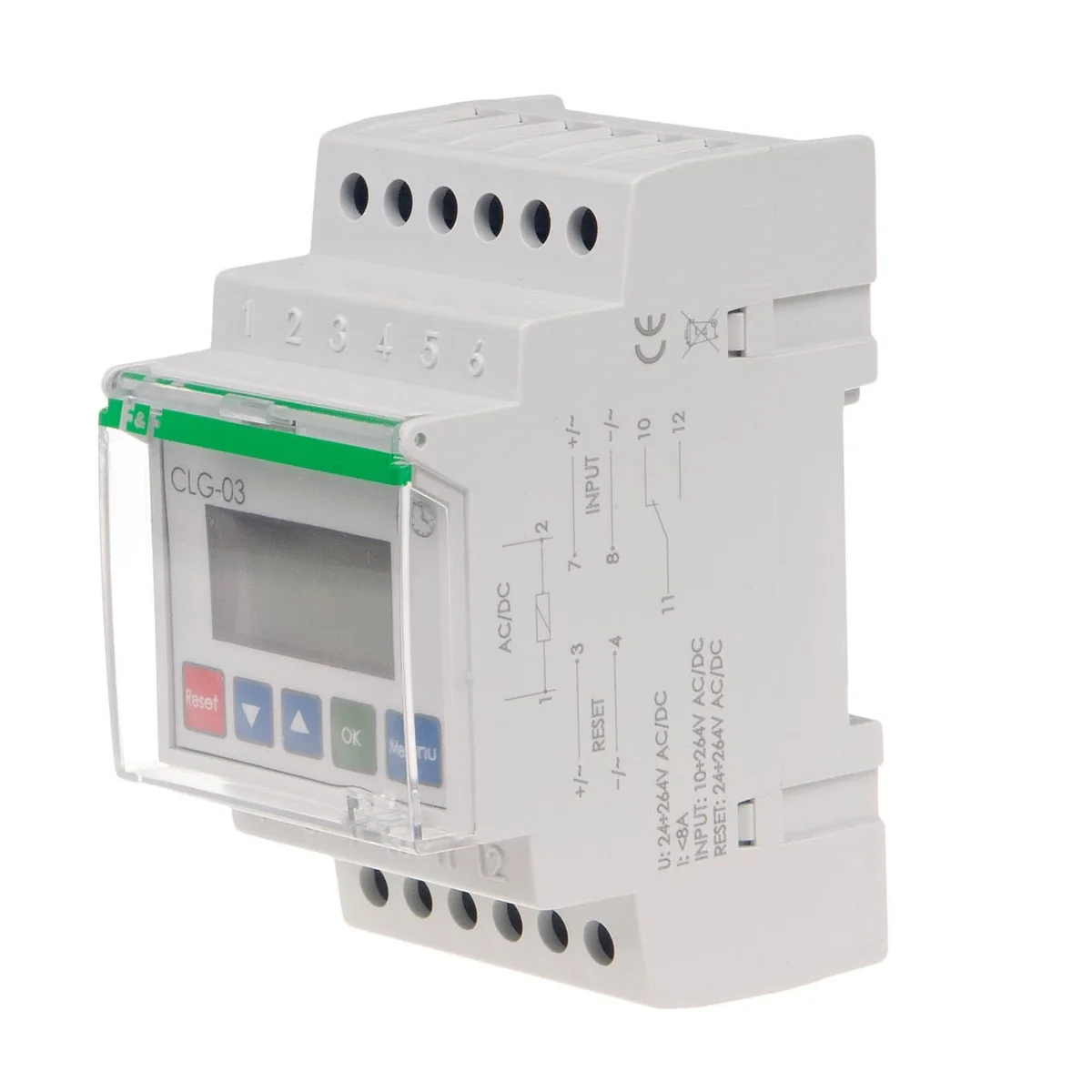

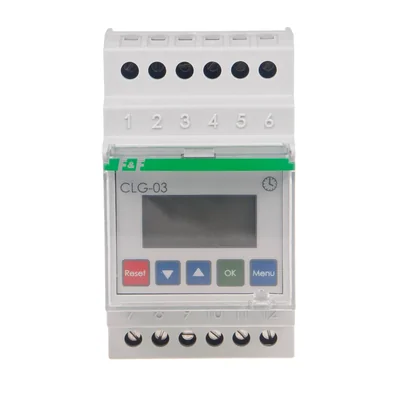

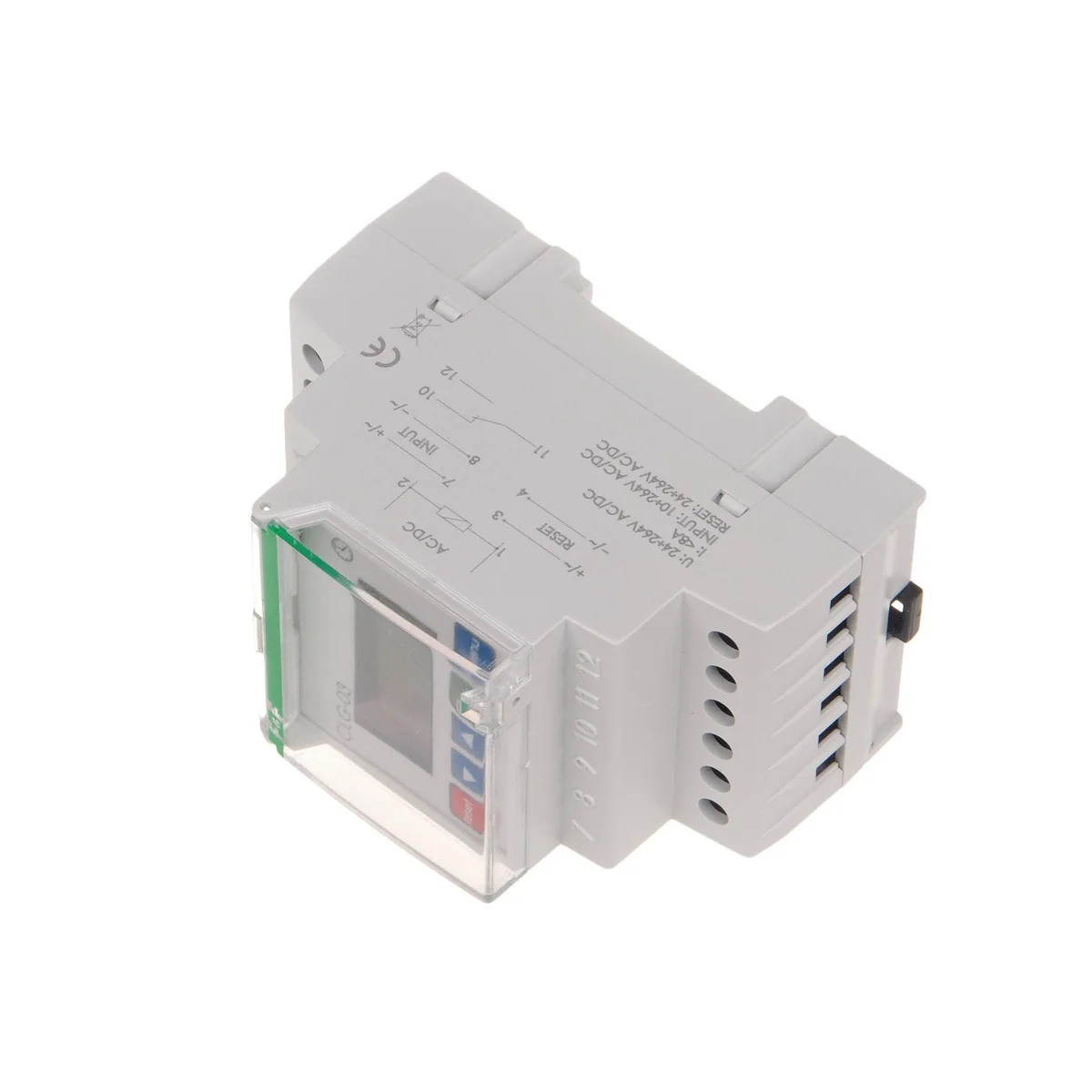

Working hours counter CLG-03 CLG-03

local index:
NPL015FIFQ
Catalog No:
CLG-03
EAN code:
5908312591832
Manufacturer: F&F
Function: 0NO 0NC 1CO
Maximum voltage [V]: 230
Power [W]: 1.5
Price:
65,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The CLG-03 meter is a programmable, multifunctional electronic meter that allows counting the working hours of connected devices or systems in the range from 1 to 999,999, which corresponds to a maximum period of operation exceeding 114 years. Working time is counted according to an individual program set by the user. After reaching the limit value, the counter will perform an action configured according to the individual needs of the user.

Technical data

  • Function
    0NO 0NC 1CO
  • Power [W]
    1.5
  • RESET voltage [V]
    24-264
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • PKWIU
    26.51.64.0
  • Maximum voltage [V]
    230
  • Installation
    On the TH-35 rail
  • Input voltage [V]
    10-264
  • load current [A]
    8
  • Working temperature [°C]
    -20-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.16

Other technical data

  • Mounting method
    DIN rail
  • Count area
    999999 h
  • Operation indication
    Yes
  • Voltage type
    AC/DC
  • Type of drive
    Quartz
  • Height
    90 mm
  • Built-in depth
    65 mm
  • Model
    Digital
  • Reset function
    Reset push button/-input
  • Number of digits
    8
  • Frequency input voltage
    50 ... 50 Hz
  • Width
    52.5 mm
  • Width in number of modular spacings
    3

Manufacturer details

  • Manufacturer
    F&F Filipowski Spółka Komandytowa
  • Address
    95-200 Pabianice ul. Konstantynowska 79/81
  • Phone number
  • Tax identification number
    7310005314
  • GLN
    5900009915815

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,155
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
