VT-2 AC voltage indicator WMGBVT2

Name: VT-2 AC voltage indicator
Brand: SONEL
SKU: NPT005SONE
Price: 21.11 PLN
Availability: InStock

local index:

NPT005SONE

Catalog No:

WMGBVT2

EAN code:

5907624014589

Click on the photo to enlarge

Manufacturer: SONEL

Battery: 2 x 1.5V LR03

Length [mm]: 177

Level of security: IP54

See full description

Price:

21,11 €

gross / pcs.

(including VAT 23%)

211,10 € gross/kg.

Accessible 62 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer's description Manufacturer details Files to download

Product description

Simple to use, non-contact AC voltage tester, signaling the presence of voltage by lighting the tip and emitting a sound signal. Dedicated to electricians, service workers, maintenance workers and building owners for quick testing of power circuits.

Indicators: LED and buzzer.
Voltage range: 90 ... 1000 V AC (50/60 Hz).
Overvoltage category: CAT III 1000 V.
Pollution degree: 2.
Degree. housing protection: IP 54.
Operating temperature: -5...40°C.
Humidity: up to 80% without condensation.

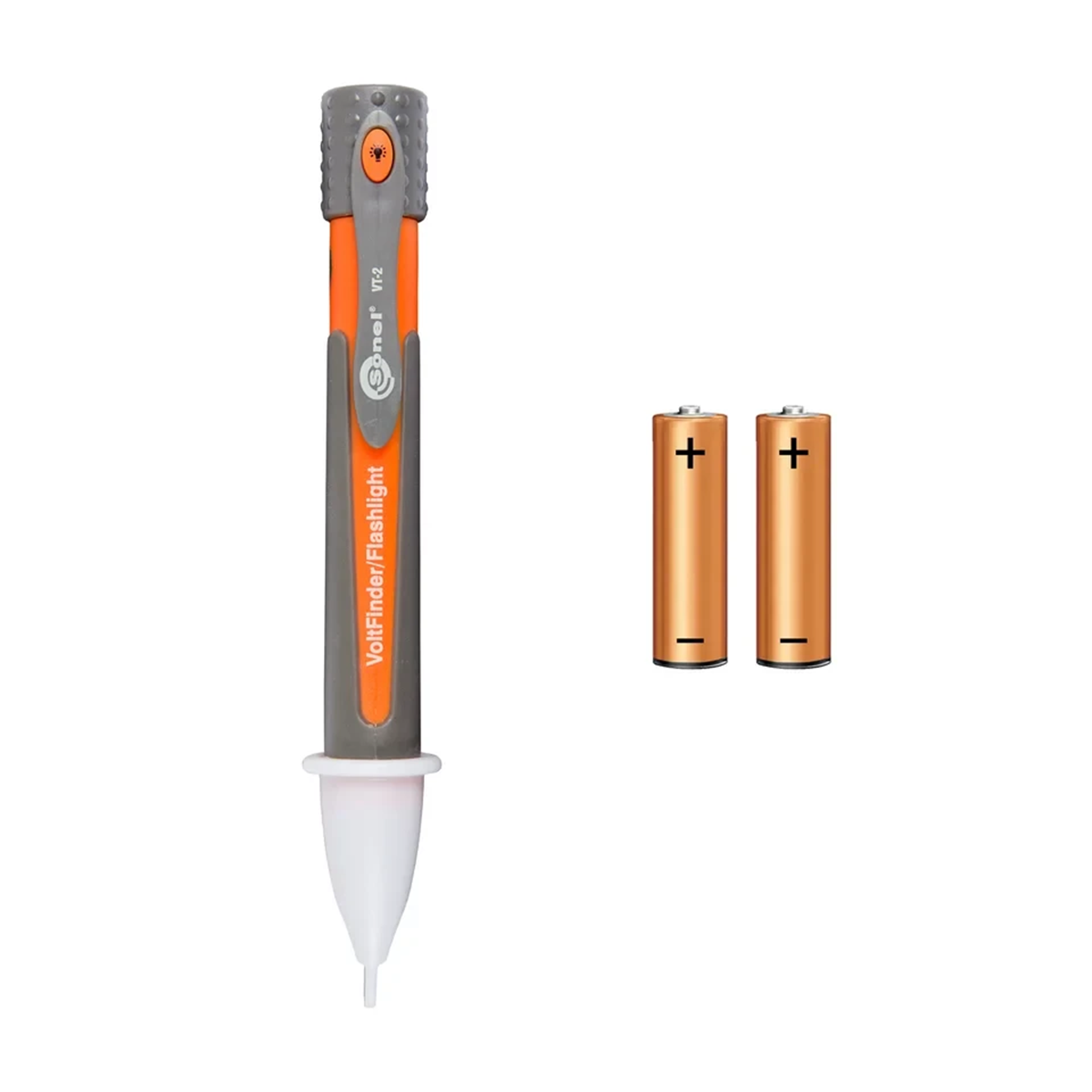

Battery: 2 x 1.5V (AAA, NEDA 24A or IEC LR 03 batteries).

Technical data

Battery

2 x 1.5V LR03
Level of security

IP54
Diameter [mm]

27
Voltage Range [V]

90-1000

Length [mm]

177
Degree of contamination

2
Weight [g]

100
Power

Battery

Manufacturer's description

Detect alternating voltage

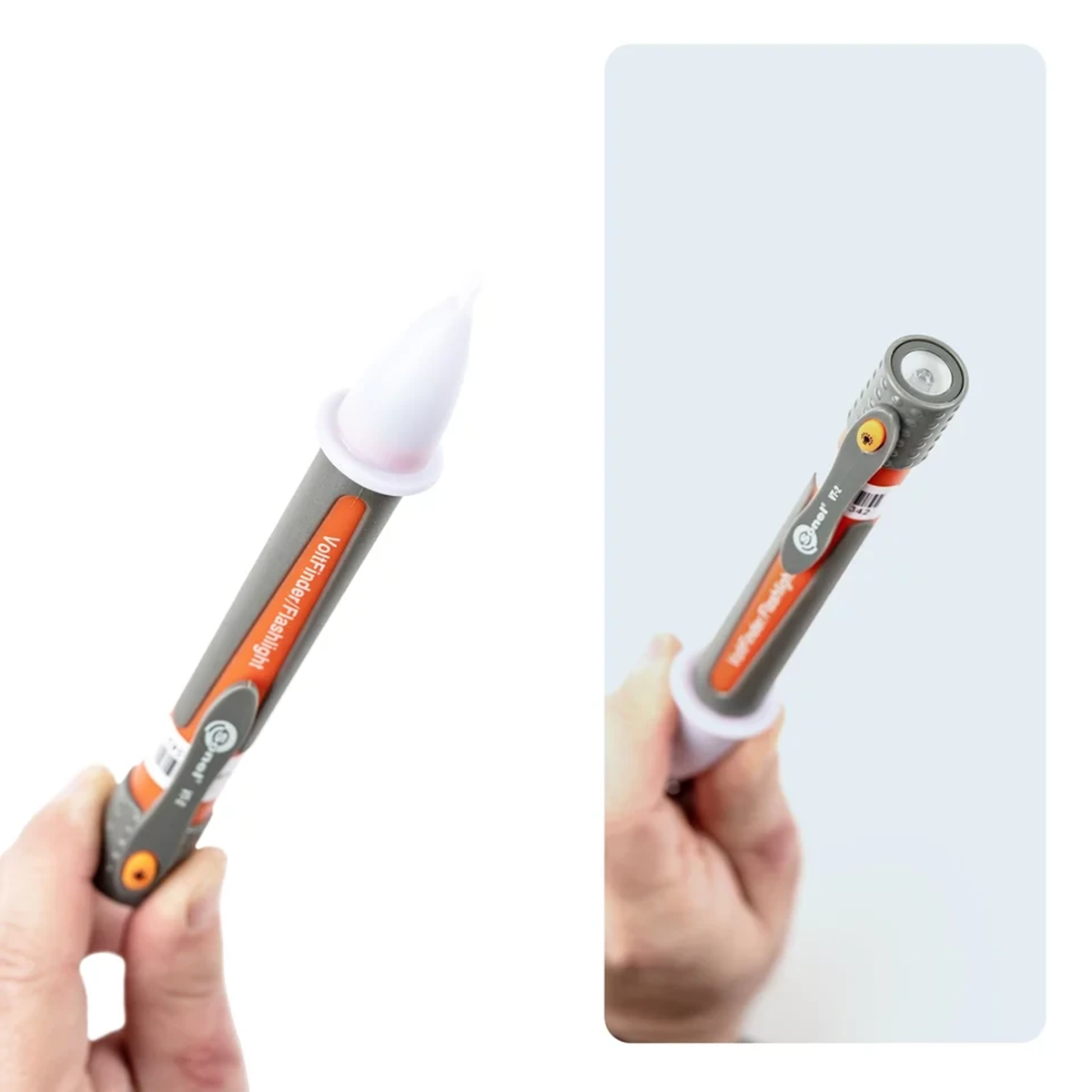

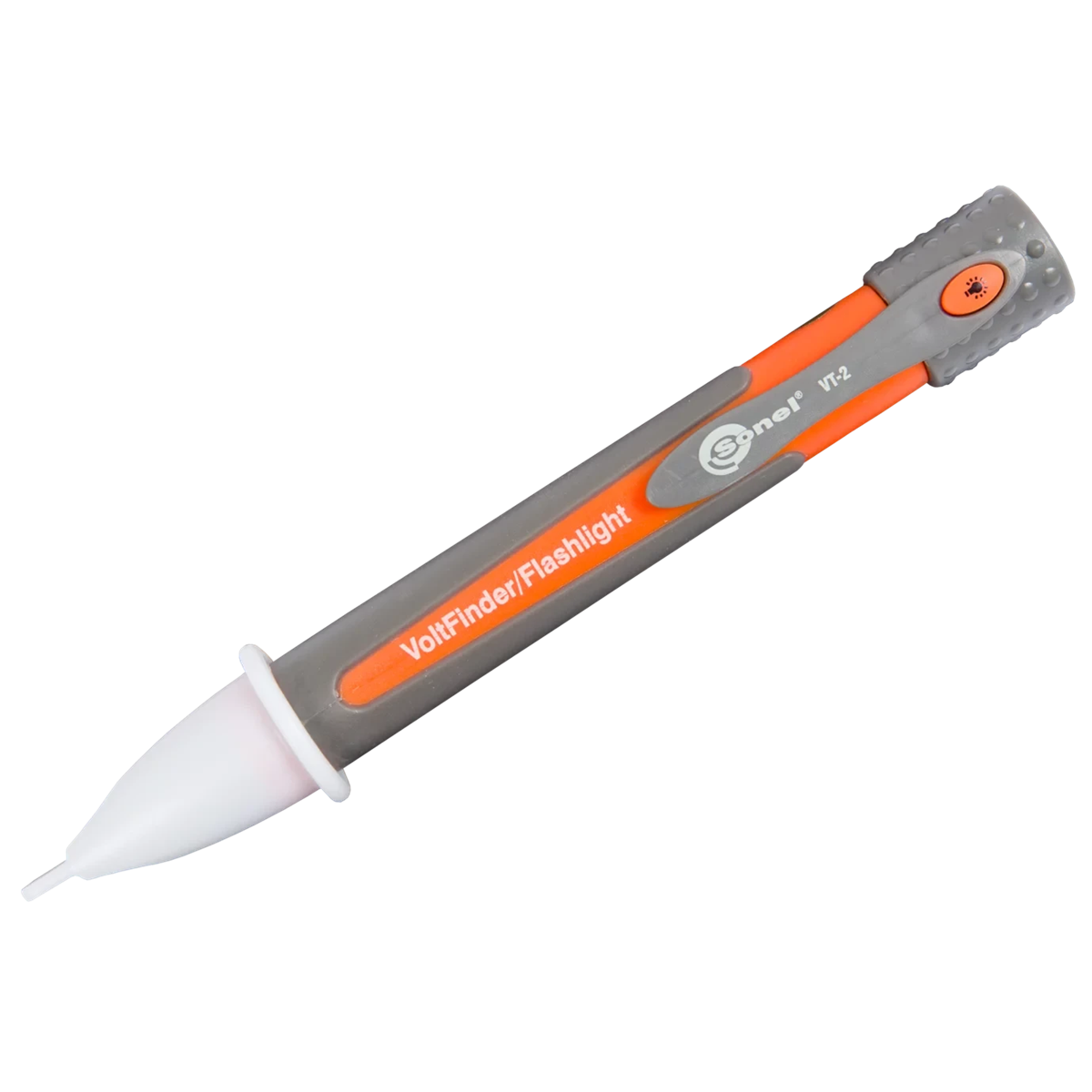

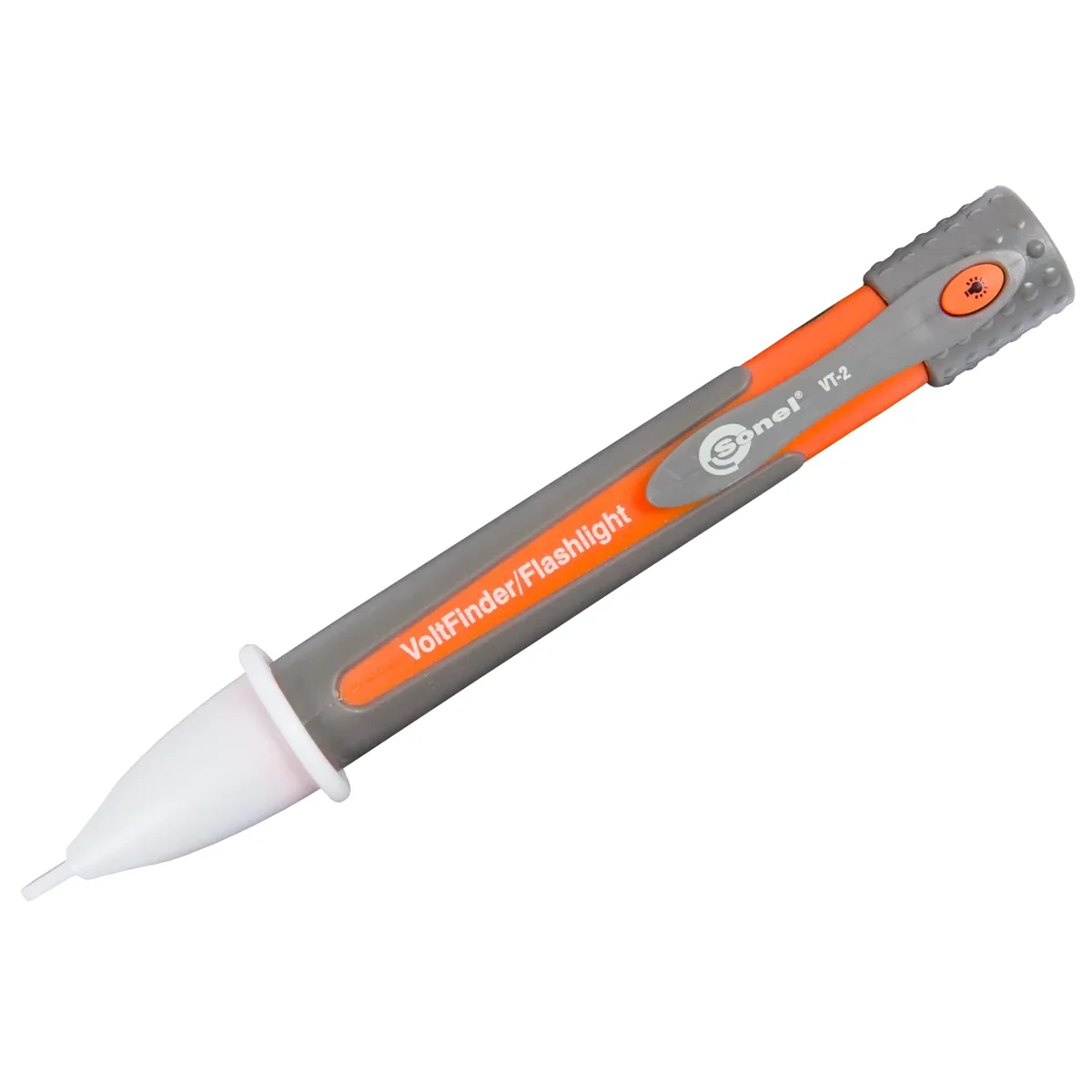

The Sonel VT-2 AC voltage indicator is a fully functional, professional device hidden in an inconspicuous form and compact dimensions. The instrument is characterised by its rich functionality as well as its lightness and ease of use. The device is designed for contactless detection of AC voltage in the range of 90...1000 V.

The Sonel VT-2 voltage indicator facilitates measurements even in narrow and hard-to-reach places, where testing with a regular meter could prove cumbersome or impossible. Combining basic measuring functions, robust design and high user comfort, the instrument is ideal for many areas.

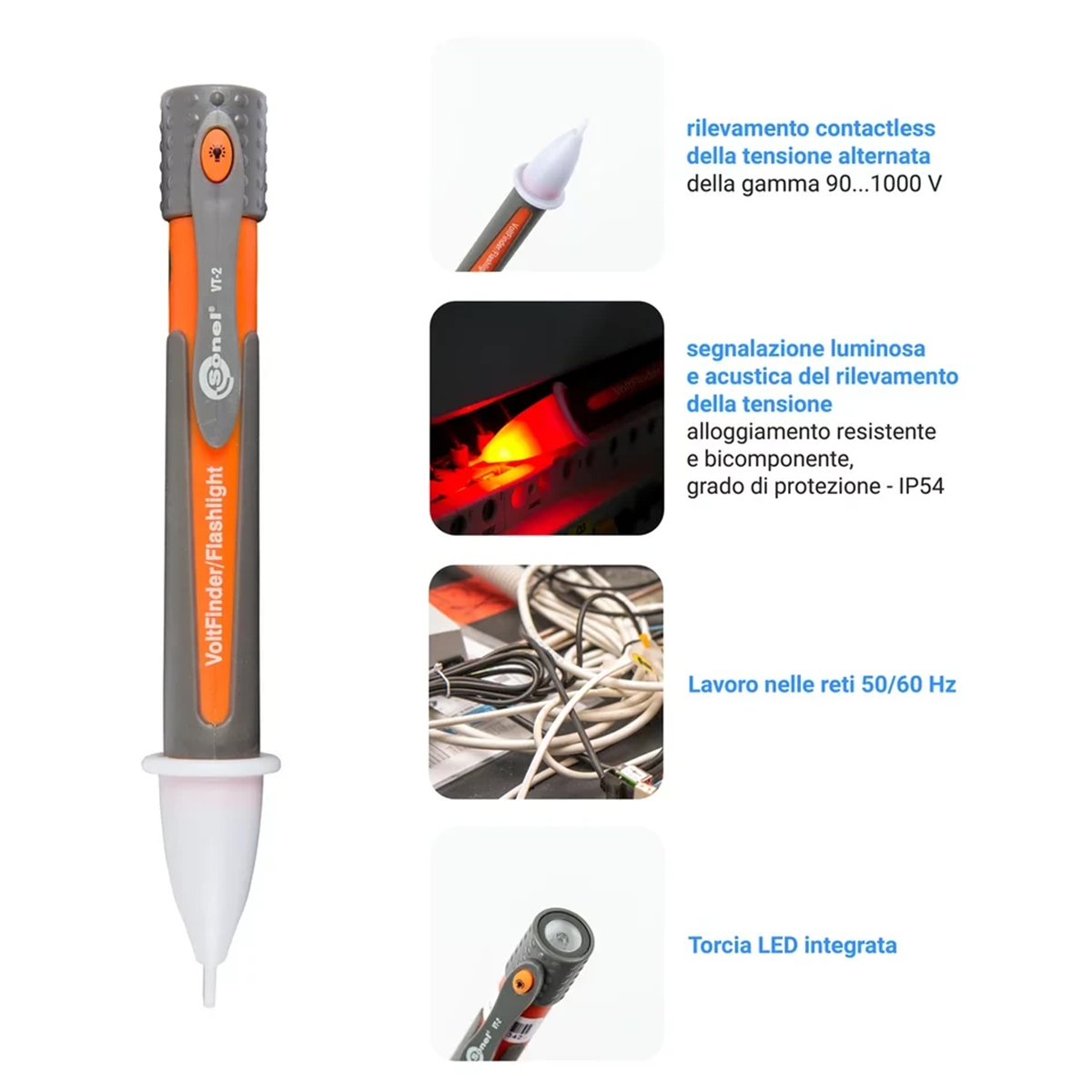

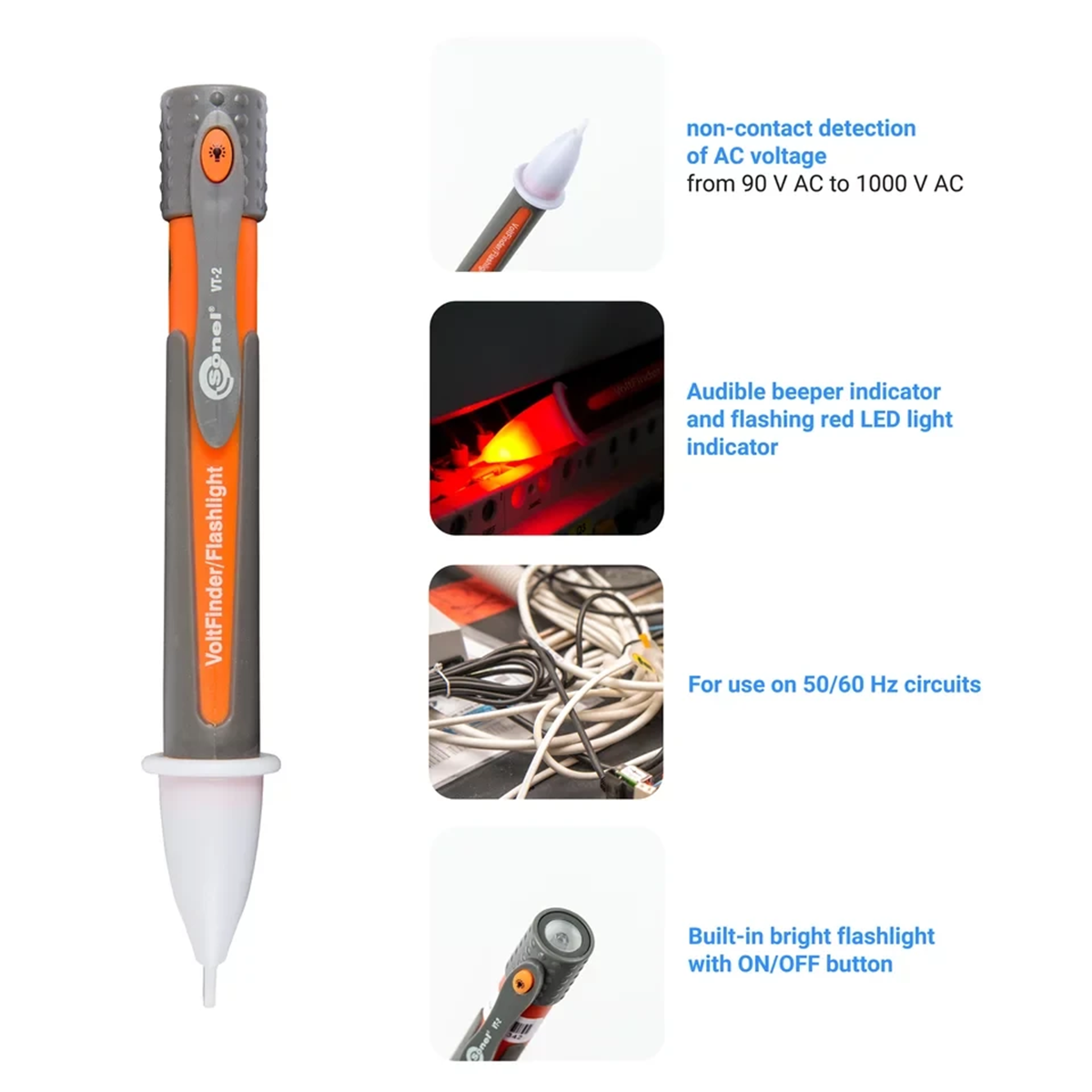

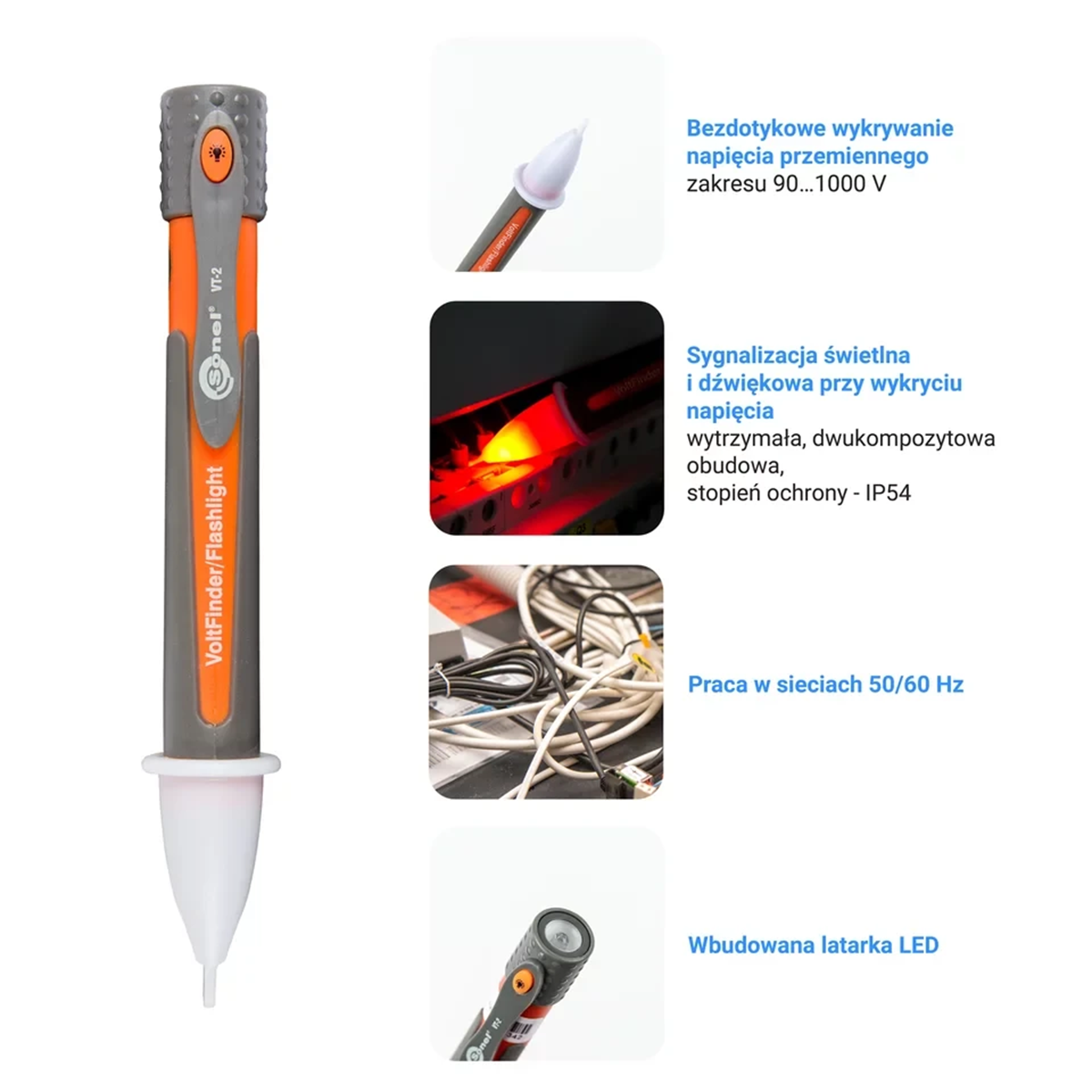

Product features

non-contact detection of AC voltage from 90 V AC to 1000 V AC
rugged, double molded case
suitable for outlets or against wire insulation testing
flashing red LED light indicator
audible beeper indicator
built-in bright flashlight with ON/OFF button
convenient size with pocket clip
for use on 50/60 Hz circuits

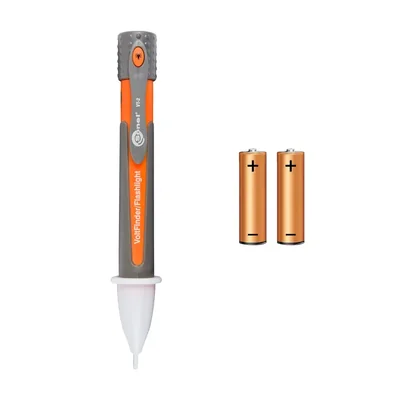

supply by 2 x 1.5 V batteries (LR03)

Application

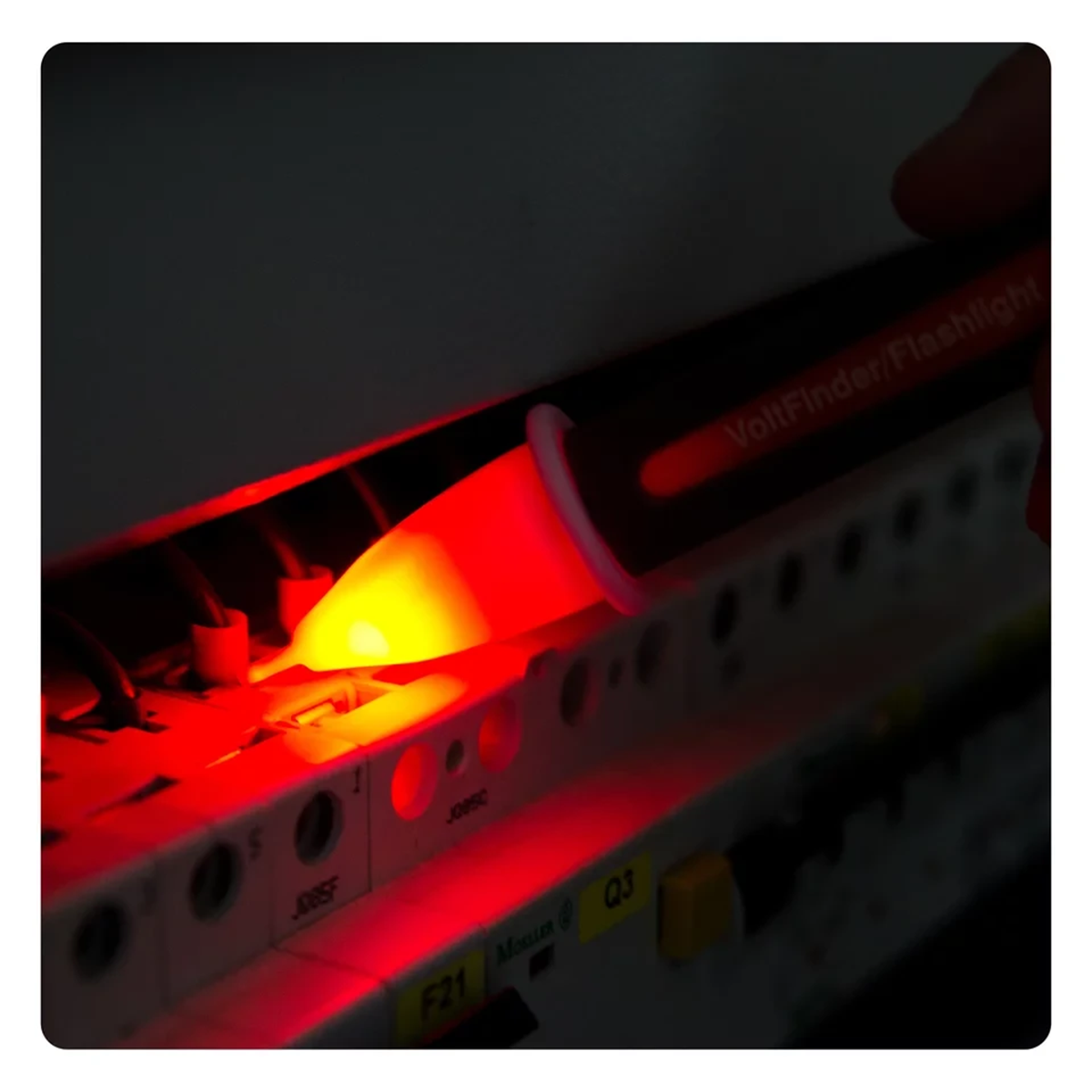

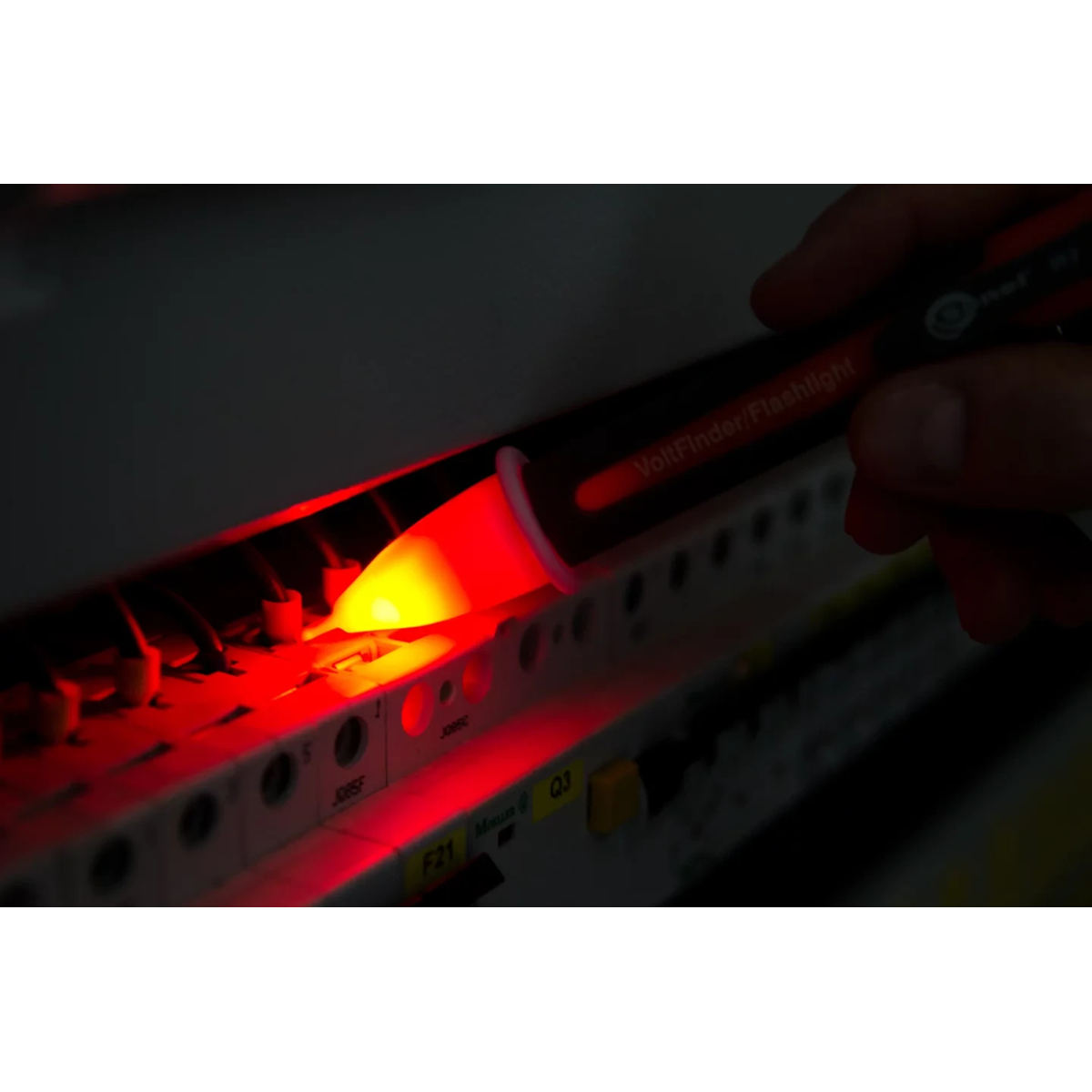

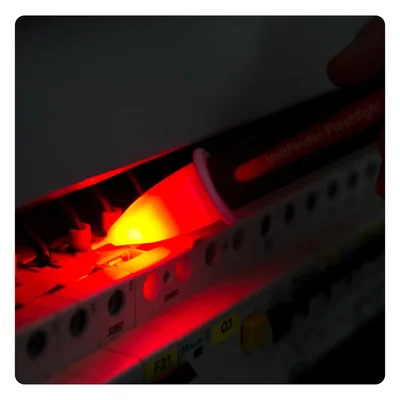

The Non-contact AC Voltage Tester is easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service and safety personnel or homeowners can quickly test for energized circuits in the workplace or at home.
