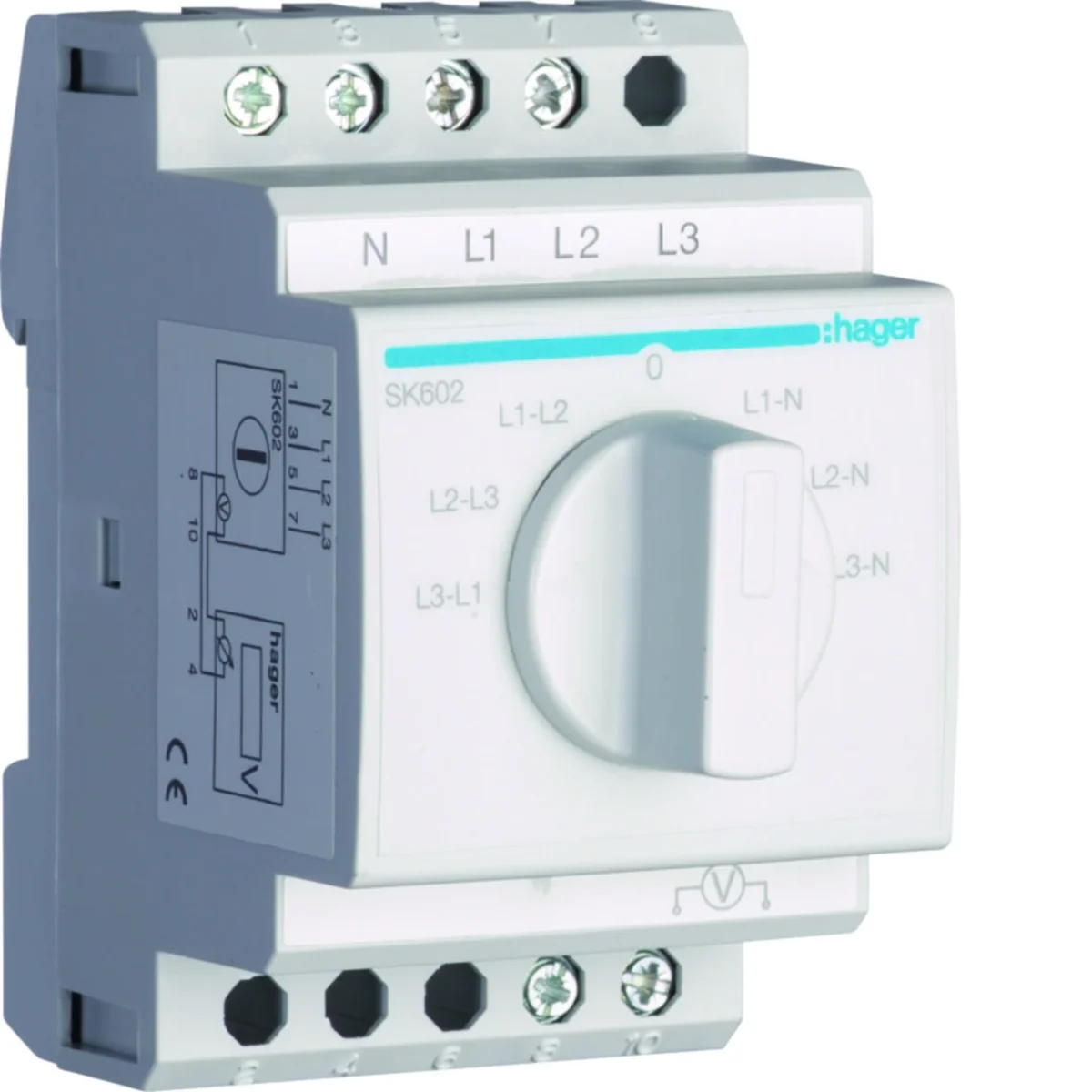

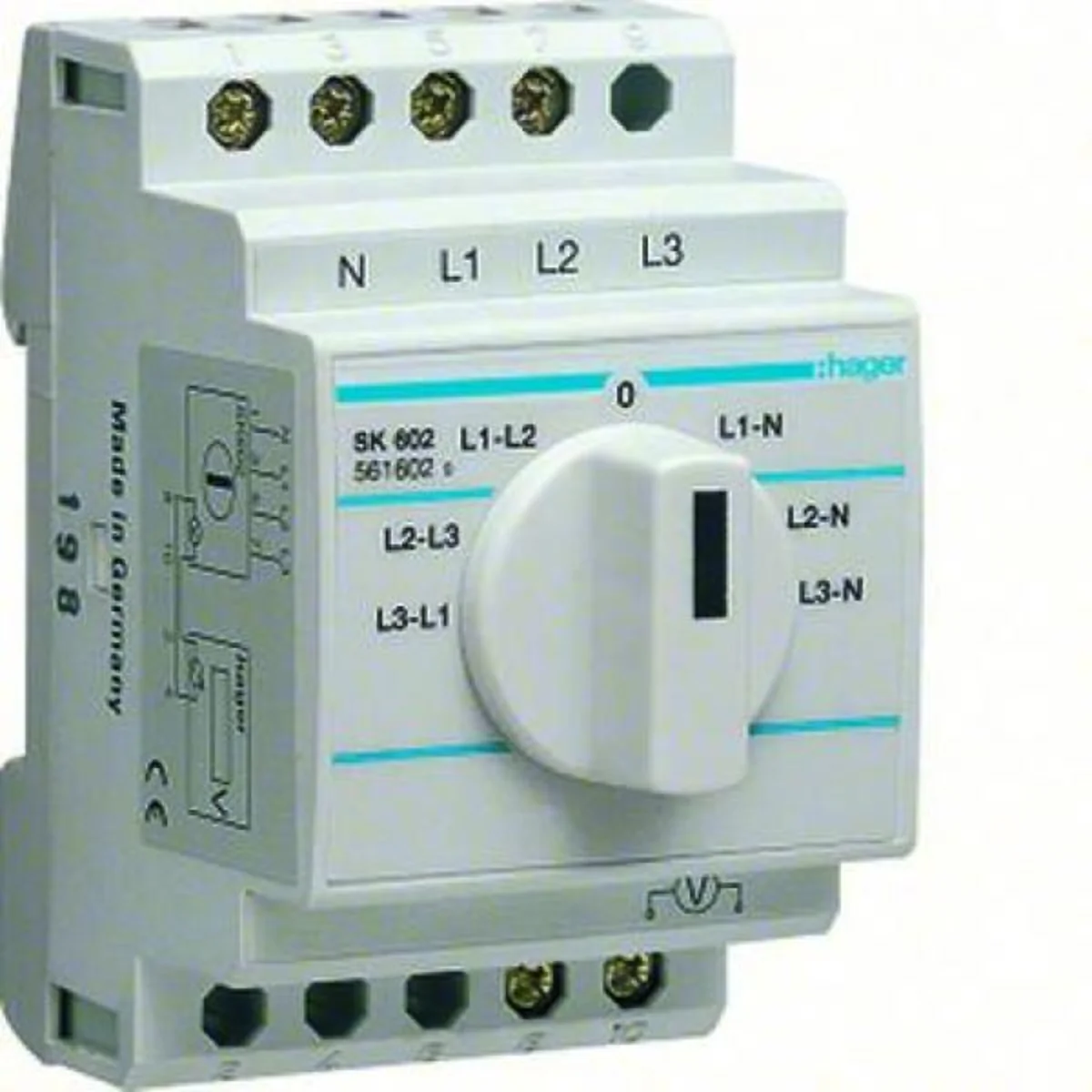

Voltmeter switch 10A 400V SK602
local index:
NPS008HAGE
Catalog No:
SK602
EAN code:
3250615616029
Price:
81,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Voltmeter switch
• switches enabling the selection of the measured value (current or voltage) when using one ammeter or voltmeter in three-phase networks
• four measurement positions for current measurement,
• 7 measuring positions for voltage measurement,
• mounting on a 35 mm DIN rail.
• switches enabling the selection of the measured value (current or voltage) when using one ammeter or voltmeter in three-phase networks
• four measurement positions for current measurement,
• 7 measuring positions for voltage measurement,
• mounting on a 35 mm DIN rail.
Technical data
-
Depth [mm]64
-
Rated insulation voltage [V]690
-
Power dissipation [W]70
-
Number of modules3
-
Number of modules3
-
Rated current [A]20
-
Height [mm]85
-
PKWIU27.33.11.0
Other technical data
-
Measurement between phases possibleYes
-
With zero (off) positionYes
-
Modular versionYes
-
Degree of protection (IP)IP20
-
Measurement between phase and neutral conductor possibleYes
-
Device constructionDistributor board mounting
-
With control elementYes
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,194 | 0,195 | 9,845 | 259,280 |
| Width (m) | 0,070 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,085 | 0,055 | 0,235 | 1,050 |
| Depth (m) | 0,064 | 0,095 | 0,360 | 1,200 |
