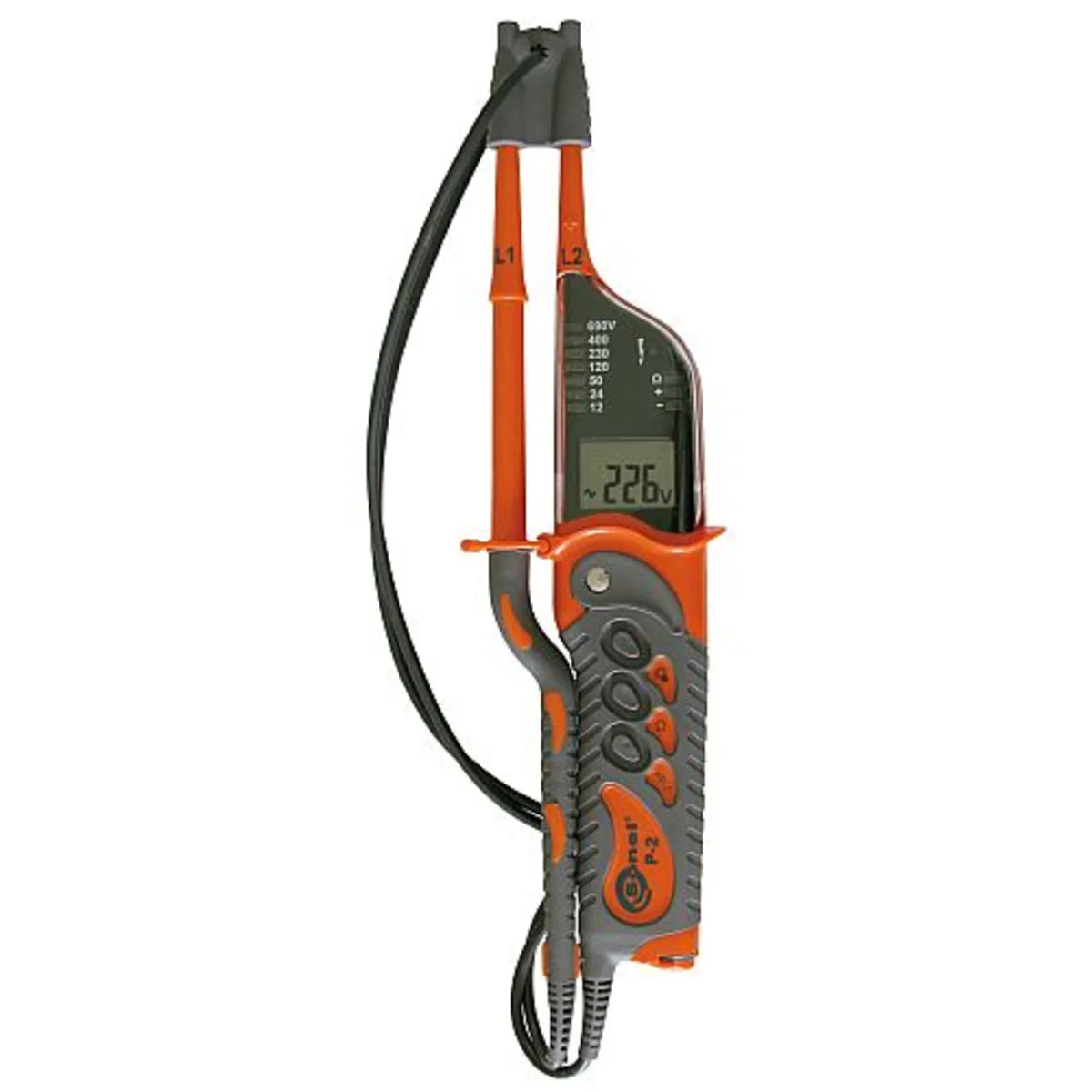

Voltage and phase sequence indicator P-2 WMPLP2

P-2 provides indication of polarity, phase rotation sequence, and also enables testing of the RCD. In addition, it allows you to measure DC and AC voltage up to 750 V and resistance; both of these electrical quantities are presented both on the LED indicator and on the LCD display.

Indication and measurement of DC and AC voltages:

• indication on the diode line (bar graph): 12, 24, 50, 120, 230, 400, 690 V (works also without batteries),
• displaying the measurement result on the LCD screen,
• voltage: AC or DC polarity.

Resistance measurement and circuit continuity testing:

• displaying the measurement result on the LCD screen,< /li>
• signaling for resistance <400 kΩ.

Phase rotation indicator:

• phase sequence indication for voltage >100 V.

Unipolar phase indication:

• indication by touch electrode,
• signaling optical and acoustic for voltage >50 V.

Test of RCD:

• test of circuit breakers with IΔn ≤100 mA.< /li>

Measuring tips Ø2 mm/4 mm.

Illumination of the measuring point.

"HOLD" function - holding the measurement result.

Measurement category: CAT III 1000V (CAT IV 600V).
