Measuring devices
counters

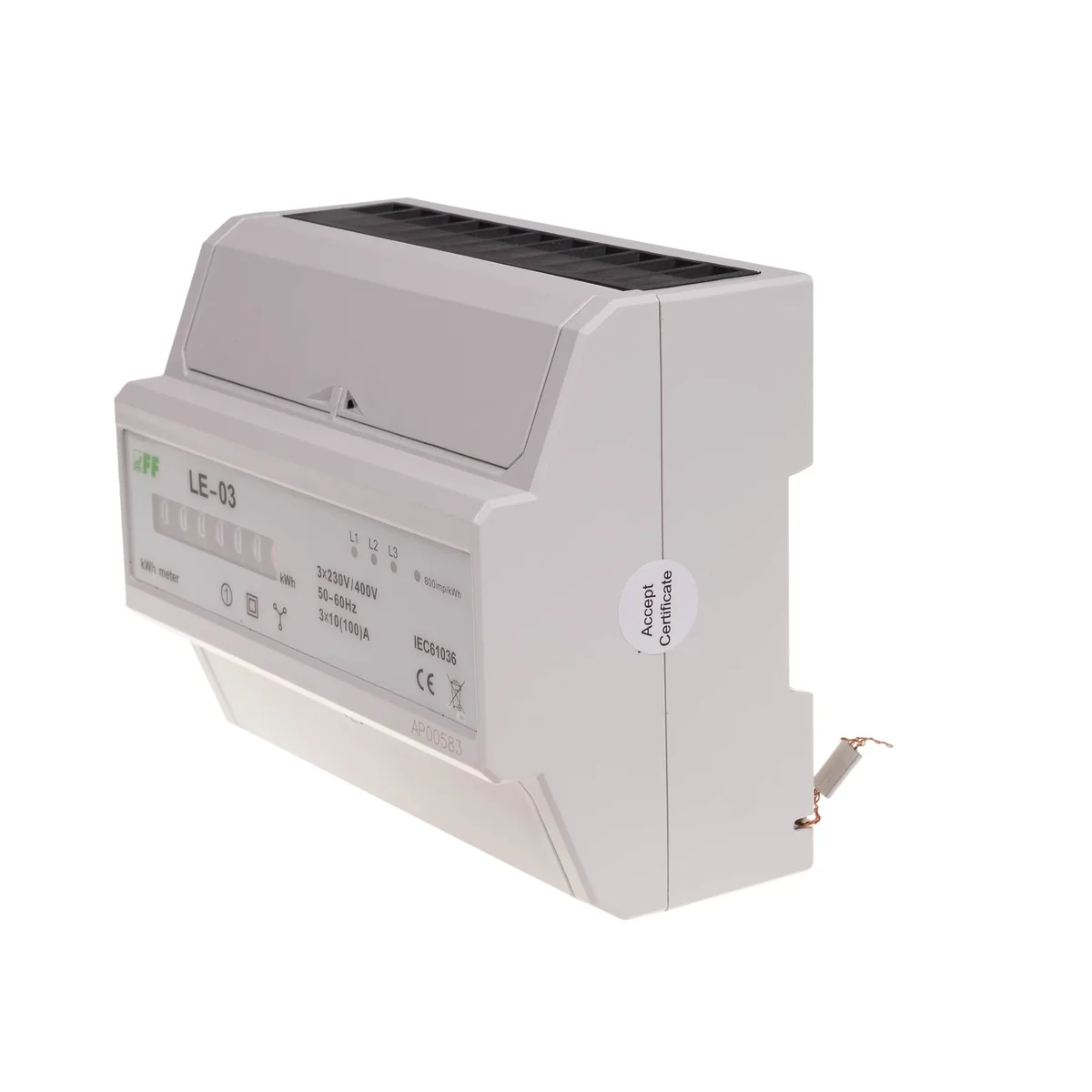

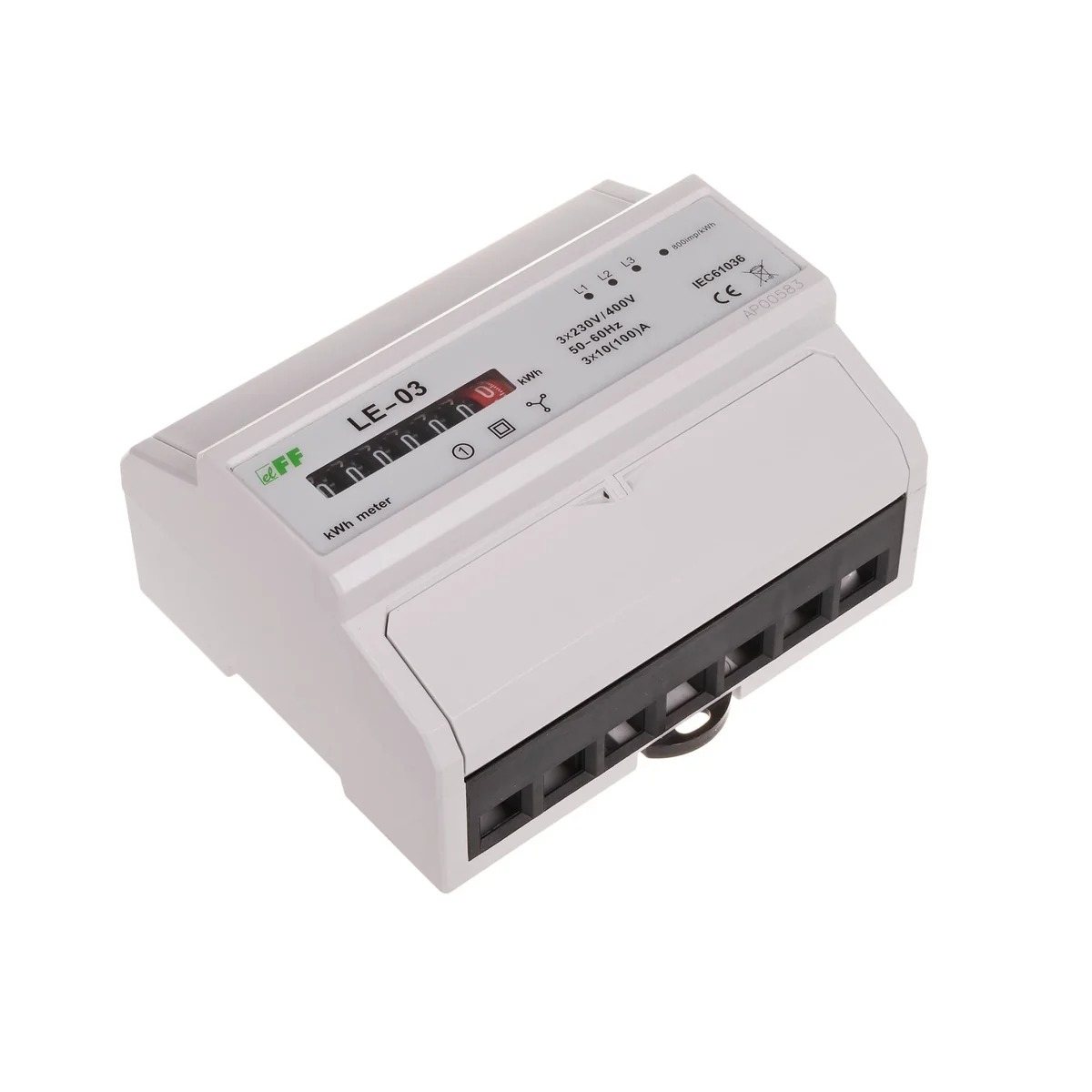

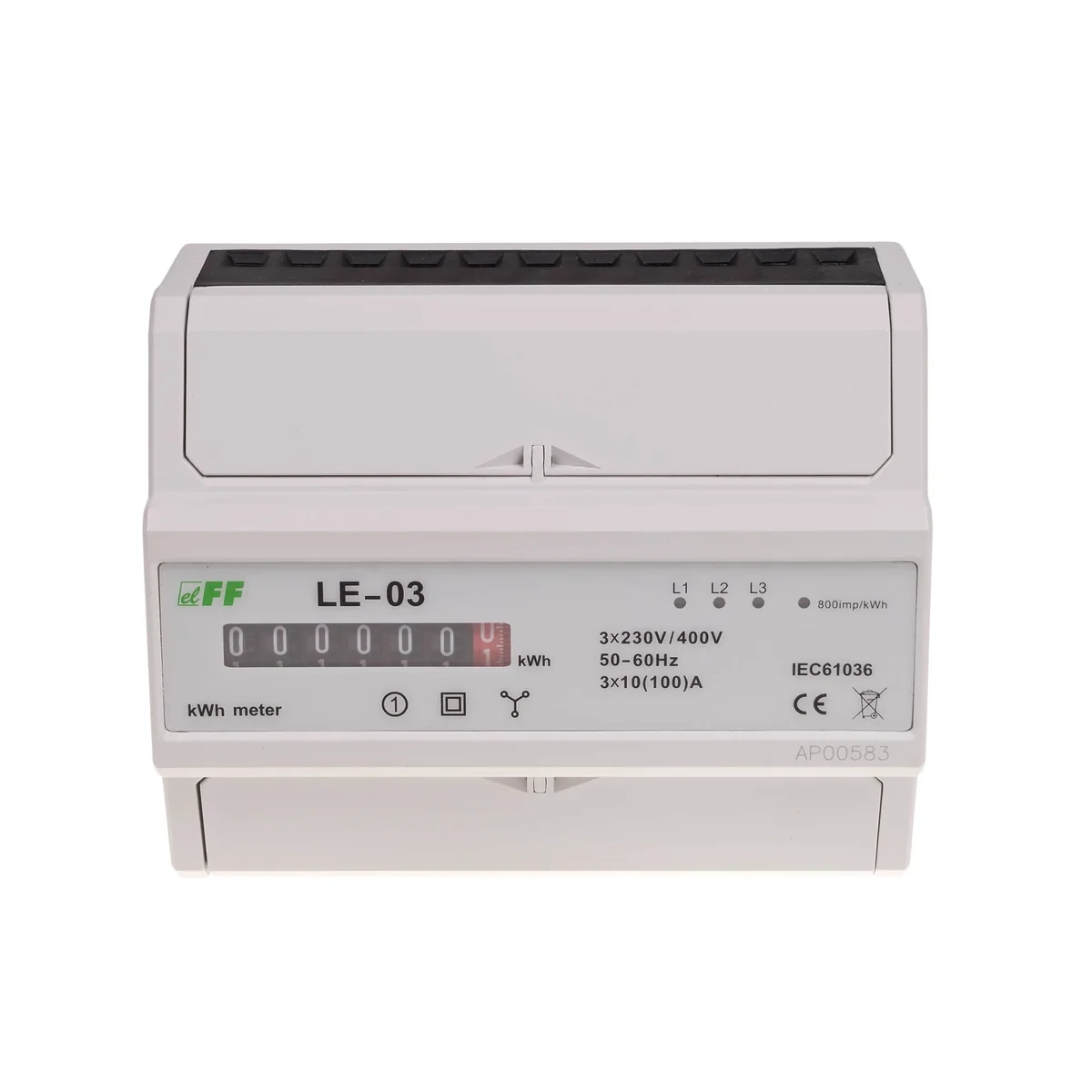

Three-phase electricity meter LE-03 LE-03
local index:
NPL003FIFQ
Catalog No:
LE-03
EAN code:
5908312591702
Click on the photo to enlarge
Manufacturer:
F&F
Pulse time SO+ SO- [msec]:
20
Installation:
On the TH-35 rail
Connection voltage SO+ SO- [V]:
<30
See full description
Price:
94,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Files to download
Product description
LE-03 are static (electronic) calibrated electricity meters used as sub-meters for measuring three-phase AC electricity in a direct system.
Technical data
Pulse time SO+ SO- [msec]
20
Connection voltage SO+ SO- [V]
<30
Base Current [A]
10
connection
25mm screw terminals
Counter indication range [kWh]
Pulse time SO+ SO- [msec]
Package width [mm]
150
PKWIU
26.51.63.0
Installation
On the TH-35 rail
Rated voltage [V]
230
Maximum current [A]
100
Dimensions
7 modules (122mm)
Package height [mm]
150
Package weight [kg]
0.6
Other technical data
Type of meter
Electronic
Max. current (Imax)
100 A
Pole type
Three conductor
Energy type
Effective power
Tariff type
One-tariff
Escapement mechanism
Yes
Approval
Domestic
Pulse type
S0
Width in number of modular spacings
7
With lock code
No
Nominal current (In)
10 A
Accuracy class
B
Model
Direct measurement
Suitable for
Purchase
Measurement type load profile
No
Calibrated
No
Pulse output
Electrical
Type of indication
Digital
EEC40 signature
No
Degree of protection (IP)
IP20
Manufacturer details
Manufacturer
F&F Filipowski Spółka Komandytowa
Address
95-200 Pabianice ul. Konstantynowska 79/81
Phone number
422152383
E-mail
fif@fif.com.pl
WWW
https://www.fif.com.pl
Tax identification number
7310005314
GLN
5900009915815
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,522
Width (m)
0,140
Length (m)
0,115
Depth (m)
0,075
Files to download
FF_RoHS_2022.pdf
UE_FF024_18_LE_dek_zgod_CE.pdf
FF_RoHS_2022.pdf
UE_FF024_18_LE_dek_zgod_CE.pdf
