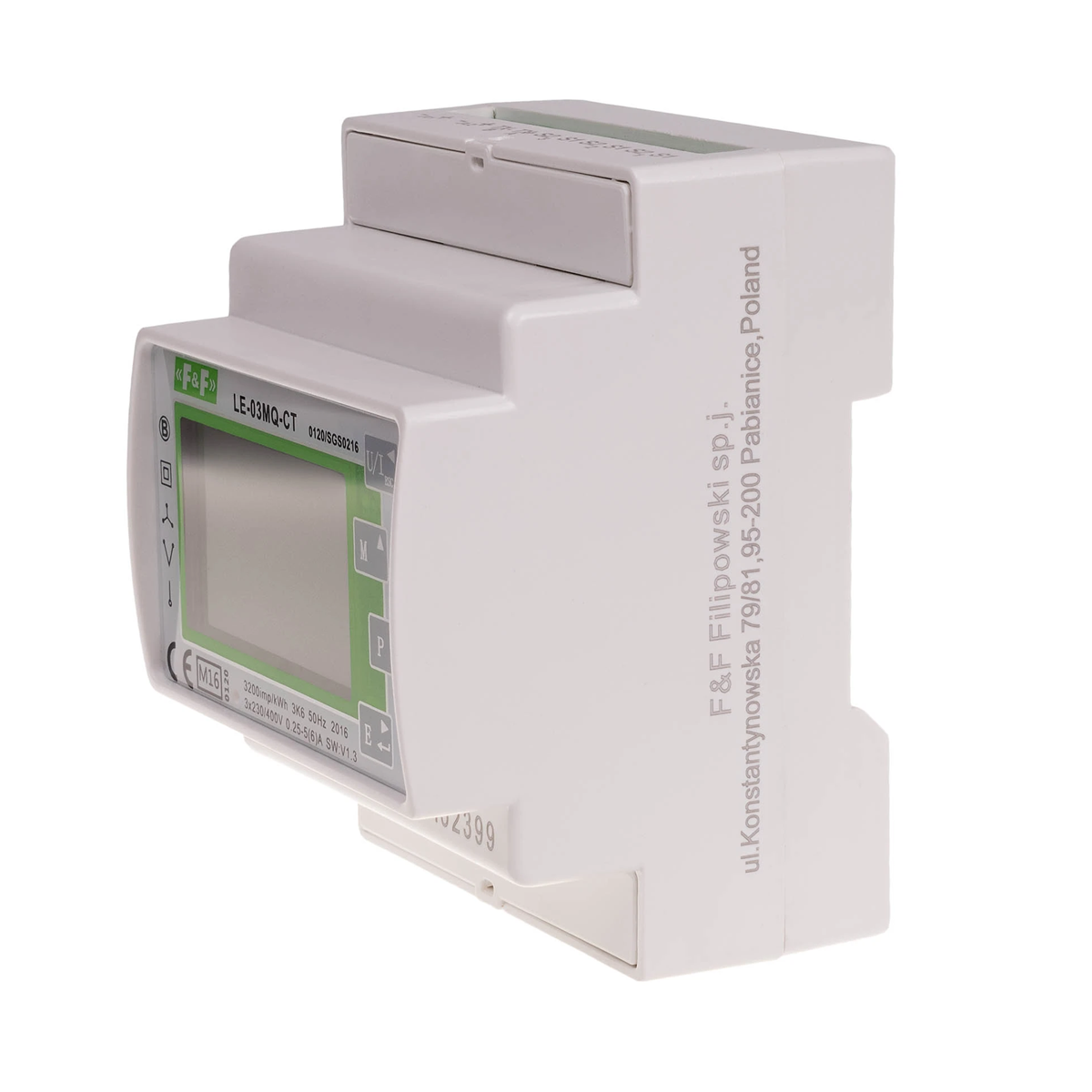

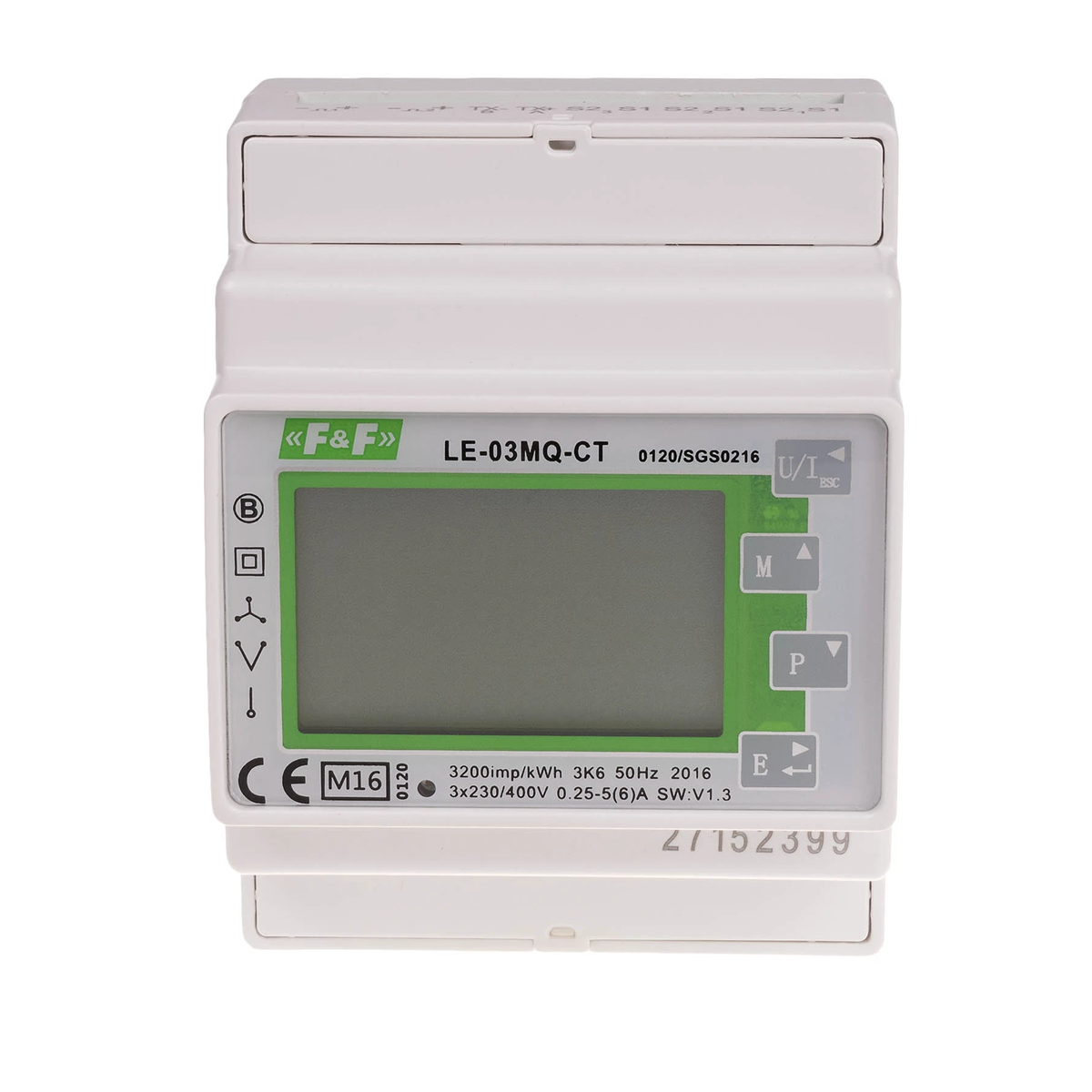

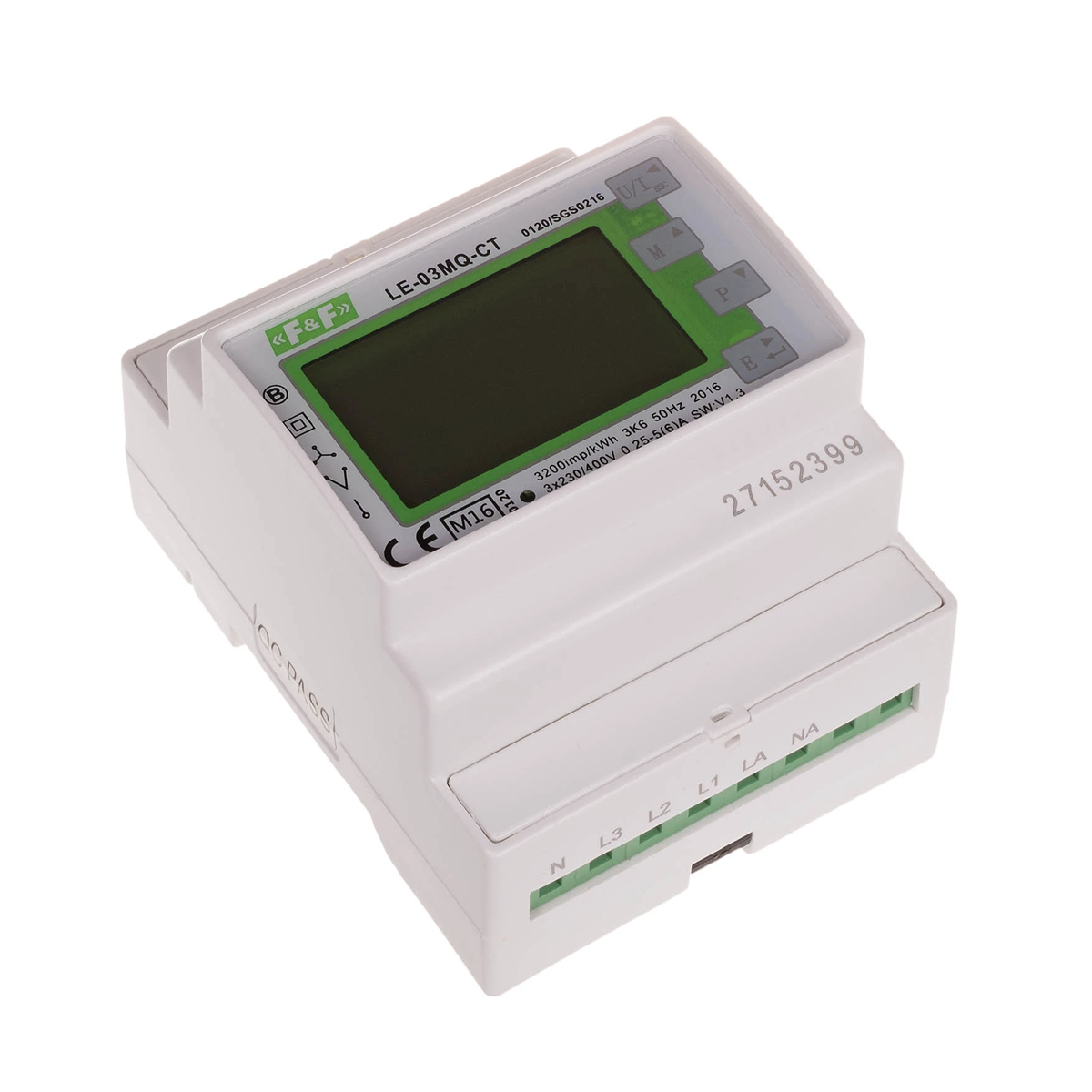

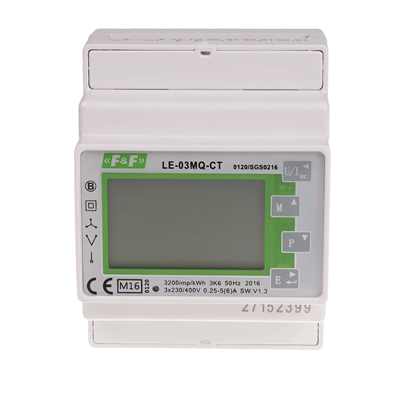

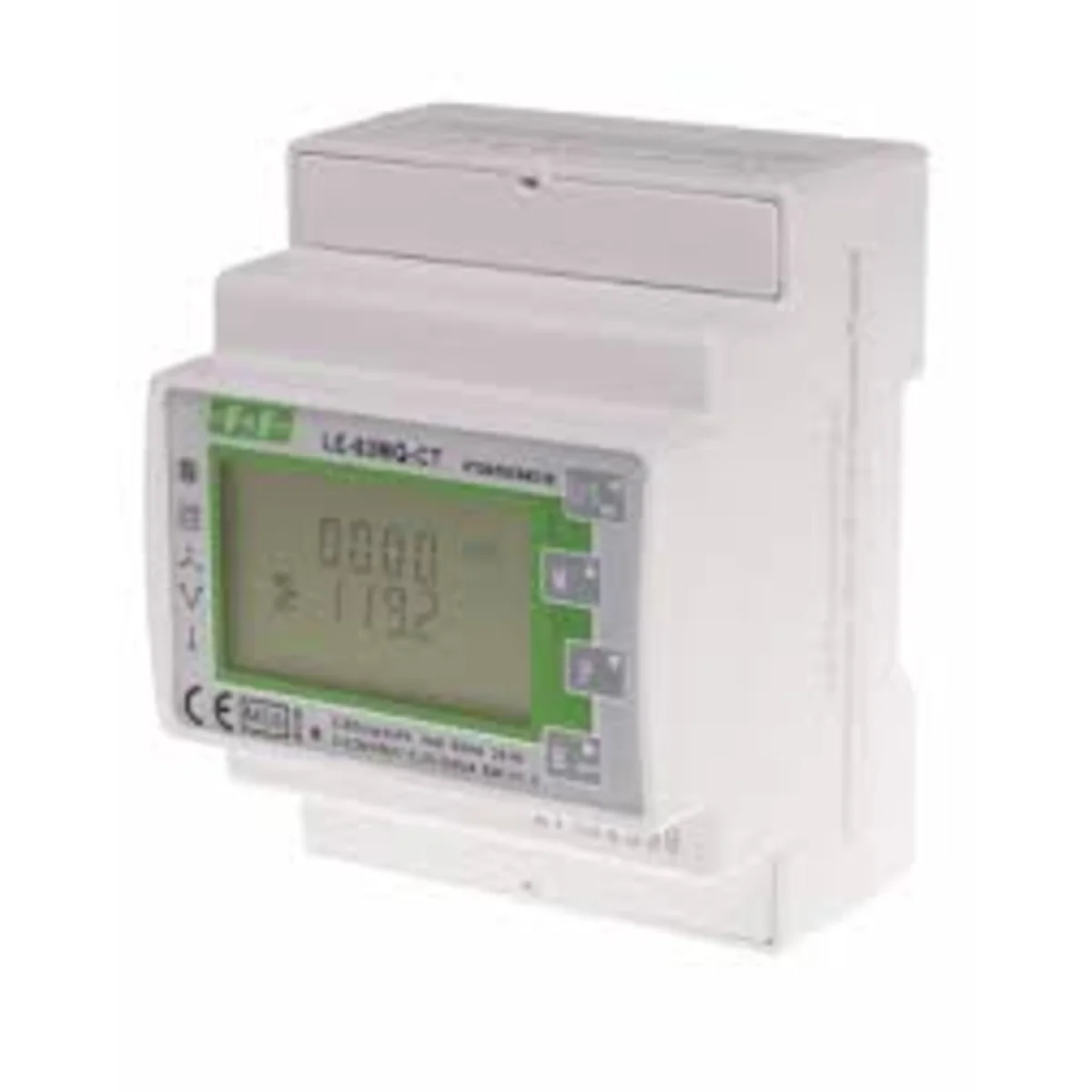

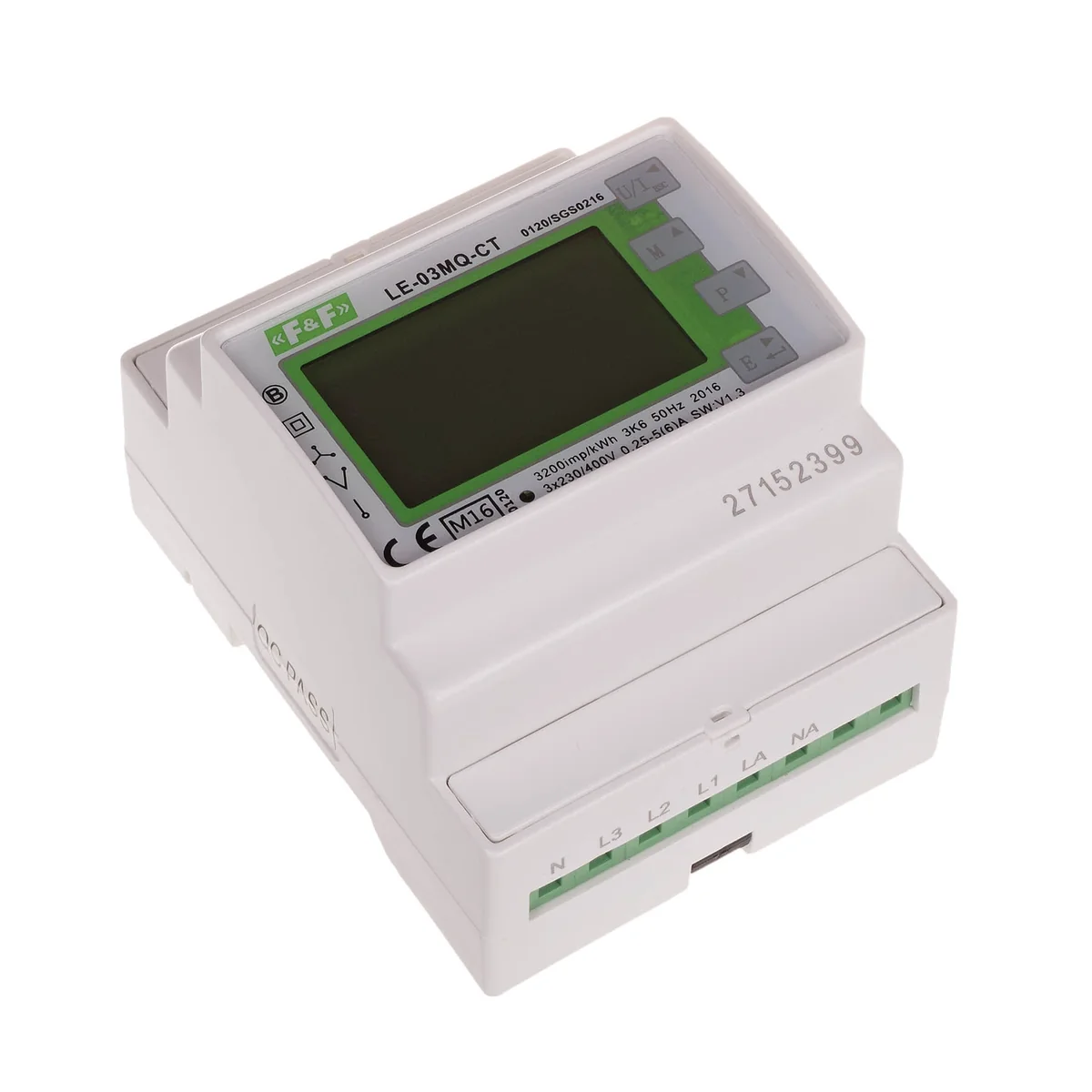

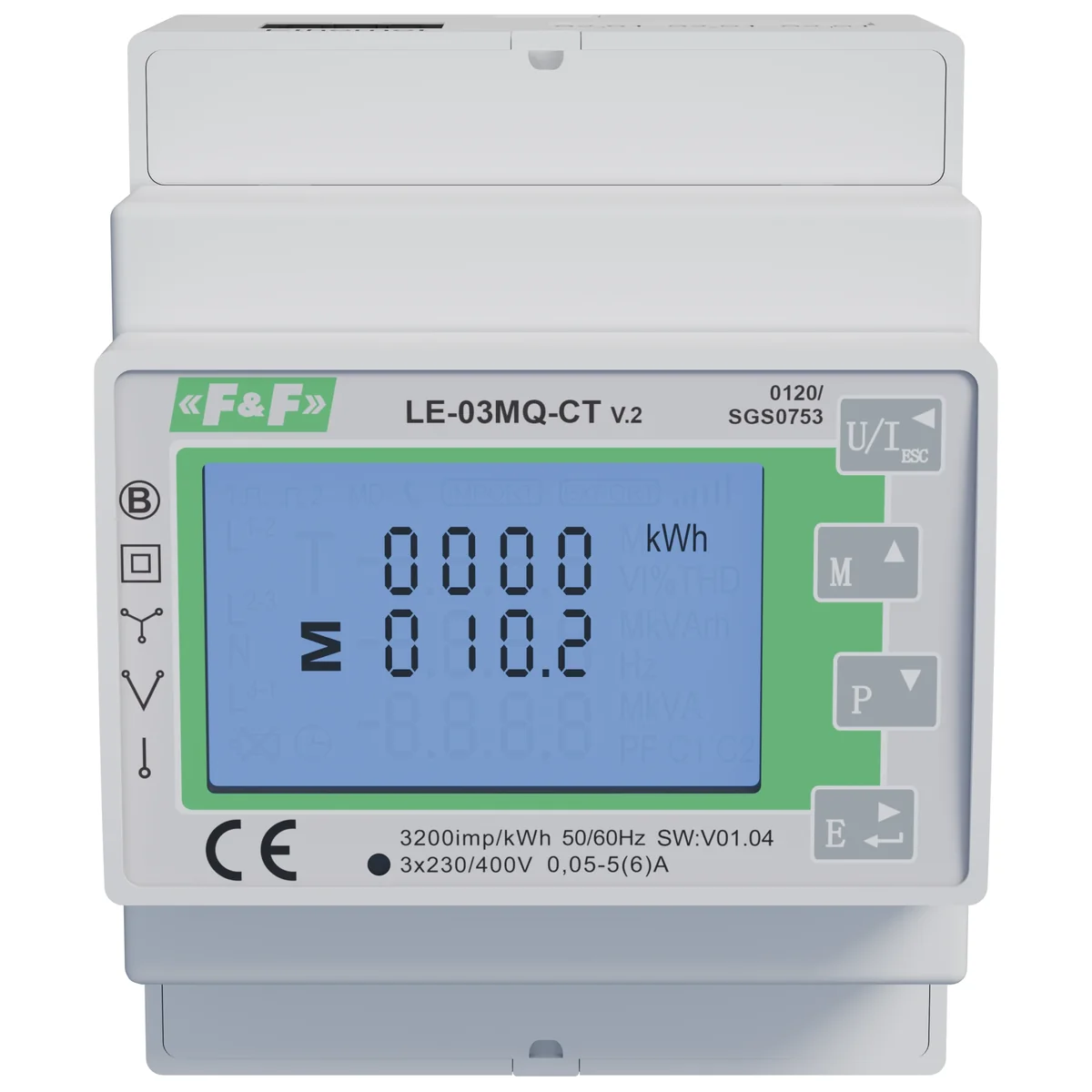

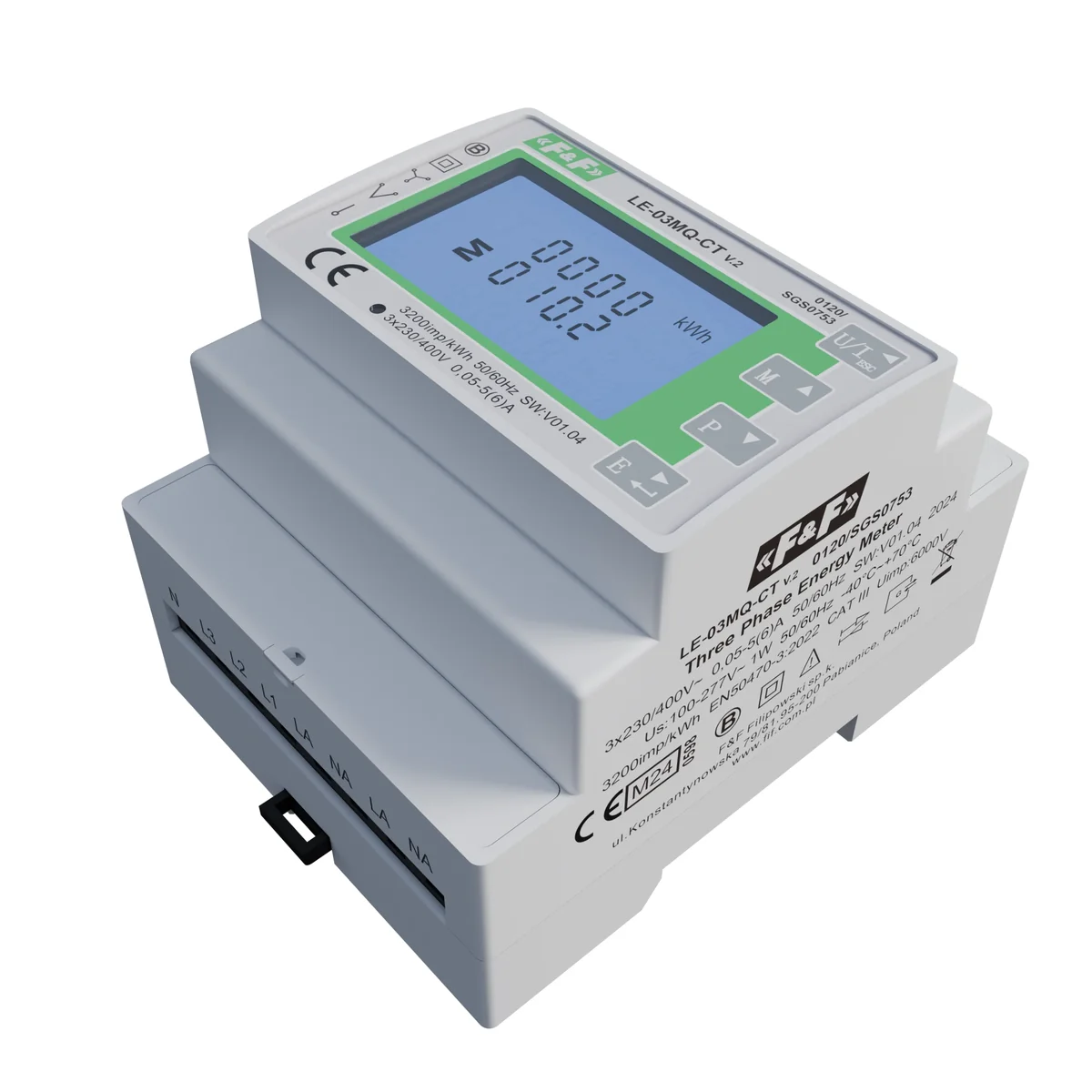

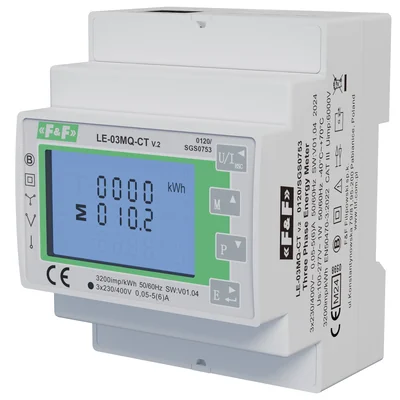

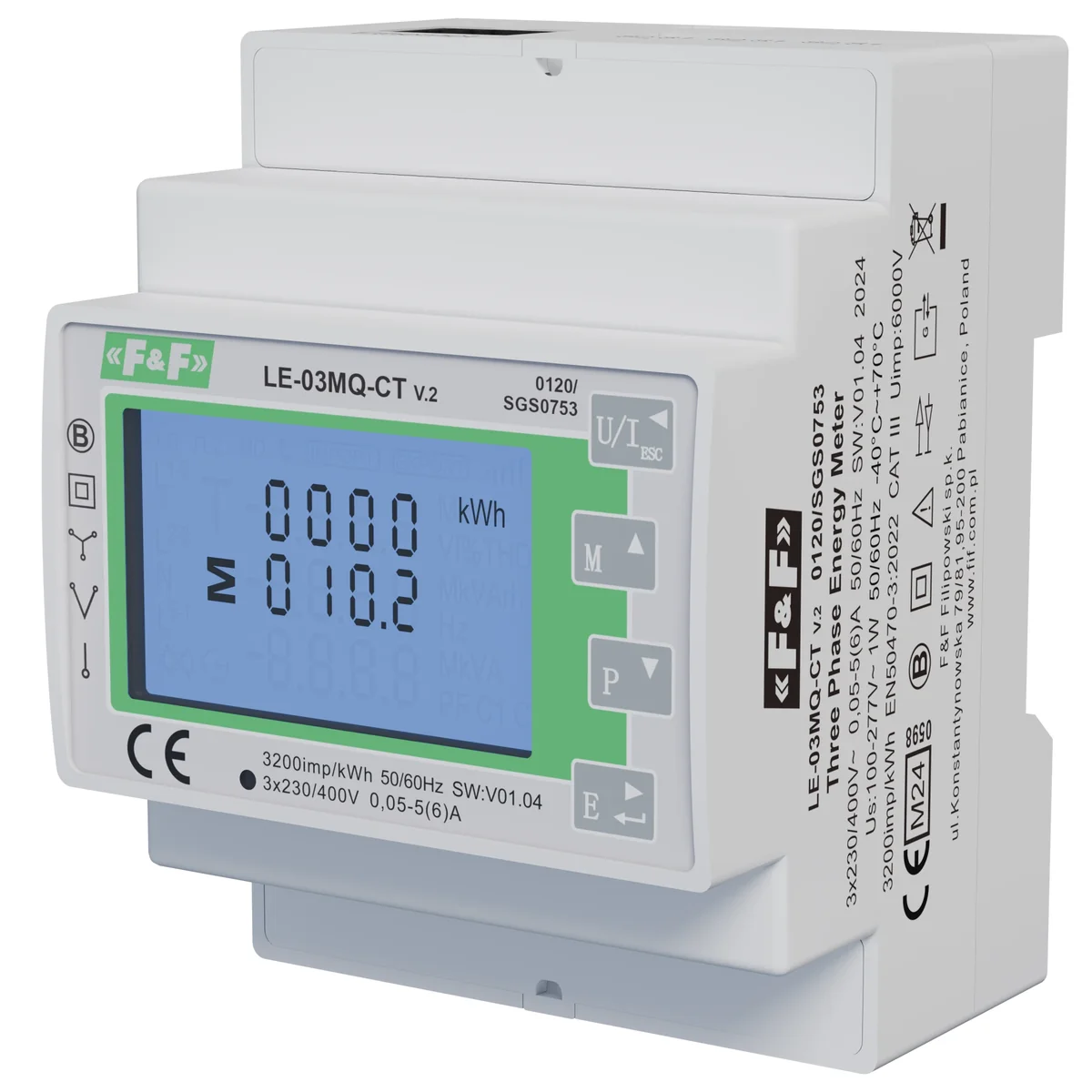

Three-phase bi-directional indirect meter, semi-indirect, Modbus RTU, 100(5)A; MID LE-03MQ-CT

local index:
NPL031FIFQ
Catalog No:
LE-03MQ-CT
EAN code:
5908312599821
Manufacturer: F&F
Installation: On the TH-35 rail
Level of security: IP51
Working temperature [°C]: -25÷55
Price:
217,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Three-phase bi-directional indirect meter, semi-indirect, Modbus RTU, 100(5)A; MID

Technical data

  • Installation
    On the TH-35 rail
  • Working temperature [°C]
    -25÷55
  • Level of security
    IP51
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    6 A
  • Accuracy class
    B
  • Model
    Measurement transformer
  • Suitable for
    Purchase/supply
  • Tariff control
    External
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Pulse type
    S0
  • Type of indication
    Digital
  • Width in number of modular spacings
    4.5
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20
  • Nominal current (In)
    5 A
  • Nominal voltage (Un) N-L
    230 ... 400 V
  • Pole type
    Three conductor/four conductor
  • Energy type
    Effective power and blind power
  • Tariff type
    One-tariff
  • Measurement type load profile
    No
  • Calibrated
    Yes
  • Pulse output
    Electrical
  • Pulse rate
    0.01 ... 100 Imp/kWh (kvarh)
  • Mounting method
    DRA (DIN-rail adapter)
  • Type of interface
    Modbus
  • With lock code
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,076
Length (m) 0,100
Depth (m) 0,075
