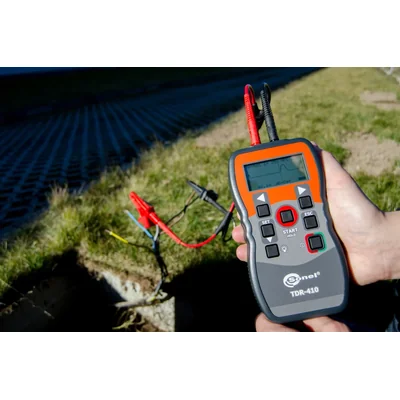

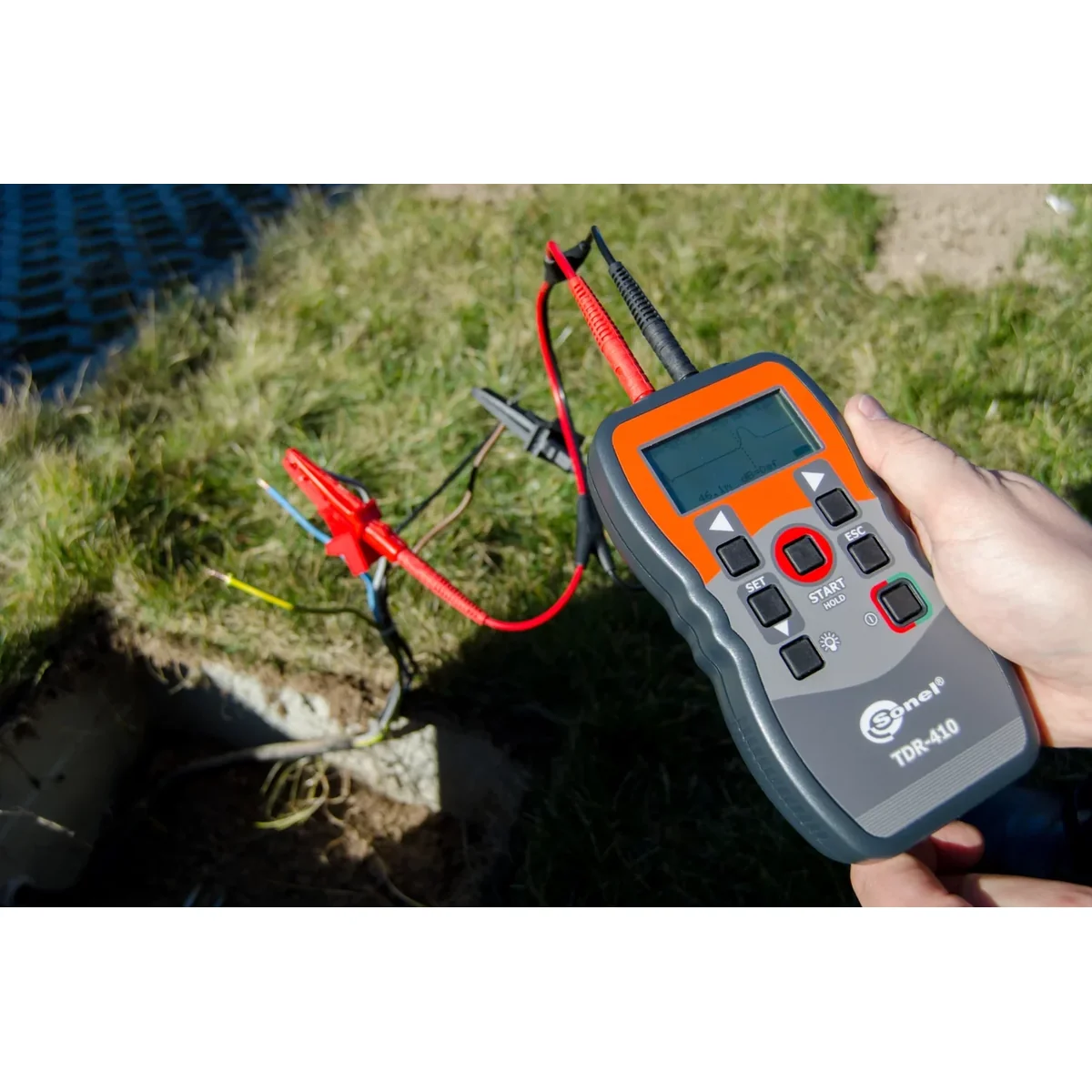

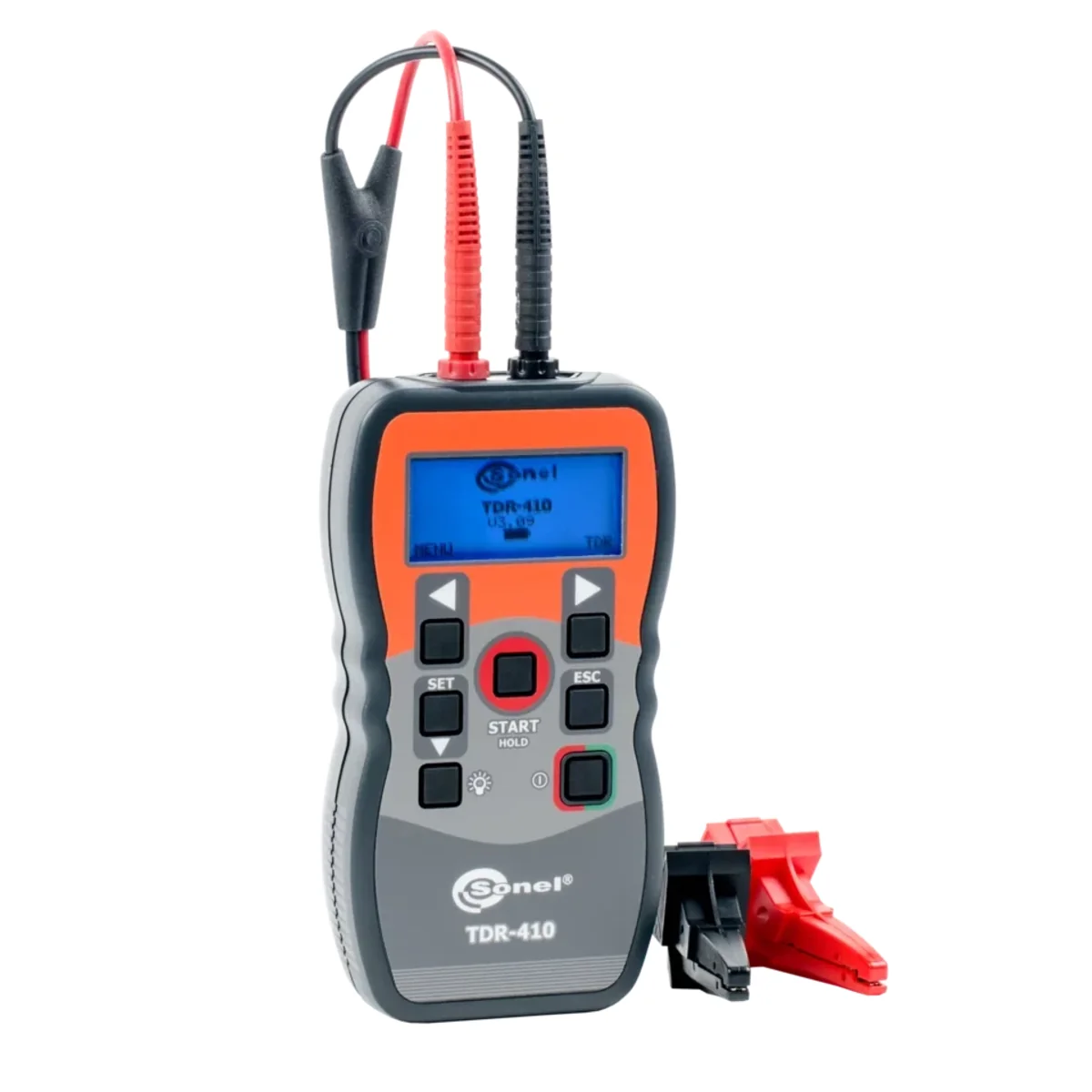

TDR-410 reflectometer WMPLTDR410

local index:
NPP020SONE
Catalog No:
WMPLTDR410
EAN code:
5907624099456
Manufacturer: SONEL
Level of security: IP54
Weight [g]: 350
Dimensions [mm]: 165x90x37
Price:
1086,30 €
gross / pcs.
(including VAT 23%)
3103,71 € gross/kg.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

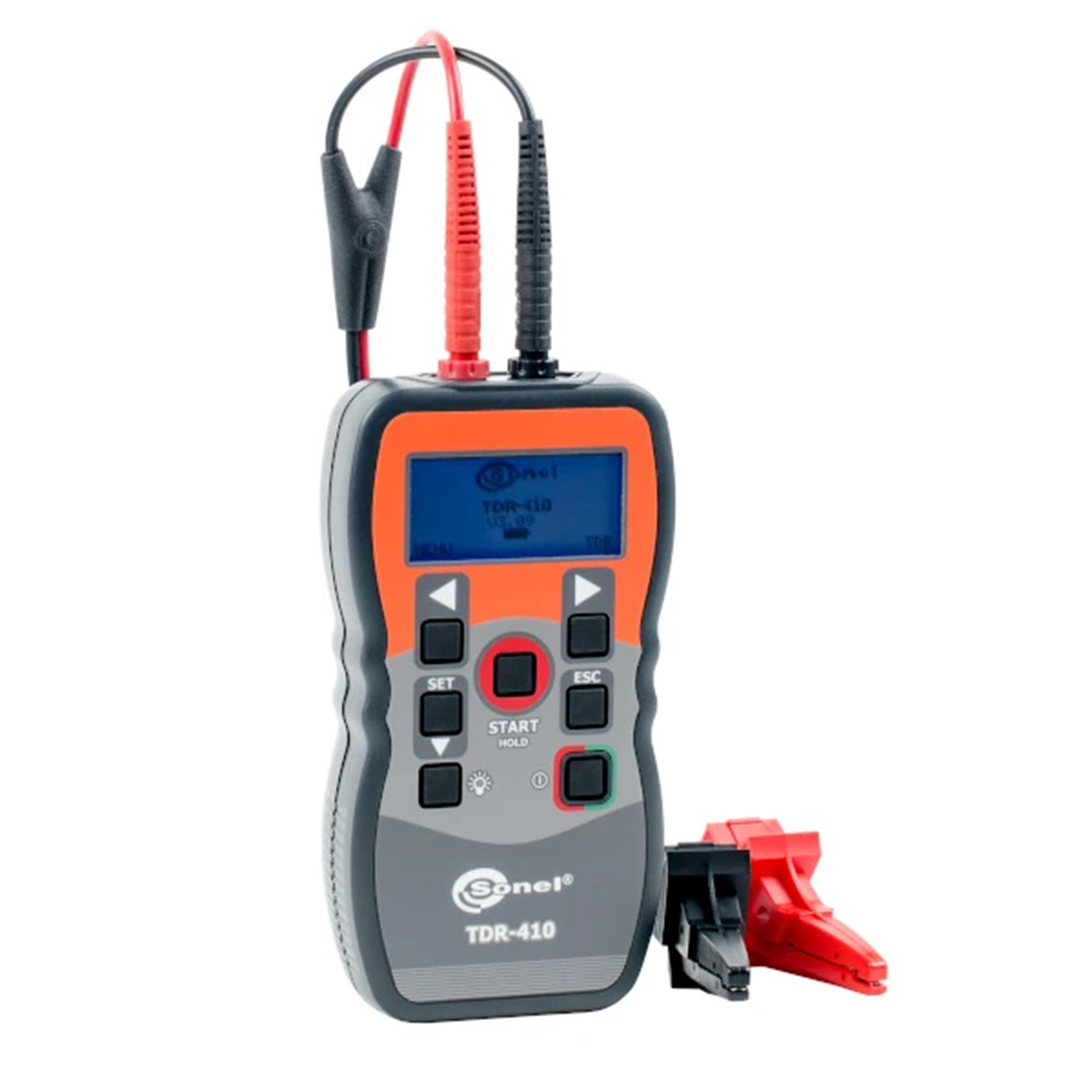

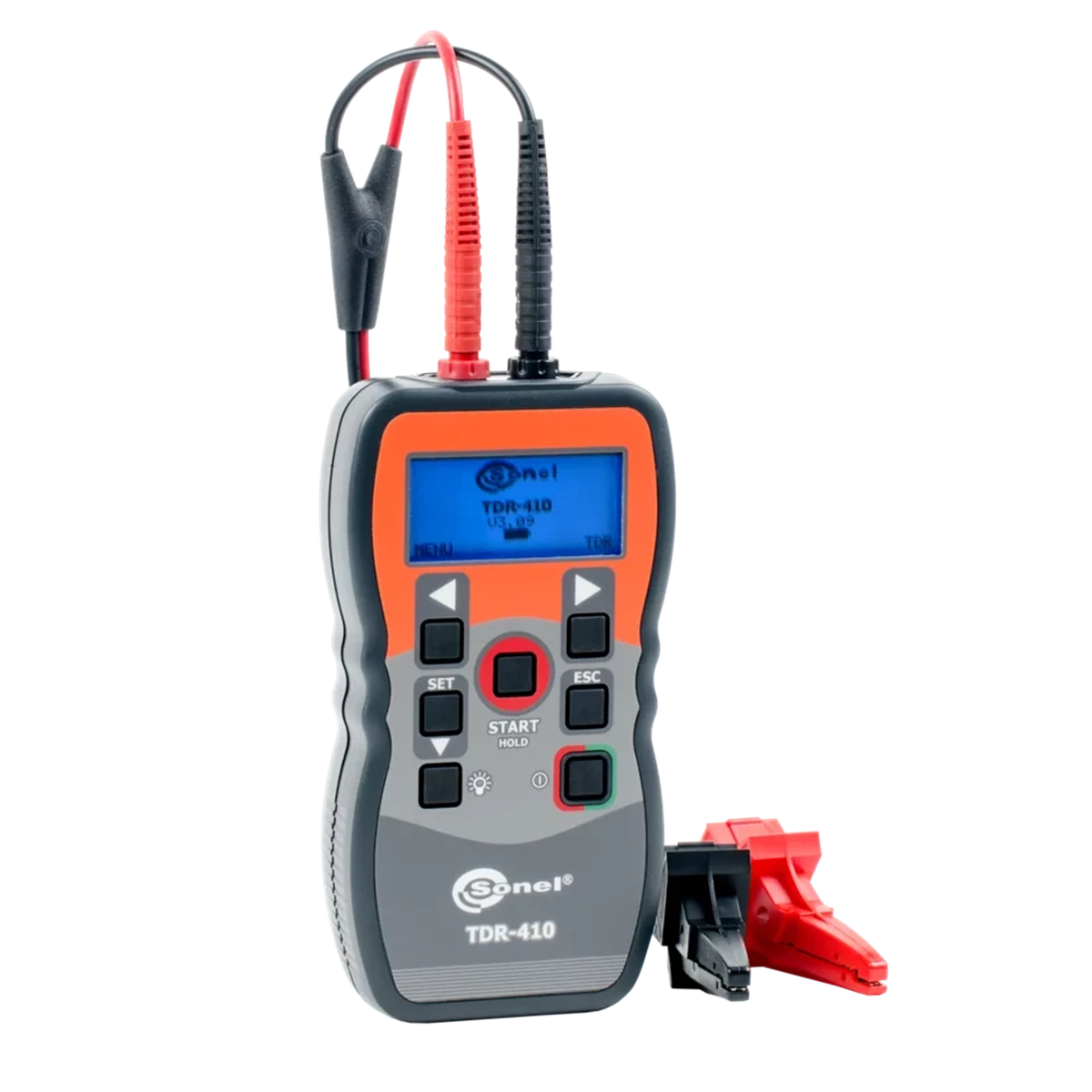

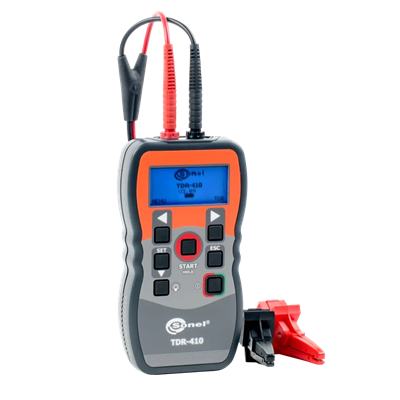

TDR-410 reflectometer.

Possibilities:

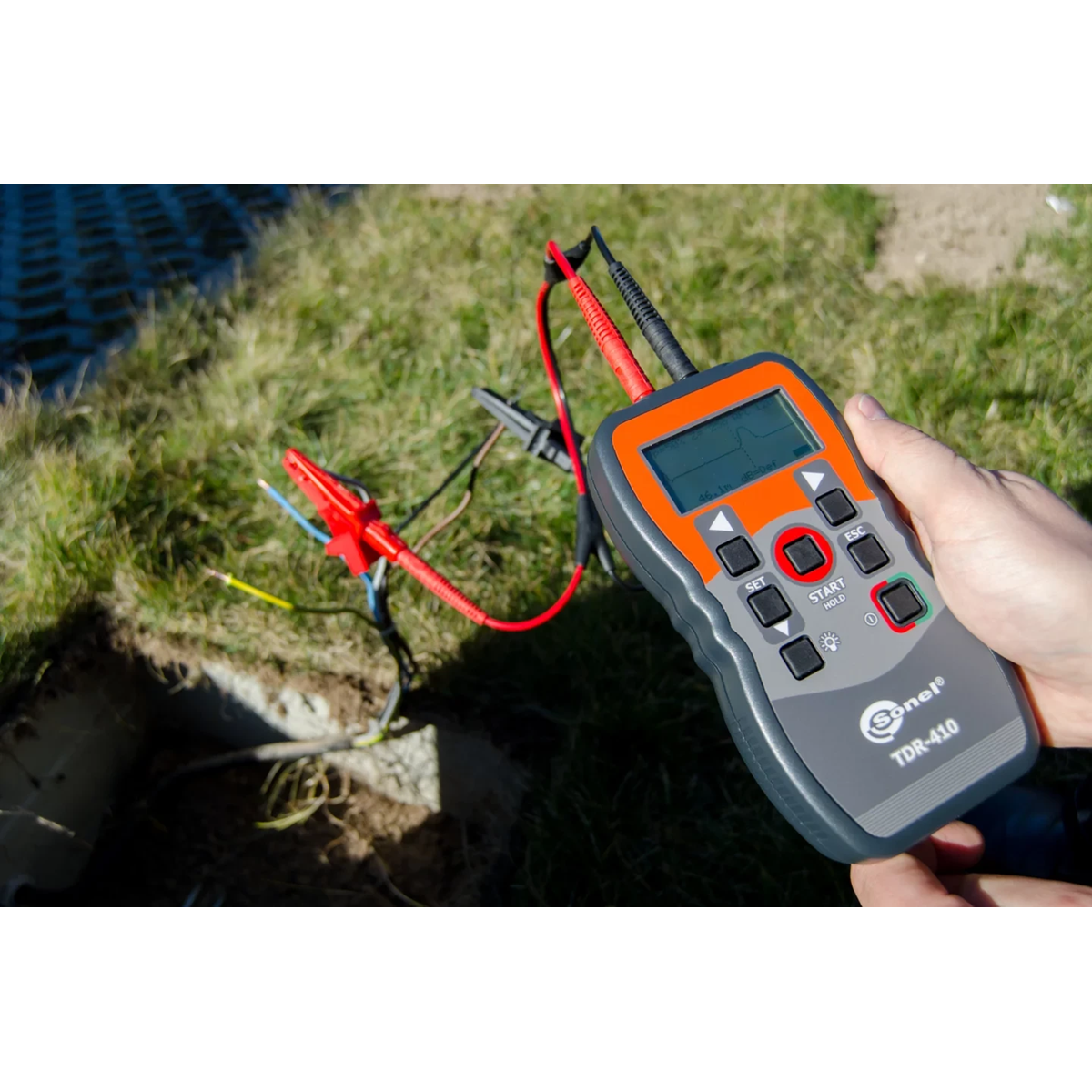

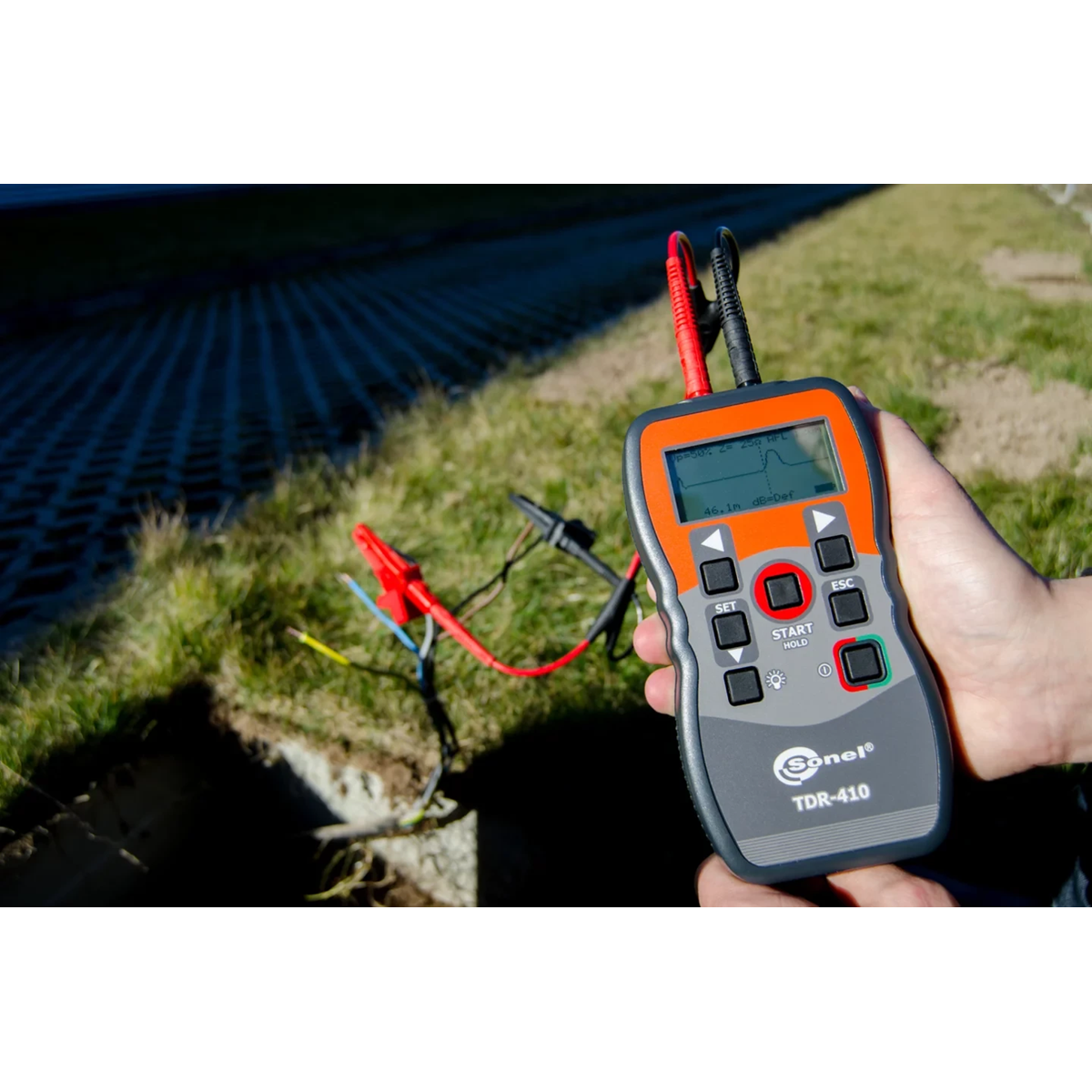

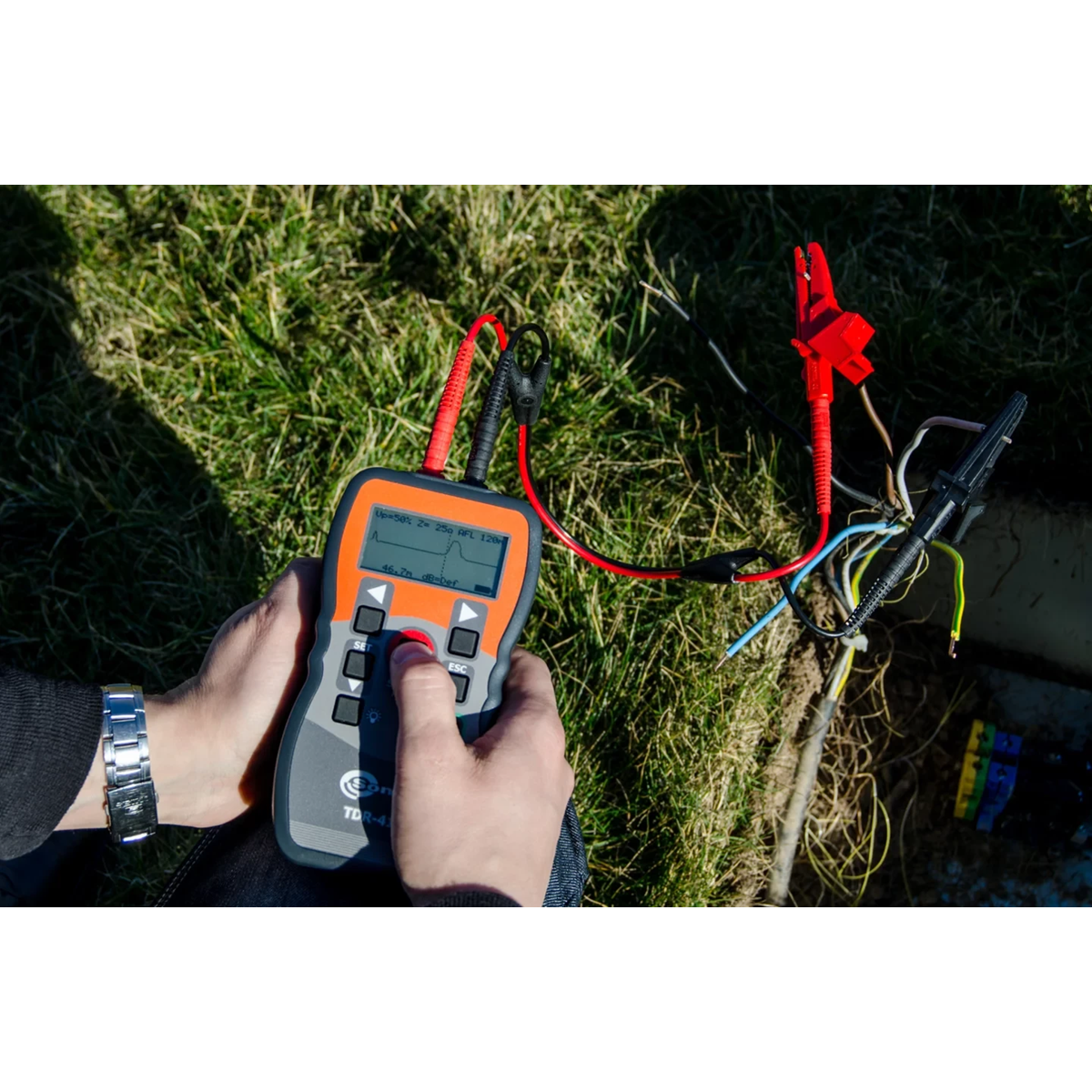

  • Location of damage to power cables.
  • Locating faults in copper telecommunication cables.
  • Locating faults in coaxial cables.
  • Locating faults in infrastructure cabling.
  • Detection of breaks, shorts, moisture damage and more changes in cable impedance.

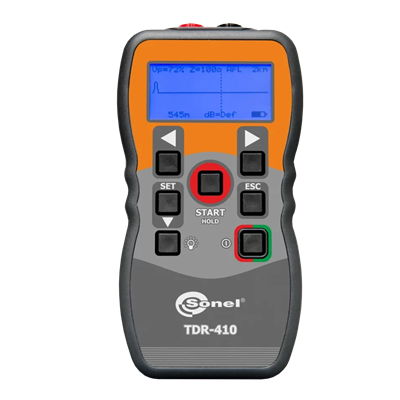

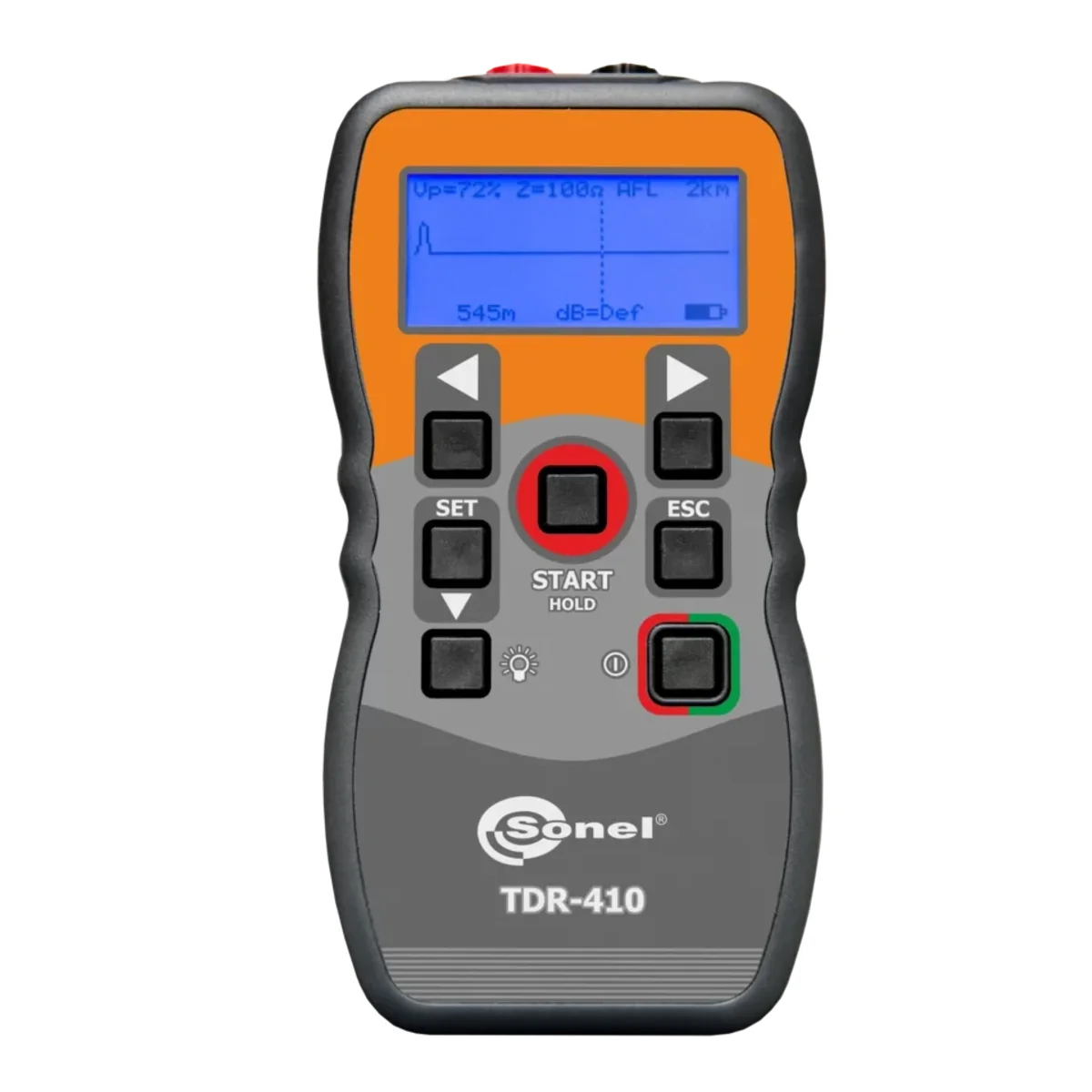

  • Graphical image of cable damage with automatic indication of the distance to the fault on the screen.

Characteristics:

  • automatic or manual operating mode:
  • automatic fault location function (AFL),
  • operating mode with manual range and sensitivity selection,
  • single measurement triggered manually or continuous scanning,
  • 11 available measurement ranges from 7 m to 4000 m selected in manual or automatically selected mode,
  • maximum length of the measurement: up to 4000 m from one end of cable,
  • measurement 'dead zone' limited to 0.5 m,
  • 2.5” LCD display with backlight,
  • Auto scan or manual trigger measurement,
  • sensitivity set manually or automatically matched,
  • impedance matching adjustment,
  • propagation coefficient adjustment from 1% to 99%,
  • sealed and mechanically durable casing.
  • small dimensions and weight.

Technical data:

  • Measuring ranges: 7, 15, 30, 60, 120, 250, 500 m, 1, 2, 3, 4 km
  • Range selection: manual or automatic
  • Resolution: approx. 1% of selected range
  • Measurement accuracy: 1% of range
  • Sensitivity:
  • min. 3 pixels per fault reflection
  • at 4 km on 0.6mm copper cable
  • Propagation coefficient: 1% … 99% or 2.5 … 148.5 m/μs< /li>
  • Output pulse: 5 Vp-p (open circuit)
  • Output impedance: adjustable - 25, 50, 75 and 100Ω
  • Output pulse width: 3 ns … 3 μs (automatic on range selection)
  • Scan mode: single or continuous measurement (2 measurements per second)
  • Acoustic signal generator: 810 ... 1110 Hz
  • Power supply: 4 x AA 1.5V alkaline batteries or 4 x AA NiMH batteries
  • Operating time from a set of batteries: 30 hours. continuous scan
  • Auto-off: after 1, 2, 3, 5 min. or inactive
  • Display: LCD 64 x 128 pixels with backlight
  • Operating temperature: -10 °C … +50 °C
  • Storage temperature: -20 ° C … +70 °C
  • Current protection: 250 V AC

Technical data

  • Level of security
    IP54
  • Dimensions [mm]
    165x90x37
  • Weight [g]
    350
