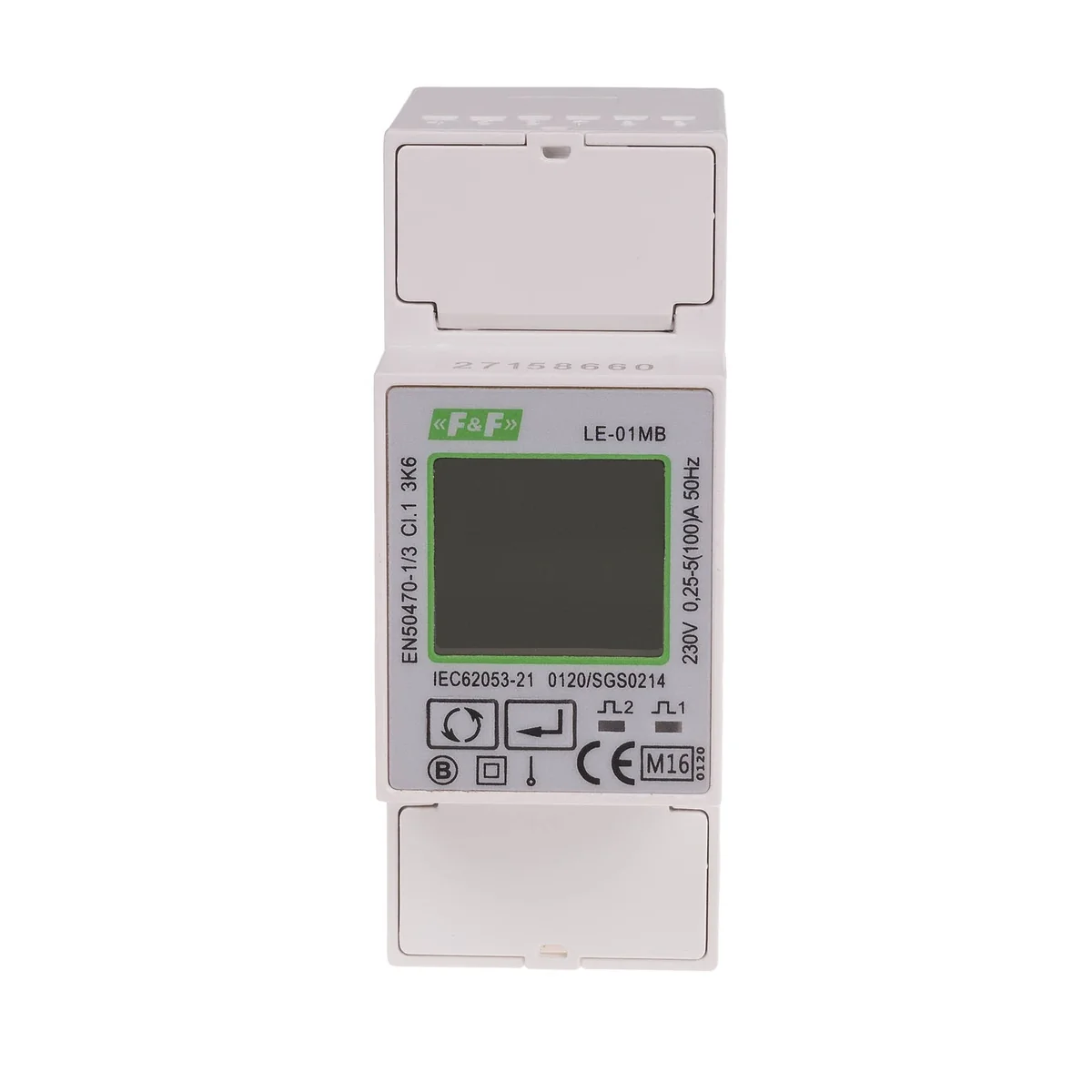

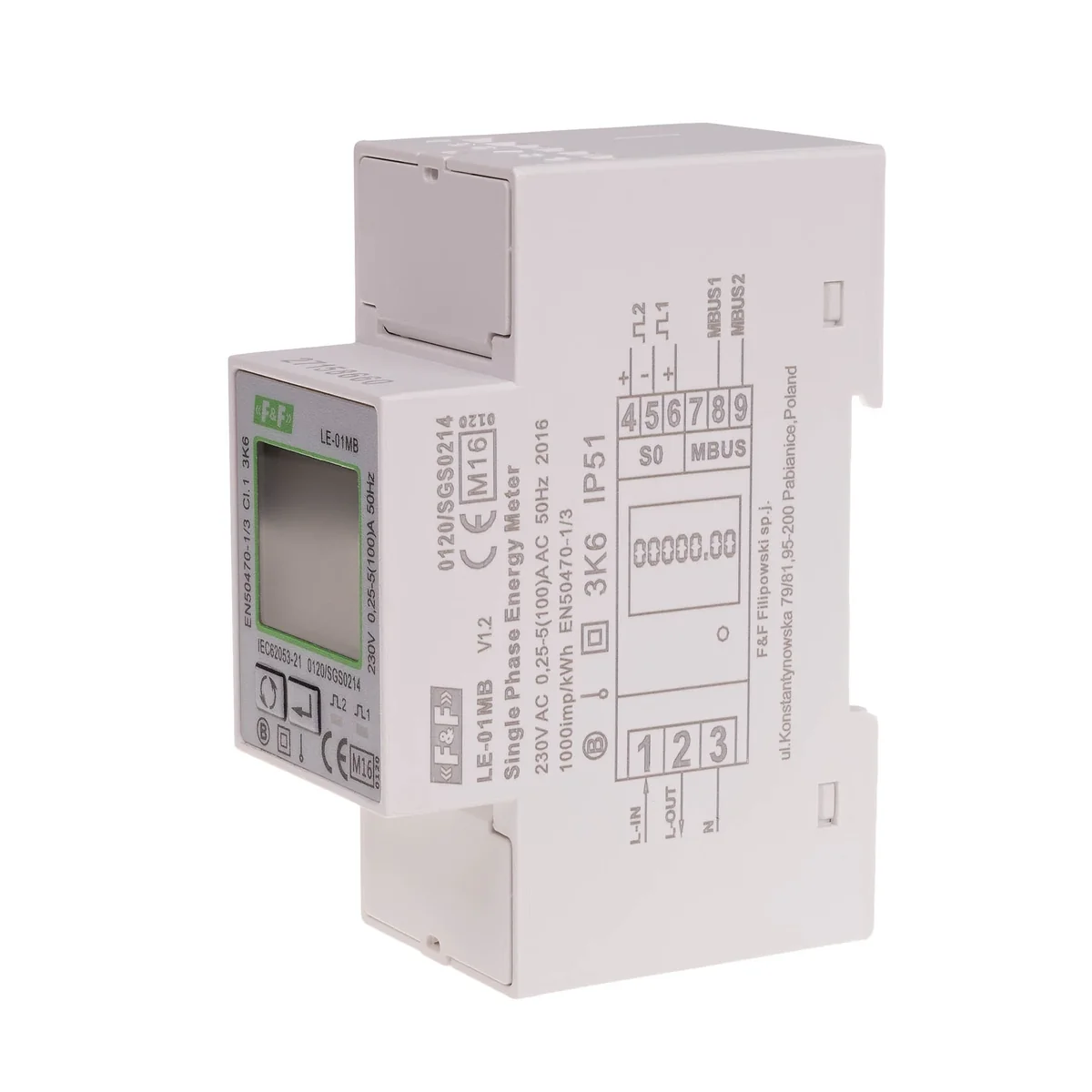

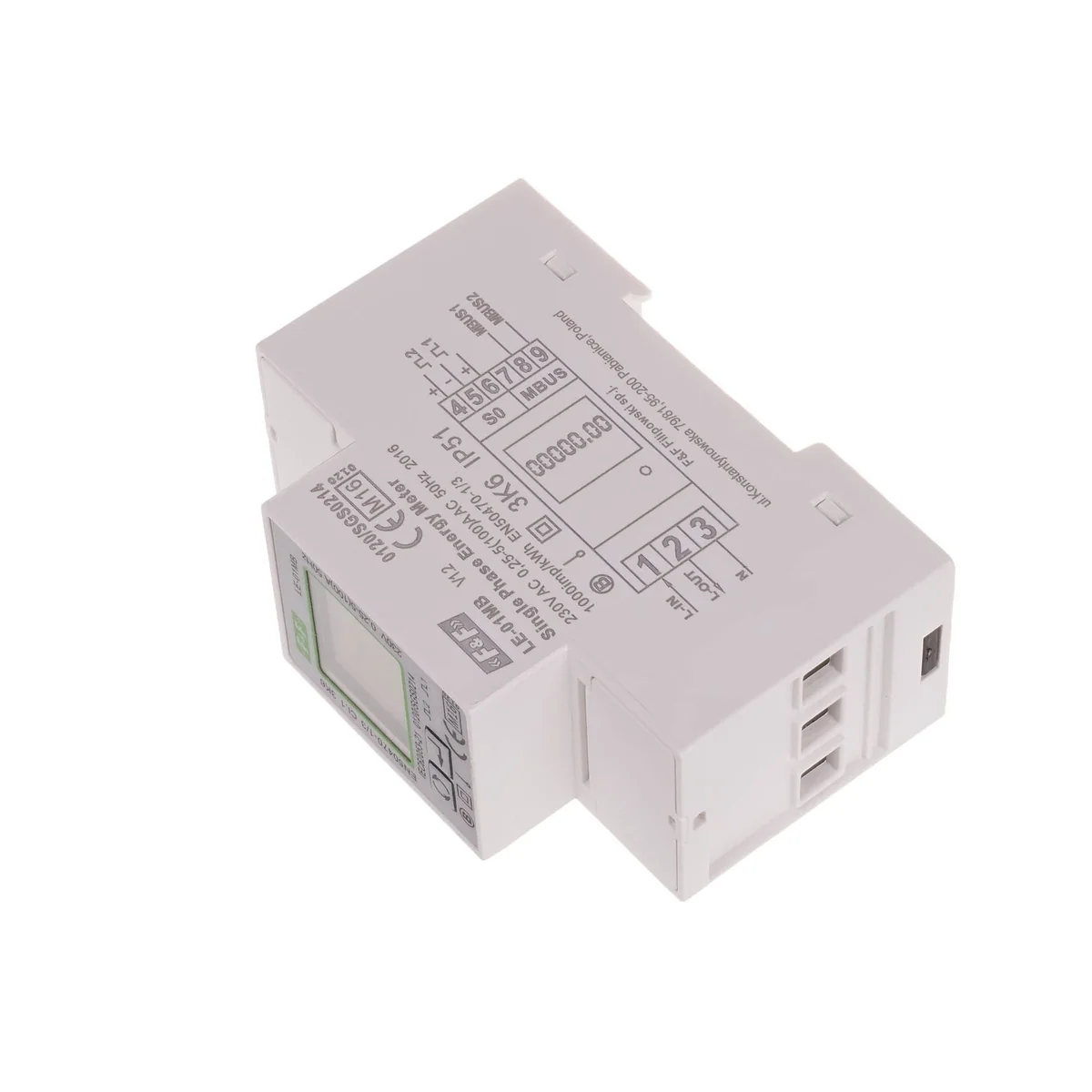

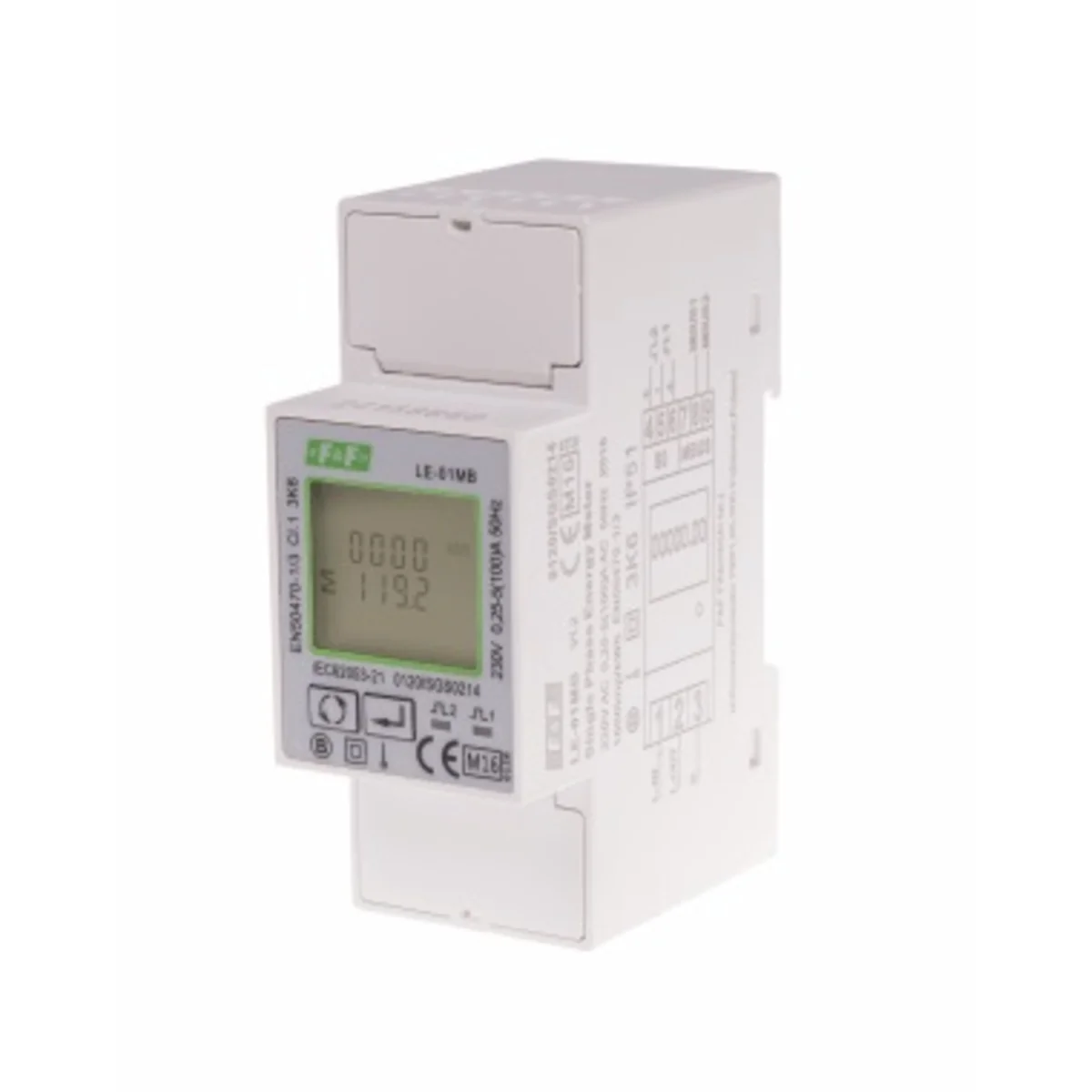

Single-phase active and reactive energy meter, M-BUS, 100(5)A; MID LE-01MB

Lokaler Index:
NPL028FIFQ
Katalognummer:
LE-01MB
EAN-Code:
5908312599791
Hersteller: F&F
Installation: On the TH-35 rail
Level of security: IP51
Working temperature [°C]: -20÷55
Preis:
345,38 zł
gross / stk.
(inklusive MwSt 23%)
bis zu einer Woche
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Single-phase active and reactive energy consumption meter M-BUS, 100(5)A; MID

Technische Daten

  • Installation
    On the TH-35 rail
  • Working temperature [°C]
    -20÷55
  • Level of security
    IP51
  • PKWIU
    26.51.63.0

Weitere technische Daten

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Frequency
    50 ... 50 Hz
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase/supply
  • Measurement type load profile
    No
  • Calibrated
    Yes
  • Pulse output
    Electrical
  • Pulse rate
    1 ... 1000 Imp/kWh (kvarh)
  • Mounting method
    DRA (DIN-rail adapter)
  • Width
    35 mm
  • Height
    90 mm
  • EEC40 signature
    No
  • Number of positions total (counter)
    7
  • Nominal current (In)
    5 A
  • Nominal voltage (Un) N-L
    160 ... 265 V
  • Power consumption
    2 W
  • Pole type
    Single phase
  • Energy type
    Effective power and blind power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Pulse type
    S0
  • Type of indication
    Digital
  • Width in number of modular spacings
    4.5
  • Depth
    65 mm
  • Type of interface
    M-bus (wired)
  • With lock code
    No
  • Degree of protection (IP)
    IP20

Hersteller-Details

  • Hersteller
    F&F Filipowski S.K.
  • Adresse
    95-200 Pabianice Konstantynowska 79/81 Polska

Großpackungen

Eine Art Paket Sztuka
Menge 1 stk.
Breite (m) 0,038
Länge (m) 0,100
Tiefe (m) 0,075
