SCHNEIDER ELECTRIC

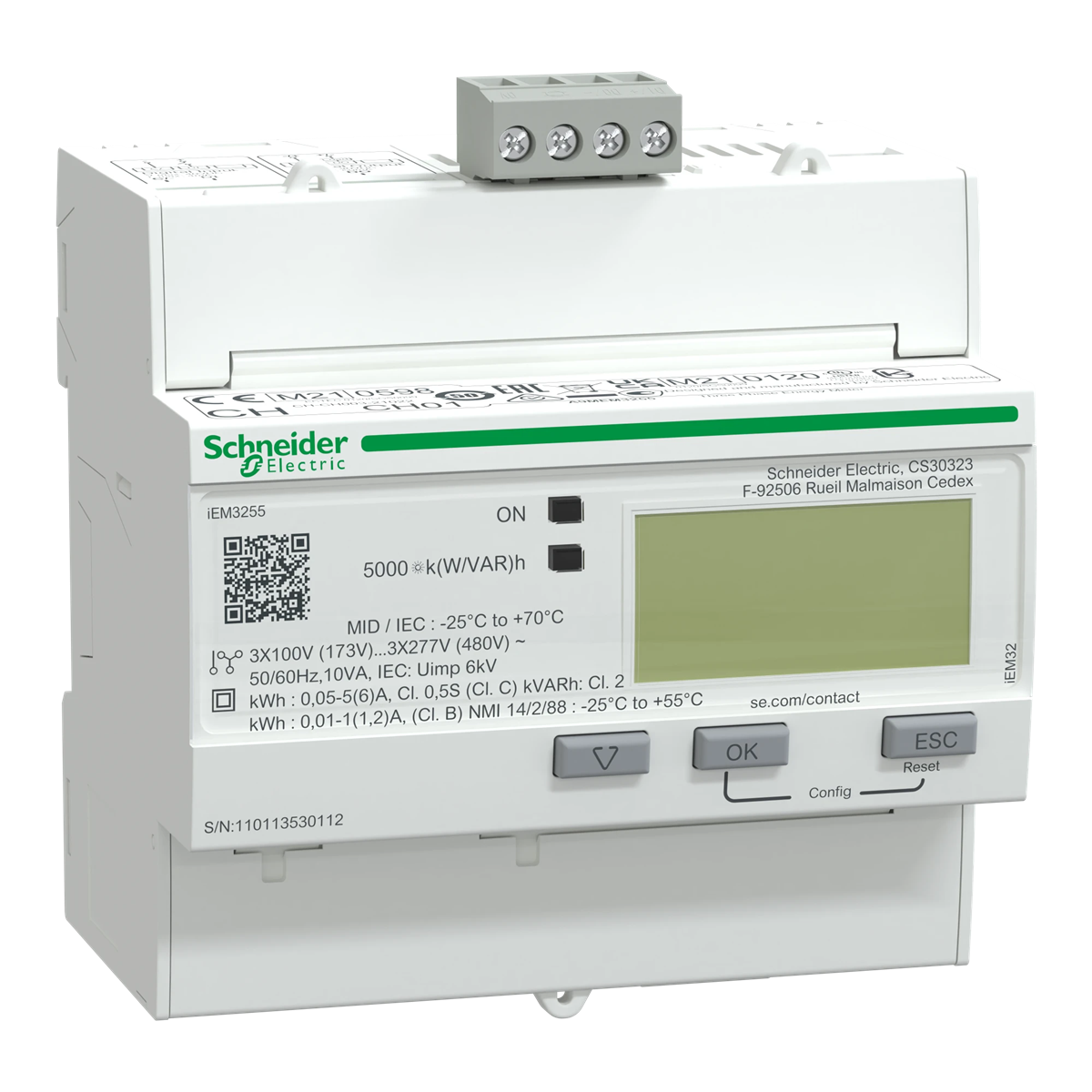

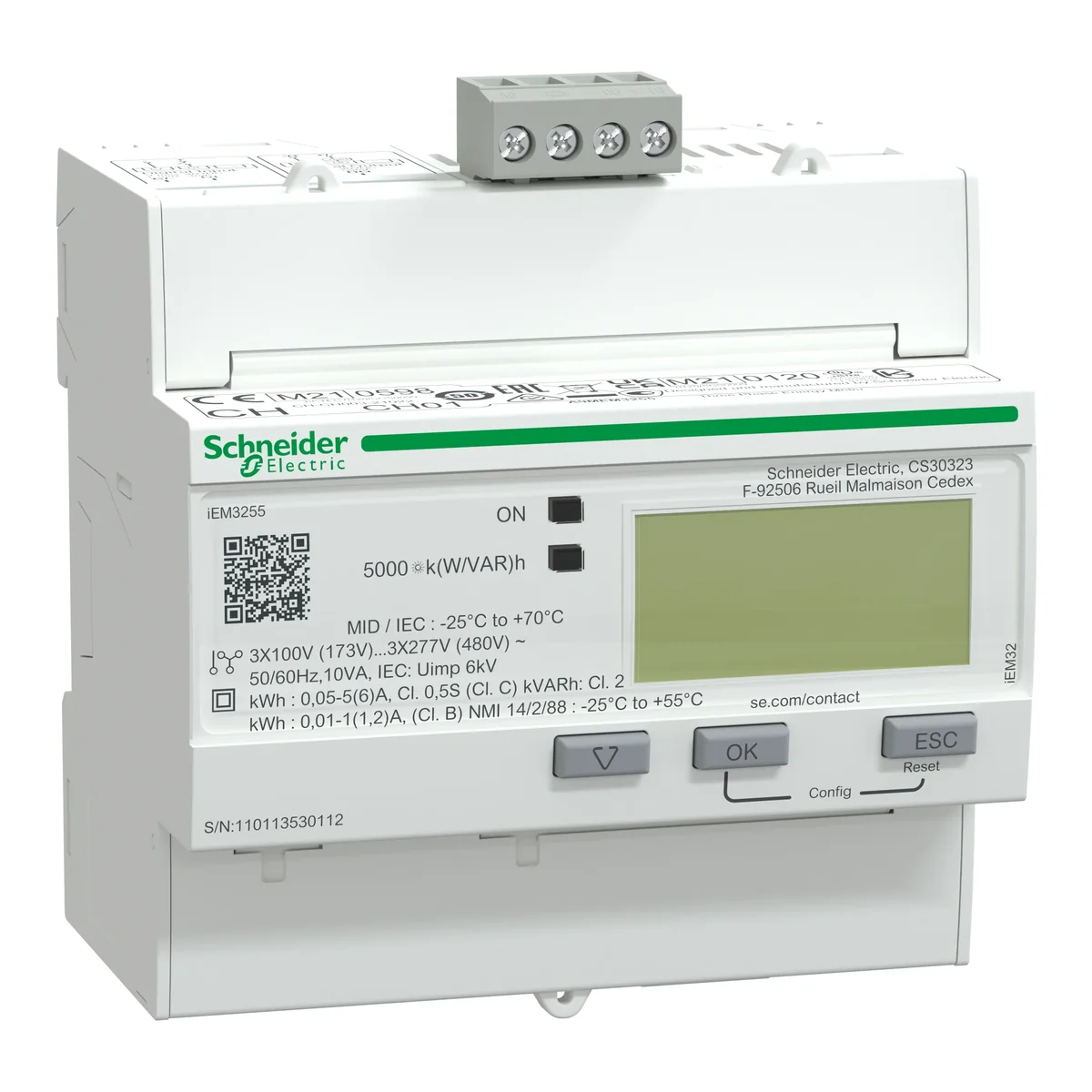

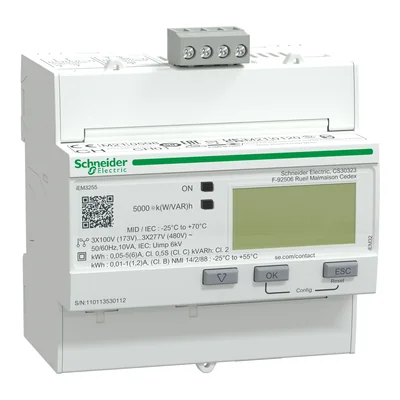

PowerLogic Three-phase energy meter 5A class 0.5S MID Modbus A9MEM3255

local index:
NPL011SCHN
Catalog No:
A9MEM3255
EAN code:
3606480481574
Price:
358,00 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

PowerLogic Three-phase energy meter 5A class 0.5S MID Modbus

Technical data

  • Color
    White

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    6 A
  • Nominal voltage (Un) L-L
    173 ... 480 V
  • Accuracy class
    C
  • Model
    Measurement transformer
  • Suitable for
    Purchase/supply
  • Tariff control
    Internal/external
  • Escapement mechanism
    no
  • Approval
    Measuring Instruments Directive
  • Pulse type
    D0
  • Type of indication
    Digital
  • Width in number of modular spacings
    5
  • EEC40 signature
    no
  • Number of positions total (counter)
    9
  • Degree of protection (NEMA)
    1
  • Nominal current (In)
    5 A
  • Nominal voltage (Un) N-L
    100 ... 277 V
  • Frequency
    50 ... 60 Hz
  • Pole type
    Three conductor/four conductor
  • Energy type
    Effective power and blind power
  • Tariff type
    Multi-tariff
  • Measurement type load profile
    no
  • Calibrated
    no
  • Pulse output
    Electrical
  • Pulse rate
    0 ... 500 Imp/kWh (kvarh)
  • Mounting method
    DRA (DIN-rail adapter)
  • Type of interface
    Modbus
  • With lock code
    no
  • Degree of protection (IP)
    IP20
