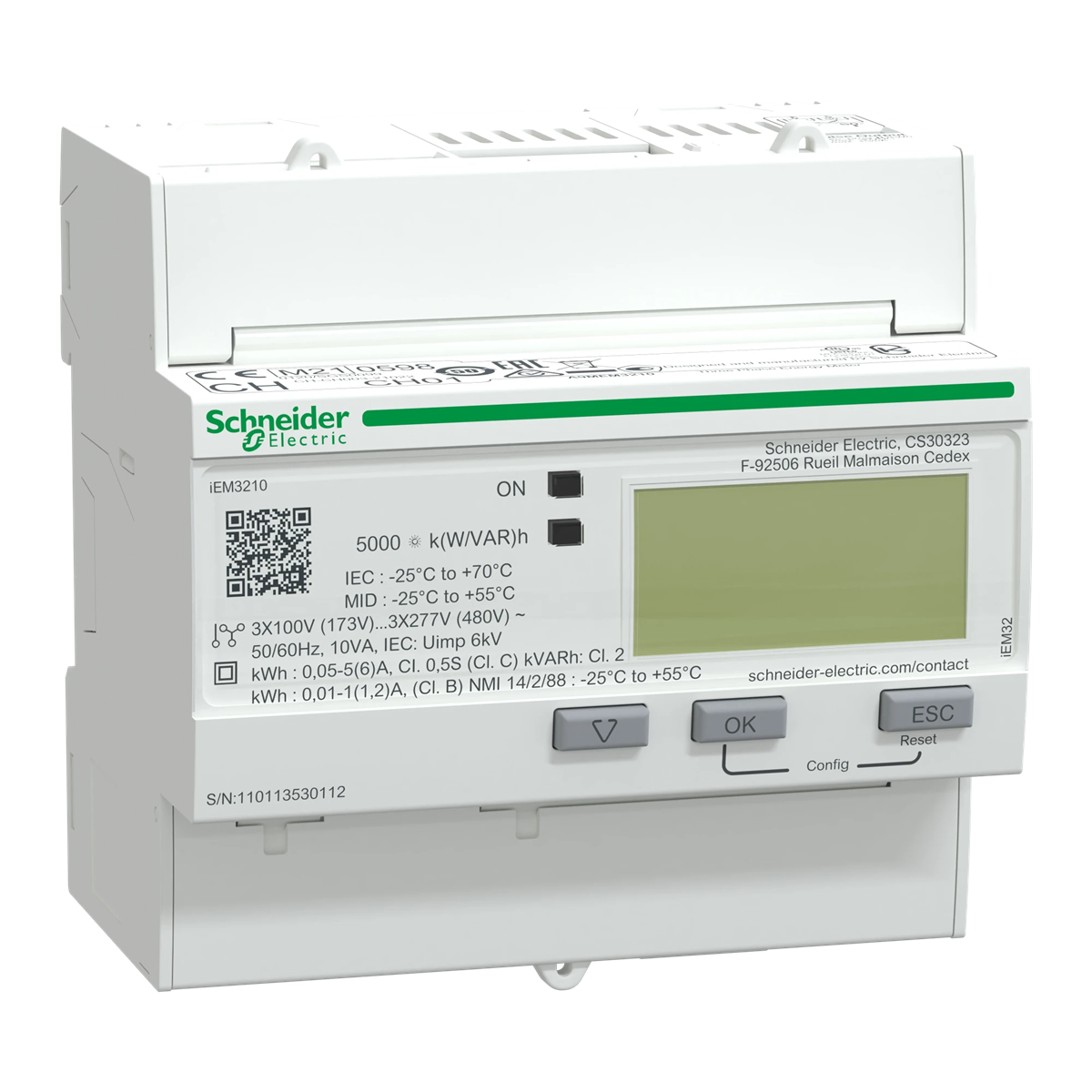

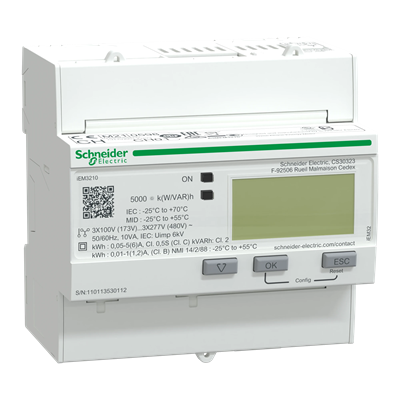

PowerLogic Three-phase energy meter 5A class 0.5S imp MID A9MEM3210
local index:
NPL009SCHN
Catalog No:
A9MEM3210
EAN code:
3606480481543
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
329,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
PowerLogic Three-phase energy meter 5A class 0.5S imp MID
Technical data
-
ColorWhite
-
PKWIU26.51.63.0
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)6 A
-
Nominal voltage (Un) L-L173 ... 480 V
-
Accuracy classC
-
ModelMeasurement transformer
-
Suitable forPurchase/supply
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Pulse rate0 ... 500 Imp/kWh (kvarh)
-
Mounting methodDRA (DIN-rail adapter)
-
Type of interfaceNone
-
With lock codeNo
-
Degree of protection (IP)IP20
-
Nominal current (In)5 A
-
Nominal voltage (Un) N-L100 ... 277 V
-
Frequency50 ... 60 Hz
-
Pole typeThree conductor/four conductor
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismNo
-
ApprovalMeasuring Instruments Directive
-
Pulse typeS0
-
Type of indicationDigital
-
Width in number of modular spacings5
-
EEC40 signatureNo
-
Number of positions total (counter)9
-
Degree of protection (NEMA)1
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
