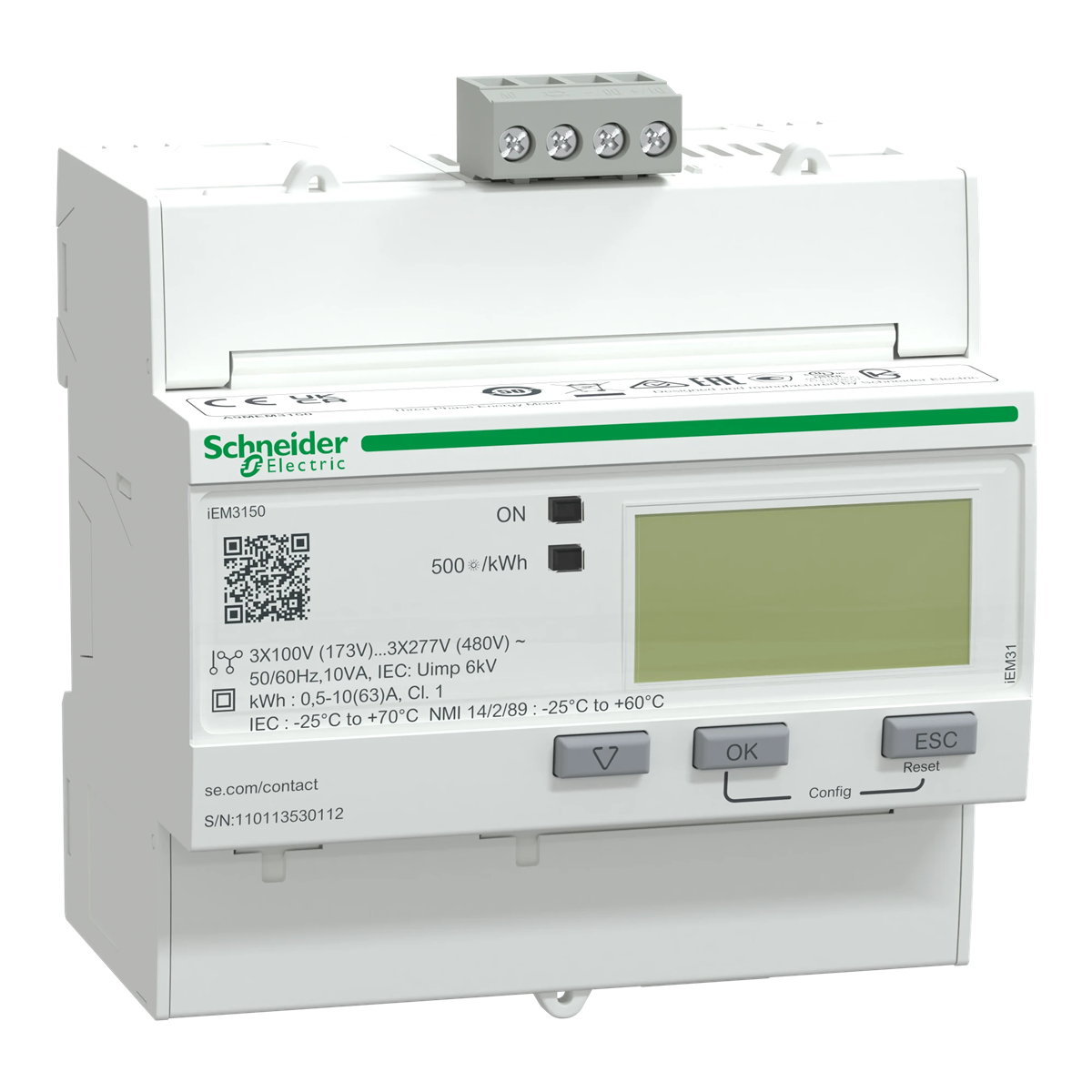

PowerLogic Three-phase energy meter 53A class 1 Modbus A9MEM3150

local index:
NPL013SCHN
Catalog No:
A9MEM3150
EAN code:
3606480481512
Price:
373,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PowerLogic Three-phase energy meter 53A class 1 Modbus

Technical data

  • Color
    White
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    63 A
  • Nominal voltage (Un) L-L
    173 ... 480 V
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase/supply
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Optical
  • Pulse rate
    0 ... 500 Imp/kWh (kvarh)
  • Mounting method
    DRA (DIN-rail adapter)
  • Type of interface
    Modbus
  • With lock code
    No
  • Degree of protection (IP)
    IP20
  • Nominal current (In)
    63 A
  • Nominal voltage (Un) N-L
    100 ... 277 V
  • Frequency
    50 ... 60 Hz
  • Pole type
    Three conductor/four conductor
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    No
  • Approval
    Domestic
  • Pulse type
    S0
  • Type of indication
    Digital
  • Width in number of modular spacings
    5
  • EEC40 signature
    No
  • Number of positions total (counter)
    9
  • Degree of protection (NEMA)
    1
