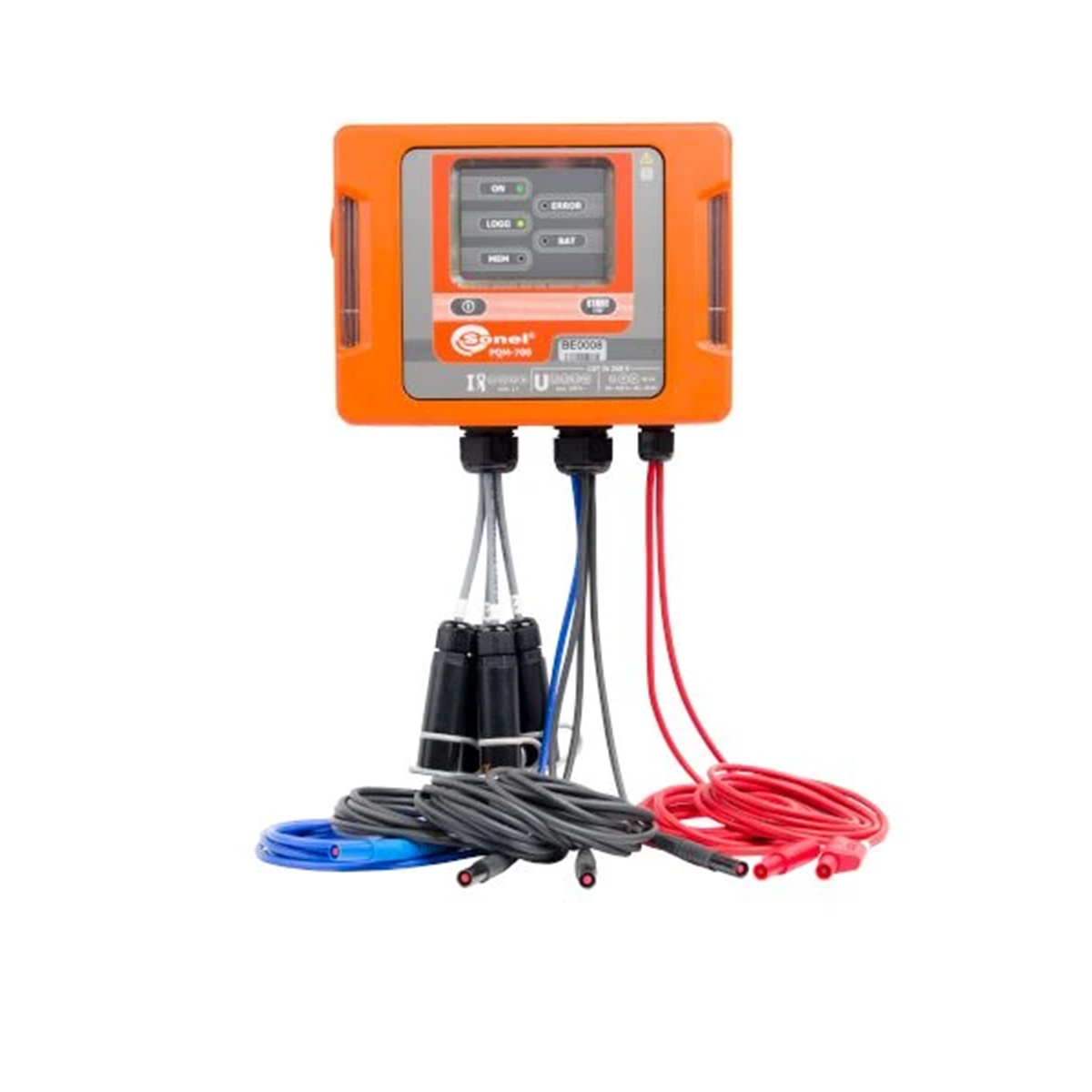

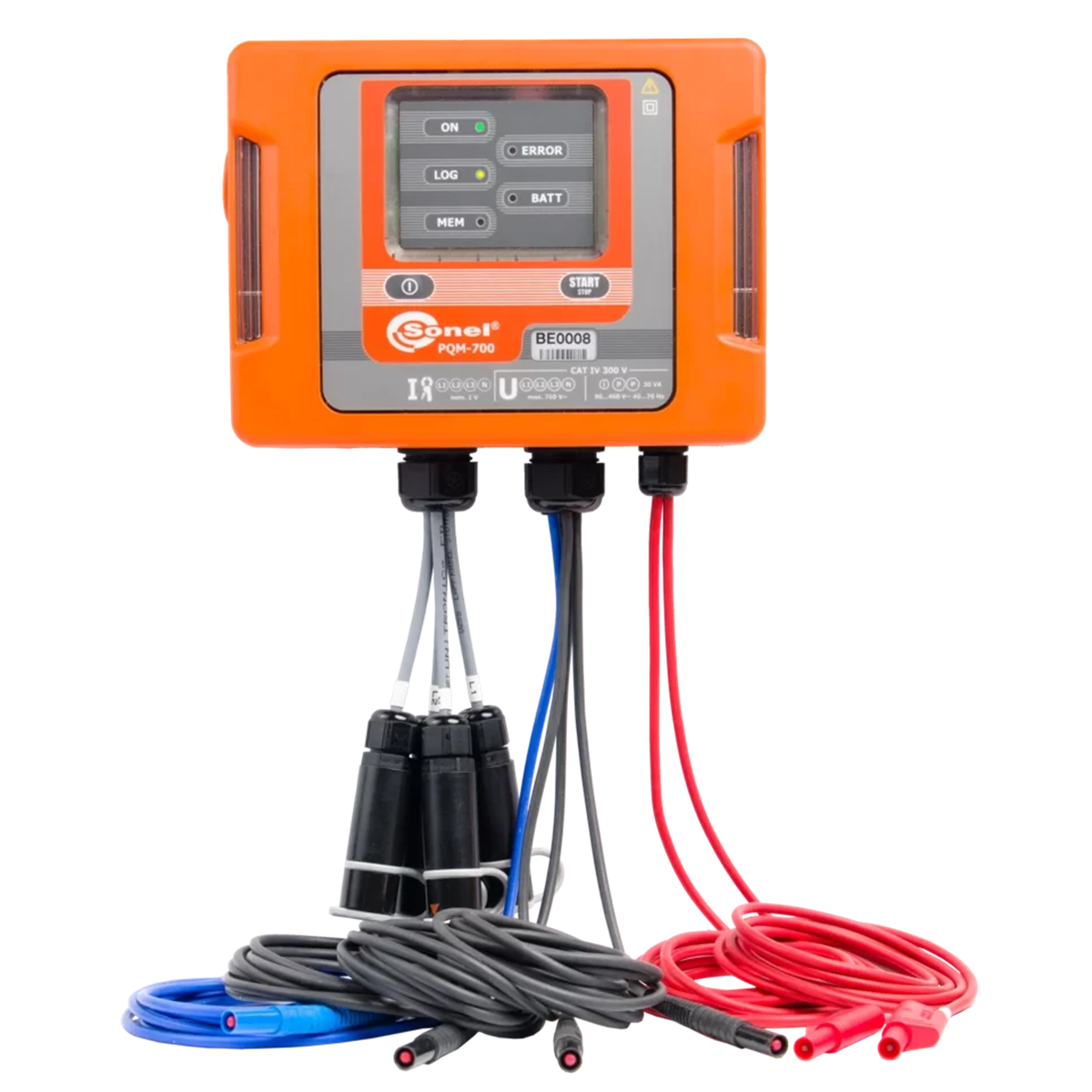

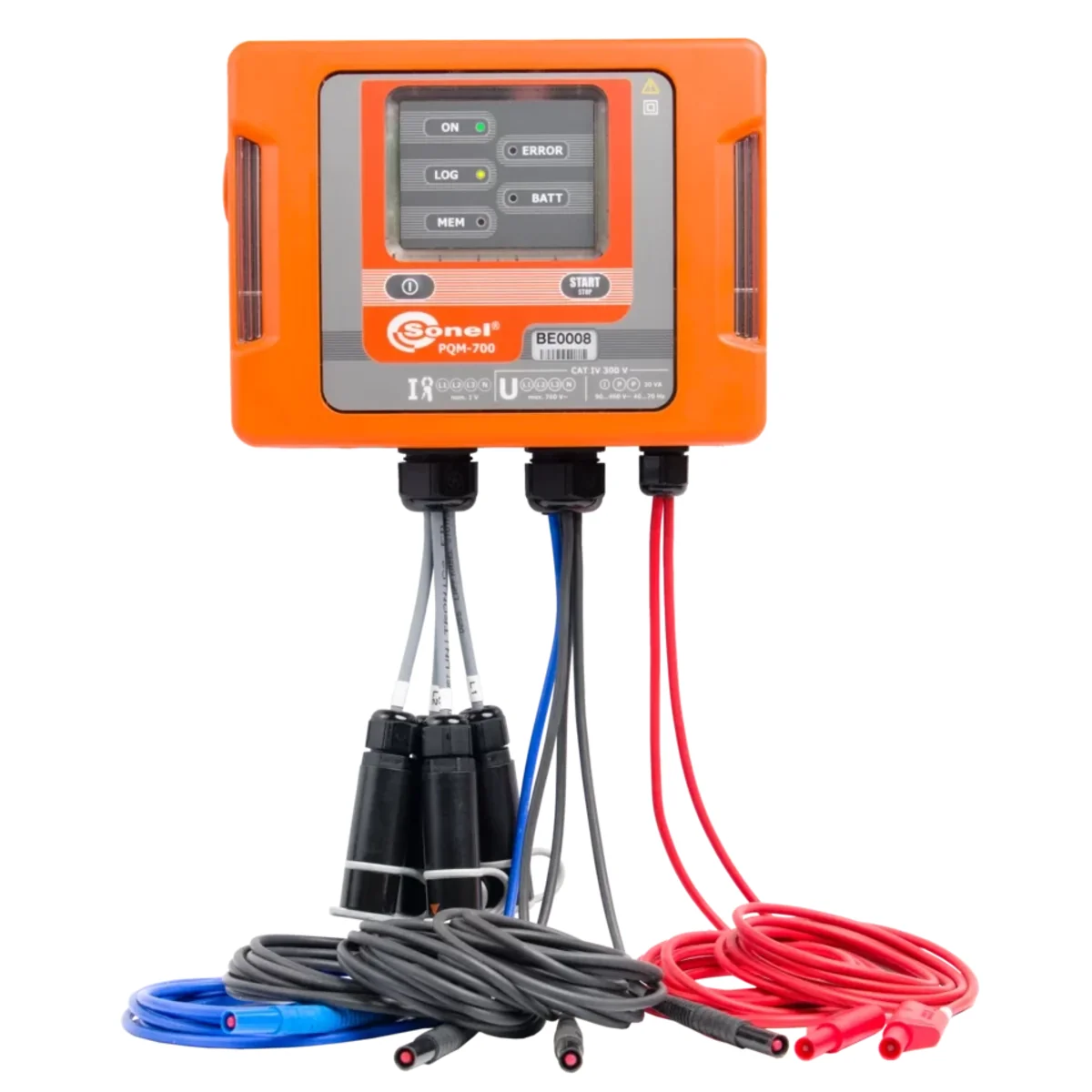

Power quality analyzer PQM-700 with calibration certificate WMPLPQM700

Features

• 4 current inputs, physical measurement of current in the neutral conductor.
• Registration of up to 1100 parameters, including average, maximum, minimum and instantaneous values.
• Built-in heater, stable operation at low temperatures down to -20ºC.
• Internal rechargeable battery, autonomy of the meter (min. 6 hours).
• IP65 ingress protection, possibility of work in rain, snow and high humidity

Measured parameters

• Voltages L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values within the range up to 760 V, interoperability with voltage transducers.
• Currents L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values, current measurement within the range up to 6 kA (depending on applied current clamp*), interoperability with current transducers.
• Crest factors for current (CFI) and voltage (CFU).
• Frequency within the range of 40 Hz – 70 Hz.
• Active power (P), reactive power (Q), distortion power (D), apparent power (S) with identification of the nature of reactive power (capacitive, inductive).
• Calculation of reactive power using the Budeanu method and IEEE 1459 method.
• Active energy (E_P), reactive energy (E_Q), apparent energy (E_S).
• Power factor (PF), cosφ, tanφ.
• Harmonics up to the 40^th in voltage and current.
• Total harmonic distortion THD for current and voltage.
• Short-term (P_ST) and long-term (P_LT) light flicker index.
• Unbalance of voltages (in compliance with IEC 61000-4-30 class S) and currents.
• Event logging for current and voltage along with oscillograms and half-period RMS charts.
• All parameters are registered in compliance with class S according to standard EN 61000-4-30.

*Current clamps are among the optional accessories and must be purchased separately.

Wide range of mains to analyze

• With rated frequency 50/60 Hz
• With rated voltages: 64/110 V;110/190 V; 115/200 V; 120/208 V 127/220 V; 133/230 V; 220/380 V; 230/400 V; 240/415 V; 254/440 V; 265/460 V; 277/480 V, 290/500 V, 400/690 V
• Direct current
• Systems:
  • single-phase
  • split-phase with common N
  • three-phase – WYE with and without N conductor
  • three-phase – Delta
  • three-phase – 2-element WYE without N conductor (Aron/Blondel)
  • three-phase – 2-element Delta (Aron/Blondel)
  • with current and voltage transducers

Capabilities

The analyzer provides comprehensive measurements of power quality parameters in class S, in accordance with IEC 61000-4-30, which guarantees high accuracy of results. Even when the temperature reaches -20ºC, the measurements are reliable and the device operation is stable - all thanks to the built-in heater.

Thanks to the internal battery, the analyzer does not turn off after a power failure, but maintains recording - up to 6 hours. Data is recorded on a removable 2 GB memory card. Logs can be downloaded using a USB connection or using an external reader. Then they can be analyzed in free Sonel Analysis software.

Displaying data

All recorded parameters - including indicated events - can be easily read using the dedicated Sonel Analysis software. The advanced features of the application allow you to view the collected results and save them on your computer’s hard drive - in the form of raw data or reports.

Sonel Analysis is constantly updated and developed. This means that the user will keep up with the latest requirements of norms and standards.

Application

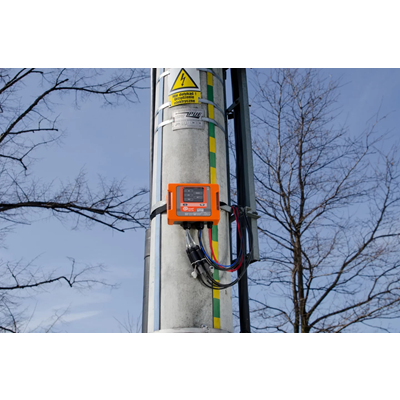

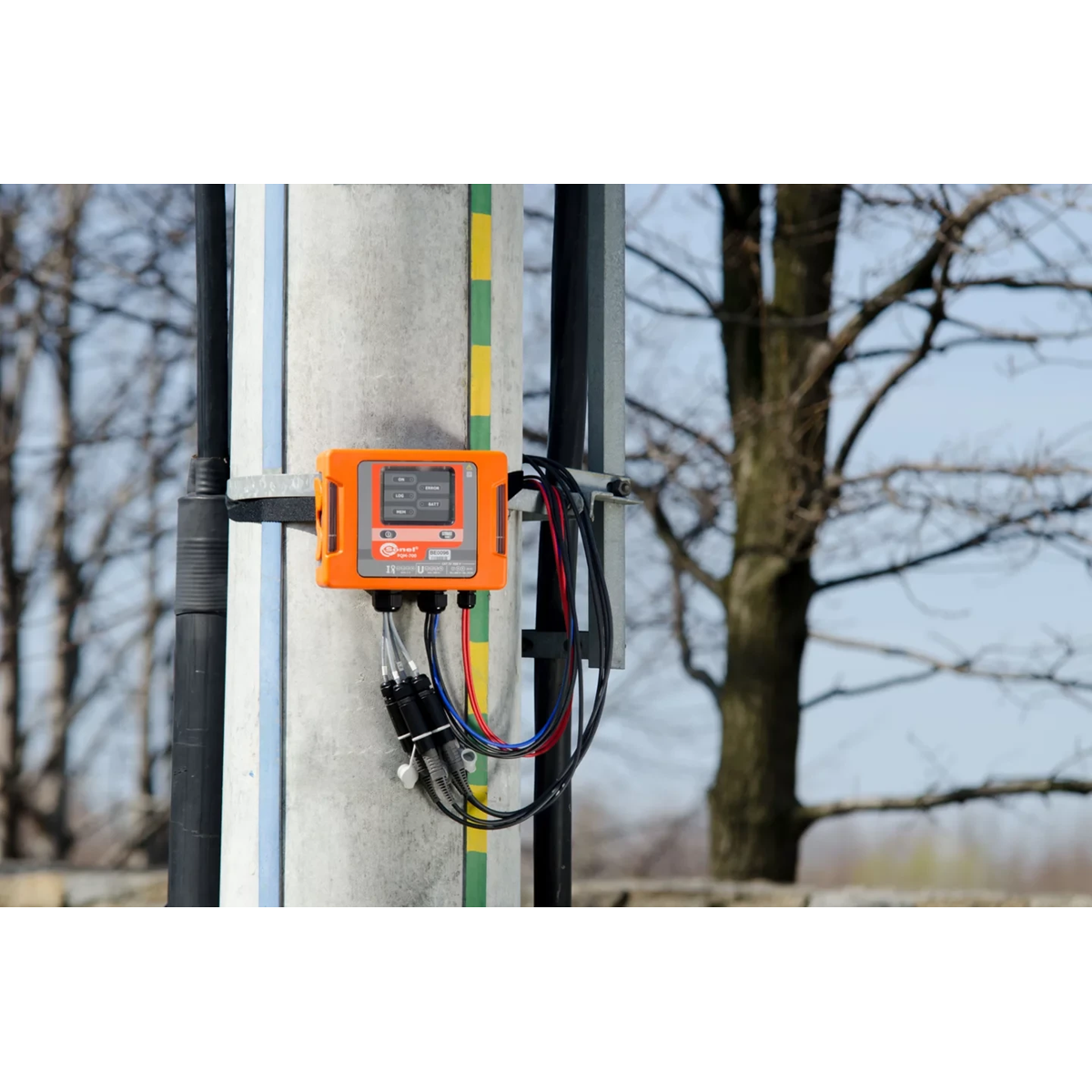

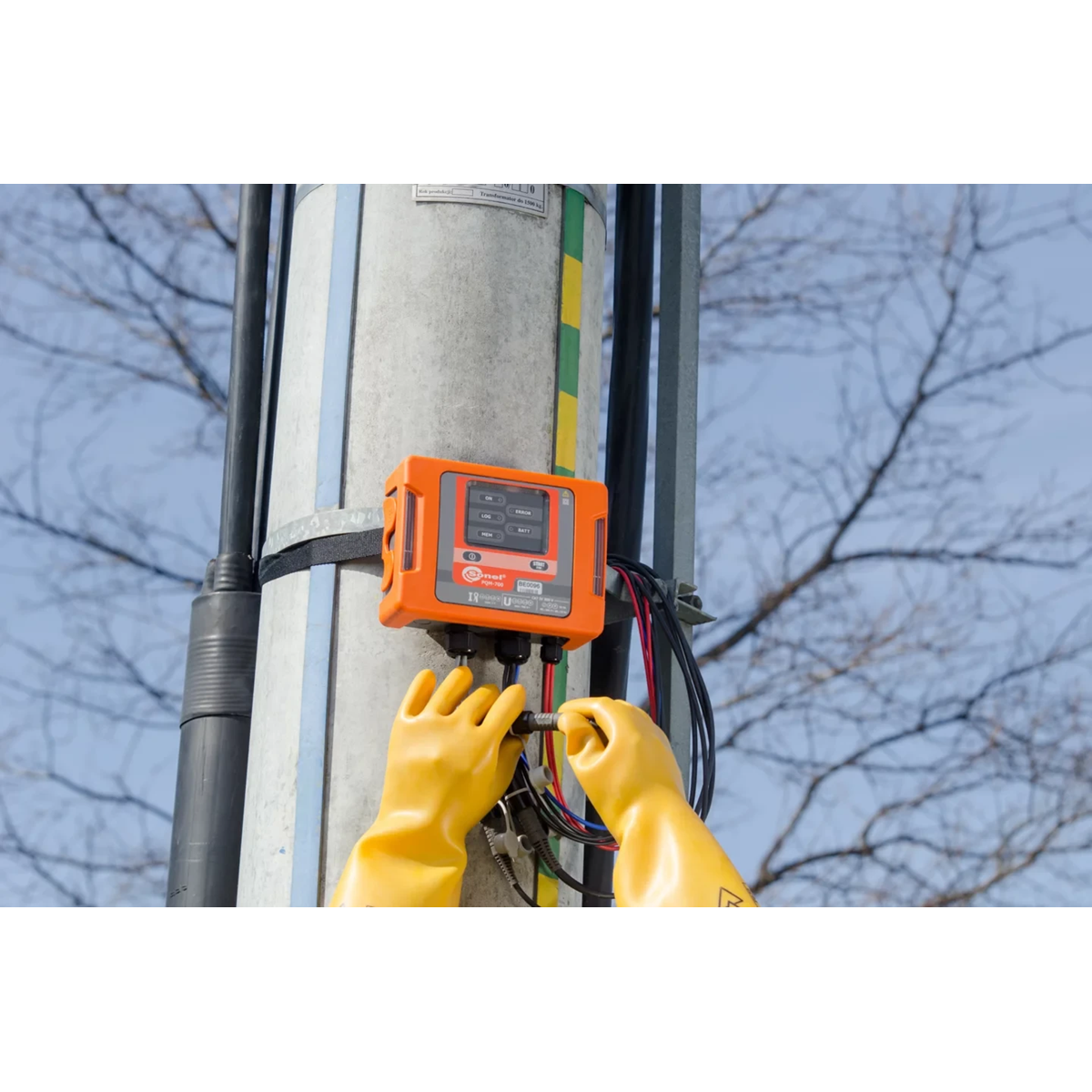

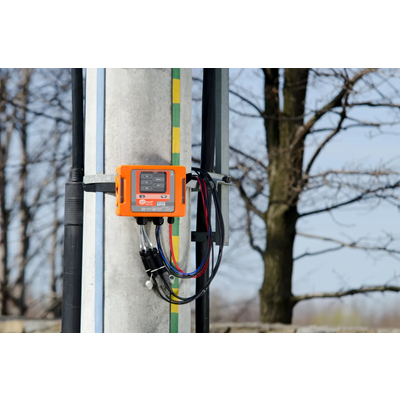

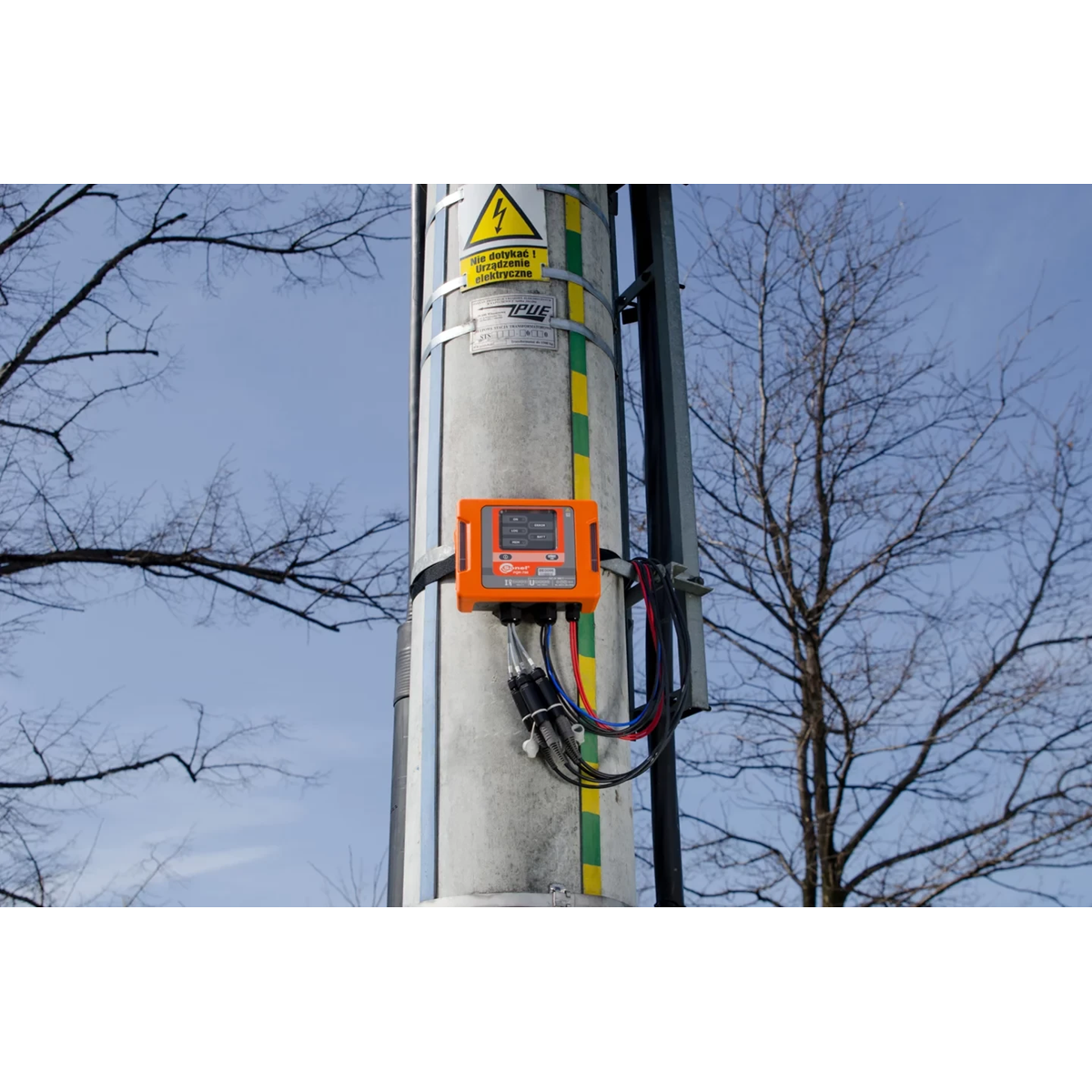

PQM-700 fulfills its role in industry - in hands of electricians, maintenance services etc. - as a cheap, multi-functional load parameter recorder. It is also used by consumers and producers of renewable energy (wind farms, solar farms), where a 4-quadrant power analysis is required.

SONEL ANALYSIS

Sonel Analysis software – application delivered as standard accessory, indispensable for working with PQM-series analyzers. Depending on the mating instrument used, the software enables:

• analyzer configuration,
• data reading from logger,
• preview of network parameters in real time (with capability of reading via GSM modem),
• deletion of data in the analyzer,
• data presentation in tables,
• data presentation in charts,
• data analysis and generating reports in compliance with standard EN 50160 (reports) and other user defined reference conditions - also for PV micro-installations up to 50 kW, a breakdown  for active power states P>0, P<0 and P=0 and taking into account the graphs Q₁=f(U₁/U_n) and cosφ=f(P/P_n),
• independent support of multiple analyzers,
• analyzer firmware updates.

The software enables readout of selected parameters and their visualization in real time. These parameters are measured independently from the registration saved on the memory card. The user can view:

• charts of voltage and current progression (oscilloscope),
• charts of voltage and current over time,
• phasor diagram,
• measurements of multiple parameters,
• harmonics and harmonic powers (estimating the direction of harmonics),
• interharmonics.
