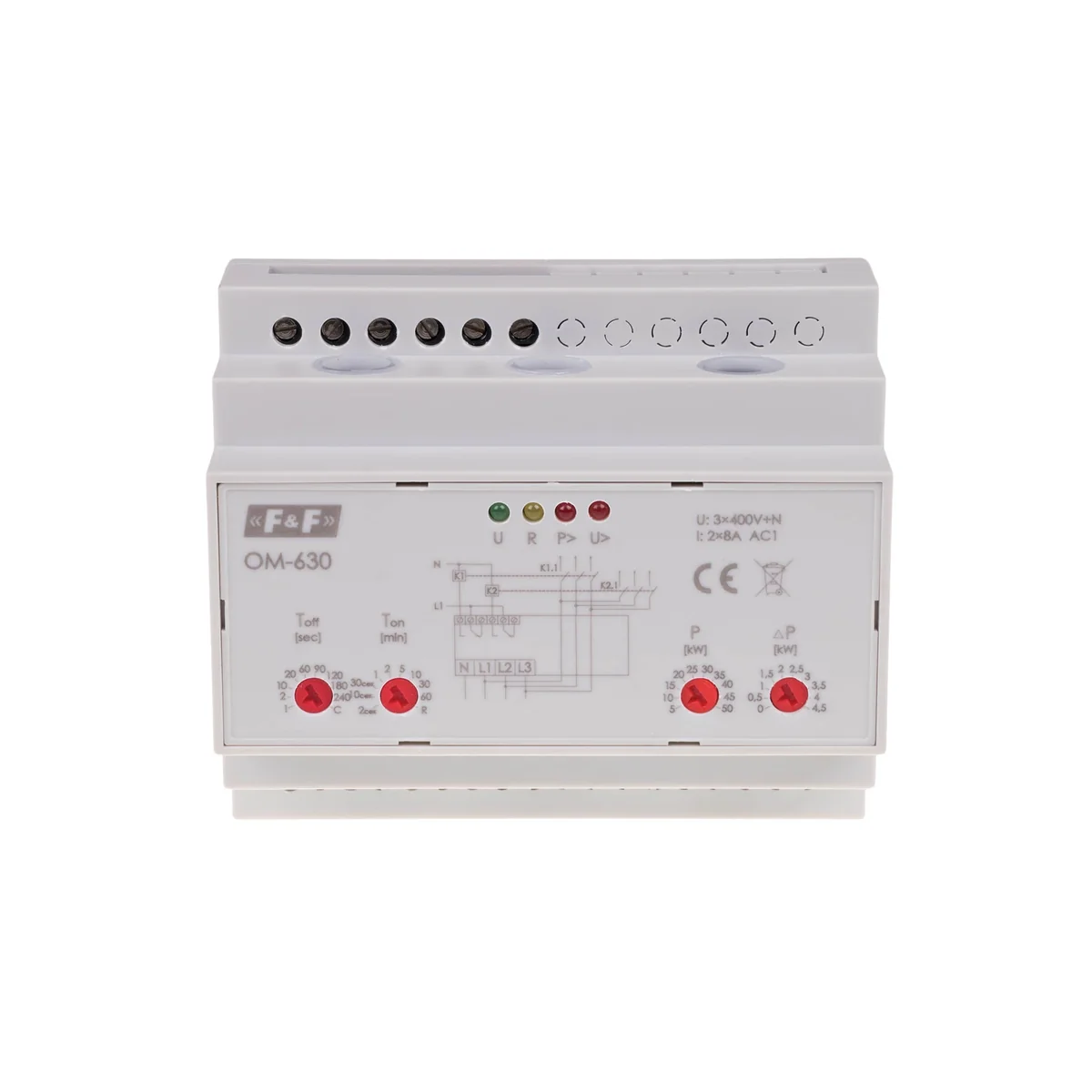

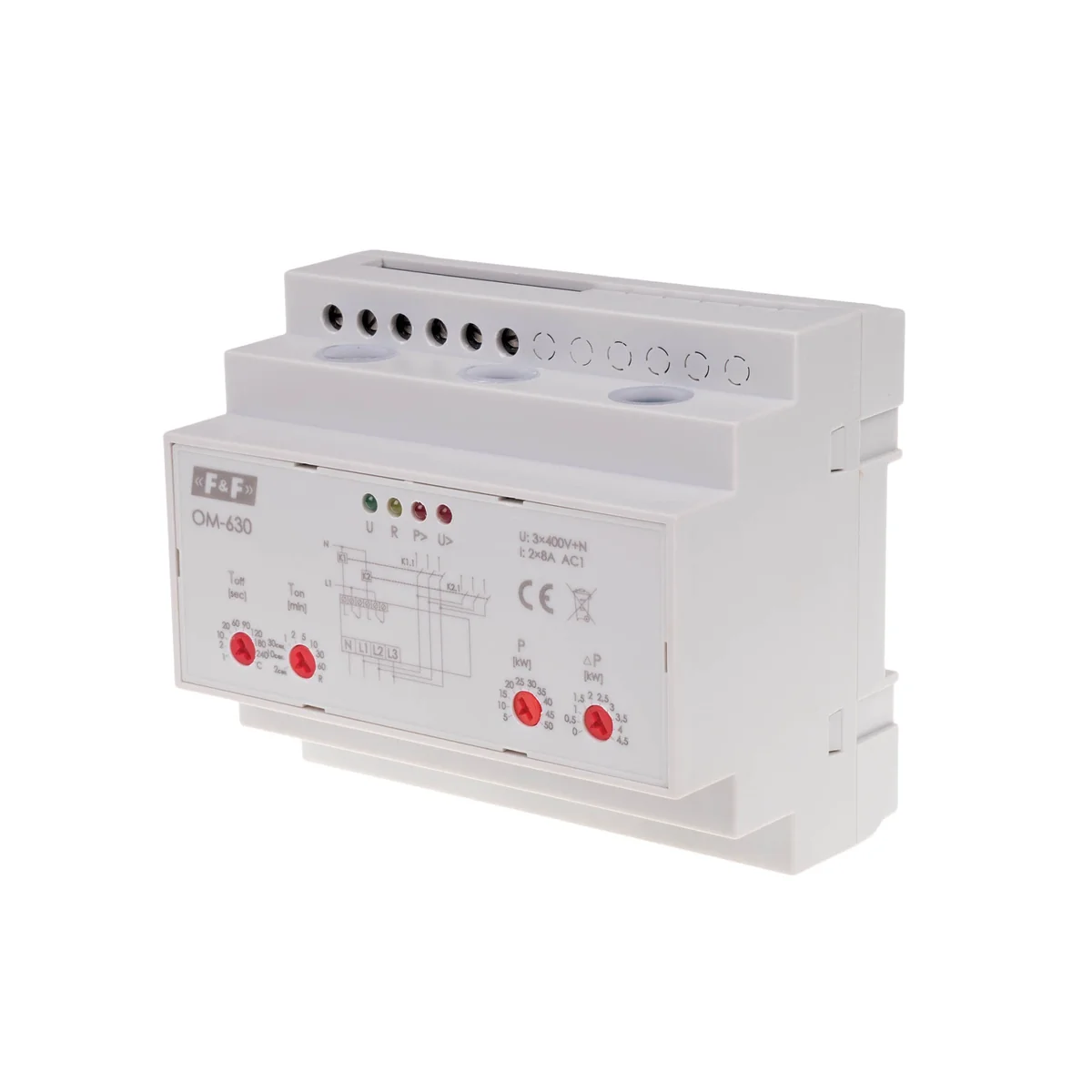

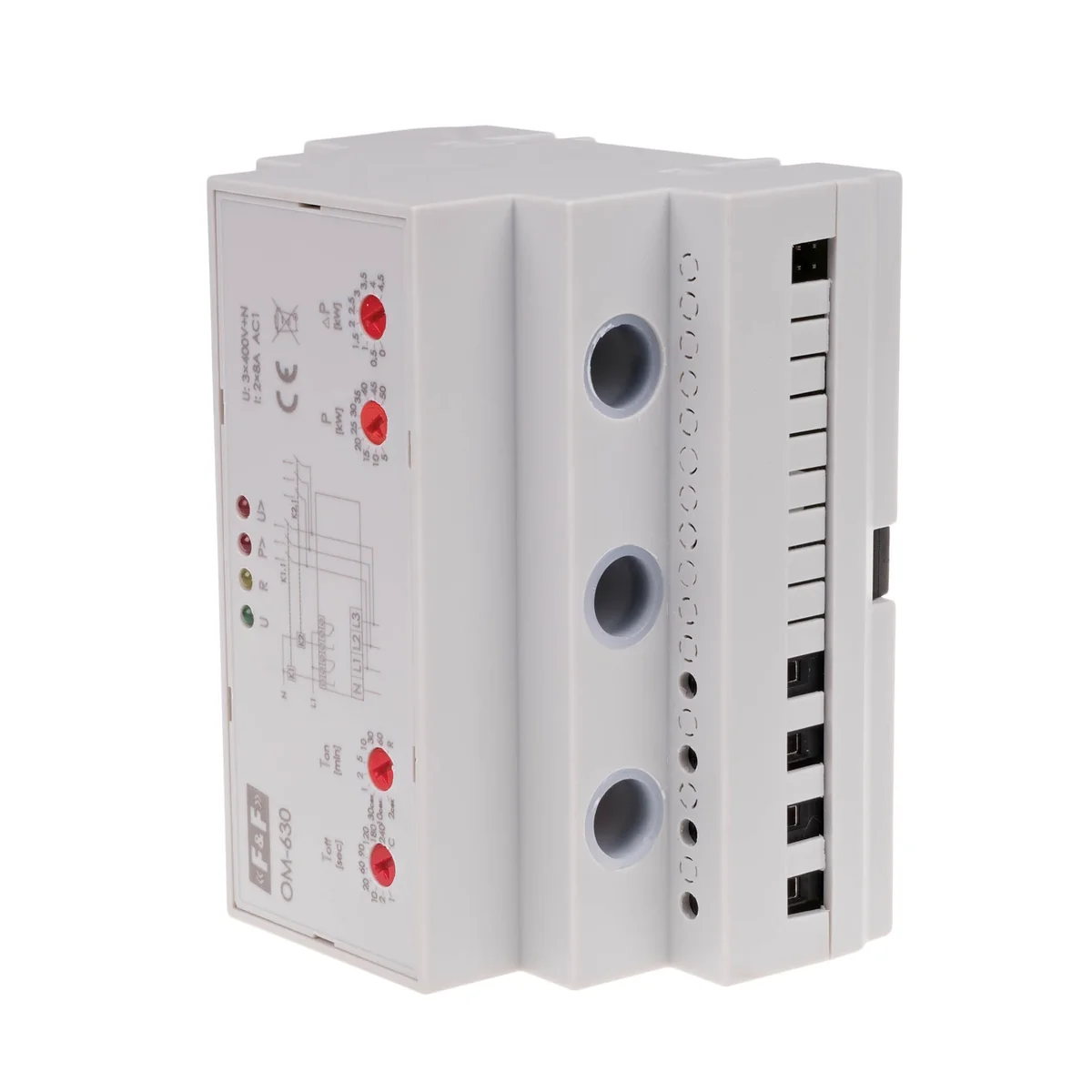

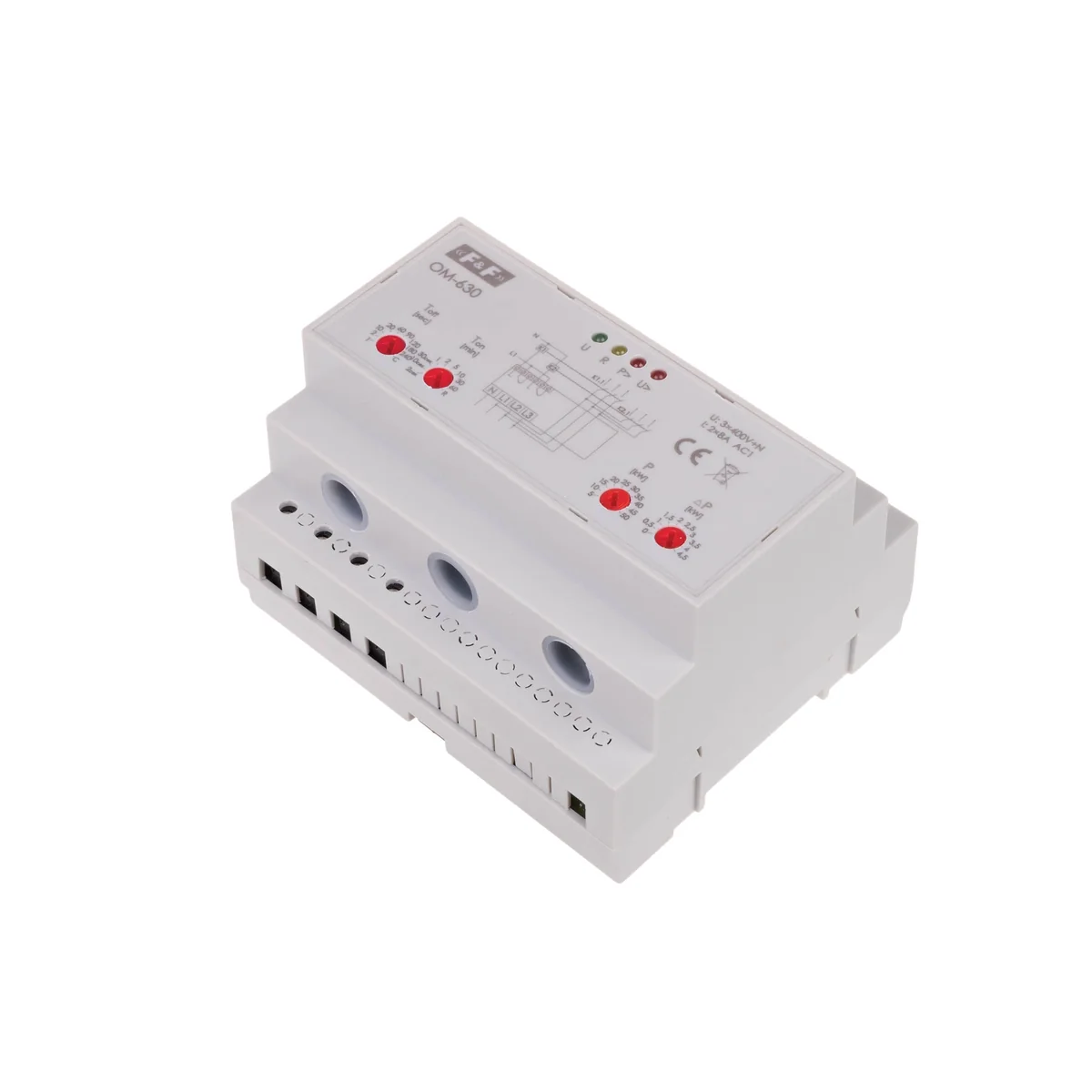

Power consumption limiter OM-630 OM-630

local index:
NPS008FIFQ
Catalog No:
OM-630
EAN code:
5908312596448
Manufacturer: F&F
Rated voltage [V]: 400
Contact: 2x1P
Dimensions: 6 modules (105mm)
Price:
170,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description


The limiter is designed for continuous control of the power consumed by the receivers connected to the three-phase receiving network and enables their disconnection in the event of exceeding the set power consumption. In addition, the limiter is equipped with the function of supply voltage control and protects the receiving installation against damage that may occur as a result of disconnecting the neutral conductor (applies to the disconnection of the neutral conductor before the OM-630 arrester).



























Off delay for >260V [s]

0.1

Accurate power setting - step [kW]< /td>

0.5

Shutdown delay for <160V [s]

5

Power control range [kW]

18384

Load off delay [s]

1- 240




Technical data

  • Rated voltage [V]
    400
  • Dimensions
    6 modules (105mm)
  • Package width [mm]
    130
  • Switching time[s]
    2-3600
  • Contact
    2x1P
  • Package height [mm]
    150
  • Package weight [kg]
    0.5
  • PKWIU
    27.12.24.0

Other technical data

  • Nominal measuring voltage
    230 V
  • Nominal operating current
    8 A
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Krótkozwłoczny
    no
  • Frequency measuring voltage
    50 Hz
  • Number of phases
    3
  • Voltage type
    AC

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,349
Width (m) 0,110
Length (m) 0,130
Depth (m) 0,075
