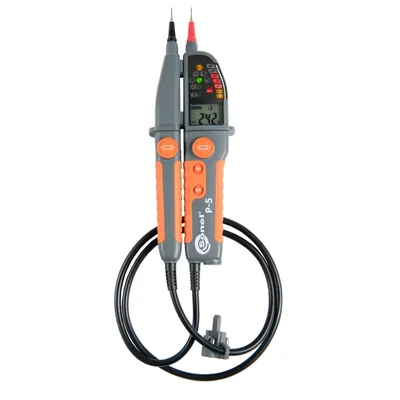

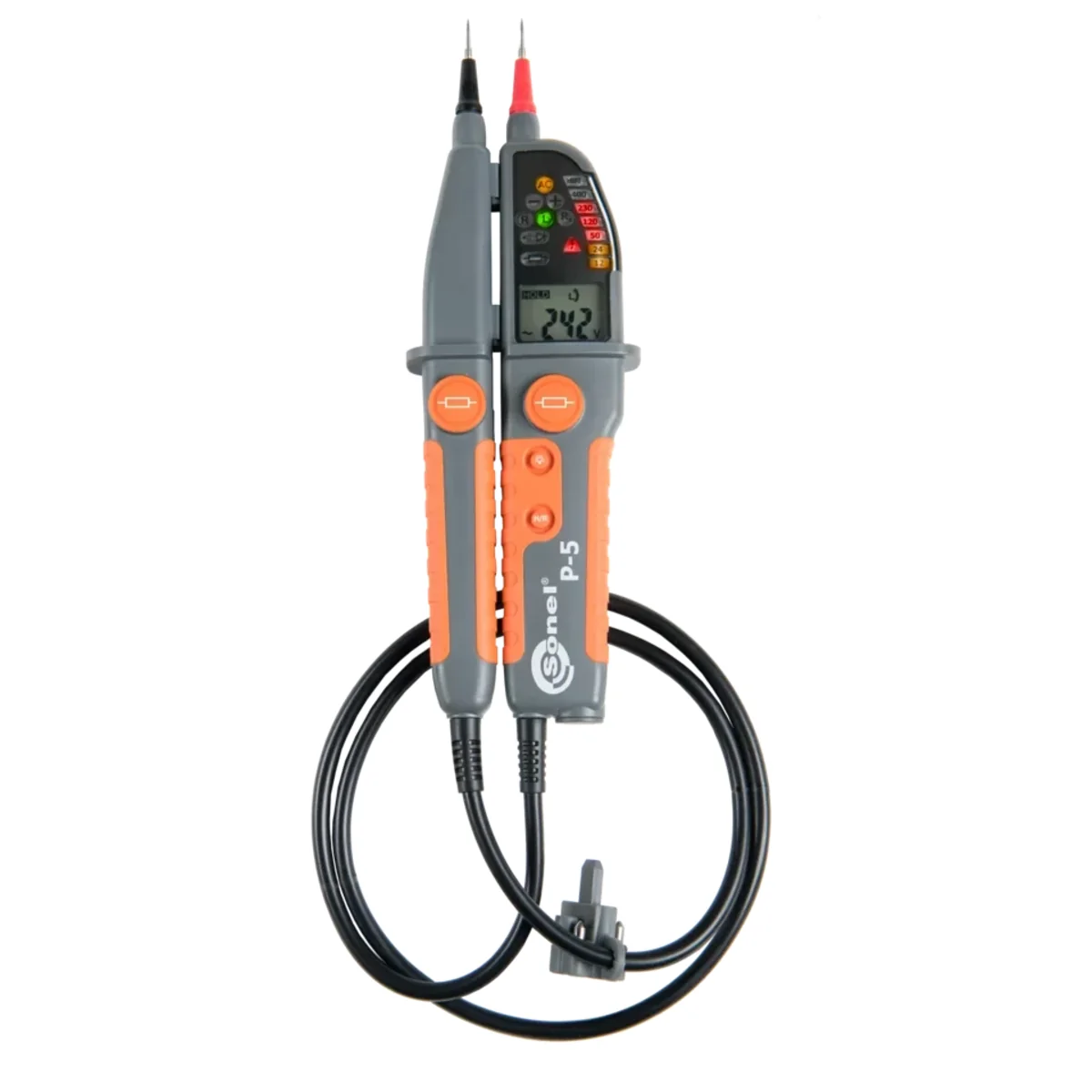

P-5 Bipolar voltage indicator WMGBP5

local index:
NPP096SONE
Catalog No:
WMGBP5
EAN code:
5907624014565
Manufacturer: SONEL
Level of security: IP65
Dimensions (length x width x height) [mm]: 275 x 82 x 36
Price:
138,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

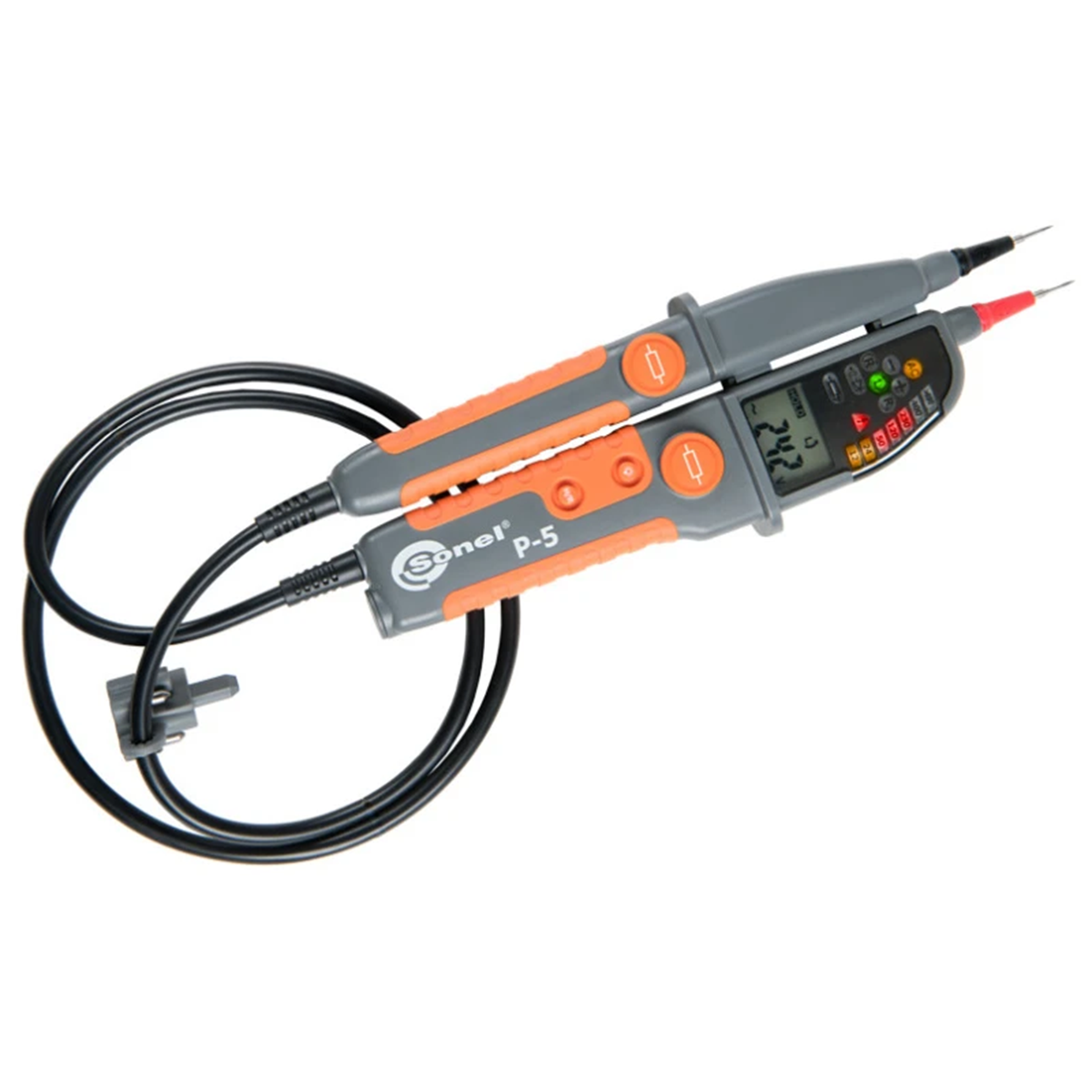

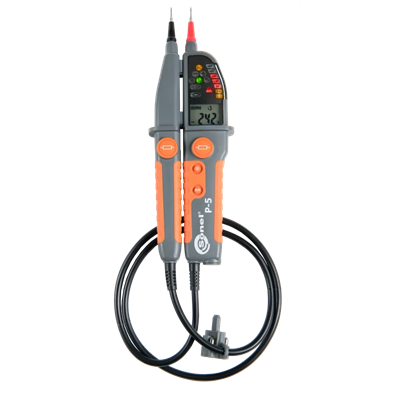

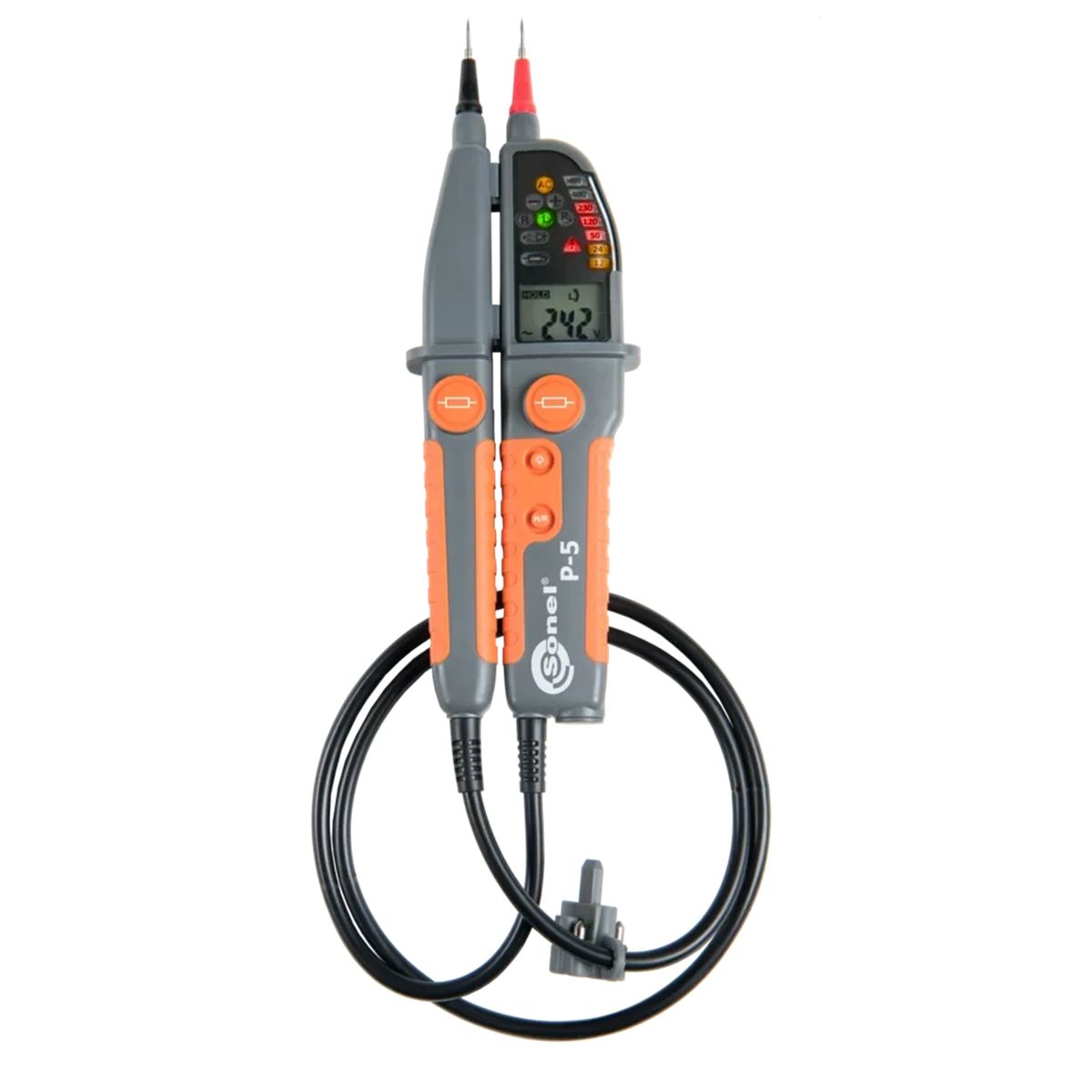

Bipolar voltage indicator SONEL P-5 has all the features that characterize the P-4 indicator. In addition, the P-5 model has the ability to perform resistance measurements in the range of up to 2 kΩ and an LCD display that allows you to accurately display the voltage and resistance values.

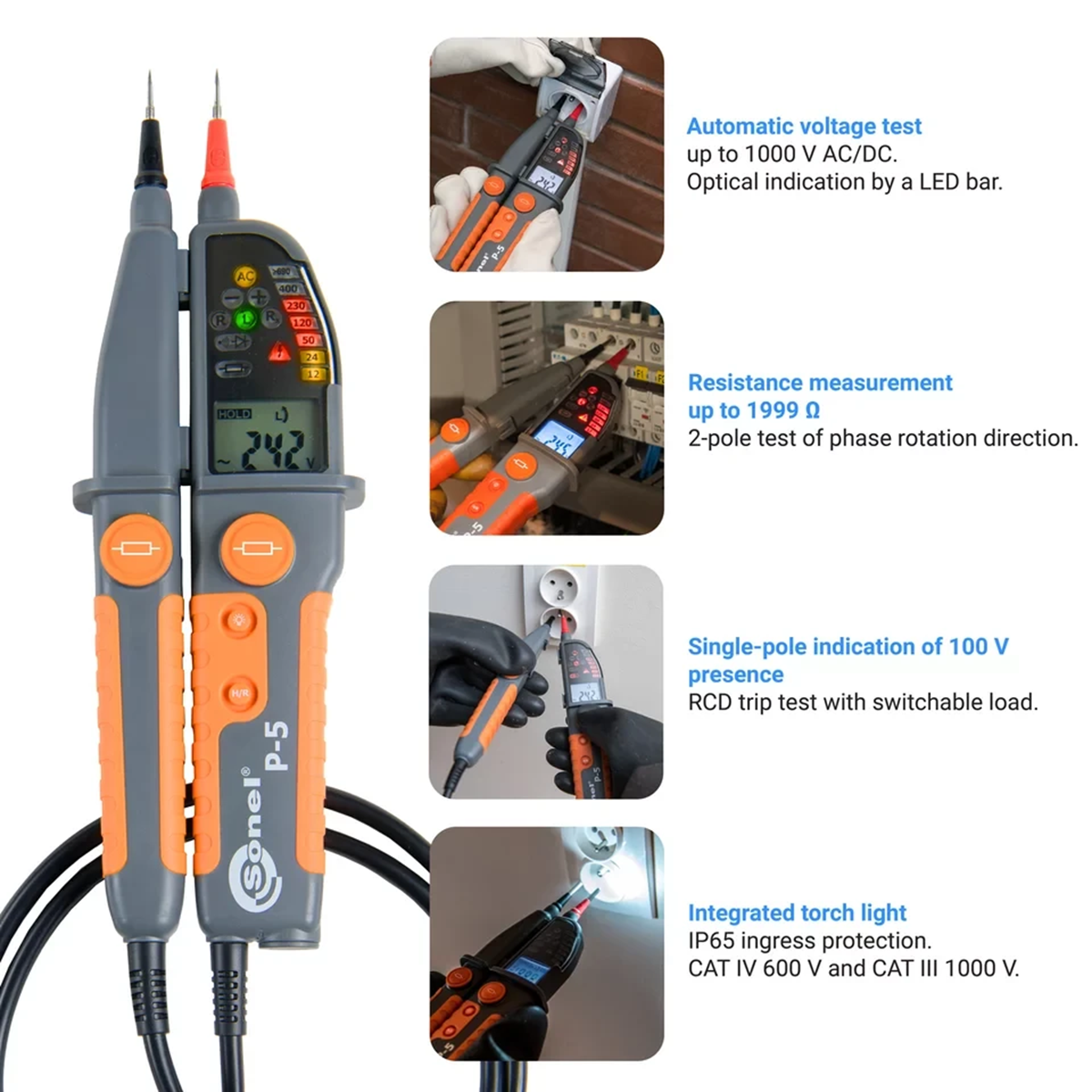

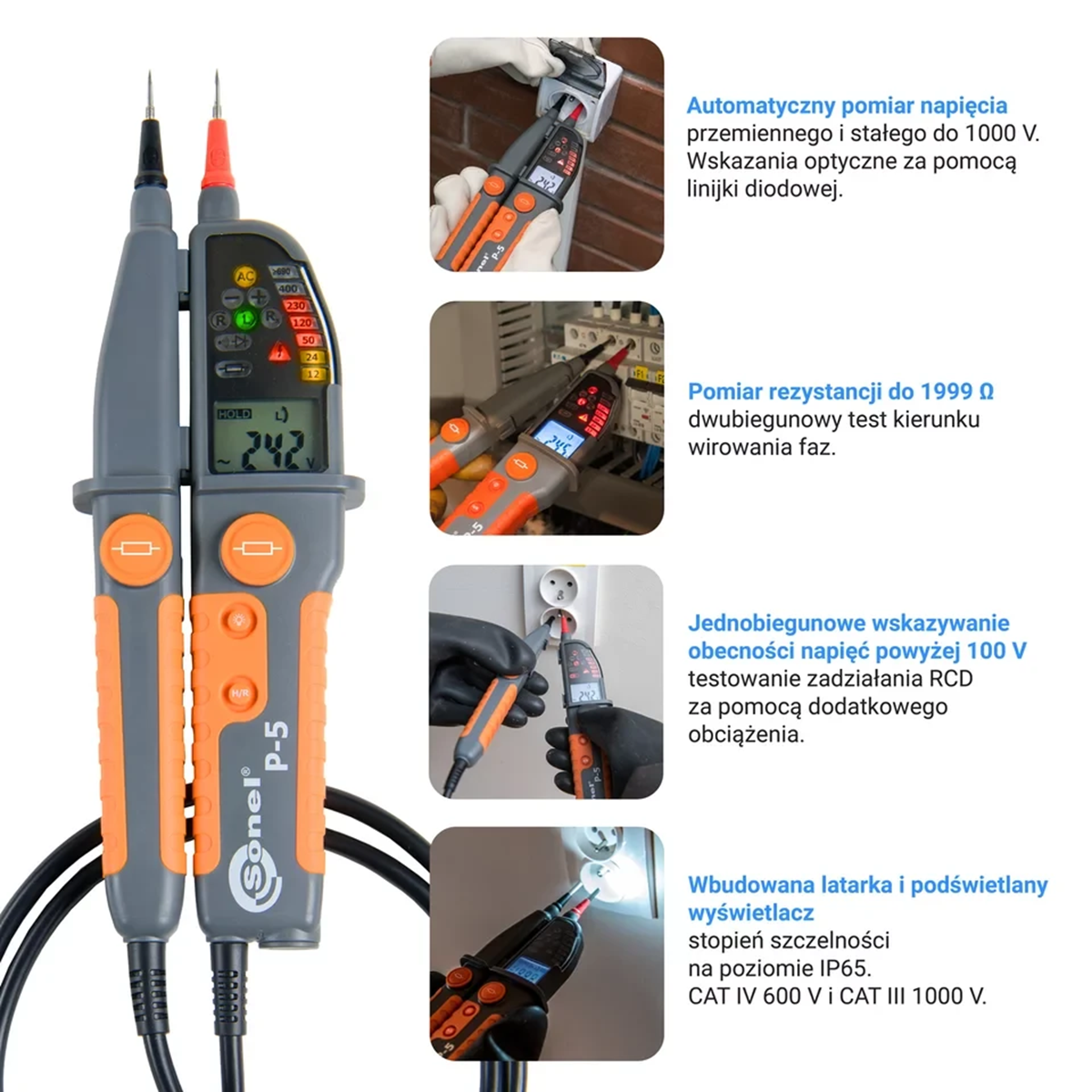

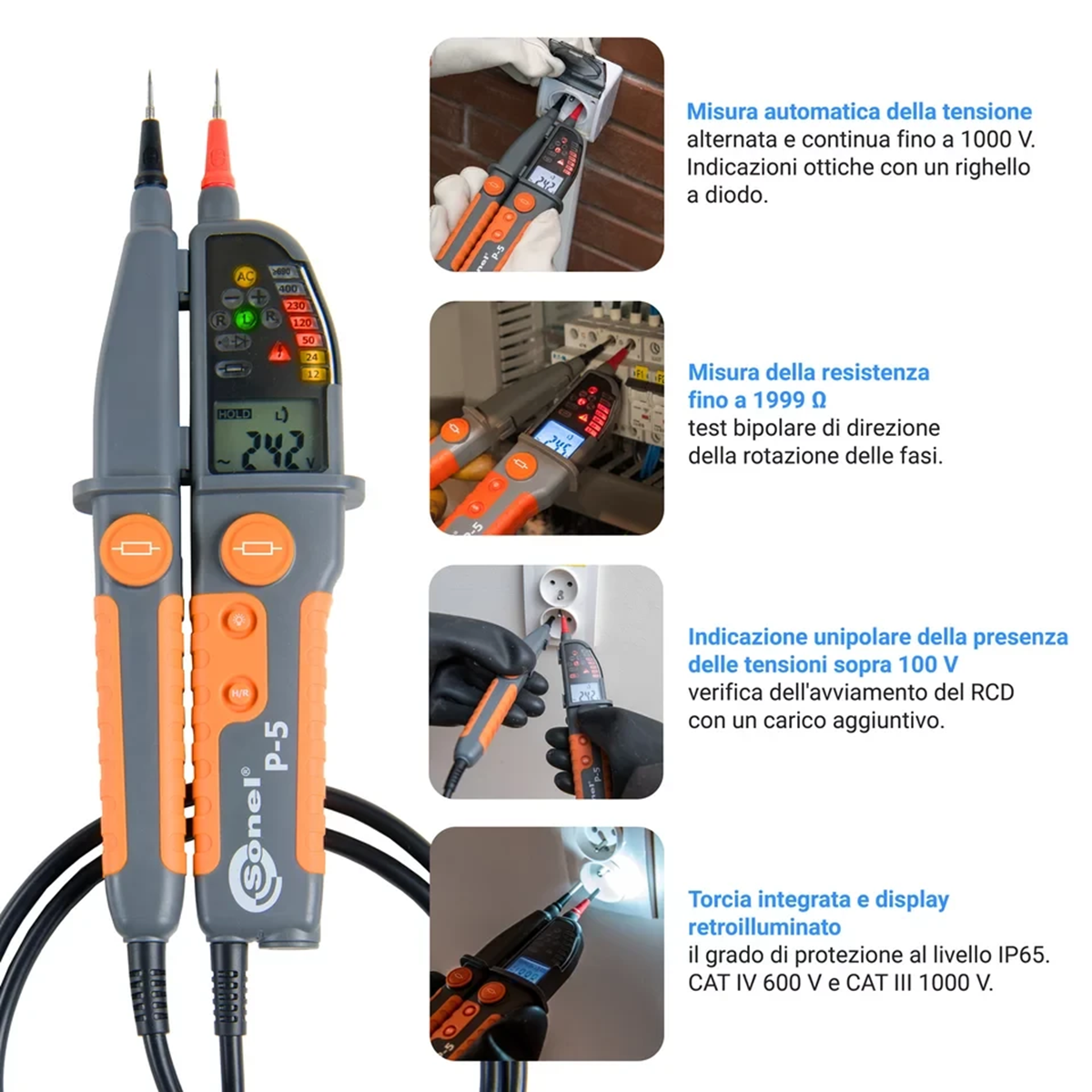

Key functions and attributes of the P- 5

  • automatic measurement of alternating and direct voltage up to 1000 V
  • optical indications using a diode bar and additionally an LCD display
  • sound indications when dangerous voltages of 50 VAC and 120 VDC are exceeded
  • testing of RCD tripping with an additional load
  • continuity indication, automatically after connecting to the object
  • bipolar test of phase rotation direction
  • single-pole indication of the presence of voltages above 100 V
  • resistance measurement up to 1999 Ω
  • hold the measurement result thanks to the HOLD function
  • enhanced two-component housing that prevents mechanical damage and falls

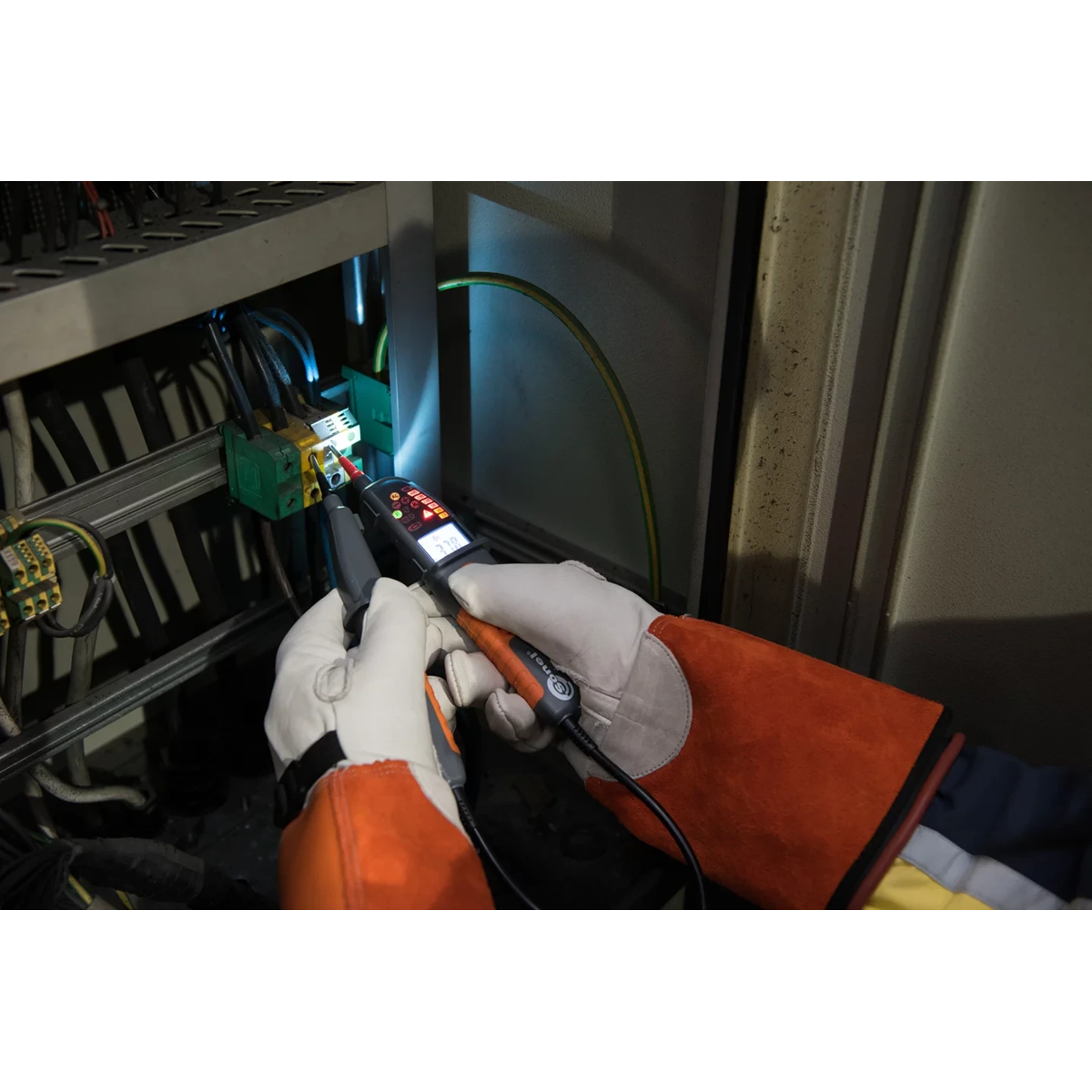

  • built-in flashlight and backlit display for measurements in insufficient lighting
  • IP65 degree of tightness guarantees dustproof and protection against flooding
  • safety thanks to the measurement category CAT IV 600 V and CAT III 1000 V

Technical data:

Measurement of DC and AC voltages:

  • on a diode line (bar graph): 12, 24, 50, 120, 230, 400, ≥690 V,
  • on a backlit LCD display up to 1000 V,
  • determination of voltage: AC or DC polarity.

Continuity testing:

  • signalling for resistance for R ≤ 400 kΩ,
  • light and sound signaling.

Resistance measurement:

  • measuring range up to 1999 Ω.

Phase rotation indicator:

  • phase sequence indication for >100 V.

Single-pole phase indication:

  • optical and acoustic signaling for >100 V.

Residual current circuit breaker test:

  • Test of IΔn ≤30 mA circuit breakers.

Other data:

  • Display: 3½ digits, reading 1999 with function indicators.
  • Holding the result: HOLD button to hold the result on the LED bar and LCD display.
  • Working frequency: 16..400 Hz.
  • Measurement category according to PN-EN 61010-1: CAT III 1000 V, IV 600 V.
  • Type of insulation according to PN-EN 61010-1: double, class II.
  • Meter power supply: 2 x LR03 AAA 1.5 V (alkaline cells recommended).
  • Operating / storage temperature: -15..+55°C / -20..+70°C.
  • Weight without batteries: 267 g.

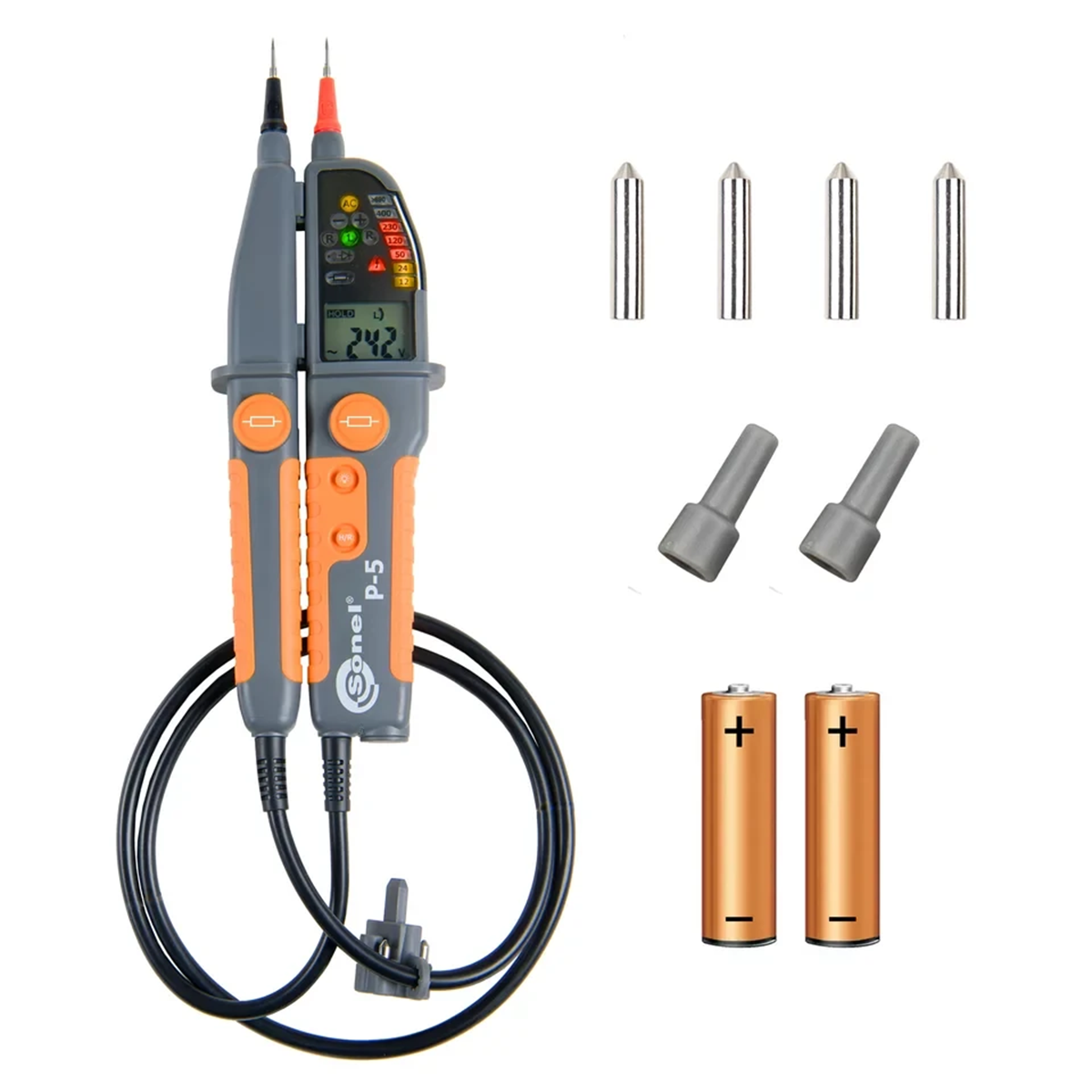

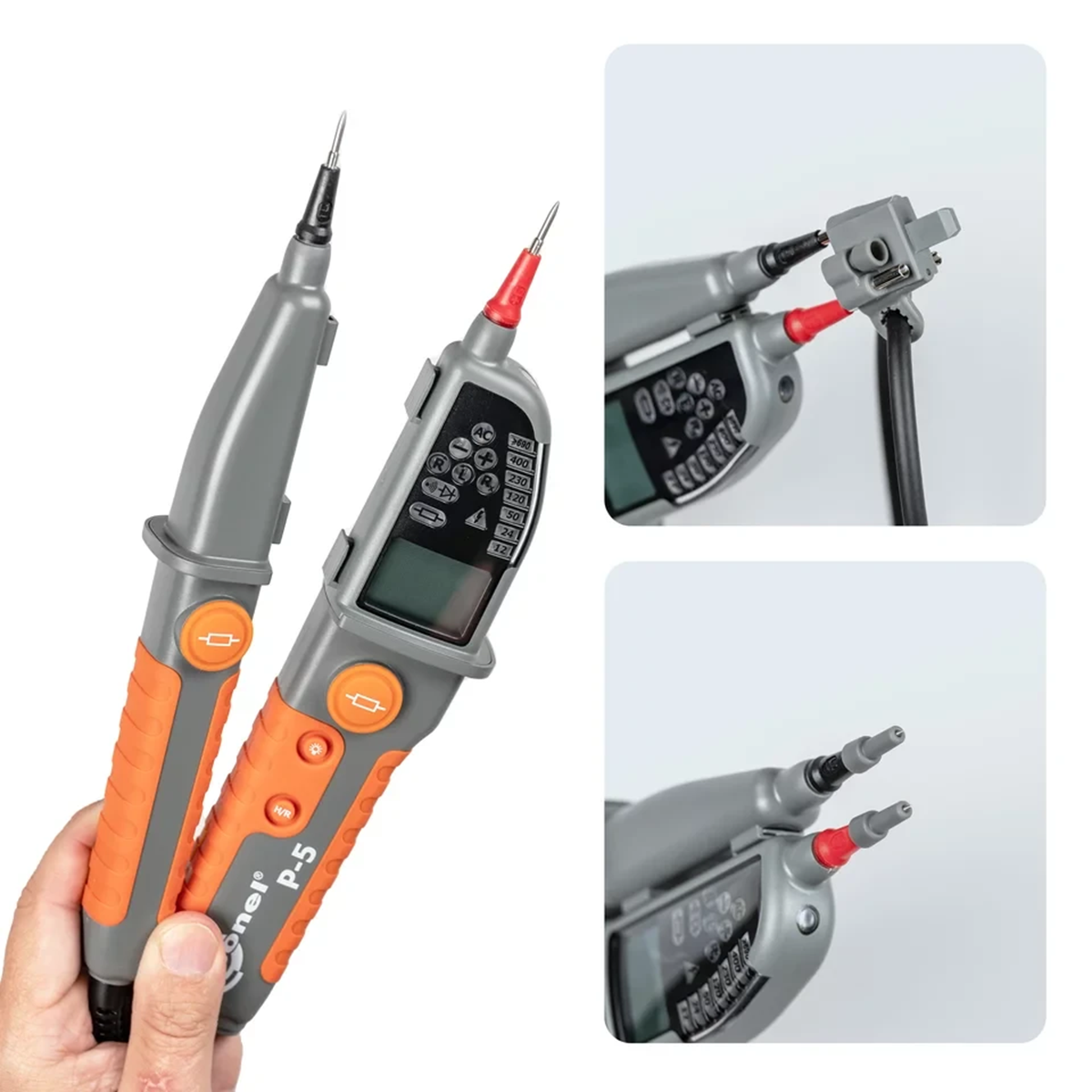

  • Measuring tips: Ø2 mm/ Ø 4mm/L 4mm (GS38).
  • Illumination of the measurement place: built-in flashlight.
  • The devices meet the requirements of the following standards: PN-EN 61326-1, PN-EN 61326-2-2, PN-EN 61010-1, EN 61243-3.

Technical data

  • Level of security
    IP65
  • Dimensions (length x width x height) [mm]
    275 x 82 x 36
