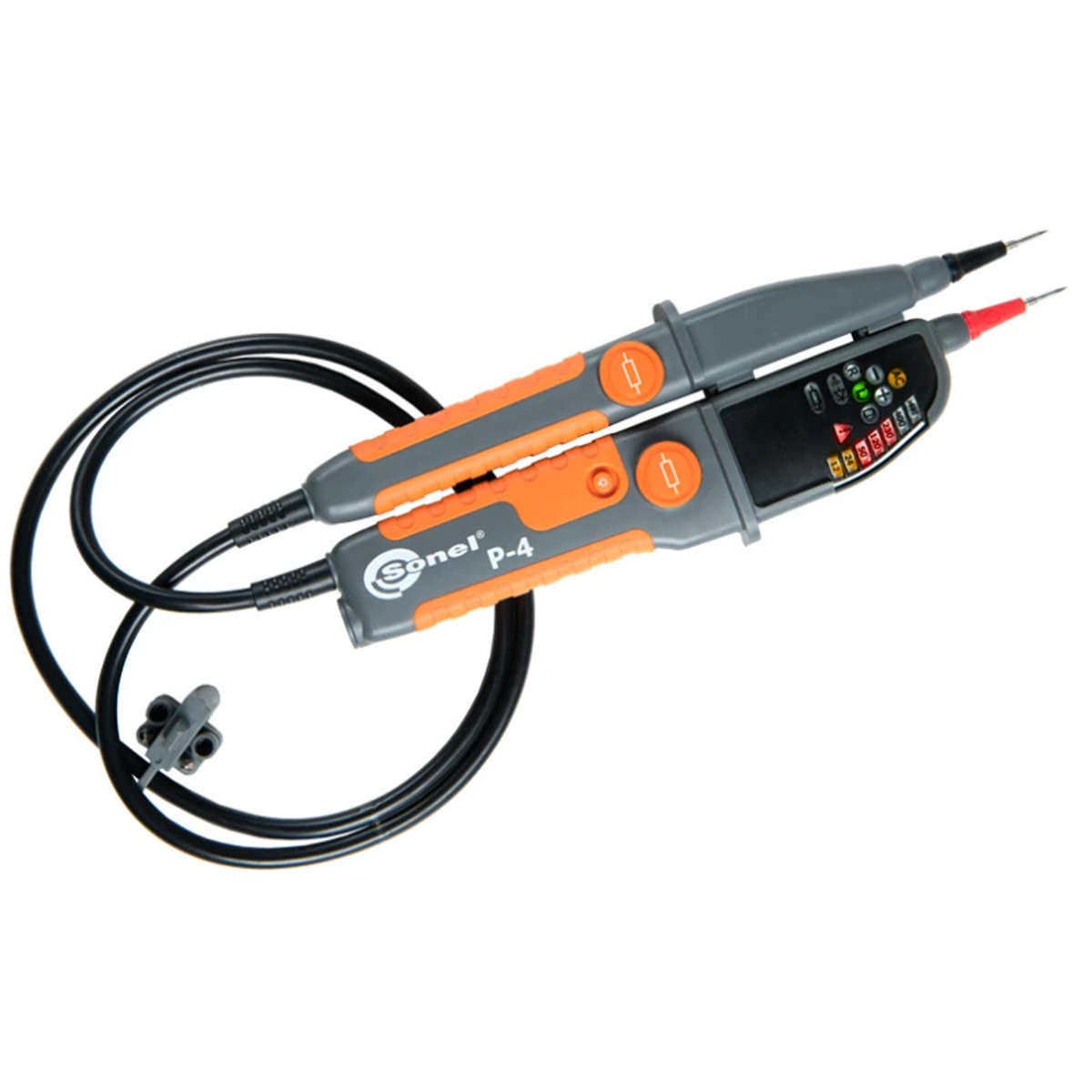

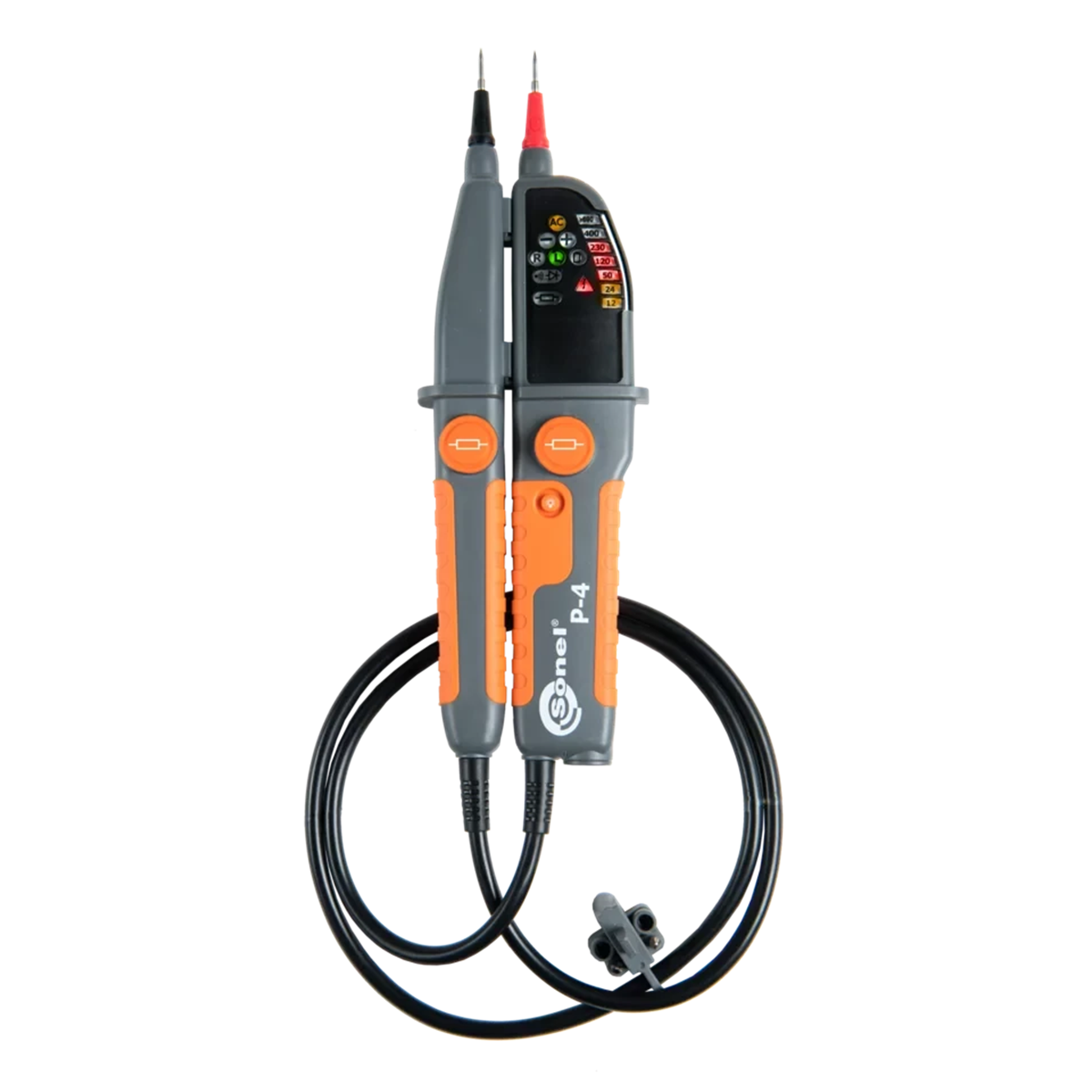

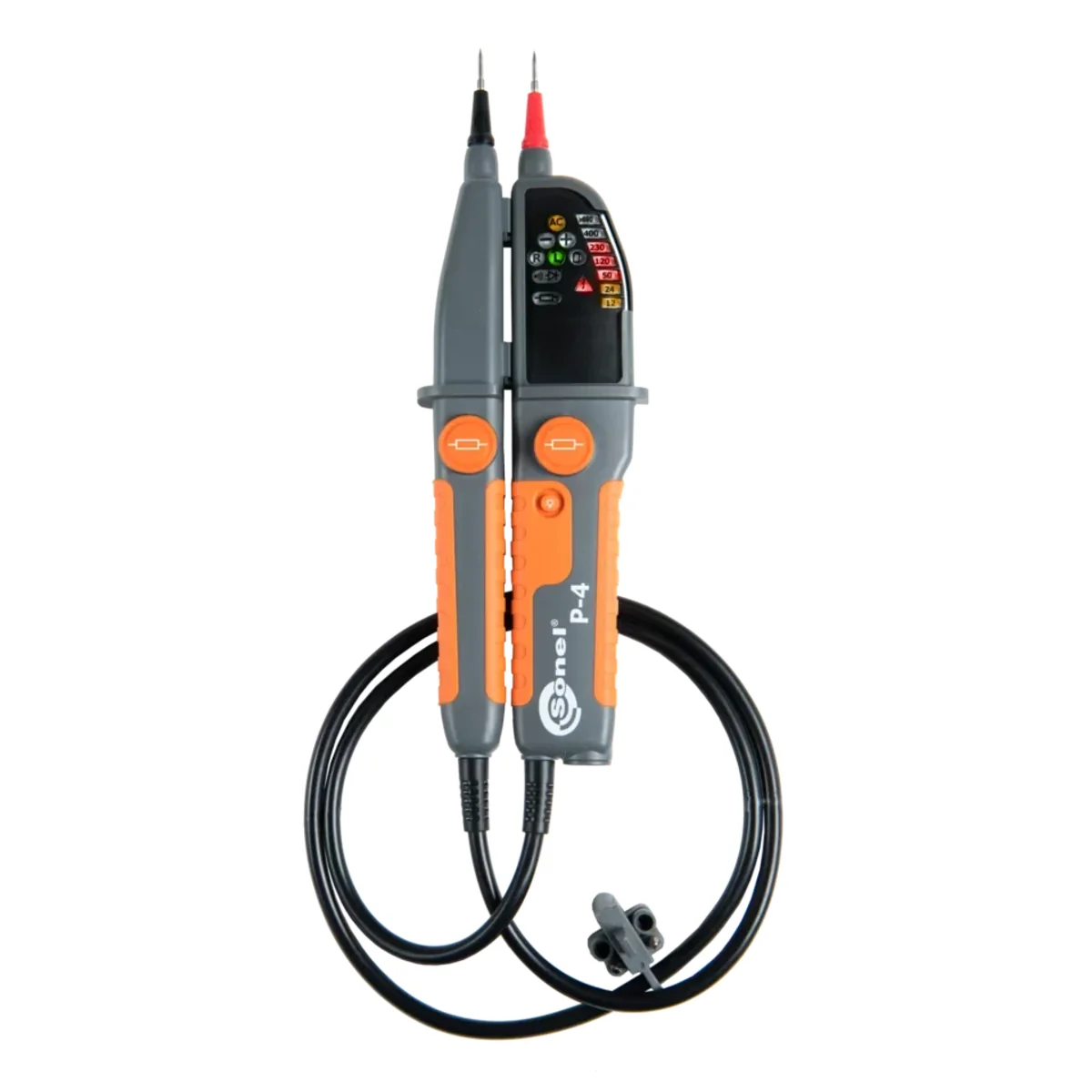

P-4 Bipolar voltage indicator WMGBP4

local index:
NPP095SONE
Catalog No:
WMGBP4
EAN code:
5907624014558
Manufacturer: SONEL
Level of security: IP65
Dimensions (length x width x height) [mm]: 275 x 82 x 36
Price:
98,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 16 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SONEL P-4 is a reliable, extremely durable and safe to use bipolar voltage indicator with additional functions of circuit continuity and phase sequence checking. It has been designed to work in the most difficult conditions, both industrial and commercial. Advanced technology, high level of safety and ease of use are the key features of the P-series devices.

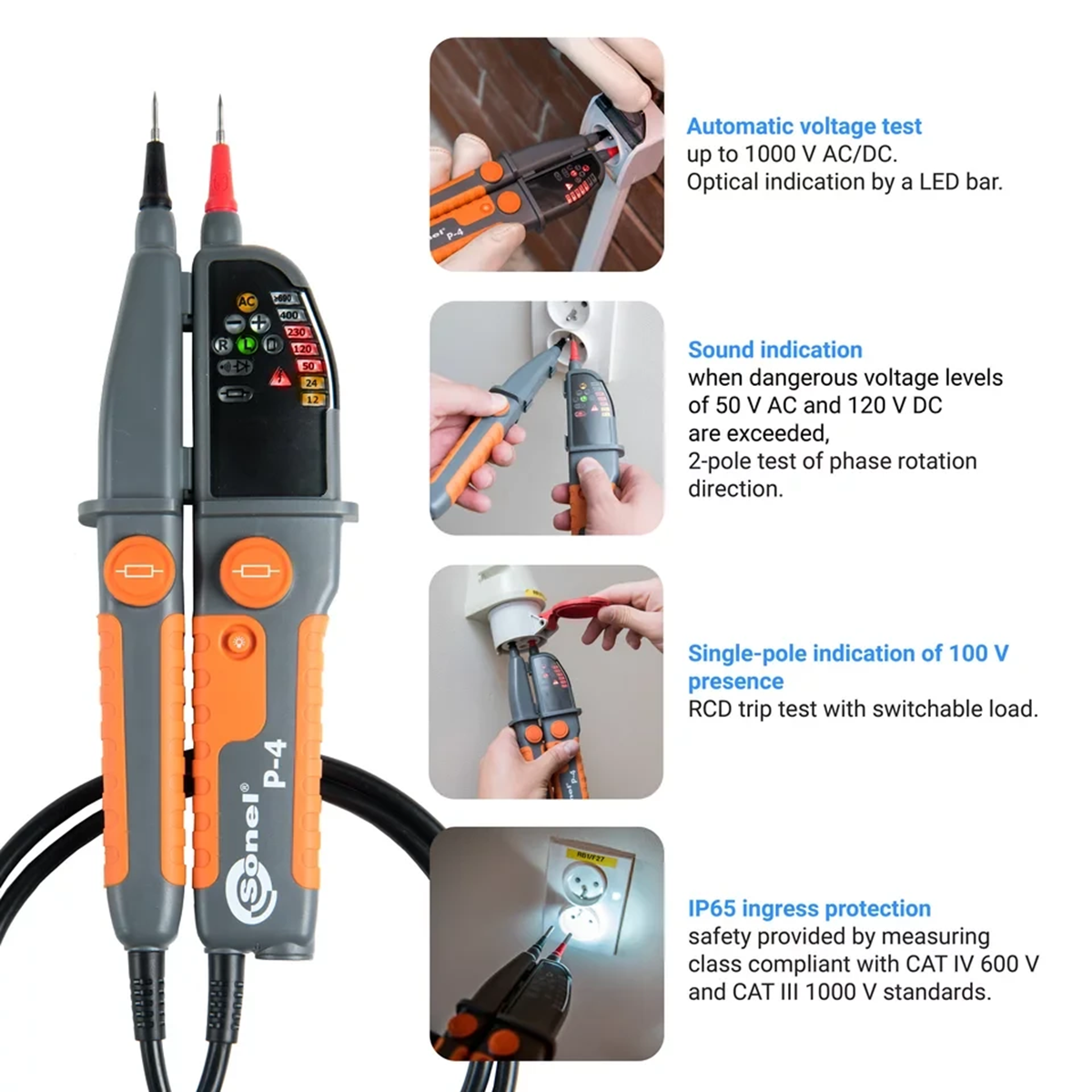

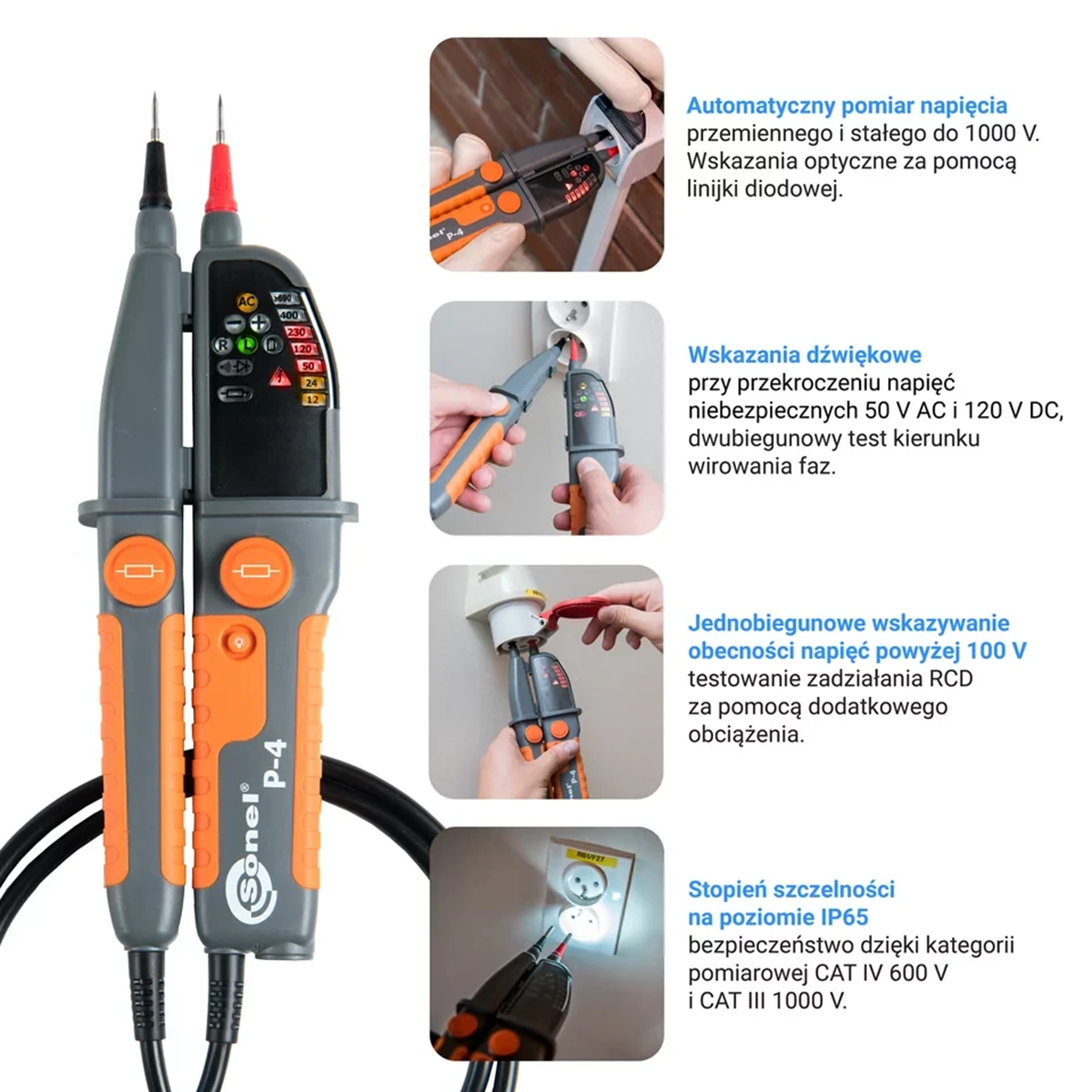

Key features and attributes of the P-4 device:

  • automatic measurement of AC and DC voltage to 1000 V,
  • optical indications using a diode bar,
  • sound indications when dangerous voltages of 50 VAC and 120 VDC are exceeded,
  • RCD tripping testing with an additional load ,
  • continuity indication, automatically after connecting to the object,
  • bipolar phase rotation direction test,
  • unipolar indication of voltage over 100 V,
  • < li>reinforced two-component housing to prevent mechanical damage and falls,
  • IP65 degree of protection guarantees dustproof and protection against flooding,
  • safety thanks to the measurement category CAT IV 600 V and CAT III 1000 V ,

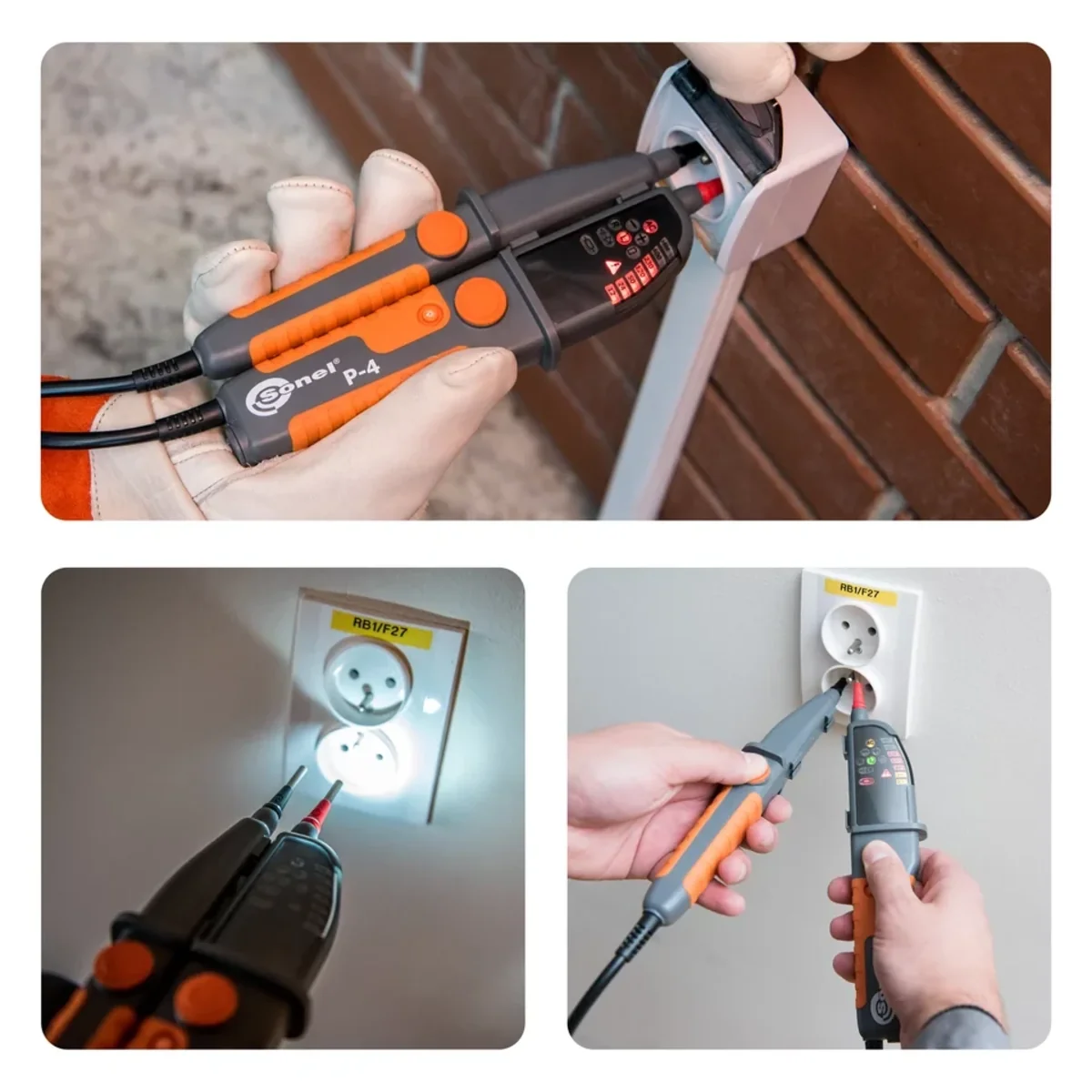

  • built-in flashlight for measurements in insufficient light conditions.

Technical data:

  • Voltage indication constant and alternating:

    • on the diode line (bar graph): 12, 24, 50, 120, 230, 400, ≥690 V,
    • determination voltage: AC or DC polarity.

    Continuity testing:

    • signalling for resistance for R ≤ 400 kΩ,
    • light and sound signaling.

    Phase rotation indicator:

    • sequence indication for voltage >100 V.

    Unipolar phase indication:

    • optical and acoustic signaling for voltage >100 V .

    Residual current circuit breaker test:

    • Test of IΔn ≤30 mA circuit breakers.

    Other data:

    • Operating frequency: 16..400 Hz.
    • Measurement category according to PN-EN 61010-1: CAT III 1000 V, IV 600 V.
    • Type of insulation according to PN-EN 61010-1: double, class II.

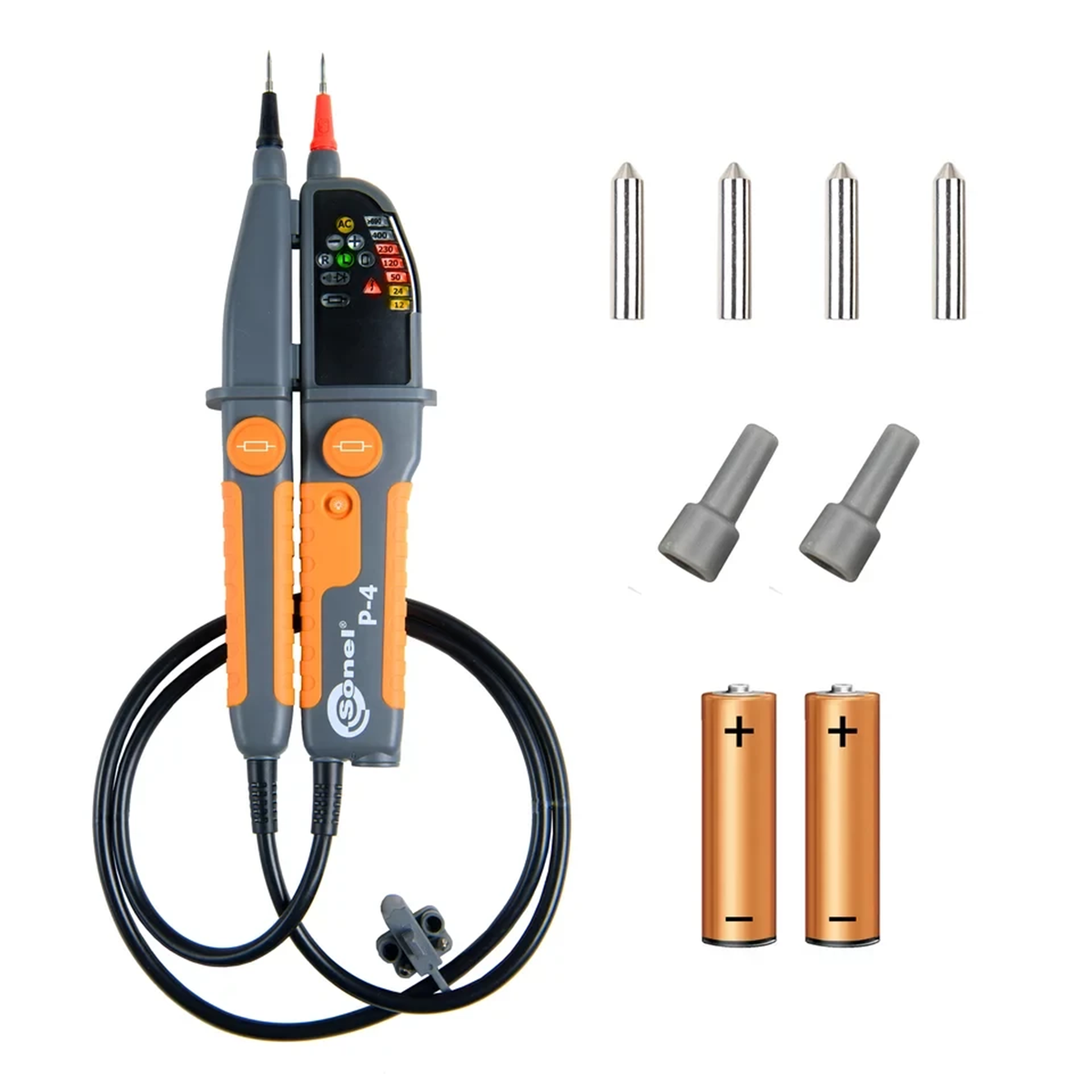

    • Meter power supply: 2 x LR03 AAA 1.5 V ( alkaline cells recommended).
    • Operating / storage temperature: -15..+55°C / -20..+70°C.
    • Weight without batteries: 267 g.< /li>

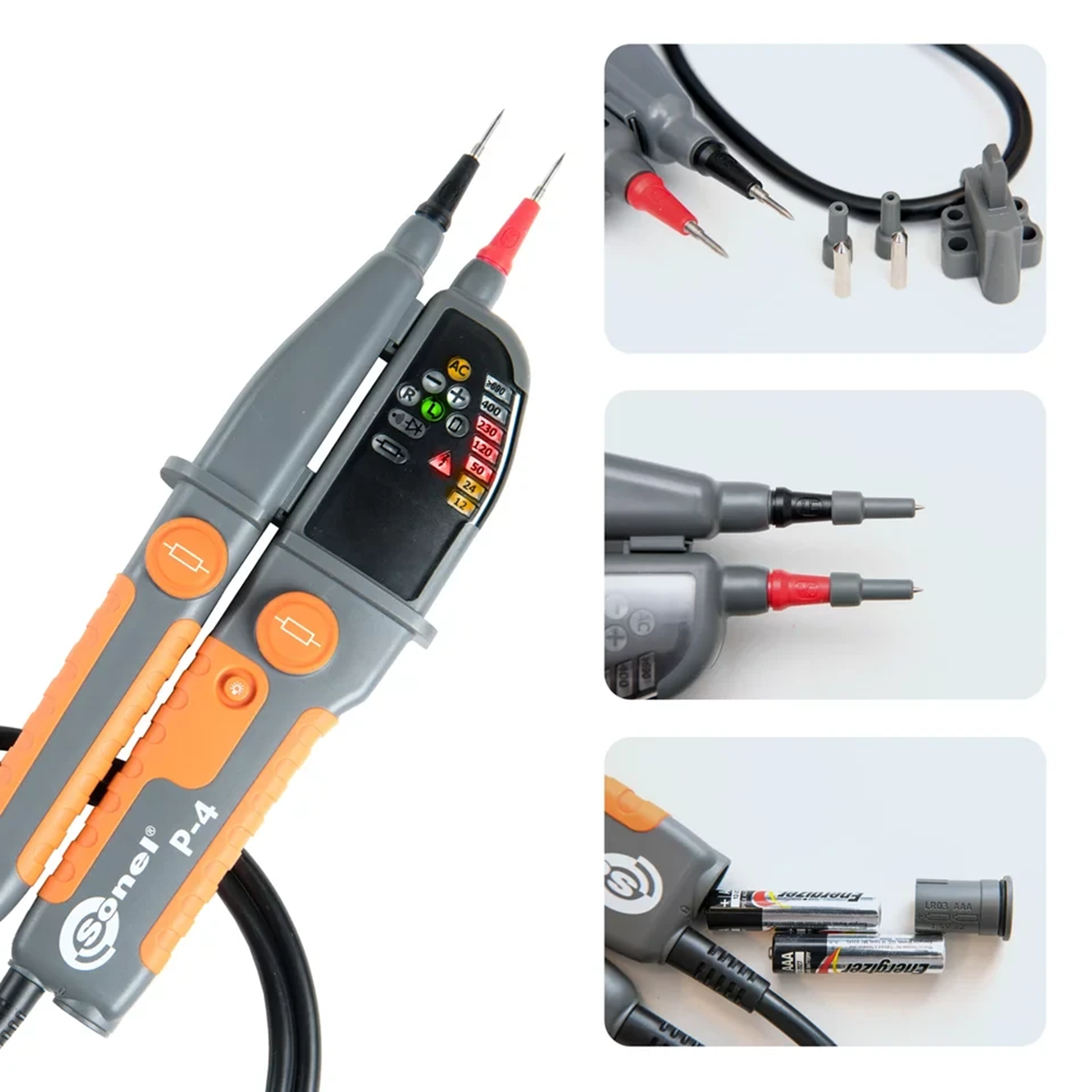

    • Measuring pins: Ø2 mm/ Ø 4mm/L 4mm (GS38).
    • Illumination of the measurement place: built-in flashlight.
    • The devices meet the requirements of the following standards: PN-EN 61326-1, PN-EN 61326-2-2, PN-EN 61010-1, EN 61243-3.

Technical data

  • Level of security
    IP65
  • Dimensions (length x width x height) [mm]
    275 x 82 x 36
