MZC-310S short-circuit loop impedance meter with calibration certificate WMPLMZC310

Name: MZC-310S short-circuit loop impedance meter with calibration certificate
Brand: SONEL
SKU: NPP025SONE
Price: 2119.83 PLN

local index:

NPP025SONE

Catalog No:

WMPLMZC310

EAN code:

5907624017115

MZC-310S short-circuit loop impedance meter with calibration certificate

Click on the photo to enlarge

Manufacturer: SONEL

AC rated current [A]: 150/280

See full description

Price:

2119,83 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer's description Manufacturer details Files to download

Product description

The MZC-310S meter, in addition to measurements in receiving networks (for short-circuit loop impedance measurements, a resolution of 0.01 Ω is sufficient), offers short-circuit loop impedance measurements with a resolution of 0.1 mΩ; which allows for accurate measurement also in circuits where very high values of short-circuit currents may occur (in distribution and receiving networks protected by high-current circuit breakers). The accuracy of the measurement is ensured by the four-wire method and the flow of the test current in the 150/280 A pulse.

Measurements of very low short-circuit loop impedance (with a resolution of 0.1 mΩ) with a current of 150 A at 230 V; maximum 280 A at 440 V or measurements with a current of 23 A at 230 V, maximum 42 A at 440 V.

measurements in networks with rated voltages: 220/380 V and 230/400 V o frequencies 45...65 Hz,
the ability to measure in a short-circuit circuit: phase-to-phase, phase-protective, phase-neutral,
distinguishing between phase and phase-to-phase voltage when calculating short-circuit current,
four-wire method, no need to calibrate the test leads (150/280 A measurement),
the ability to change the length of the test leads (23/42 A measurement).

Technical data

AC rated current [A]

150/280

Manufacturer's description

Lightweight for high-current measurements

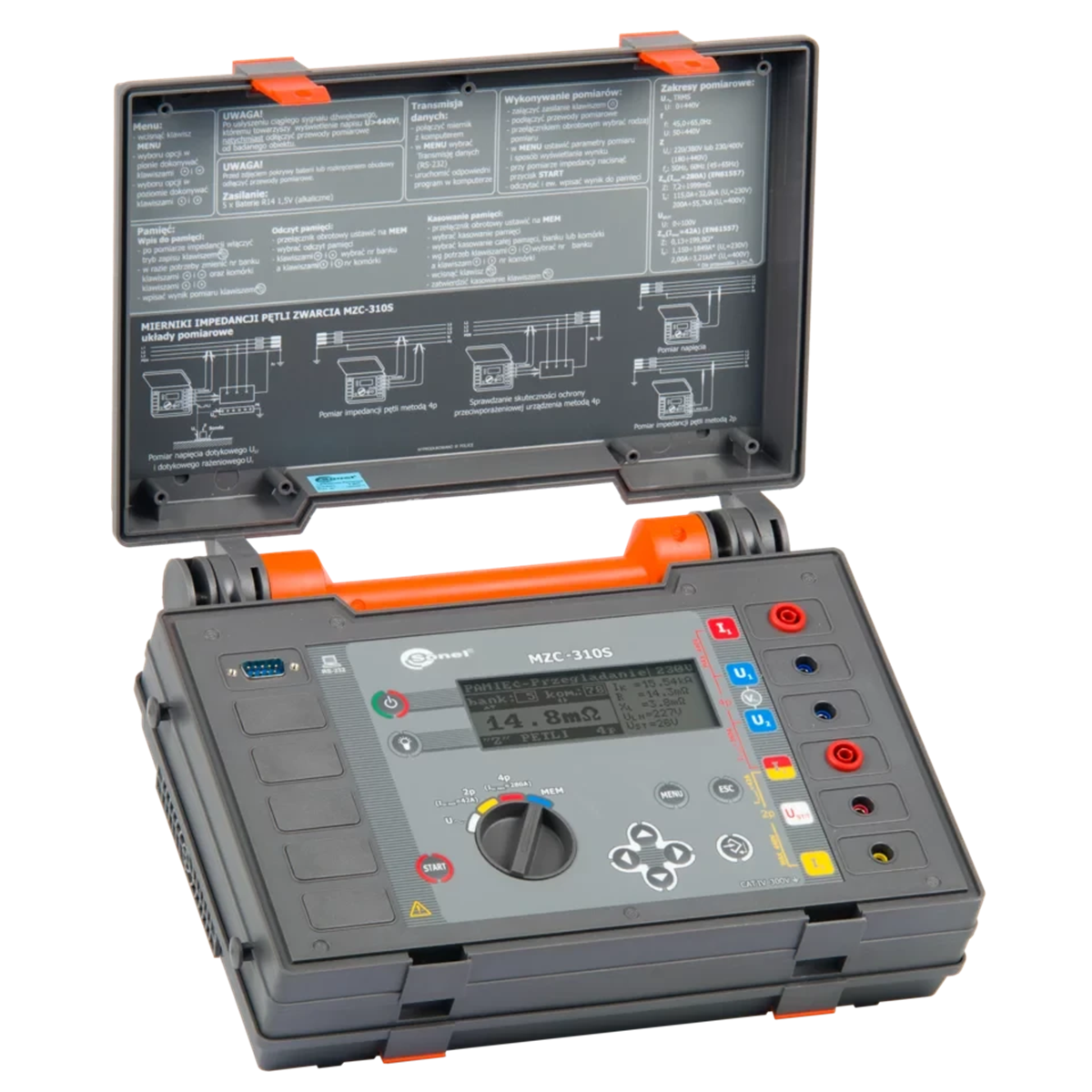

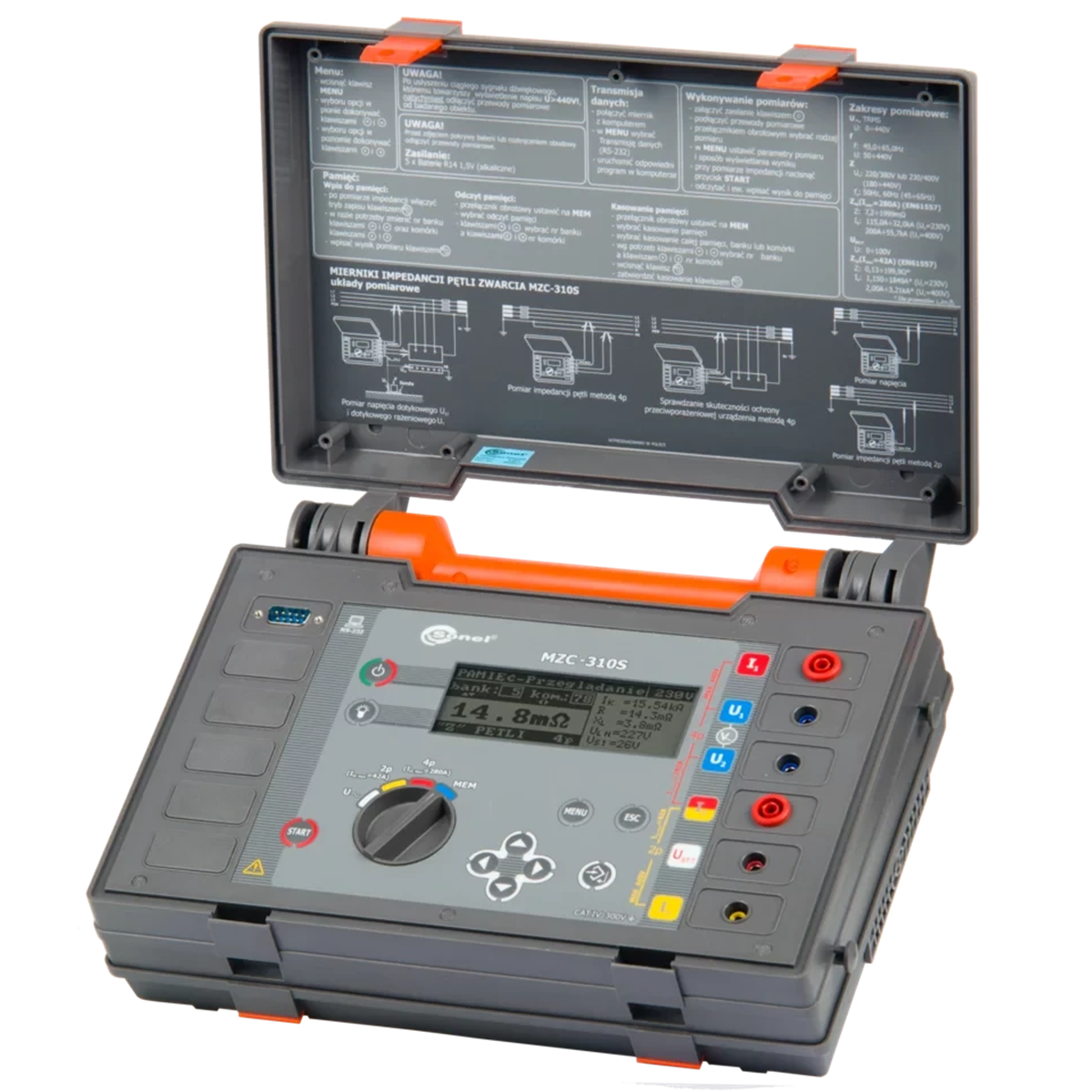

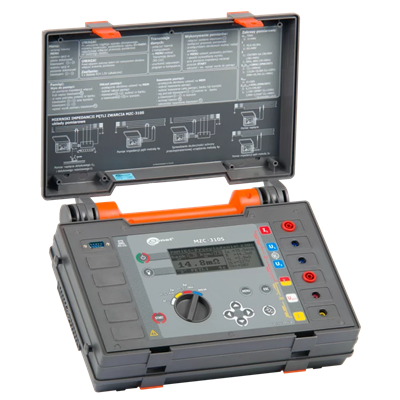

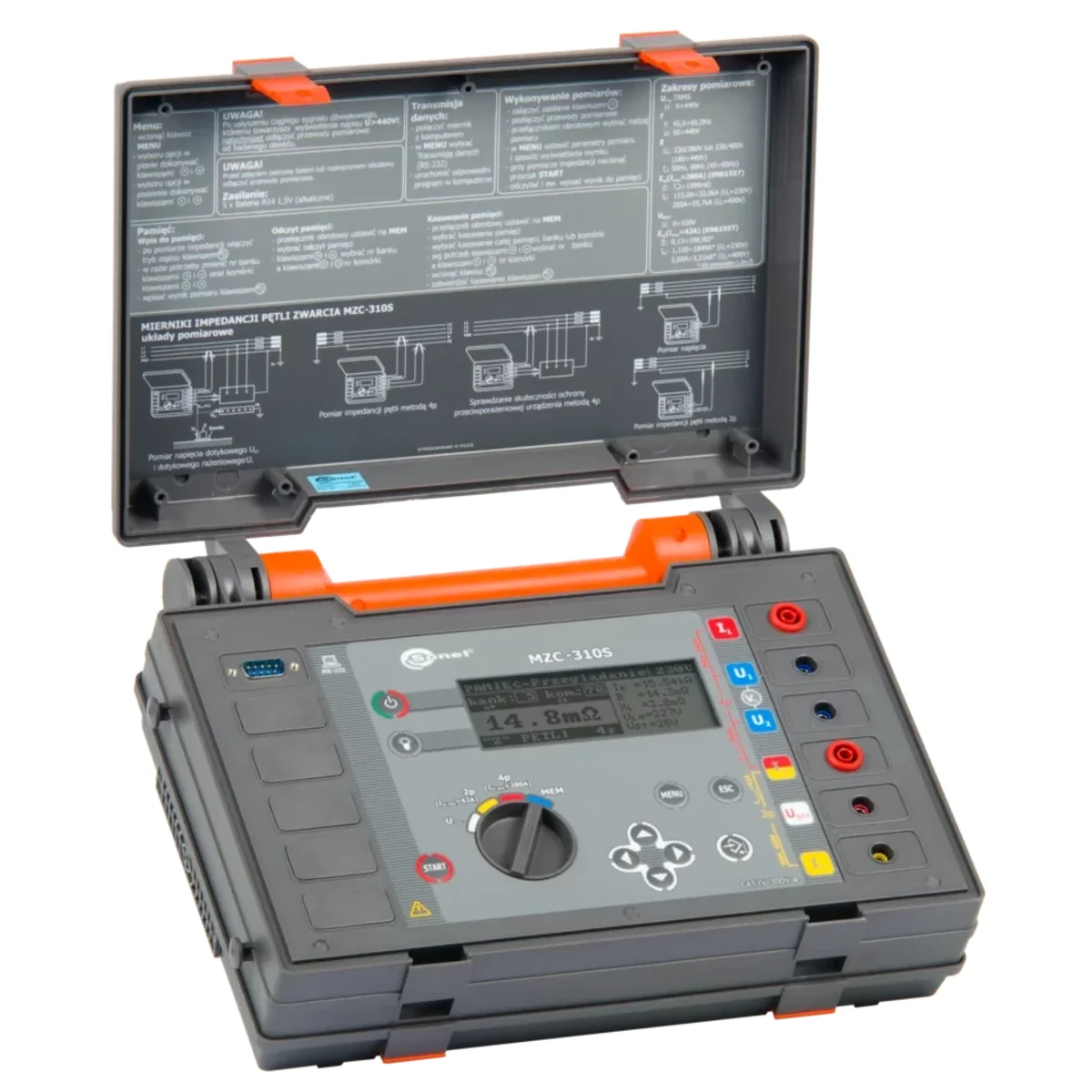

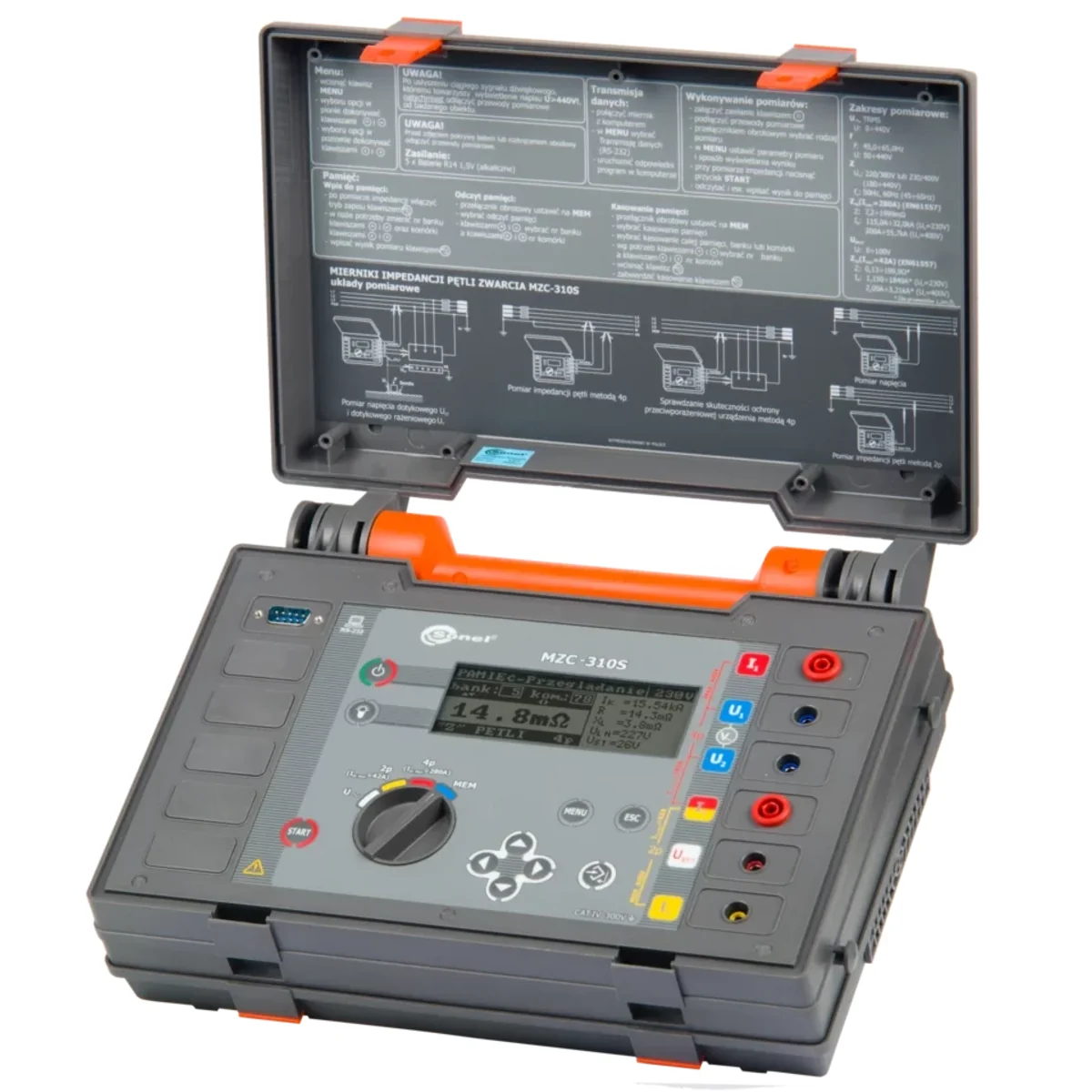

The Sonel MZC-310S meter is one of the most technically advanced short-circuit loop impedance measuring instruments available on the market.

With the use of the Sonel MZC-310S meter it is possible to test short circuit loop impedance in consumer networks as well as in distribution networks protected with high-current circuit breakers. At the same time as measuring the impedance, the shock and contact voltages can be measured. Where the condition for automatic power off cannot be satisfied, the facility may be authorised to operate on the basis of the voltage criterion.

The application of the four-wire method and the flow of the measuring current in the 150/280 A pulse determine the high precision of the performed test. This single device hides a multitude of measurement capabilities, making it appreciated by specialists in many fields. The meter complies with the requirements specified in the EN 61557 standard.

Capabilities

Measurement of very low short circuit loop impedances (with resolution 0,1 mΩ) with a current of 150 A at 230 V; maximum 280 A at 440 V.
Measurement with a current of 23 A at 230 V, maximum 42 A at 440 V with resolution 0,01 Ω.
Measurements in installations with rated voltages: 220/380 V and 230/400 V and frequencies 45…65 Hz.
Ability to perform measurements in short circuit system: phase-phase, phase-PE, phase-N.
Differentiation between the phase voltage and the inter-phase voltage while calculating the short circuit current.
Ability to change the length of test lead (measurement with 2p method).
4p (four-pole) method, test leads do not require calibration (measurement with current up to 280 A).
Measurement of resistance (R_S) and reactance (X_S) components.

Additional features

Touch voltage and touch shock voltage measurement with resistor 1 kΩ).
AC voltage measurement in range 0…440 V.
Frequency measurement 45.0...65.0 Hz.
Memory of 990 measurement results, ability to transfer the data to a PC via RS-232.
Power supply: rechargeable battery (5x LR14).

Reaching the areas unattainable to others

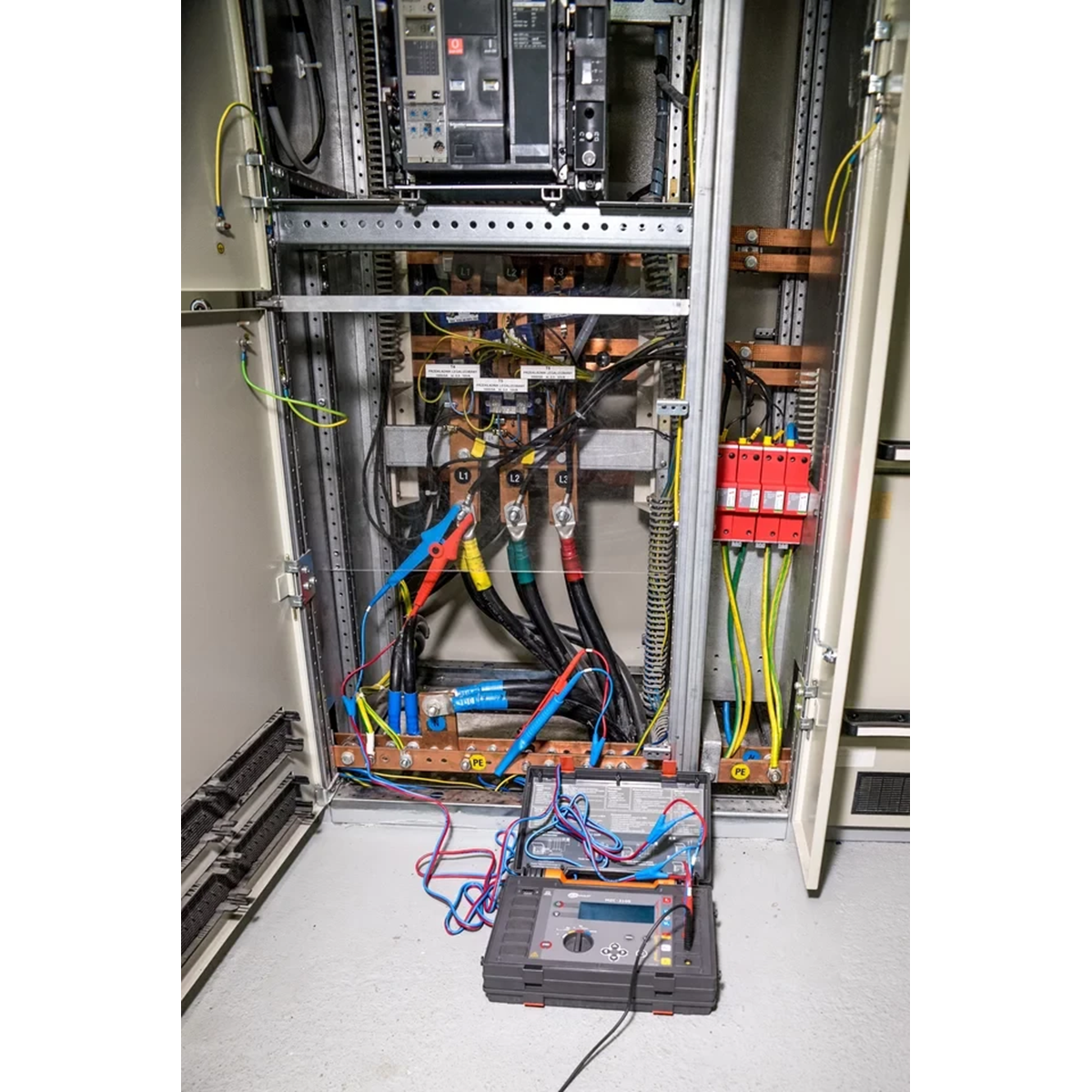

In direct vicinity of transformers or in transformer stations, where the circuits are equipped with a high current protection (fuse-links with the rating of several hundred amperes, motor circuit breakers), fault currents may reach several hundreds of kilo-amps. Measurement of fault loop impedance in such networks requires a high-current meter, which is capable of measuring ZS values at the level of single milliohms. Our patented technical solution, which uses components not available in the commercial offer (unique fault resistor), enables us to offer the meter with perfect performance in such demanding conditions.

Measurements without compromise

Commercially available fault loop impedance meters perform the measurements asymmetrically, i.e. using half-wave current. This solution introduces the transitional constant and DC constant, which does not always result in a linear behavior of the transformer during the tests. This in turn, affects the accuracy of the results. MZC-310S high-current fault loop impedance meter applies symmetrical current for measurements, which means that it uses the full wave - thanks to the advanced design of the measuring system and fault circuit.

Application

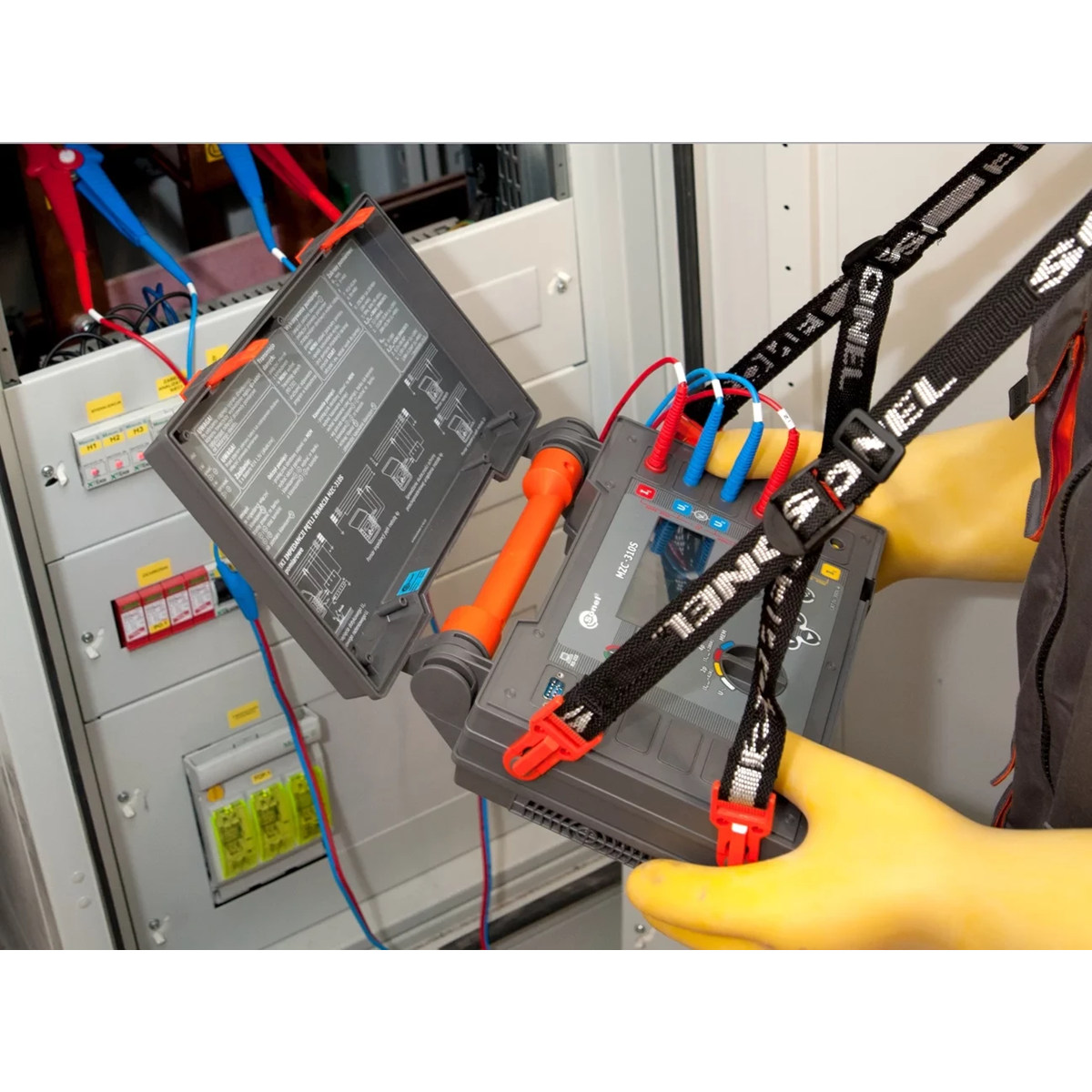

MZC-310S is used for measurements in low voltage systems (nominal voltage of 220/380 V or 230/400 V), where the prospective fault current may reach 55.7 kA (measured according to EN 61557). Low weight and high convenience of the device make it perfect for tests and measurements in large and complex manufacturing plants.
