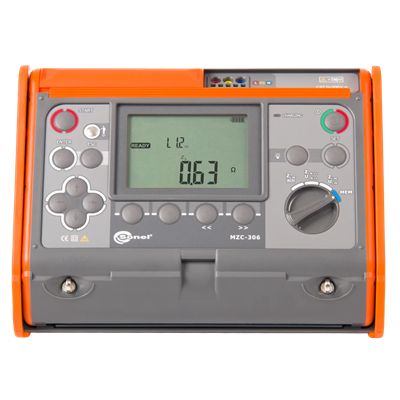

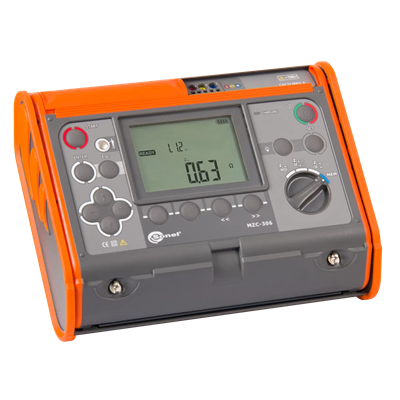

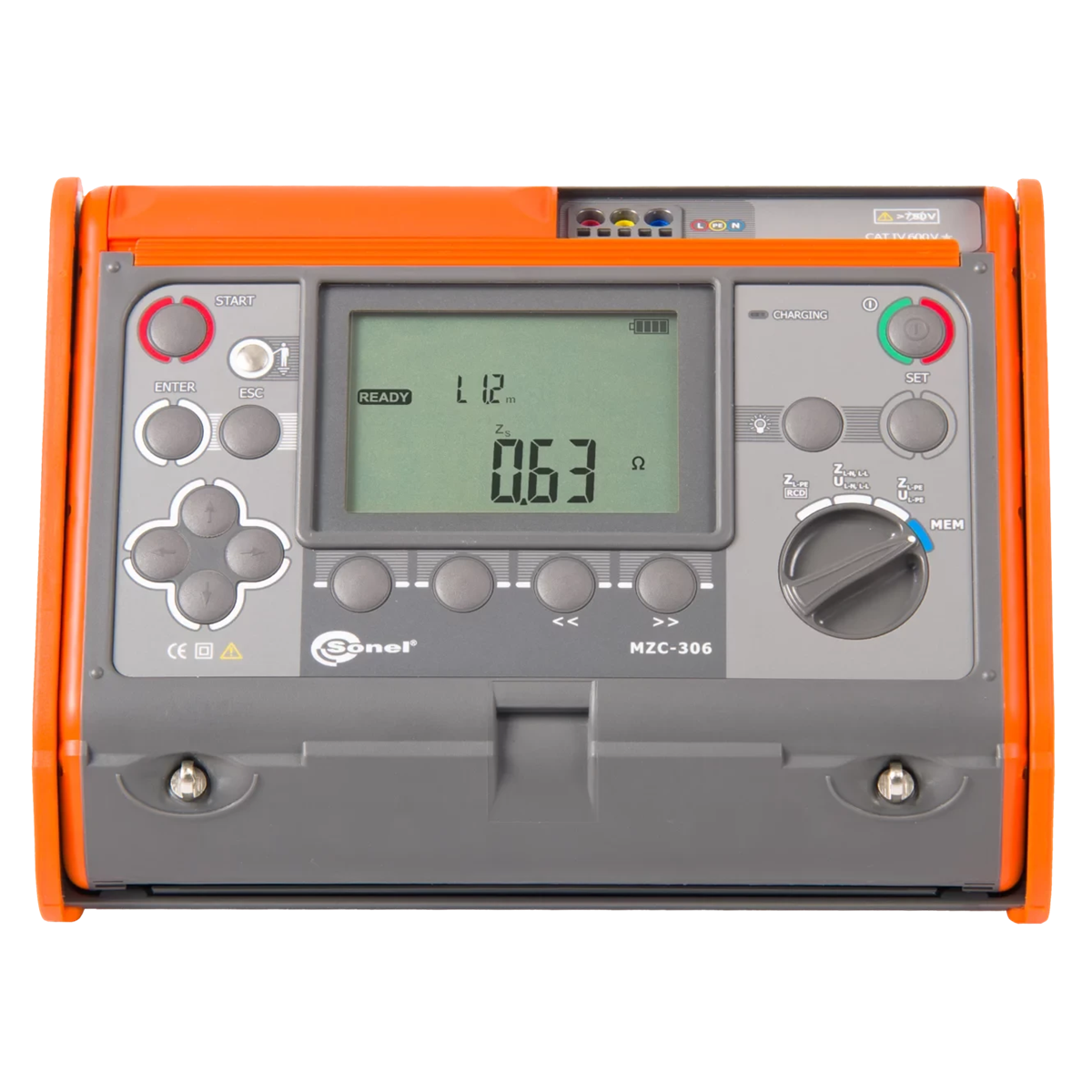

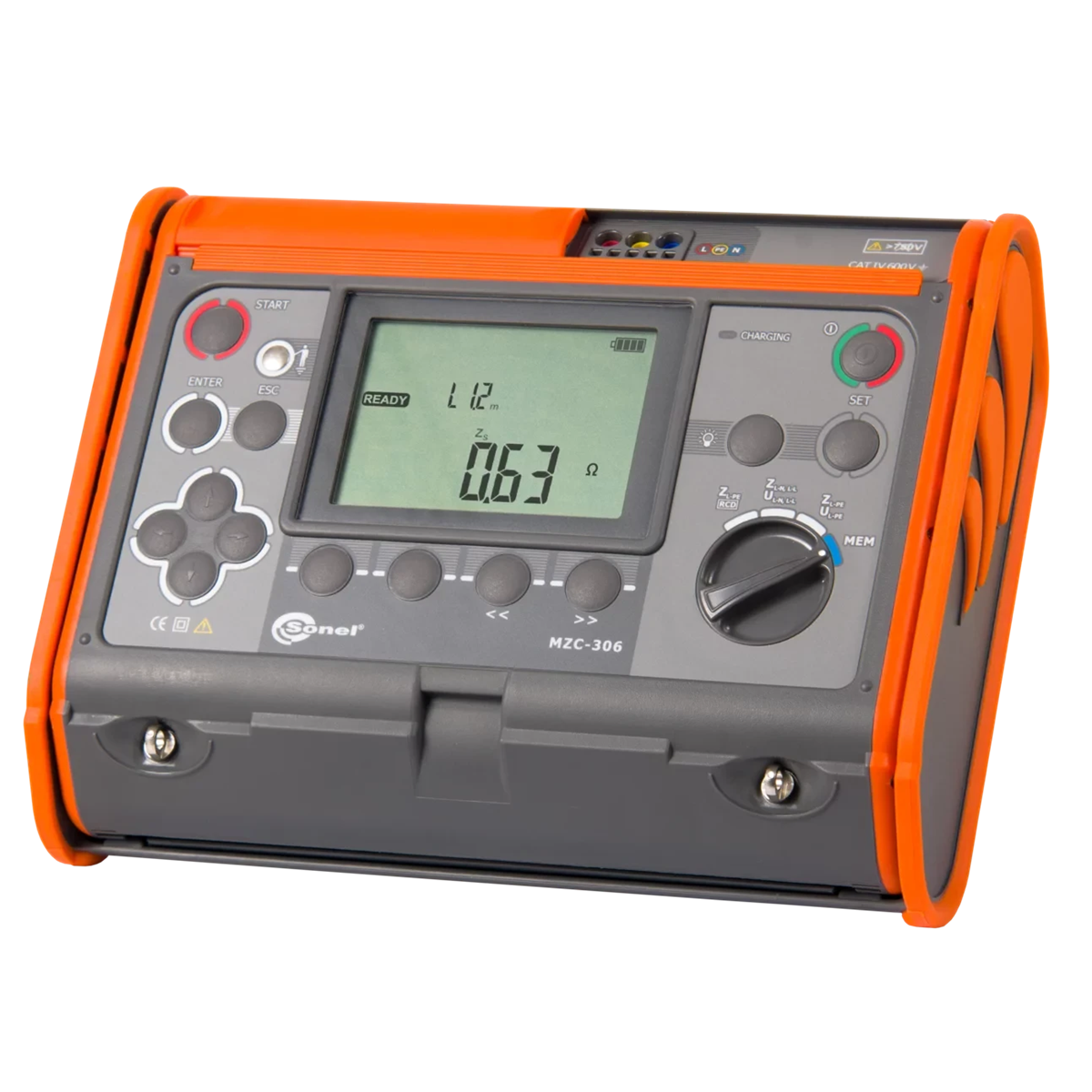

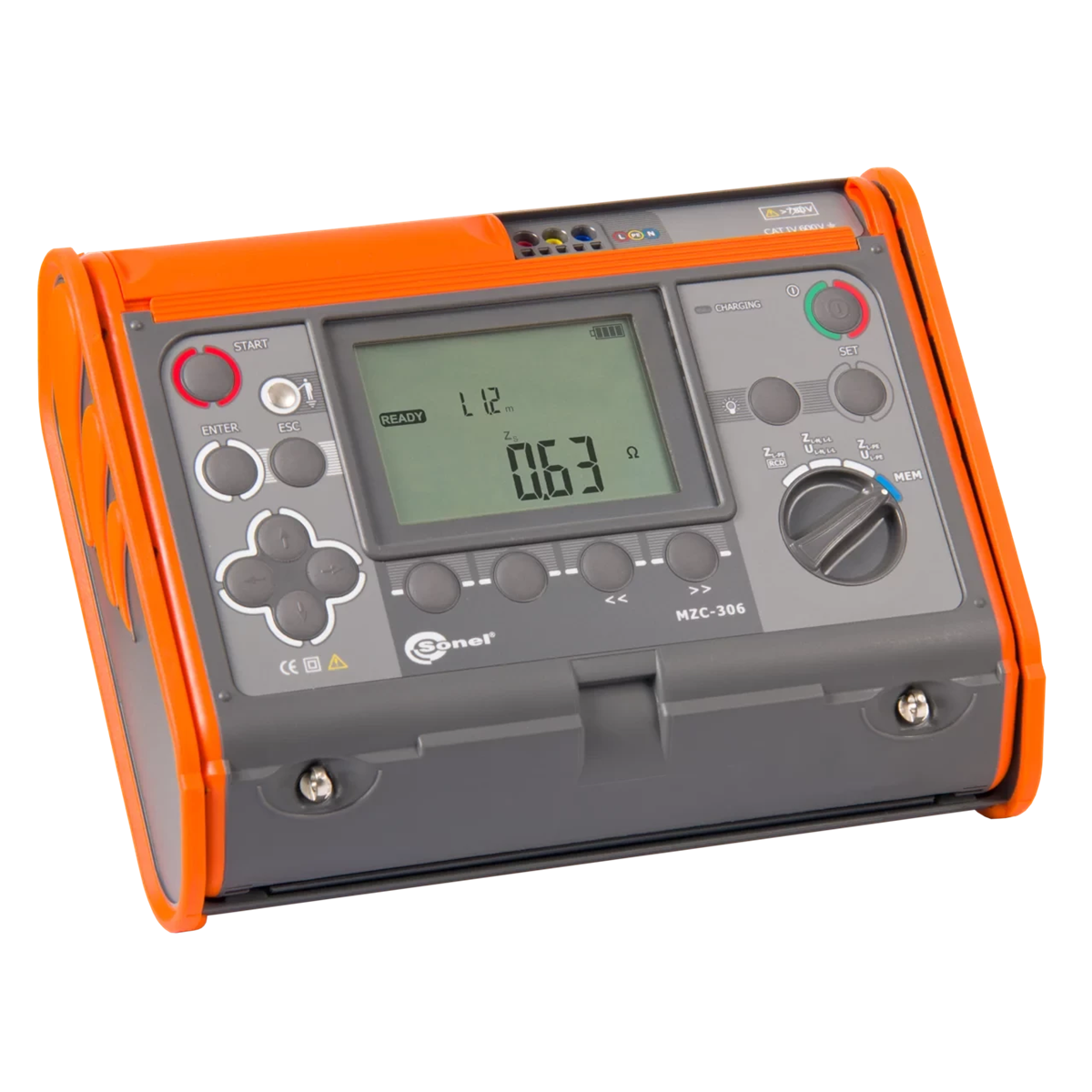

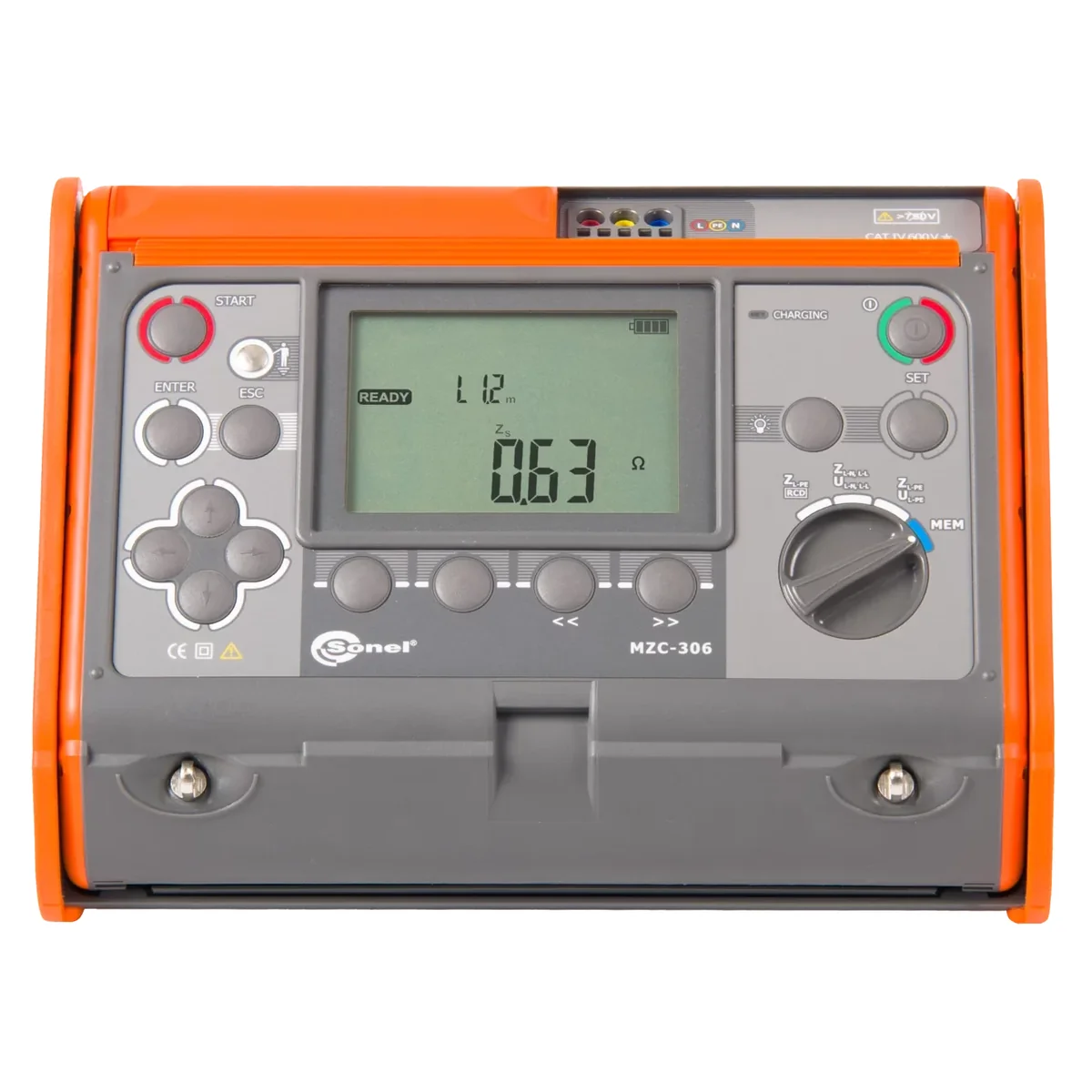

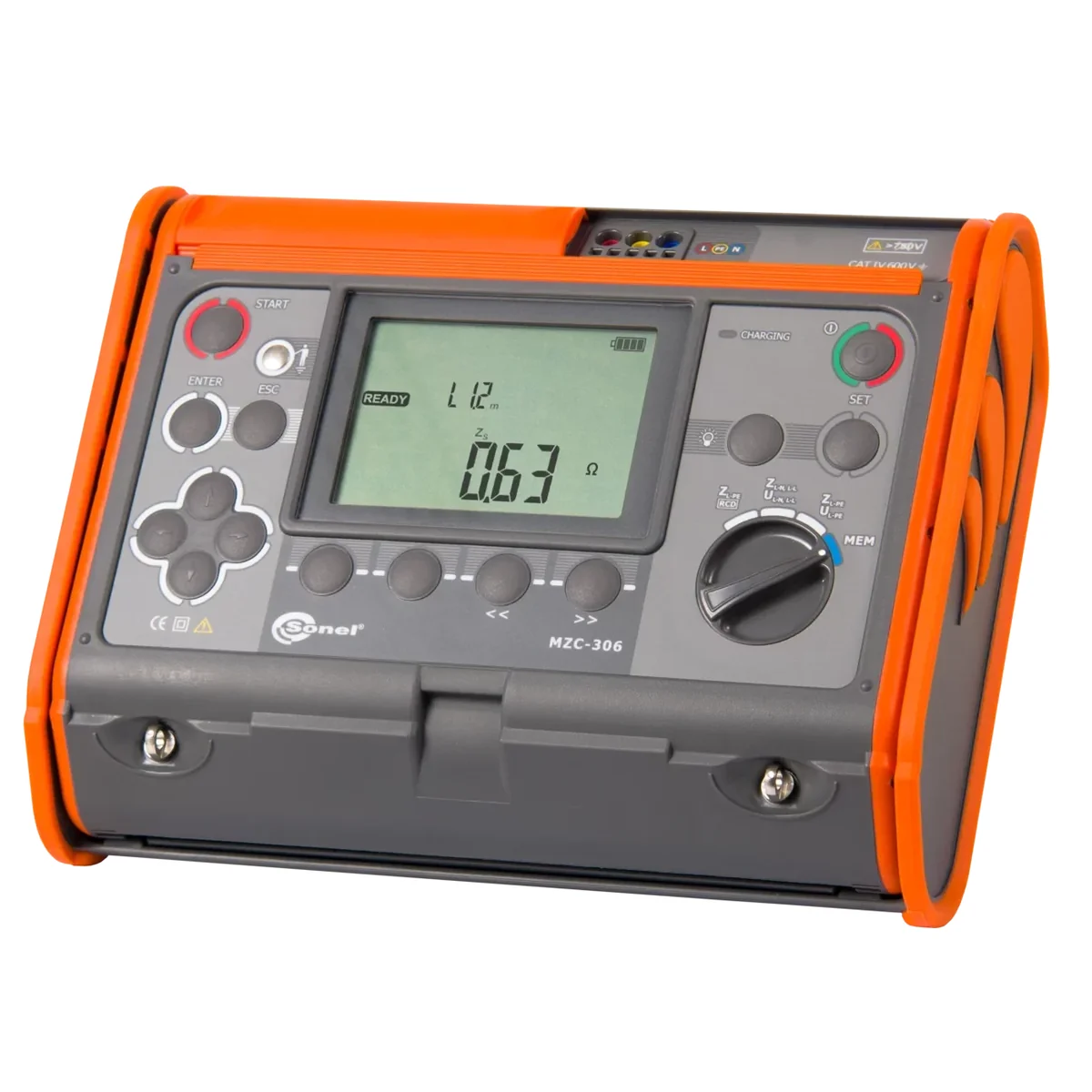

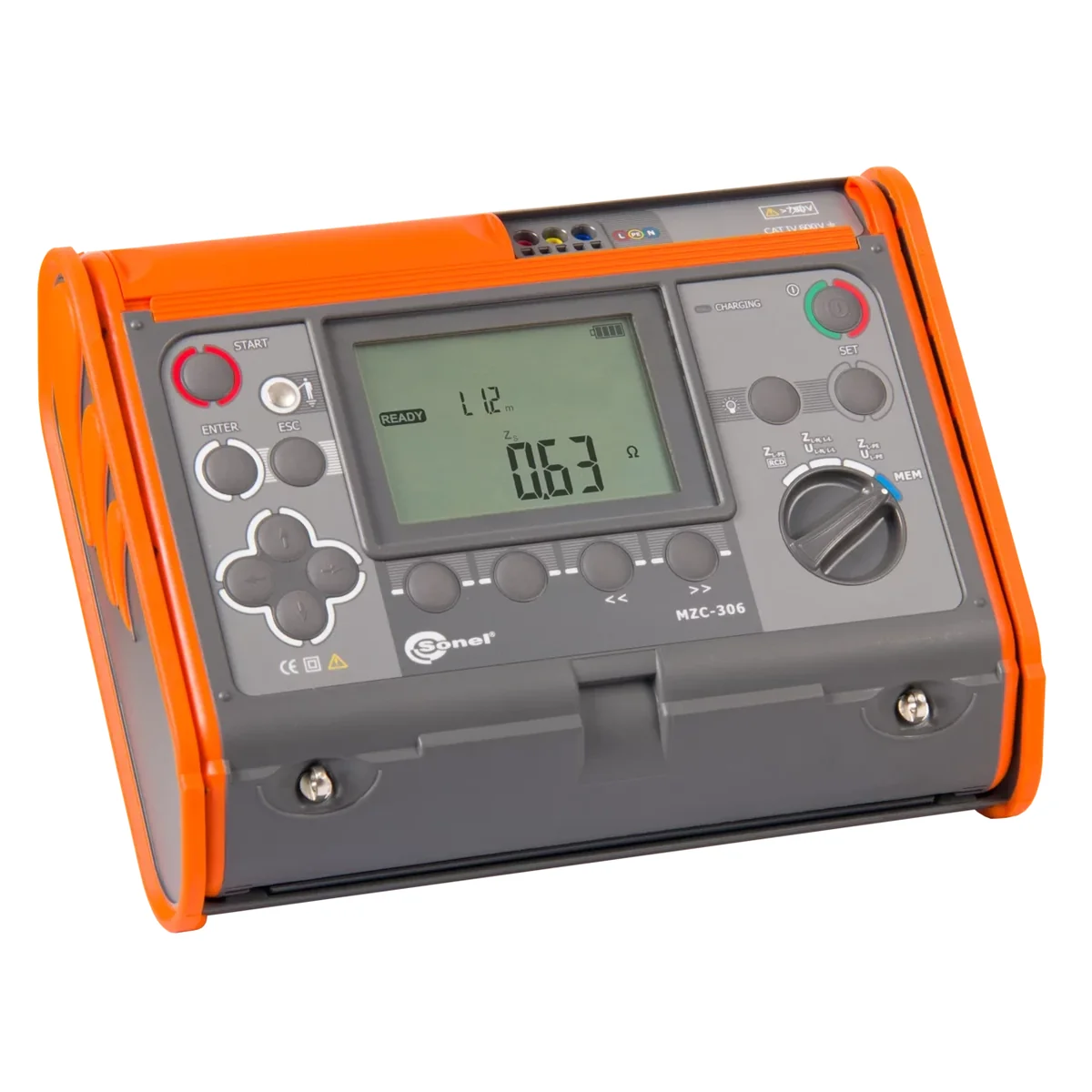

MZC-306 short-circuit loop impedance meter WMPLMZC306

local index:
NPP339SONE
Catalog No:
WMPLMZC306
EAN code:
5907624020580
Manufacturer: SONEL
Level of security: IP54
Weight [g]: 2000
Dimensions [mm]: 288x230x75
Price:
1491,31 €
gross / pcs.
(including VAT 23%)
745,66 € gross/kg.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Short-circuit loop impedance meter enabling measurements in networks with a very wide voltage range (100...750 V) - also enables measurements in 400/690 V industrial installations. Resolution of the measurement result is 0.01 Ω (also during measurements in networks protected with RCD switches).
The IP54 housing is resistant to mechanical damage, and the cover, which can be set in several possible positions, allows for convenient carrying and use of the device in various positions.

Electrical safety:< /p>

  • type of insulation: double, in accordance with PN-EN 61010 - 1
  • test leads: PN-EN 61010 - 2-031
  • measurement category: CAT IV 600 V (CAT III 1000 V)
  • housing protection rating: IP54

Other technical data:

  • meter power supply: accumulator or alkaline battery pack (4 x 1.5 V LR14)
  • capacity of accumulator or alkaline battery: min. 5000 measurements
  • built-in charger: yes,
  • auto-off function
  • communication port: USB
  • memory: 10 banks with 99 records each
  • display: backlit LED

Nominal operating conditions:

  • operating temperature: 0...+45° C
  • storage temperature: -20...60°C
  • humidity: 20 - 80%

Technical data

  • Level of security
    IP54
  • Dimensions [mm]
    288x230x75
  • Weight [g]
    2000
