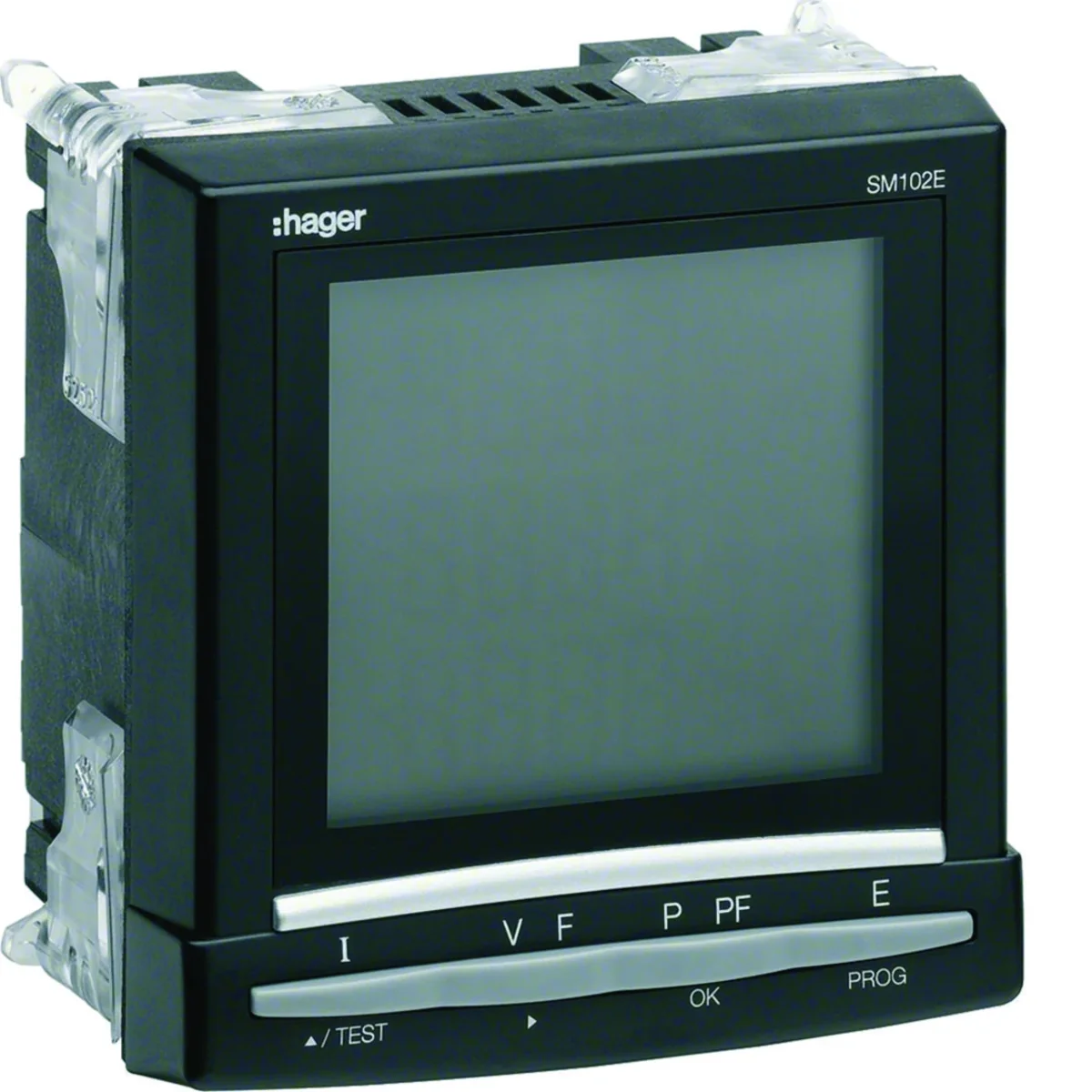

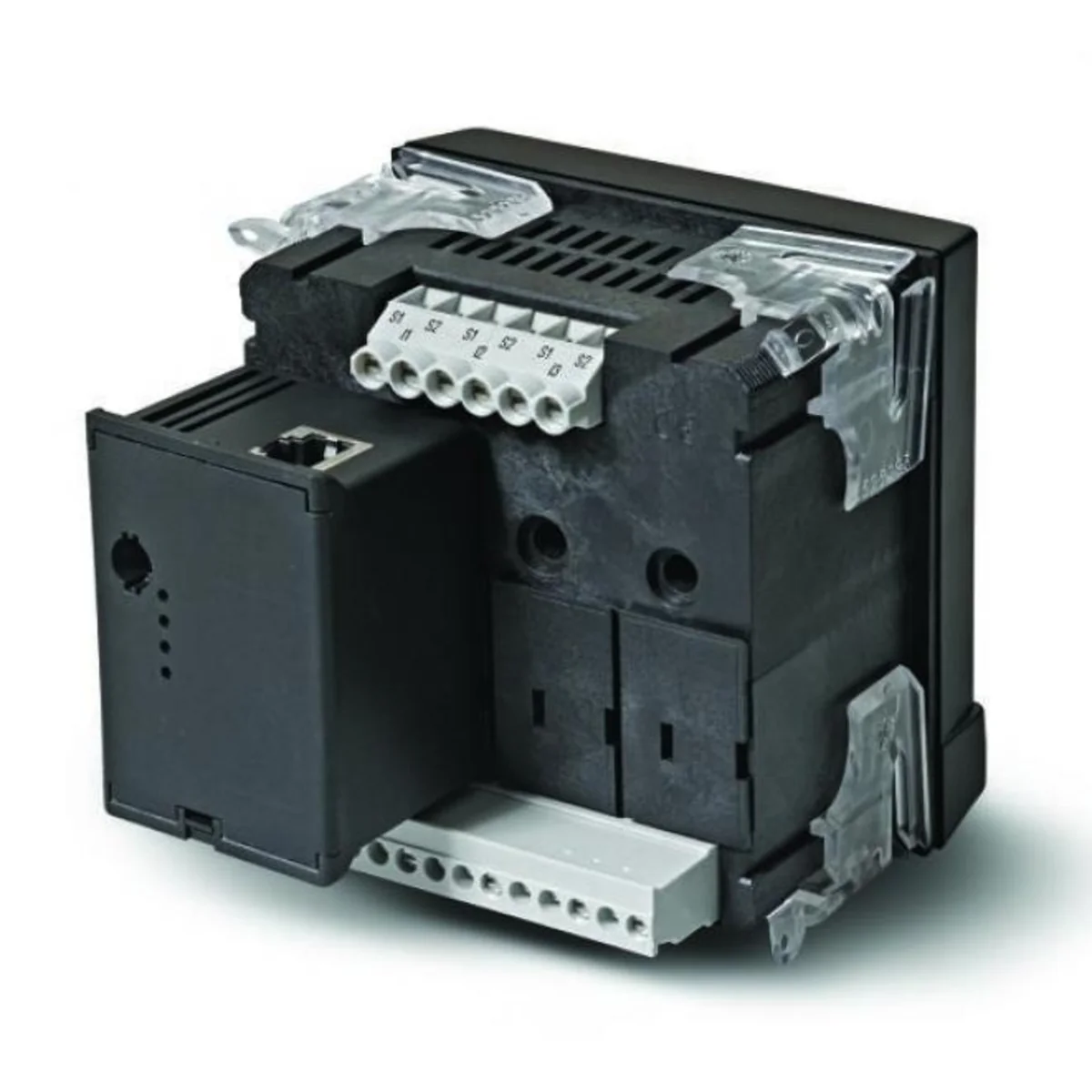

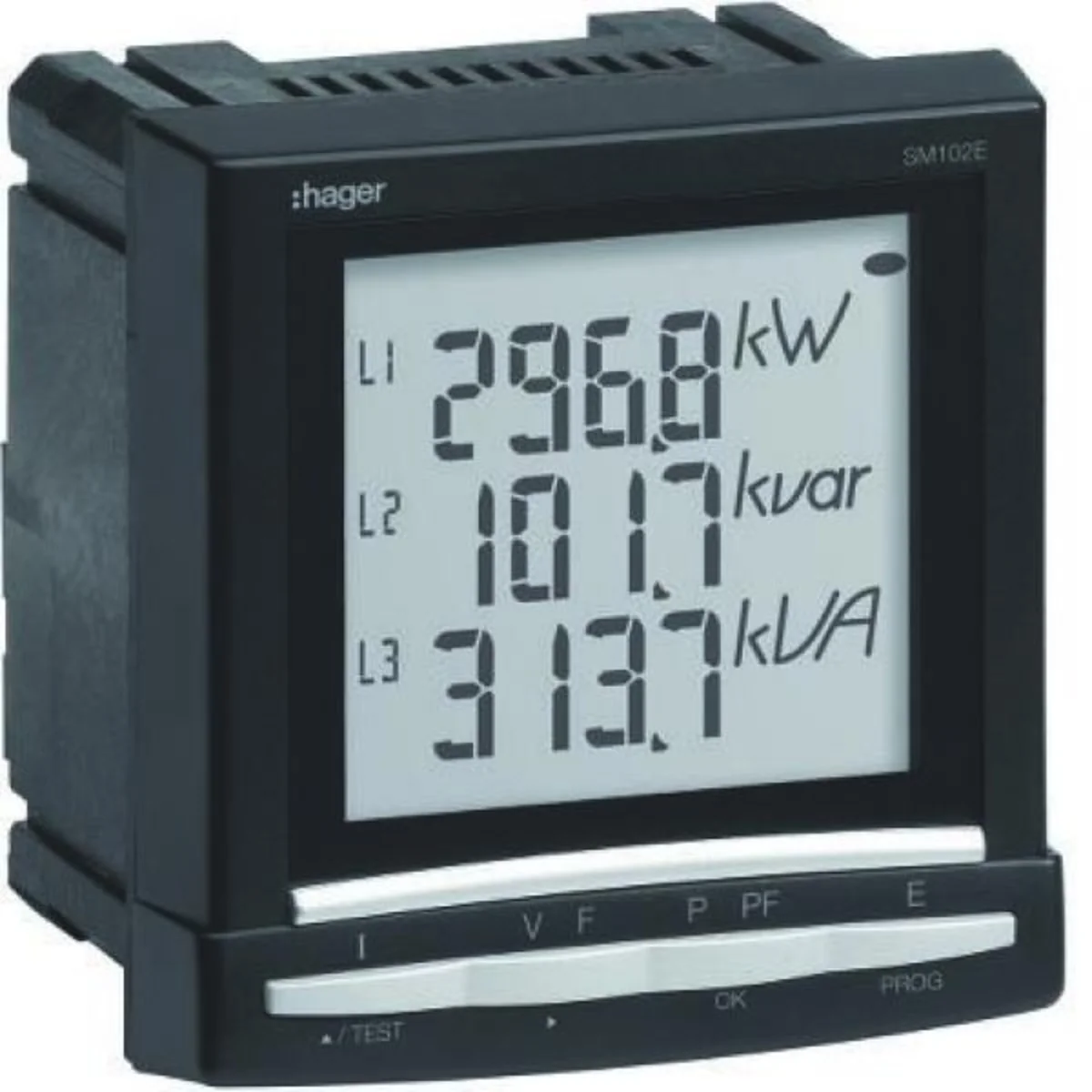

Multifunctional network parameter analyzer SM102E

local index:
NPM080HAGE
Catalog No:
SM102E
EAN code:
3250615639998
Manufacturer: HAGER
Depth [mm]: 60
Number of modules: 5
Input power [VA]: 10
Price:
418,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Multimeter
• True RMS (True RMS) – currents, phase-to-phase and phase-to-phase voltages, frequency, active, reactive and apparent power, power factor (with indication of its nature)
• Average and average peak currents: sum of phase and neutral currents, total active power input
• Power quality parameters - distortions caused by higher harmonics (THD content factor)
• Electricity and work time counters - energy: active and reactive (two-quadrant measurement) consumed

Technical data

  • Depth [mm]
    60
  • Input power [VA]
    10
  • Measuring device type
    Multimeter
  • Number of modules
    5
  • Number of modules
    5
  • Width [mm]
    96
  • Height [mm]
    96
  • PKWIU
    26.51.43.0

Other technical data

  • Ampere meter
    Yes
  • With rotational speed meter
    No
  • Pulse counter
    No
  • Effective power measurement device
    Yes
  • Blind power meter
    Yes
  • Frequency meter
    Yes
  • Voltmeter
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 120 pcs.
Weight (kg) 0,484 0,665 7,665 114,980
Width (m) 0,105 0,165 0,415 0,800
Length (m) 0,093 0,125 0,320 1,086
Depth (m) 0,095 0,240 0,610 1,200
