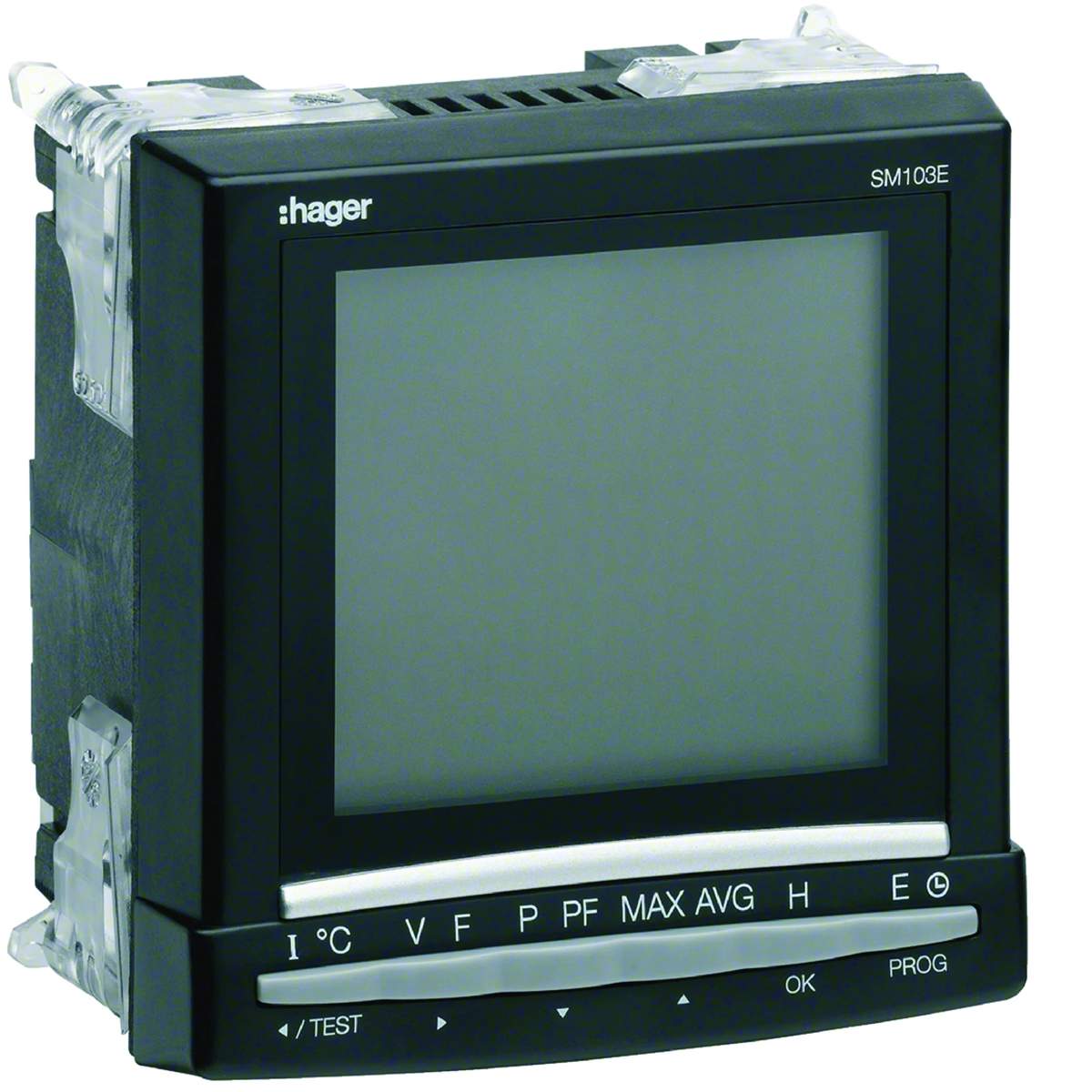

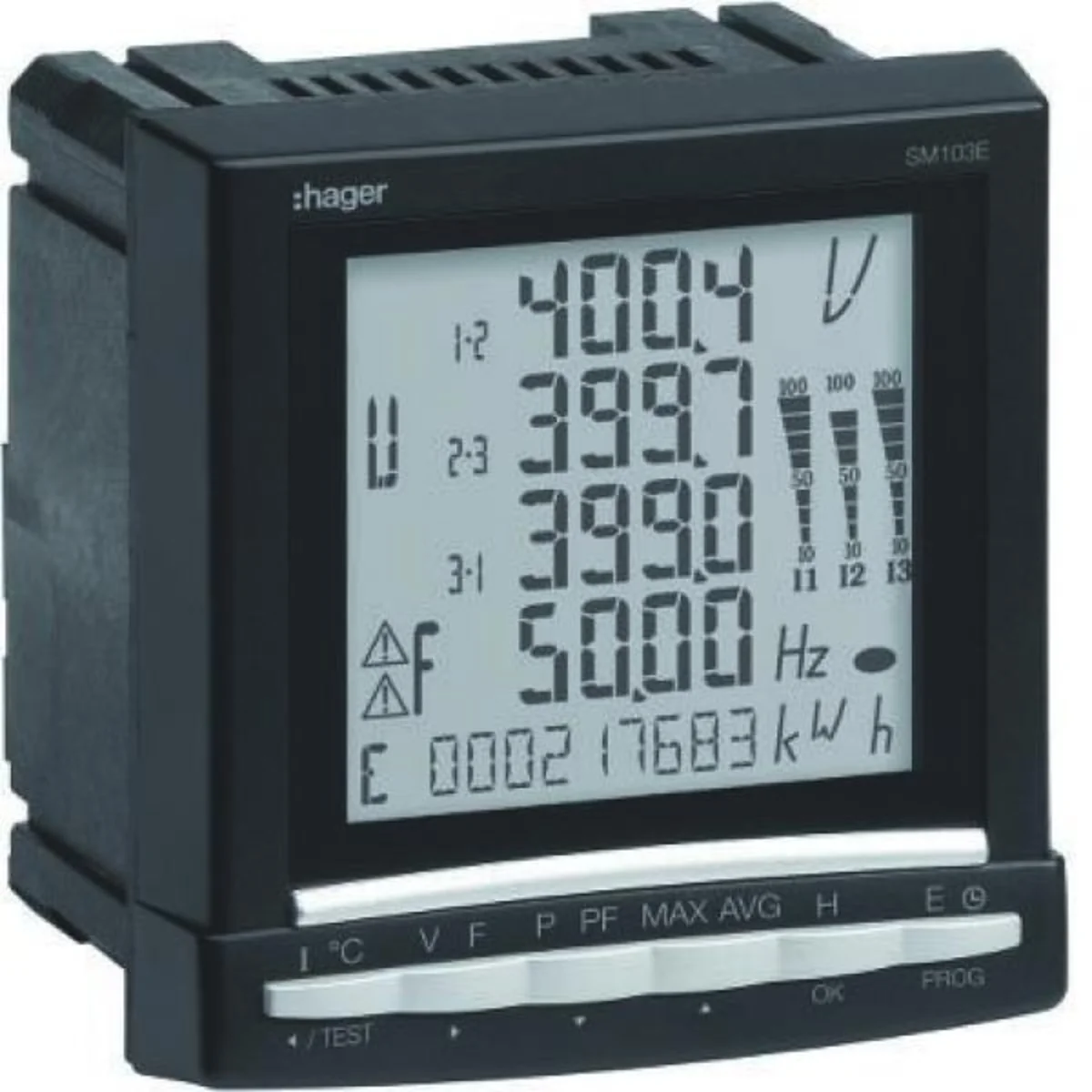

Multifunctional analyzer of Evolution network parameters SM103E

local index:
API006HAGE
Catalog No:
SM103E
EAN code:
3250615639981
Manufacturer: HAGER
Frequency [Hz]: 45-65
Depth [mm]: 60
Number of modules: 5
Price:
688,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Parameter analyzeróin the network
• True RMS (True RMS) – currents, phase-to-phase and phase-to-phase voltages, frequency, total and phase powers: active, reactive and apparent – imported and exported, power factors (with an indication of their nature)
• Average and average peak values - currents: sum of phase and neutral currents, total powers: active, reactive and apparent– downloaded and returned
• Power quality parameters - distortions caused by higher harmonics THD up to the 51st harmonic
• Electricity and time counters - energy: active, reactive and apparent (four-quadrant measurement) imported and exported, time counter (hours)

Technical data

  • Frequency [Hz]
    45-65
  • Number of modules
    5
  • power loss [W]
    10
  • Measuring device type
    Multimeter
  • Operating voltage range [V]
    50-700
  • PKWIU
    26.51.43.0
  • Depth [mm]
    60
  • Rated current [A]
    5
  • Width [mm]
    96
  • Height [mm]
    96
  • Number of modules
    5

Other technical data

  • Ampere meter
    Yes
  • With rotational speed meter
    No
  • Pulse counter
    No
  • Effective power measurement device
    Yes
  • Blind power meter
    Yes
  • Frequency meter
    Yes
  • Voltmeter
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 120 pcs.
Weight (kg) 0,756 0,775 8,825 128,900
Width (m) 0,096 0,165 0,425 0,800
Length (m) 0,096 0,125 0,315 1,050
Depth (m) 0,080 0,240 0,595 1,200
