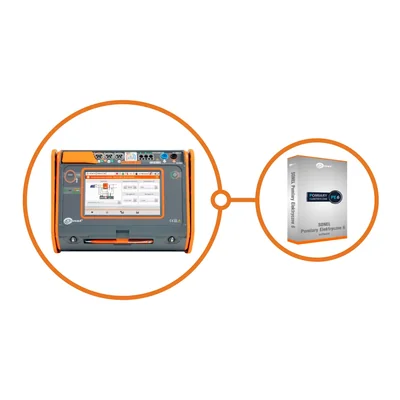

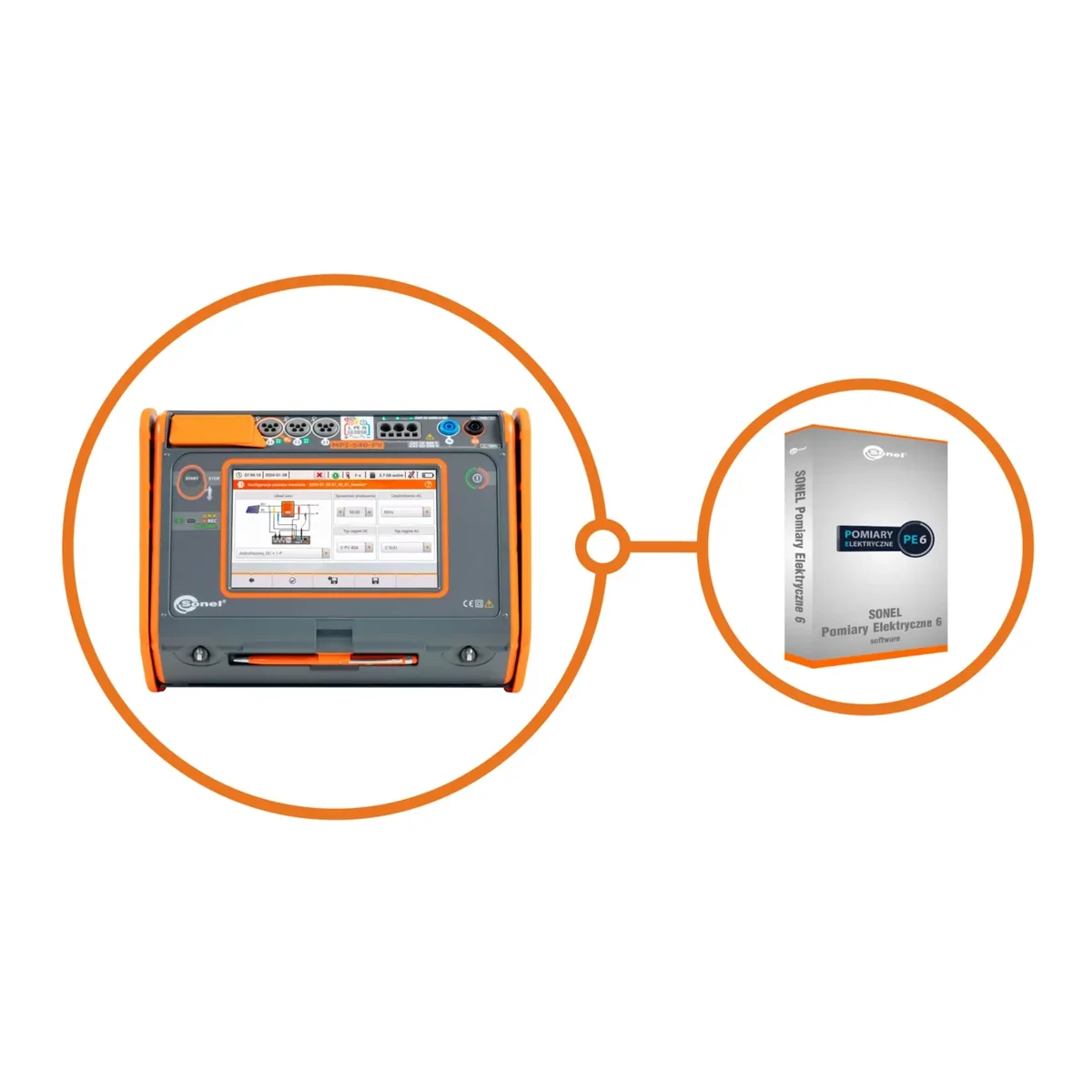

MPI-540-PV multifunctional meter + PE6 license WMPLMPI540PVPROSPE6ZP222

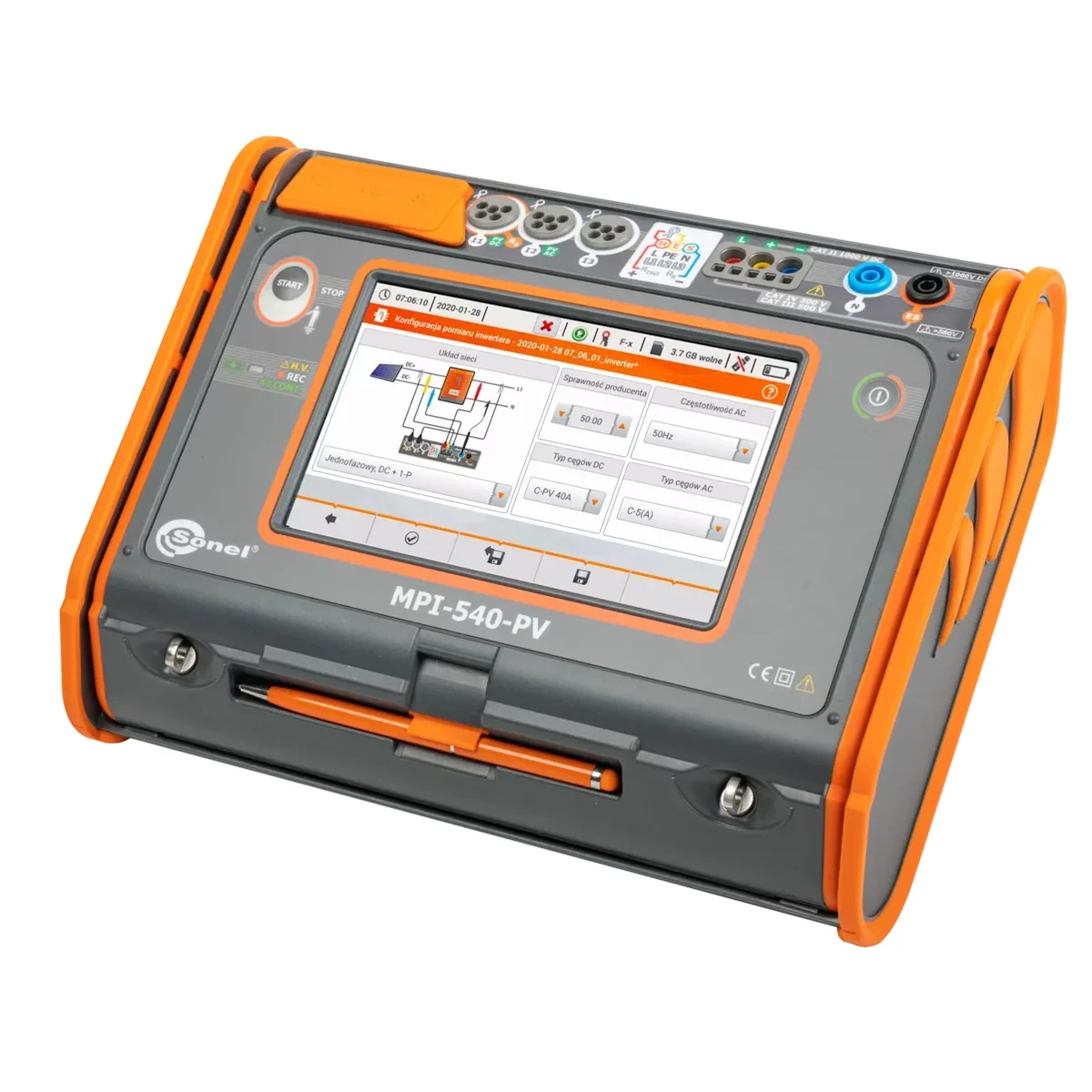

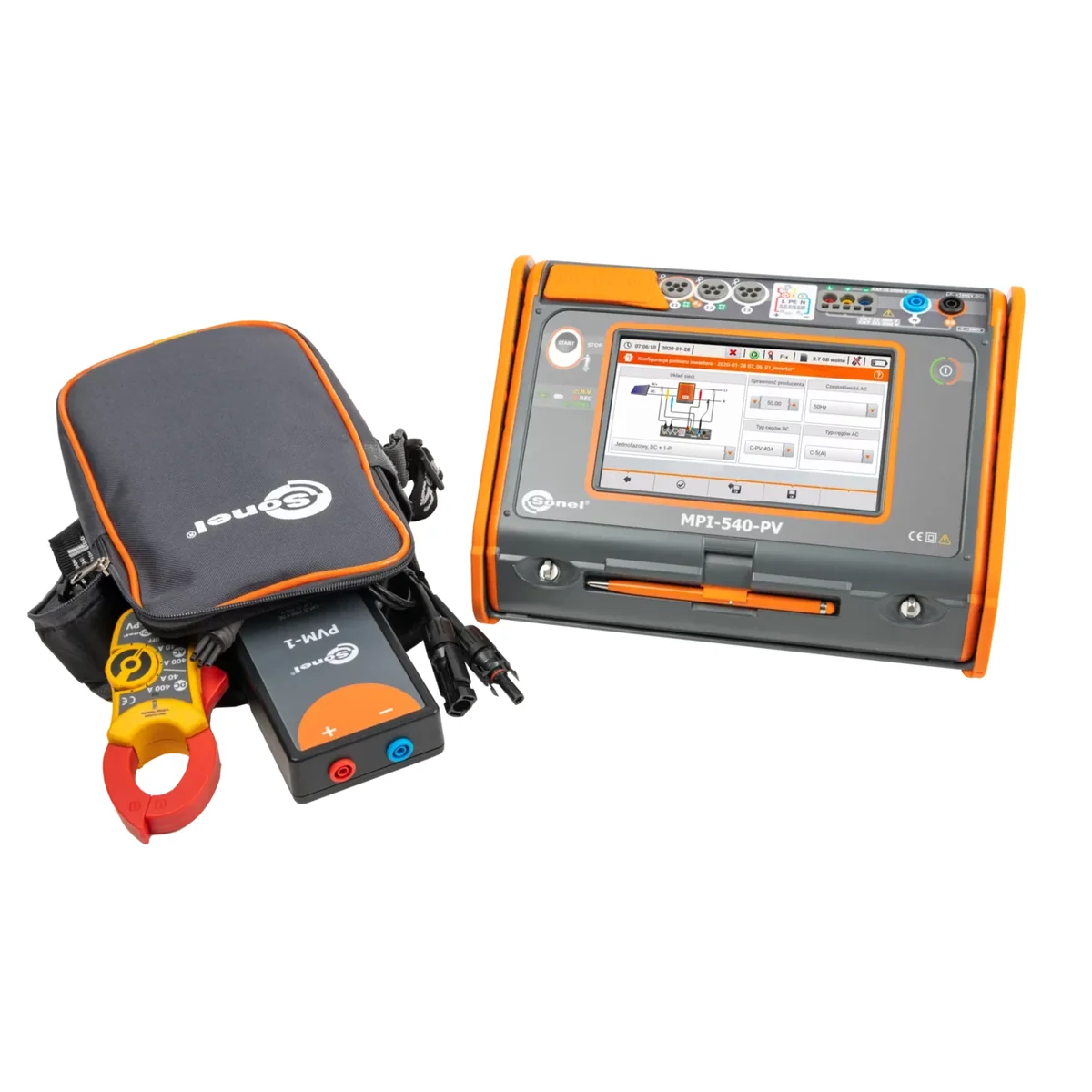

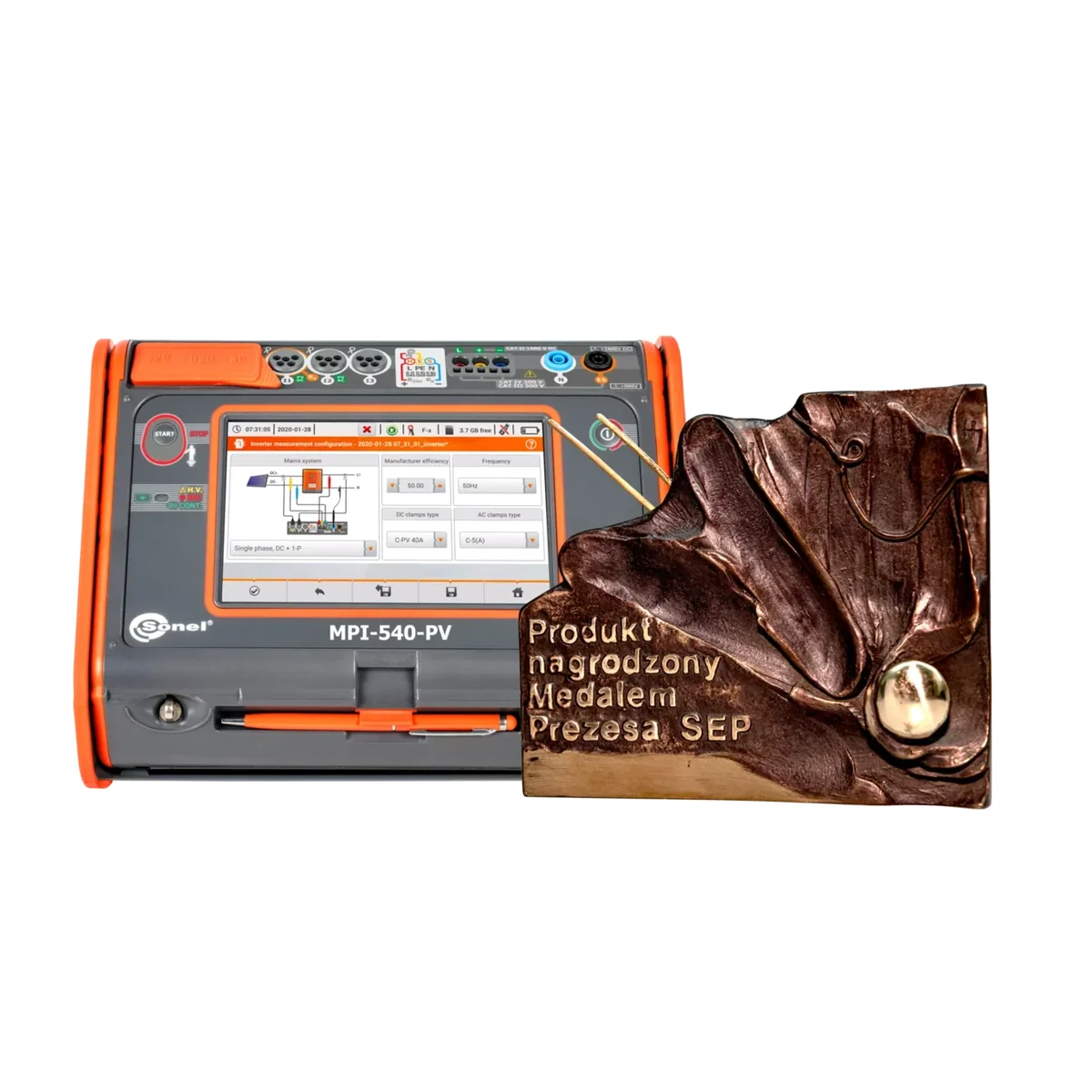

Multifunctional meter of electrical installation parameters Sonel MPI-540-PV WMPLMPI540PV

This is an advanced tool created especially for measuring parameters of photovoltaic installations. With the help of one device, it is possible to perform a whole range of tests on the DC and AC side in accordance with the guidelines of the PN-EN 62446 standard. In addition, Sonel MPI-540-PV is also used to carry out all measurements used to determine the safety of households and industrial electrical installations. The presented meter is a device with advanced capabilities, dedicated to specialists operating in the installation and electrical industries.

During the measurement of the parameters of the photovoltaic installation, the meter automatically converts the parameters to the STC reference conditions (Standard Test Conditions). Measurements of voltages, currents and power on the AC and DC side of the inverter will verify its efficiency. After transferring the data stored in the meter's memory to the Sonel PE6 program, it is possible to generate a test report on the parameters of photovoltaic installations.

With a view to automation of measurements, the Sonel MPI-540-PV meter has been additionally enhanced with the function of testing RCDs in Auto mode. The device also has measurement sequences pre-programmed by the manufacturer (so-called self-tests), which can be extended with your own sequences if necessary. The capabilities and functionality of the meter will be additionally increased by a properly selected additional accessory, e.g. in the form of an AutoISO-1000C adapter, which enables automatic measurements of the insulation resistance of 3-, 4-, and 5-core wires.< /p>

Much more than a multimeter

• The largest touch panel on the market (7”) – outstanding ergonomics and ease of use
• Removable microSD card – easy storage expansion
• Li-Ion battery – longer operation of the meter
• MPI-540-PV: measurements of photovoltaic installations in accordance with the PN-EN 62446 standard
• MPI-540-PV: installation test report after transferring the data to the Sonel Electrical Measurements
• Three-phase recorder of power network parameters – advanced power quality diagnostics
• Readout of current network parameters– immediate assessment of the tested device
• Parameters measured in class S of the PN-EN 61000-4-30 standard – high measurement accuracy
• Energy loss calculator – quick diagnosis of potential savings
• Measurement of all parameters of electric shock protection – one device instead of several
• Fast loop measurement with RCD without tripping (up to a few seconds) – save time
• Self-tests – the ability to perform automatic measurementsóin a sequence – simplification of measurements
• Fast track from measurements to report – time saving

Features

The meter is above average in terms of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy.

• The MPI-540-PV device can be used to measure photovoltaic installations in accordance with the PN- EN 62446:
  • continuity of protective connections,
  • resistance to earth,
  • insulation resistance on the DC side,
  • open circuit voltage UOC,
  • ISC short-circuit current,
  • work currents and powers on the DC and AC sides,
  • inverter efficiency.
• The MPI-540-PV device can record 50/60Hz power quality parameters in class S of the EN 61000-4-30 standard:
  • voltages L1, L2, L3 &ndash ; average values up to 500 V,
  • currents L1, L2, L3 – average values, current measurement in the range up to 3 kA (depending on the current clamps used),
  • frequency in the range of 40 Hz – 70 Hz,
  • active power (P), reactive power (Q), apparent power (S),
  • power factor (PF), cosφ,
  • harmonics (up to the 40th in voltage and current),
  • the harmonic distortion factor THD for current and voltage.
• Instrument  MPI-540-PV it is possible to perform all acceptance measurements of electrical installations in accordance with applicable regulations:
  • short-circuit loop impedance (also in circuits with RCDs),
  • RCD parameters,
  • insulation resistance,
  • earth resistance (4 measurement methods + ground resistivity measurement),
  • continuity of protective and equipotential bonding connections,
  • illuminance,
  • phase sequence test,
  • motor rotation direction test.
< /ul>

Inspection of installation safety

With the device, you can control home and industrial electrical installations in terms of safety. Measurements can be easily automated by:

• testing RCDs in Auto mode,
• self-tests – i.e. freely configurable measurement sequences,
• use of the AutoISO-1000C adapter to test the insulation resistance of 3-, 4- and 5-core cables.

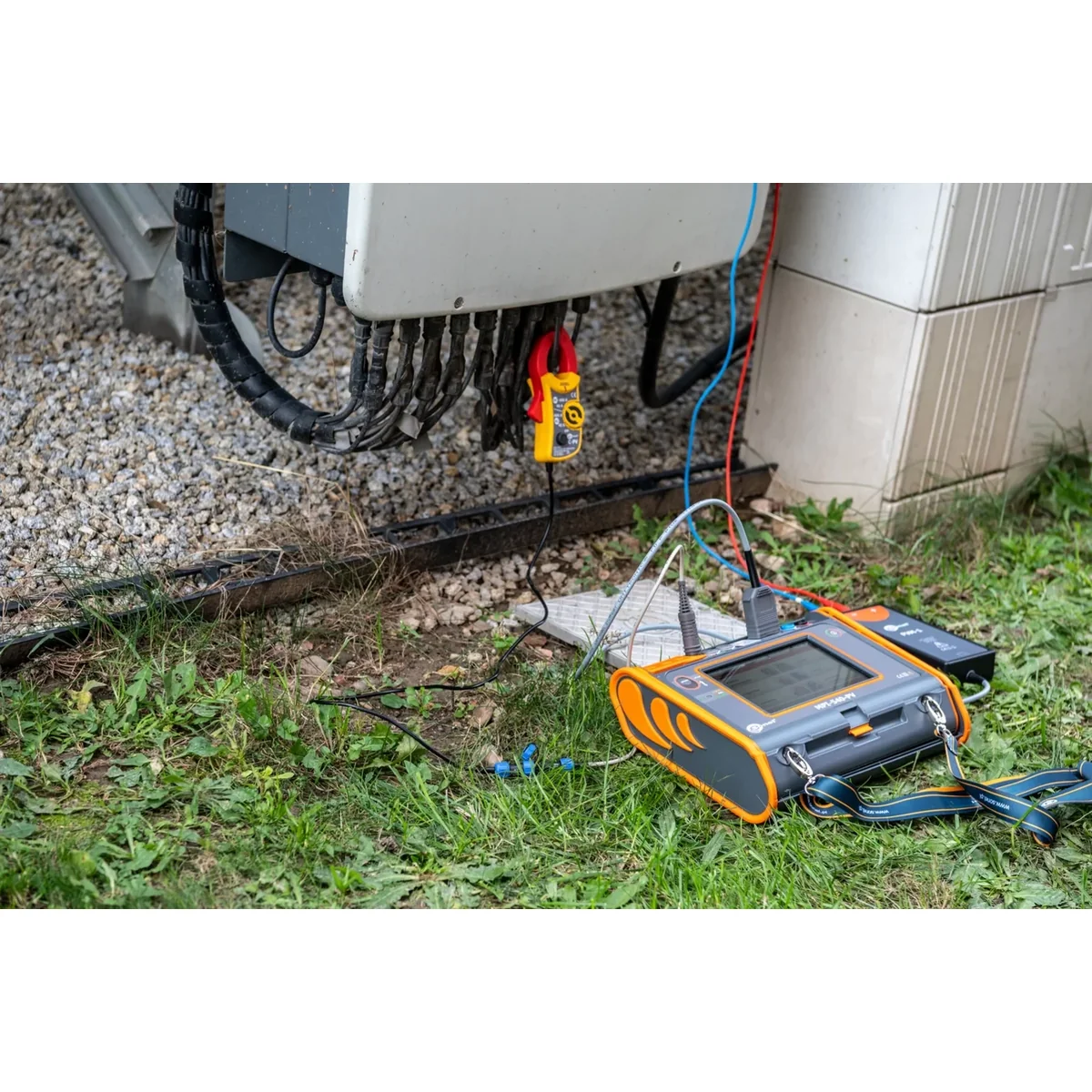

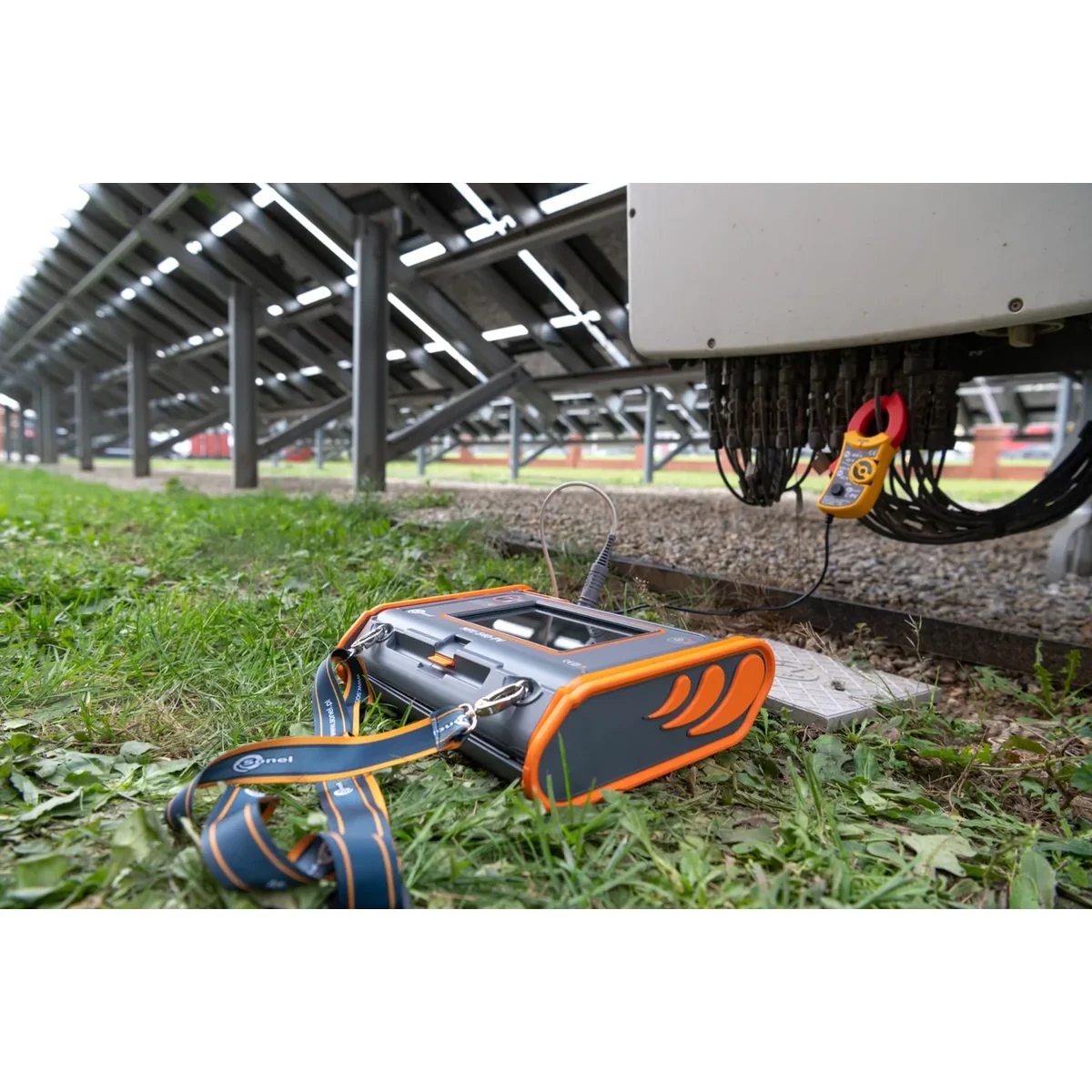

Photovoltaics under supervision

MPI-540-PV is an extremely versatile meter, designed in particular for testing photovoltaic installations. We will use the device to perform a set of tests on the DC and AC side – in accordance with the guidelines of the PN-EN 62446 standard. By measuring the parameters related to the photovoltaic installation, the device will automatically convert them to the STC (Standard Test Conditions) reference conditions. Measurements of voltages, currents and power on the AC and DC side of the inverter will verify its efficiency. Saving the results in the meter's memory will make it possible to prepare a report on the tests carried out in the Sonel Electrical Measurements program.

Comprehensive analysis of network parameters

< p>The built-in three-phase recorder allows you to observe the current state of the network and record its parameters, such as voltage, current, power, harmonics, THD. The meter allows you to read selected quantities and display their graphical presentation on the screen in real time. Parameters are measured independently from the recording saved on the memory card. The device can present:
• graphs of voltage and current waveforms (oscilloscope),
• graphs of voltage and current in time,
• phasor diagram,< /li>
• measurements of many parameters in tabular form,
• chart of current and voltage harmonics.

Easy to read

The device is equipped with a color, touch LCD screen with a diagonal of 7” and resolution of 800x480 pixels. This guarantees ease of use and easy reading of parameters and time courses. A large screen means more information is available when using the meter. The interface is readable in all conditions – also thanks to the appropriate size of the displayed symbols. The attached stylus allows you to work also with dielectric gloves.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this, you can easily and quickly check how to connect a given system depending on the type of measurement.

Increased resistance to environmental conditions

The meter  ;MPI-540-PVwill cope well in harsh environmental conditions. Protection against dust and water penetration is ensured by a unique housing with an IP51 tightness level. It is resistant to mechanical damage, and the special design allows you to easily protect the touch display by sliding the meter cover. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in various positions.

Communication and software

< p>The advantage of the device is the multitude of communication interfaces and cooperation with external software. Through the USB port, removable SD memory card or via wireless communication (Bluetooth*, Wi-Fi) you can transfer the measurement data to a computer. In order to generate a test report in the field of electric shock protection, the Sonel Electrical Measurements program should be used. Sonel Reader saves the downloaded resources to the simplest formats and prints them out. The specialist Sonel Analysis program is used to read and analyze data from the recorder.

Specification – electrical installation parameters

< td>Measuring RCD trip current IA measuring current 0.2 IΔn…2.0 IΔn < td>  < td>  < td>0.12 Ω…400 Ω to IEC 61557-4 < /tr>

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
Short-circuit loop ZL-PE, ZL-N, ZL-L	0.13 Ω…1999.9 Ω to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	±(5% m.v. + 30 digits)
ZL-PE fault loop in RCD mode	from 0.50 Ω…1999 Ω to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits )
Measurements of RCD Parameters
RCD tripping test and tripping time measurement tA measuring current 0.5 IΔn, 1 IΔ n, 2 IΔn, 5 IΔn
RCD of general type and short delay	0 ms…300 ms	0 ms…300 ms	1 ms	from ±(2% m.v. + 2 digits)
RCD selective	0 ms…500 ms< /td>	0 ms…500 ms	1 ms	from ±(2% m.v. + 2 digits)
		< /td>
for sinusoidal residual current (AC type)	3.3 mA…1000 mA	3.3 mA…1000 mA	from 0.1 mA	±5% IΔn
for 1-way and 1-way differential current with 6 mA DC bias (type A)	3.5 mA…700 mA	3.5 mA…700 mA	from 0.1 mA	±10% IΔn
for DC residual current (type B)	2.0mA…1000mA	2.0mA…1000mA	from 0.1mA	±10 % IΔn
Ground Resistance
3- and 4-wire method	from 0.50 Ω…1 .99 kΩ to IEC 61557-5	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.m. + 3 digits)
3-wire method + clamp	0.00 Ω…1.99 kΩ	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.v. + 4 digits)
2-clamp method	0.00 Ω…99.9kΩ	0.00 Ω…99.9kΩ	from 0.01 Ω	from ±(10% m.v. + 4 digits)
Soil resistivity	0.0 Ω m…99.9 kΩm	0.0 Ωm…99.9 kΩm	from 0.1 Ωm	Dependent on measurement accuracy RE
Insulation resistance
Measuring voltage 50 V	50 k …250 MΩ to IEC 61557-2	0 kΩ…250 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
Measuring voltage 100 V	100 kΩ…500 MΩ to IEC 61557-2	0 kΩ…500 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
250 V measuring voltage	250 kΩ…999 MΩ to IEC 61557-2	0 kΩ…999 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
500 V test voltage	500 kΩ…2.00 GΩ to IEC 61557-2	0 kΩ…2.00 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits )
Measuring voltage 1000 V	1000 kΩ…4.99 GΩ to IEC 61557-2	0 kΩ…9.99 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits )
Resistance of protective and equalizing conductors
Continuity measurement of protective and equipotential bonding with ±200 mA	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Low current resistance measurement	0.0 Ω…1999 Ω	0.0 Ω&hellip ;1999 Ω	from 0.1 Ω	±(3% m.v. + 3 digits)
Illuminance
Lux measurement (lx)	0 lx…399.9 klx	0 lx…399.9 klx	from 0.001 lx	from ±(2% m.v. + 5 digits)
Fc measurement	0 fc…39 .99 kfc	0 fc…39.99 kfc	from 0.001 fc	from ±(2% m.v. + 5 digits)
Phase Sequence Indication	Assisting, Inverse, UL-L Voltage: 95V…500V (45Hz…65Hz)

"w.m" - measured value

Specification – 3-phase recorder

The device is designed to work in networks:

• with a rated frequency of 50/60 Hz
• with a rated voltage : 64/110 V, 110/190 V, 115/200 V, 127/220V, 220/380V, 230/400 V, 240/415 V, 254/440V, 290/500V
• DC

Systems of supported networks:

• single-phase
• two-phase with common N
• three-phase star with and without N conductor
• three-phase delta
< td>0.01% Unom < td>depending on the clamps*

Parameter	Measuring range	Maximum resolution	Accuracy< /th>
Alternating voltage (TRMS)	0.0…500V	±0.5% Unom
AC TRMS	0.01% Inom	±2% m.v. if w.m. ≥ 10% Inom, ±2% Inom  if w.m. < 10% Inom (error does not include clamp error)
Frequency	40.00…70.00 Hz< /td>	0.01 Hz	±0.05 Hz
Active, reactive, apparent and distortion power	depending on configuration (transformers, clamps)	4 significant digits	depending on configuration (transformers, clamps)
Active, reactive and apparent energy	secondo la configurazione (sensori, pinze)	4 significant figures	like power error
cosφ and power factor (PF)	0.00…1.00	0.01	±0.03
Harmonics
Voltage	same as True RMS AC	same as True RMS AC	±5 % m.v. if w.m. ≥ 3% Unom, ±0.15% Unom if w.m. < 3% Unom
Current	same as True RMS AC	same as True RMS AC	±5% m.v. if w.m. ≥ 10% Unom, ±0.5% Unom if w.m. < 10% Unom
THD
Voltage	0.0…100.0% (rms)	0.1%	±5%
Current	0.0…100.0% (rms)	0.1 %	±5%
Asymmetry factor	0.0…10, 0%	0.1%	±0.15% (absolute error)

< li>F-1A, F-2A, F-3A clamp: 0…3000 A AC (10 000 Ap-p)
• C-4A clamp: 0…1000 A AC (3600 Ap-p)
• C-5A clamp: 0…1000 A AC/DC (3600 Ap-p)
• C-6A clamp: 0..10 A AC (36 Ap-p)
• C-7A clamp: 0…100 A AC (360 Ap-p)



Alternating current measurement ( True RMS) using clamps

	C-4A	C-5A	C-6A	C-7A	F-1A	F-2A	F-3A
Rated current	1000A AC	1000A AC 1400A DC	10A AC	100A AC	3000A AC	3000A AC	3000A AC
Frequency	30Hz…10 kHz	DC…5 kHz	40 Hz…10 kHz	40 Hz…1 kHz	40 Hz…10 kHz	40Hz…10kHz	40Hz…10kHz
Max. diameter of the measured cable	52 mm	39 mm	20 mm	24 mm	380 mm	250 mm	140 mm
Minimum basic accuracy	≤0.5%	≤1.5%	≤1%	0.5%	1 %	1%	1%
Battery powered	-	√	-	-	-	-	-< /td>
Cable length	2.2m	2.2m	2.2m	3m	2.5m	2.5m	2.5m
Measurement Category	IV 300V	IV 300V	IV 300V	III 300V	IV 600V	IV 600V	IV 600V
Enclosure rating	IP40	IP40	IP40	IP40	IP67	IP67	IP67

Specification – parameters of photovoltaic installations

< td>ISC Short Circuit Current

Measurement functions	Display range	Resolution	Accuracy
UOC Open Circuit Voltage	0 .0 Ω…1000V	OD 0.1V	from ±(3% m.v. + 2 digits)
0.00 Ω…20.00A	0.1A	± (3% m.v. + 0.10 A)



Program for creating protocols from the safety tests of installations Sonel PE6 WAPROSONPE6



The latest version of the popular program for creating protocols from electrical measurements. PE6 simplifies the documentation process. It minimizes its time. It automates. All thanks to numerous built-in mechanisms, tools and functions.

Program features:

• compliance of the printed protocol with the new PN-HD 60364-6 standards: 2016-07, PN-HD 60364-4-41:2017-09
• tree structure of the document,
• extensive databases of security and measurement points,
• automatic calculation of required values,
• automatic evaluation of measured results,
• schedule of measurements,
• inserting photos and drawings to protocols,< /li>
• printing of measurement controls and descriptive labels of tables,
• calculation of performed measurements,
• printing of invoices,
• automatic completion of protocols with a series

The program supports the creation of documentation after tests in the field of comprehensive control of measurement points and:

• the effectiveness of automatic shutdown (TN-S, TN-C, TN-C-S, TT, IT),
• parameter of RCDs,
• circuit insulation condition (TN-S, TN-C, TN-C-S, TT, IT),
• the condition of insulation of electric cables,
• the condition of the lightning protection system and earthing,
• the continuity of wires,
• insulation resistance of closed and open motors,
• resistance of contactors,
• resistance of circuit breakers,
• transformer devices.

Hardware requirements:

• Operating system: Windows 10
• Minimum resolution: 1024x768
• Recommended resolution: 1920x1080
