MPI-540 multifunctional meter + PE6 license WMPLMPI540PROSPE6ZP222

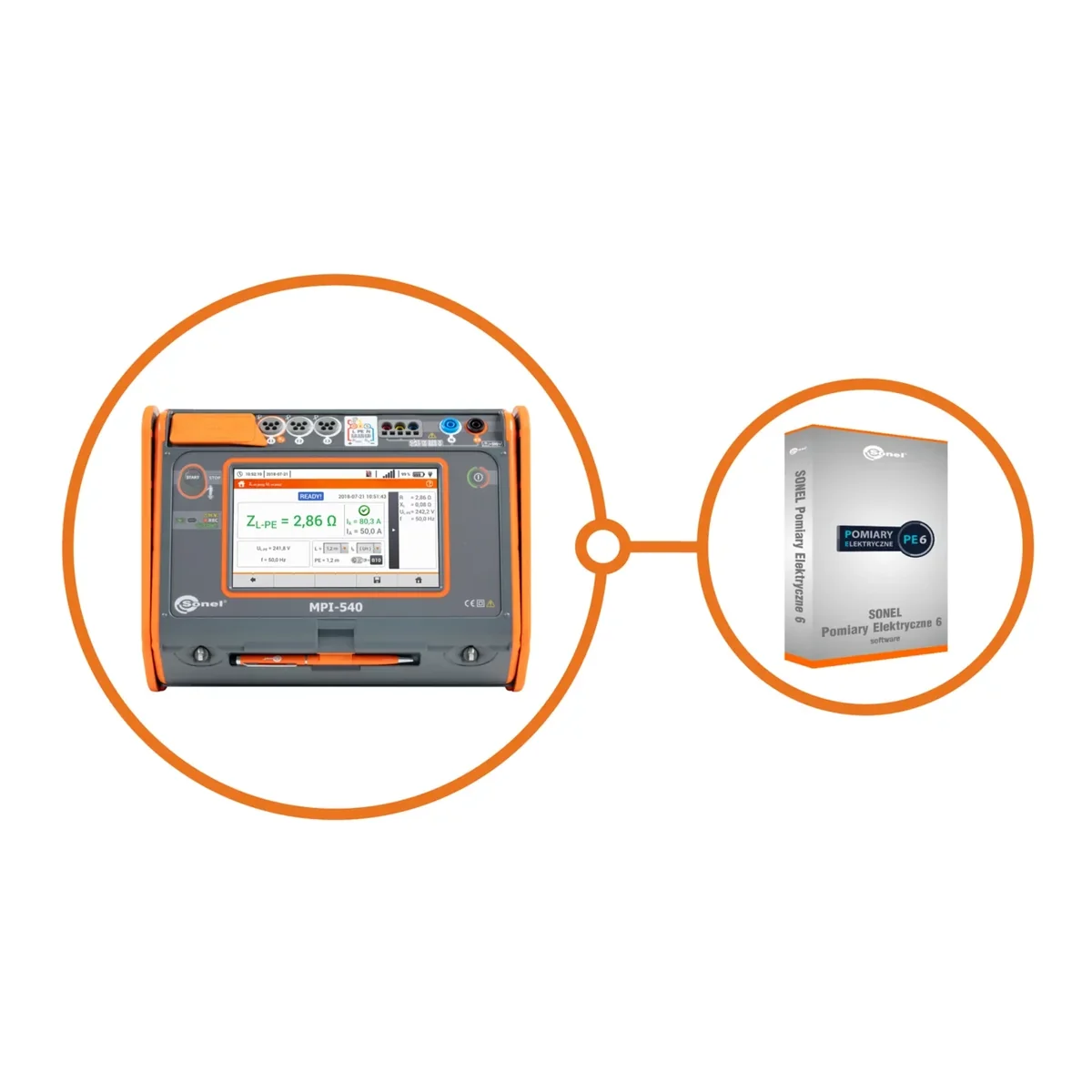

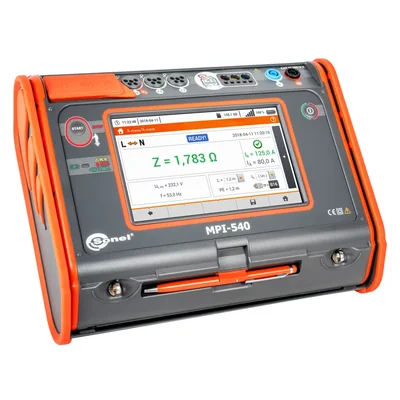

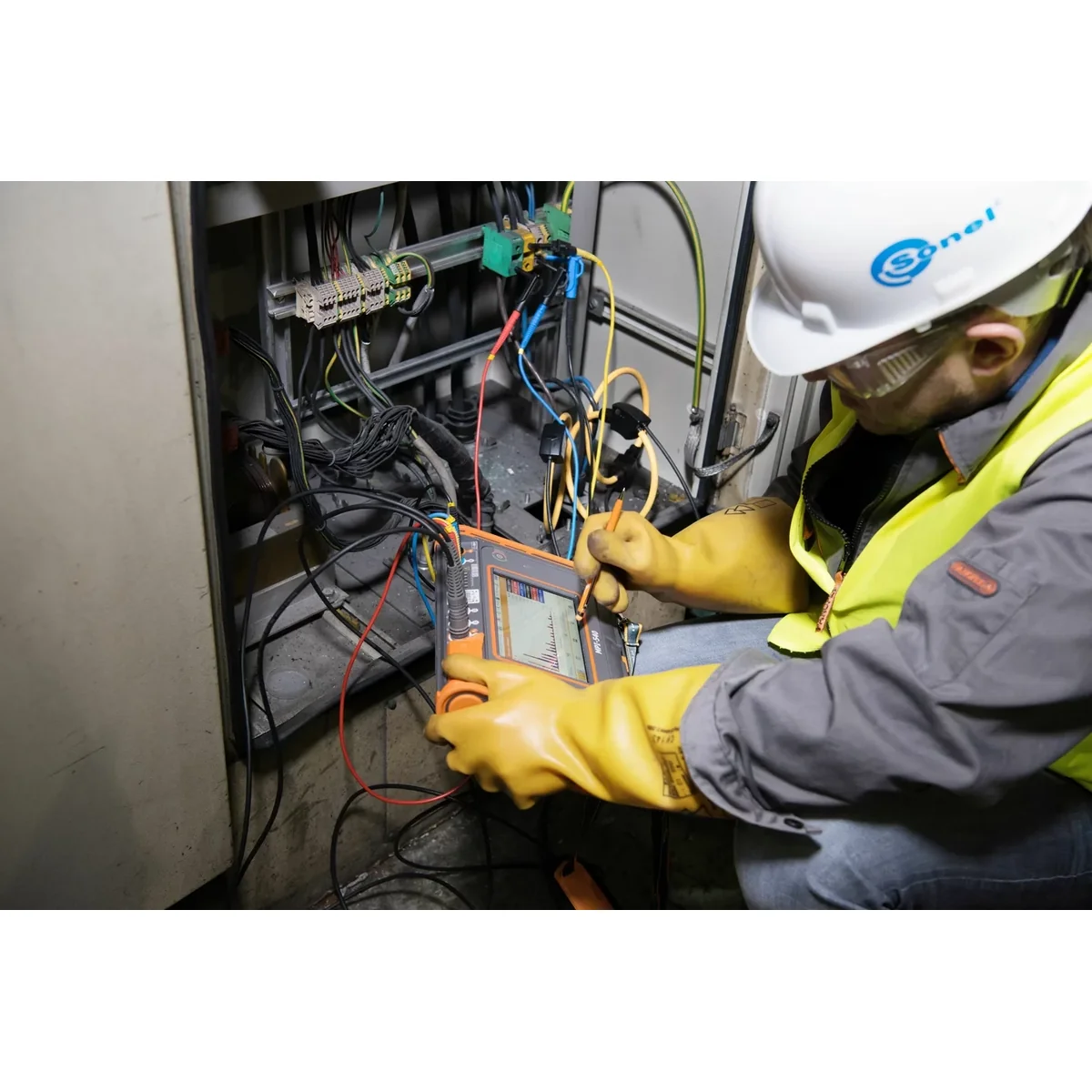

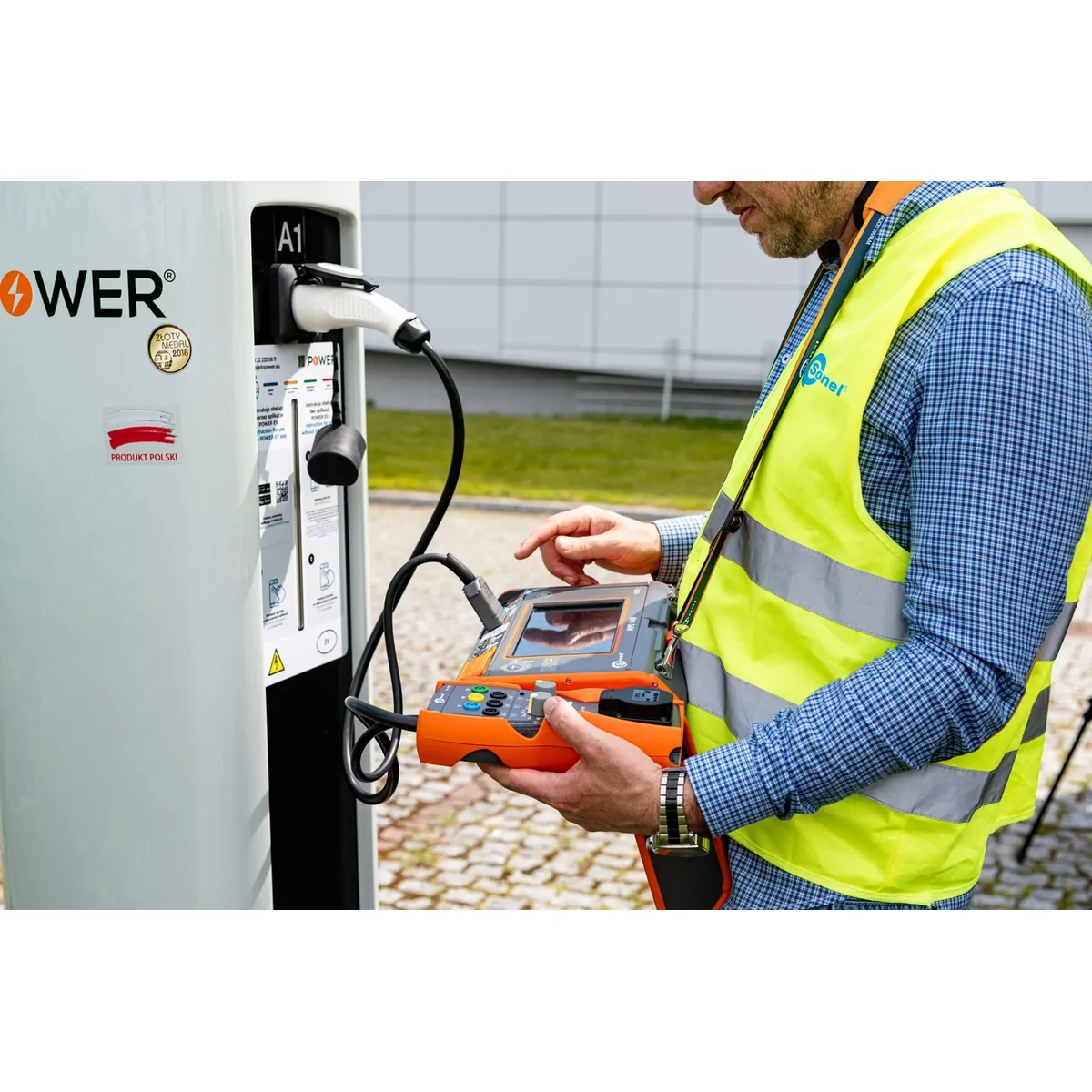

The Sonel MPI-540 WMPLMPI540 multifunctional meter of electrical installation parameters

Pis designed to check home and industrial installations The device can be used to perform measurements, the results of which determine the safety of the installation. In addition, the user has the option of registering the parameters of the electrical networks located at these facilities. This makes it possible to control the quality of electricity and measure the parameters of anti-shock protection using one universal device.

Significant automation of measurements is possible thanks to the differential circuit breaker test function -current in Auto mode, as well as measurement sequences pre-programmed by the manufacturer (so-called au­totests), which can also be extended with your own sequences. Automatic measurement of the insulation resistance of 3-, 4-, and 5-core wires will be possible thanks to the AUTO ISO-1000C adapter.

Much more than a multi-function meter:

• The largest touch panel on the market (7”) – outstanding ergonomics and ease of use
• Removable microSD card – easy storage expansion
• Li-Ion battery – longer operation of the meter
• Three-phase recorder of power network parameters – advanced power quality diagnostics
• Readout of current network parameters– immediate assessment of the tested device
• Parameters measured in class S of the PN-EN 61000-4-30 standard – high measurement accuracy
• Energy loss calculator – quick diagnosis of potential savings
• Measurement of all parameters of electric shock protection – one device instead of several
• Fast loop measurement with RCD without tripping (up to a few seconds) – save time
• Self-tests – the ability to perform automatic measurementsóin a sequence – simplification of measurements
• Fast track from measurements to report – time saving

Features

The meter is above average in terms of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy.

• The MPI-540 can record 50/60 power quality parameters  Hz in class S of EN 61000-4-30:
  • voltages L1, L2, L3 – average values up to 500 V,
  • currents L1, L2, L3 – average values, current measurement in the range up to 3 kA (depending on the current clamps used),
  • frequency in the range of 40 Hz – 70 Hz,
  • active power (P), reactive power (Q), apparent power (S),
  • power factor (PF), cosφ,
  • harmonics (up to the 40th in voltage and current),
  • the harmonic distortion factor THD for current and voltage.
• Instrument MPI-540  can perform all acceptance measurements of electrical installations in accordance with applicable regulations:
  • fault loop impedance (also in circuits with RCDs),
  • circuit breaker parameters ;in RCDs,
  • insulation resistance,
  • earth resistance (4 measurement methods + ground resistivity measurement),
  • continuity of protective and equalizing connections,
  • illuminance,
  • phase sequence test,
  • motor rotation direction test.

< p>Inspection of installation safety

With the device, you can control home and industrial electrical installations in terms of safety. Measurements can be easily automated by:

• testing RCDs in Auto mode,
• self-tests – i.e. freely configurable measurement sequences,
• use of the AutoISO-1000C adapter to test the insulation resistance of 3-, 4- and 5-core wires.

Comprehensive analysis of network parameters

The built-in three-phase recorder allows you to observe the current state of the network and record its parameters, such as voltage, current, power, harmonics, THD. The meter allows you to read selected quantities and display their graphical presentation on the screen in real time. Parameters are measured independently from the recording saved on the memory card. The device can present:

• graphs of voltage and current waveforms (oscilloscope),
• graphs of voltage and current in time,
• phasor diagram,< /li>
• measurements of many parameters in tabular form,
• chart of current and voltage harmonics.

Easy to read

The device is equipped with a color, touch LCD screen with a diagonal of 7” and resolution of 800x480 pixels. This guarantees ease of use and easy reading of parameters and time courses. A large screen means more information is available when using the meter. The interface is readable in all conditions – also thanks to the appropriate size of the displayed symbols. The attached stylus allows you to work also with dielectric gloves.

Built-in help system

The device has built-in help screens with measurement diagrams. Thanks to this, you can easily and quickly check how to connect a given system depending on the type of measurement.

Increased resistance to environmental conditions

The meter MPI-540 will cope well in harsh environmental conditions. Protection against dust and water penetration is ensured by a unique housing with an IP51 tightness level. It is resistant to mechanical damage, and the special design allows you to easily protect the touch display by sliding the meter cover. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in various positions.

Communication and software

< p>The advantage of the device is the multitude of communication interfaces and cooperation with external software. Through the USB port, removable SD memory card or by means of wireless communication (Bluetooth, Wi-Fi) you can transfer the measurement data to a computer. In order to generate a test report in the field of electric shock protection, the Sonel Electrical Measurements program should be used. Saving the downloaded resources to the simplest formats and printing is provided by Sonel Reader. The specialist Sonel Analysis program is used to read and analyze data from the recorder.

Specification – electrical installation parameters

< td>Measuring RCD trip current IA measuring current 0.2 IΔn…2.0 IΔn < td>  < td>  < td>0.12 Ω…400 Ω to IEC 61557-4 < /tr>

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
Short-circuit loop ZL-PE, ZL-N, ZL-L	0.13 Ω…1999.9 Ω to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	±(5% m.v. + 30 digits)
ZL-PE fault loop in RCD mode	from 0.50 Ω…1999 Ω to IEC 61557	0.00 Ω…1999 Ω	from 0.01 Ω	from ±(6% m.v. + 5 digits )
Measurements of RCD Parameters
RCD tripping test and tripping time measurement tA measuring current 0.5 IΔn, 1 IΔ n, 2 IΔn, 5 IΔn
RCD of general type and short delay	0 ms…300 ms	0 ms…300 ms	1 ms	from ±(2% m.v. + 2 digits)
RCD selective	0 ms…500 ms< /td>	0 ms…500 ms	1 ms	from ±(2% m.v. + 2 digits)
		< /td>
for sinusoidal residual current (AC type)	3.3 mA…1000 mA	3.3 mA…1000 mA	from 0.1 mA	±5% IΔn
for 1-way and 1-way differential current with 6 mA DC bias (type A)	3.5 mA…700 mA	3.5 mA…700 mA	from 0.1 mA	±10% IΔn
for DC residual current (type B)	2.0mA…1000mA	2.0mA…1000mA	from 0.1mA	±10 % IΔn
Ground Resistance
3- and 4-wire method	from 0.50 Ω…1 .99 kΩ to IEC 61557-5	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.m. + 3 digits)
3-wire method + clamp	0.00 Ω…1.99 kΩ	0.00 Ω…1.99 kΩ	from 0.01 Ω	from ±(2% m.v. + 4 digits)
2-clamp method	0.00 Ω…99.9kΩ	0.00 Ω…99.9kΩ	from 0.01 Ω	from ±(10% m.v. + 4 digits)
Soil resistivity	0.0 Ω m…99.9 kΩm	0.0 Ωm…99.9 kΩm	from 0.1 Ωm	Dependent on measurement accuracy RE
Insulation resistance
Measuring voltage 50 V	50 k …250 MΩ to IEC 61557-2	0 kΩ…250 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
Measuring voltage 100 V	100 kΩ…500 MΩ to IEC 61557-2	0 kΩ…500 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
250 V measuring voltage	250 kΩ…999 MΩ to IEC 61557-2	0 kΩ…999 MΩ	from 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
500 V test voltage	500 kΩ…2.00 GΩ to IEC 61557-2	0 kΩ…2.00 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits )
Measuring voltage 1000 V	1000 kΩ…4.99 GΩ to IEC 61557-2	0 kΩ…9.99 GΩ	from 1 kΩ	from ±(3% m.v. + 8 digits )
Resistance of protective and equalizing conductors
Continuity measurement of protective and equipotential bonding with ±200 mA	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Low current resistance measurement	0.0 Ω…1999 Ω	0.0 Ω&hellip ;1999 Ω	from 0.1 Ω	±(3% m.v. + 3 digits)
Illuminance
Lux measurement (lx)	0 lx…399.9 klx	0 lx…399.9 klx	from 0.001 lx	from ±(2% m.v. + 5 digits)
Fc measurement	0 fc…39 .99 kfc	0 fc…39.99 kfc	from 0.001 fc	from ±(2% m.v. + 5 digits)
Phase Sequence Indication	Assisting, Inverse, UL-L Voltage: 95V…500V (45Hz…65Hz)

"w.m" - measured value

Specification – 3-phase recorder

The device is designed to work in networks:

• with a rated frequency of 50/60 Hz
• with a rated voltage : 64/110 V, 110/190 V, 115/200 V, 127/220V, 220/380V, 230/400 V, 240/415 V, 254/440V, 290/500V
• DC

Systems of supported networks:

• single-phase
• two-phase with common N
• three-phase star with and without N conductor
• three-phase delta

< /tr>

Parameter	Measuring range	Maximum resolution	Accuracy
Alternating Voltage (TRMS)	0.0…500V	0.01% Unom	± 0.5% Unom
Alternating current TRMS	depending on clamps*	0.01% Inom	±2% w.m. if w.m. ≥ 10% Inom, ±2% Inom if w.m. < 10% Inom , (error does not include clamp error)
Frequency	40.00…70.00 Hz	0.01 Hz	±0.05 Hz
Active, reactive, apparent and distortion power< /strong>	depending on configuration (transformers, clamps)	4 significant digits	depending on configuration (transformers, clamps)
Active, reactive and apparent energy	depending on configuration (transformers, clamps)	4 significant digits	like power error
cosφ and power factor (PF)	0.00…1.00	0.01	±0.03
Harmonics
Voltage	same as True RMS AC	same as True RMS AC	±5 % m.v. if w.m. ≥ 3% Unom, ±0.15% Unom if w.m. < 3% Unom
Current	same as True RMS AC	same as True RMS AC	±0.5% m.v. if w.m. ≥ 10% Unom, ±0.5% Unom if w.m. < 10% Unom
THD
Voltage	0.0…100.0% (rms)	0.1%	±5%
Current	0.0…100.0% (rms)	0.1%	±5%
Asymmetry factor	0, 0…10.0%	0.1%	±0.15% (absolute error)

• F-1A, F-2A, F-3A clamp: 0…3000 A AC (10 000 Ap-p)
• C-4A clamp: 0…1000 A AC (3600 Ap-p) Ap-p)
• C-5A clamp: 0…1000 A AC/DC (3600 Ap-p)
• C-6A clamp: 0..10 A AC (36 Ap-p)
• C-7A clamp: 0…100 A AC (360 Ap-p)

Alternating current measurement (True RMS) with clamp

< th>C-5A < th>F-3A < td>1000A AC
1400ADC

	C-4A	C-6A	C-7A	F-1A	F-2A
Rated Current	1000A AC	10A AC	100A AC	3000A AC	3000 A AC	3000 A AC
Frequency	30 Hz…10 kHz	DC…5kHz	40Hz…10kHz	40Hz…1kHz	40Hz…10kHz	40Hz…10kHz	40Hz…10kHz
Max. diameter of the measured cable	52 mm	39 mm	20 mm	24 mm	380 mm	250 mm	140 mm
Minimum basic accuracy	≤0.5%	≤1.5%	≤1%	0.5%	1 %	1%	1%
Battery powered	-	√	-	-	-	-	-< /td>
Cable length	2.2m	2.2m	2.2m	3m	2.5m	2.5m	2.5m
Measurement Category	IV 300V	IV 300V	IV 300V	III 300V	IV 600V	IV 600V	IV 600V
Enclosure rating	IP40	IP40	IP40	IP40	IP67	IP67	IP67



Sonel PE6 WAPROSONPE6 installation safety test protocols software

The latest version of the popular software for creating electrical measurement protocols. PE6 simplifies the documentation process. It minimizes its time. It automates. All thanks to numerous built-in mechanisms, tools and functions.

Program features:

• compliance of the printed protocol with the new PN-HD 60364-6 standards: 2016-07, PN-HD 60364-4-41:2017-09
• tree structure of the document,
• extensive databases of security and measurement points,
• automatic calculation of required values,
• automatic evaluation of measured results,
• schedule of measurements,
• inserting photos and drawings to protocols,< /li>
• printing of measurement controls and descriptive labels of tables,
• calculation of performed measurements,
• printing of invoices,
• automatic completion of protocols with a series

The program supports the creation of documentation after tests in the field of comprehensive control of measurement points and:

• the effectiveness of automatic shutdown (TN-S, TN-C, TN-C-S, TT, IT),
• parameter of RCDs,
• circuit insulation condition (TN-S, TN-C, TN-C-S, TT, IT),
• the condition of insulation of electric cables,
• the condition of the lightning protection system and earthing,
• the continuity of wires,
• insulation resistance of closed and open motors,
• resistance of contactors,
• resistance of circuit breakers,
• transformer devices.

Hardware requirements:

• Operating system: Windows 10
• Minimum resolution: 1024x768
• Recommended resolution: 1920x1080
