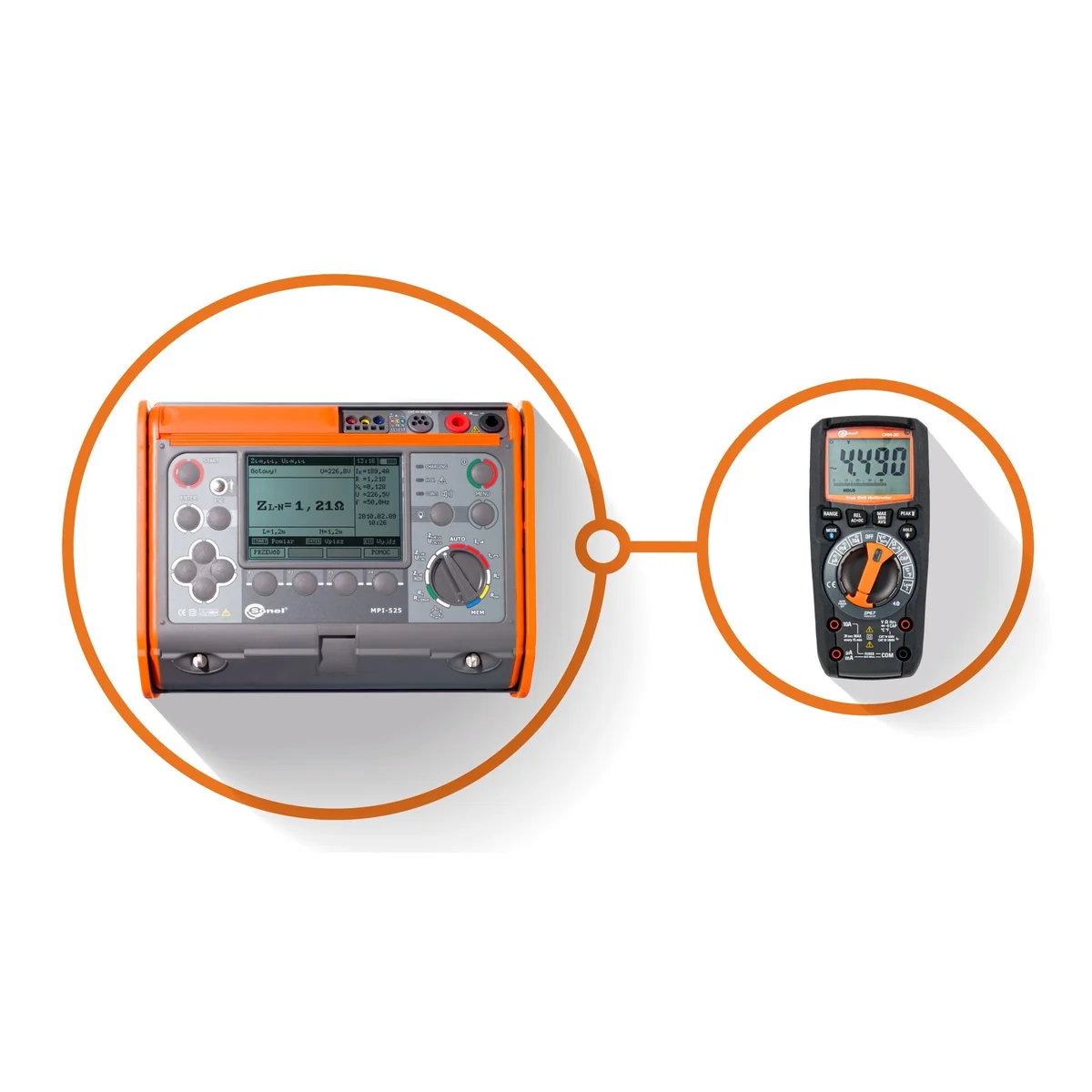

MPI-525 multifunctional meter + CMM-30 industrial multimeter

Click on the photo to enlarge

Manufacturer: SONEL

Model: MPI-525 | CMM-30

See full description

Price:

9 581,70 zł

gross / pcs.

(including VAT 23%)

Out of stock

Add to inquiry

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

Multifunctional meter of electrical installation parameters

With emphasis on insulation resistance measurements

The Sonel MPI-525 multifunctional meter of electrical installation parameters is an innovation in its category. It provides many possibilities to measure the parameters of electrical installations, making it a recommended solution for installers, as well as advanced measuring technicians.

As one of the few meters on the market, Sonel MPI-525 has the ability to measure insulation resistance with voltage up to 2500 V. In addition, the device enables automatic measurement of the insulation resistance of 3-, 4- or 5-core wires or cables using the optional AutoISO-2500 adapter.

The MPI-525 meter can be used to precisely measure short-circuit loop impedance (resolution 0.01 Ω) in L-PE circuits in networks with RCDs. Another valuable function of the device is the ability to measure the actual tripping time and tripping current of the RCD with a single tripping of the circuit breaker.

Features

The meter is characterized by extensive possibilitiesin terms of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy. The device can be used to perform all acceptance measurements of electrical installations in accordance with applicable regulations:

fault loop impedance (also in circuits with RCDs),
parameters of RCDs,
insulation resistance,
Earth resistance (3-wire method),
continuity of protective and equalizing connections,
phase sequence test

Additional Features

Checking the correct connection of the PE wire using a touch electrode.
Measurement of voltage (0...500 V) and mains frequency.
Memory 990 results.
Wireless data transmission to a computer.

2.5 kV insulation test

A unique feature of the meter is the ability to measure insulation resistance with a voltage of up to 2500 V. Moreover, using the AutoISO-2500 adapter, the user can check the RISO of 3-, 4- and 5-wire.

The instrument has a built-in stopwatch. It has the ability to set three times for conducting and reading measurement results (in the range of 1...600 s). In addition, it automatically calculates two absorption coefficients.

In order to ensure the safety of the user, after the measurement is completed or interrupted, the device automatically discharges the tested object.

Installation security check

With the instrument, you can control domestic and industrial electrical installations in terms of safety. Measurements can be easily automated by:

testing of RCDs in Auto mode,
using the AutoISO-2500 adapter to test the insulation resistance of 3-, 4- and 5-core wires.

Increased resistance to environmental conditions

The meter will cope well in harsh environmental conditions. Protection against the ingress of dust and water is provided by a unique housing with an IP54 tightness level. It is resistant to mechanical damage, and the special design allows you to easily protect the display by moving the meter cover. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in various positions.

Communications and Software

Through the USB port or using wireless communication, you can transfer the measurement data to a computer. In order to generate a test report in the field of electric shock protection, use the Sonel Electrical Measurements program. Saving the downloaded resources to the simplest formats and printing is provided by Sonel Reader.

Measurement functions	Measurement range	Display Range	Resolution	Accuracy
Fault loop impedance
ZL-PE, ZL-N, ZL-L short-circuit loop	0.13 Ω…1999.9 Ω according to IEC 61557	0.00 Ω…1999 Ω	will give 0.01 Ω	±(5% m.v. + 3 digits)
ZL-PE short-circuit loop in RCD mode	from 0.50 Ω…1999 Ω according to IEC 61557	0.00 Ω…1999 Ω	will give 0.01 Ω	from ±(6% m.v. + 5 digits)
Measurements of RCD Parameters
RCD tripping test and tripping time measurement tA measuring current 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
RCD of general type and short delay	0 ms…300 ms	0 ms…300 ms	1 ms	±(2% m.v. + 2 digits)
Selective RCD	0 ms…500 ms	0 ms…500 ms	1 ms	±(2% m.v. + 2 digits)
Measuring RCD trip current IA measuring current 0.2 IΔn…2.0 IΔn
for sinusoidal residual current (AC type)	3.0mA…1000mA	3.0mA…1000mA	from 0.1mA	±5% IΔn
for 1-way and 1-way differential current with 6 mA dc bias (type A)	3.5mA…700mA	3.5mA…700mA	from 0.1mA	±10% IΔn
for DC residual current (type B)	2.0mA…1000mA	2.0mA…1000mA	from 0.1mA	±10% IΔn
Ground resistance
3-wire method	from 0.5 Ω…1.99kΩ according to IEC 61557-5	0.00 Ω…1.99kΩ	from 0.01 Ω	from ±(2% m.v. + 3 digits)
Insulation resistance
Measuring voltage 50 V	50kΩ…250MΩ according to IEC 61557-2	0 kΩ…250 MΩ	from 1kΩ	±(3% m.v. + 8 digits)
Measuring voltage 100V	100kΩ…500MΩ according to IEC 61557-2	0 kΩ…500 MΩ	from 1kΩ	±(3% m.v. + 8 digits)
Test voltage 250V	250 kΩ…999 MΩ according to IEC 61557-2	0 kΩ…999 MΩ	from 1kΩ	±(3% m.v. + 8 digits)
Measuring voltage 500 V	500kΩ…2.00 GΩ according to IEC 61557-2	0 kΩ…2.00 GΩ	from 1kΩ	from ±(3% m.v. + 8 digits)
Measuring voltage 1000V	1000kΩ…3.00 GΩ according to IEC 61557-2	0 kΩ…3.00 GΩ	from 1kΩ	from ±(3% m.v. + 8 digits)
Test voltage 2500V	2.50 MΩ…9.99 GΩ according to IEC 61557-2	0 kΩ…9.99 GΩ	from 1kΩ	from ±(3% m.v. + 8 digits)
Resistance of protective and equipotential wires
Continuity measurement of protective and equipotential bonding with ±200 mA	0.12 Ω…400 Ω according to IEC 61557-4	0.00 Ω…400 Ω	from 0.01 Ω	±(2% m.v. + 3 digits)
Low current resistance measurement	0.0 Ω…1999 Ω	0.0 Ω…1999 Ω	from 0.1 Ω	±(3% m.v. + 3 digits)
Phase sequence indication	positive, negative, voltage UL-L: 95 V…500 V (45 Hz…65 Hz)

Industrial multimeter

The compact and reliable Sonel CMM-30 industrial multimeter is a device that combines versatility, modernity and extraordinary durability. The device contains 11 basic measurement functions. The capabilities of the device are complemented by additional functions such as PEAK function (displaying the peak value of the measured signal), REL function (performing relative measurements) and many others. All this makes the meter very versatile. Thanks to wireless communication with the application on the phone, it is possible to remotely read and save measurements from hard-to-reach places. The display has an automatic backlight function – the brightness level of the screen and the control panel adapts to the lighting conditions. An additional convenience is the built-in flashlight, thanks to which it is also possible to work in the dark.

CMM-30 is characterized by an innovative design that combines a high level of durability with ergonomic handling even when wearing dielectric gloves. The device has been equipped with a sealed housing with IP67 protection, which ensures high resistance even to falls.

Visibility in all conditions

The darkness in the workplace is no longer an obstacle thanks to the built-in flashlight. Automatic backlighting of the screen, buttons and knob allows you to take measurements in all lighting conditions.

Unique design

Using the latest technologies, we have created a compact device to work in the toughest conditions. The rubber housing eliminates the effects of water flooding and falls (IP67 protection level).

Multifunctionality

Extreme versatility of the device consists of 11 basic measurement functions and additional functions, such as relative REL measurement, MAX/MIN/AVG average and extreme measurement, and PEAK measurement.

Safety and comfort of use

Sonel CMM-30 meets the safety requirements of category CAT III 1000 V / CAT IV 600 V. The ergonomic housing ensures a firm grip and free selection of functions - also when wearing protective gloves.

Wireless communication

The device allows for wireless transmission of measurement results in “live” to the Sonel Multimeter Mobile mobile application. Thanks to it, the results can be registered, cataloged and supplemented with description and photos, as well as send as an e-mail attachment.

Measurement functions	Scope	Resolution	Accuracy
AC voltage	up to 1000V	from 0.001 V	from ±(1.0% m.v. + 5 digits)
DC voltage	up to 1000V	from 0.1mV	from ±(0.5% m.v. + 8 digits)
AC/DC current	up to 10.00A	from 0.1 μA	from ±(1.0% m.v. + 3 digits)
Resistance	up to 60.00 MΩ	from 0.1 Ω	from ±(1.5% m.v. + 5 digits)
Low Z (AC/DC voltage)	up to 1000V	from 0.001 V	from ±(3.0% m.v. + 5 digits)
Frequency	up to 9.999 kHz	from 0.001 Hz	±(1.0% m.v. + 5 digits)
Capacity	up to 6000 µF	from 0.01 nF	from ±(3.0% m.v. + 5 digits)
Duty cycle (%)	20.0…80.0%	0.1%	±(1.2% m.v. + 2 digits)
Temperature measurement	-20…+760ºC, -4…+1400ºF	0.1ºC, 0.1ºF	±(1.0% v.m. + 5ºC), ±(1.0% v.m. + 9ºF)
Continuity / Diode test	✓ / ✓

Basic features:

Count: 6000 digits
HOLD
Manual/automatic range selection

Advanced features:

MIN / MAX / AVG
AC+DC measurement
PEAK HOLD - holding the peak value
Relative measurement
TRMS measurement
Storage: in the mobile app
Bluetooth communication

Other features:

Easy access to A/mA fuses
Automatic device shutdown
Low battery indicator
Built-in flashlight
Beeper
Display:
- Type: LCD segment, 4 digits
- Screen backlight: automatic and manual
