MPI-520 multifunctional meter + P-6 bipolar voltage indicator WMPLMPI520W

Name: MPI-520 multifunctional meter + P-6 bipolar voltage indicator
Brand: SONEL
SKU: NPP177SONE
Price: 7828.95 PLN
Availability: BackOrder

Místní index:

NPP177SONE

Katalogové číslo.:

WMPLMPI520W

EAN kód:

5907624030565

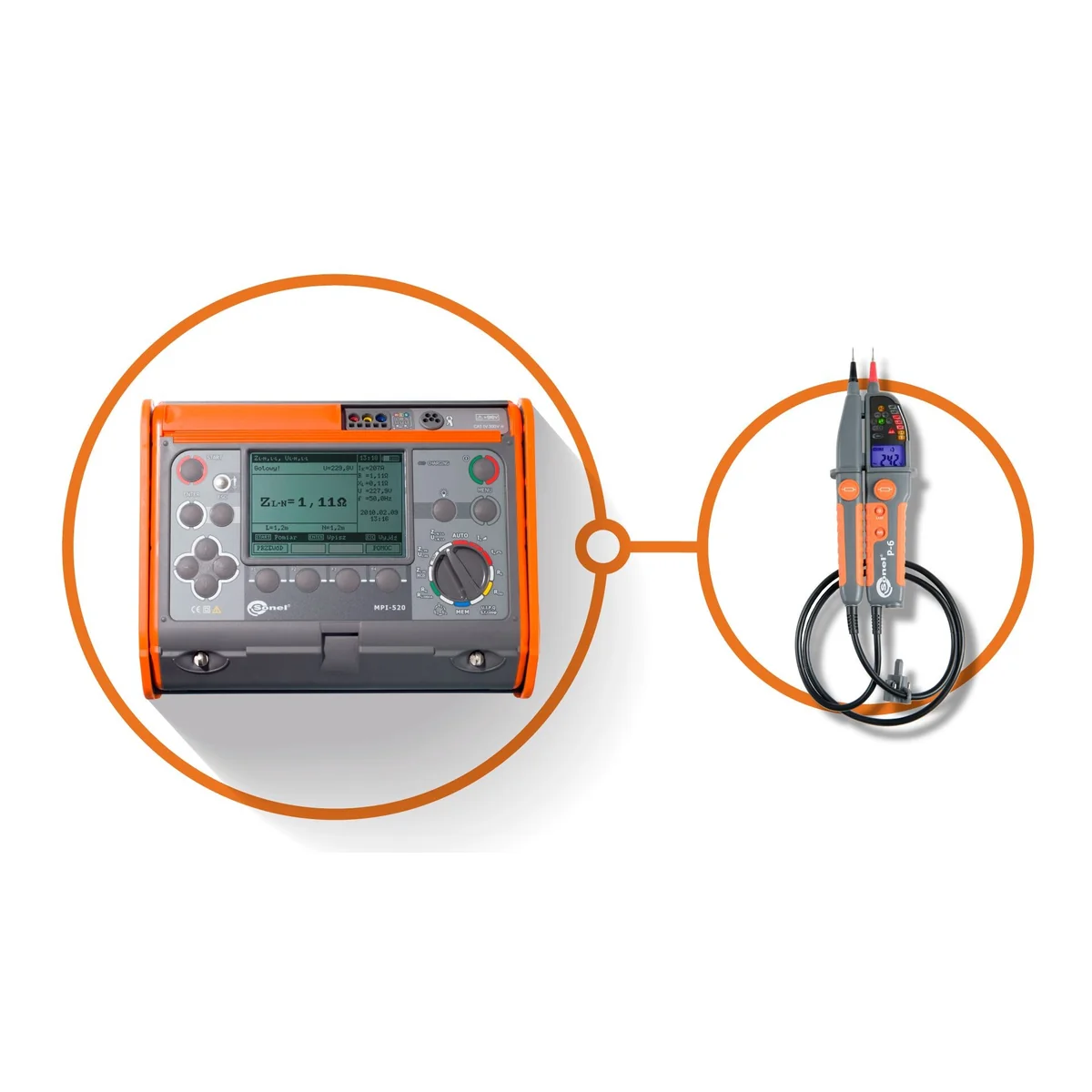

MPI-520 multifunctional meter + P-6 bipolar voltage indicator

Kliknutím na obrázek jej zvětšíte

Výrobce: SONEL

Model: MPI-520 | P-6

Zobrazit celý popis

Cena:

7 828,95 zł

gross / kusů.

(včetně DPH 23%)

Není skladem

Přidat do žádosti o cenovou nabídku

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci

Popis produktu

Multifunctional meter of electrical parameters

Professional measurements for every budget

Versatile, yet easy to use The multifunctional meter of electrical installation parameters Sonel MPI-520perfectly performs its tasks in the field of measuring the parameters of electrical installations. The device was created for the needs of installers as well as measuring technicians. Intuitive operation will enable the use of the device by novice users, while the advanced measurement capabilities will meet the expectations of the most demanding specialists.

The meter uses a number of modern solutions that translate into additional functions and greater capabilities of the device. In this way, the Sonel MPI-520 meter definitely improves the performance of measurements of electrical installations.

The economical and versatile Sonel MPI-520 meter is a proven choice for users who are looking for an easy-to-use device. , a precise instrument that combines the functions of several devices for anti-shock measurements. With the help of one meter, you can measure the impedance of the short-circuit loop (also in circuits with RCDs), measure the earth resistance, as well as test the parameters of AC, A and B type residual current circuit breakers. Extensive capabilities, measurement precision and the use of pioneering solutions combined with a favorable price make this meter model a proven and reliable choice.

Features

The meter is characterized by wide possibilities < /strong>in terms of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy. The device can perform all acceptance measurements of electrical installations in accordance with applicable regulations:

fault loop impedance (also in circuits with RCDs),

parameters of RCDs,

insulation resistance,

earth resistance (3-wire method),

continuity of protective and equipotential bonding,

sequence test phase,

AC voltage and current, frequency,

cosφ, active (P), reactive (Q) and apparent (S) power (using clamps)

Additional functions

Checking the correctness of connecting the PE wire with a touch electrode.

Voltage measurement (0. ..500 V) and network frequencies.

Memory of 990 results.

Wireless data transmission to a computer.

Areas of application

MPI-520, although simple in construction and operation, provides the user with many measurement possibilities. It can be successfully used to control home and industrial electrical installations.

Inspection of installation safety

Measurements can be easily automated by:< /p>

testing of residual current circuit breakers in Auto mode,

using the WS type adapter to test the installation through a standard 230 V socket,

using the AutoISO adapter -1000C for testing the insulation resistance of 3-, 4- and 5-core wires.

Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against the ingress of dust and water is provided by a unique housing with an IP54 tightness level. It is resistant to mechanical damage, and the special design allows you to easily protect the display by moving the meter cover. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in various positions.

Communication and software
< p>Through the USB port or using wireless communication, you can transfer the measurement data to a computer. In order to generate a test report in the field of electric shock protection, use the Sonel Electrical Measurements program. Saving the downloaded resources to the simplest formats and printing them is provided by Sonel Reader.

< thead> < td>0.12 Ω…400 Ω to IEC 61557-4 < td>
Measurement functions Measurement range Display range Resolution Accuracy

Fault loop impedance

ZL-PE, ZL-N, ZL-L fault loop 0.13 Ω …1999 Ω to IEC 61557 0.00 Ω…1999 Ω da 0.01 Ω ±(5% m.v. + 3 digits)

ZL-PE fault loop in RCD mode from 0.50 Ω…1999 Ω to IEC 61557 0.00 Ω…1999 Ω da 0.01 Ω from ±(6% m.v. + 5 digits )

Measurements of RCD Parameters

RCD tripping test and tripping time measurement tA measuring current 0.5 IΔn, 1 IΔ n, 2 IΔn, 5 IΔn

RCD of general type and short delay 0 ms…300 ms 0 ms…300 ms 1 ms ±(2% m.v. + 2 digits)

Selective RCD 0 ms…500 ms 0 ms…500 ms 1 ms ±(2% m.v. + 2 digits)

RCD tripping current measurement IA measuring current 0.2 IΔn…2.0 IΔn

for sinusoidal residual current (AC type) 3.0 mA…1000 mA 3.0 mA…1000 mA gives 0.1 mA ±5% IΔn

for current 1-way and 1-way differential with 6 mA DC bias (type A) 3.5 mA…700 mA 3.5 mA…700 mA da 0.1 mA ±10% IΔn

for DC residual current (type B) 2.0mA…1000mA 2.0mA…1000mA da 0.1mA ±10% I&Delta ;n

Ground resistance

3-wire method from 0.5 Ω…1.99 kΩ to IEC 61557-5 0.00 Ω…1.99 kΩ da 0.01 Ω from ±(2% m.m. + 3 digits)

Insulation resistance

Measuring voltage 50 V 50 kΩ…250 MΩ according to IEC 61557-2 0 kΩ…250 MΩ is 1 kΩ from ±(3% m.v. + 8 digits)< /td>

Measuring voltage 100 V 100 kΩ…500 MΩ according to IEC 61557-2 0 kΩ…500 MΩ is 1 kΩ from ±(3% m.v. + 8 digits)< /td>

Measuring voltage 250 V 250 kΩ…999 MΩ to IEC 61557-22 0 kΩ…999 MΩ equivalent to 1 kΩ from ±(3% m.v. + 8 digits)< /td>

500 V test voltage 500 kΩ…2.00 GΩ to IEC 61557-2 0 kΩ…2.00 GΩ for 1 kΩ from ±(3% m.v. + 8 digits )

Measuring voltage 1000 V 1000 kΩ…3.00 GΩ to IEC 61557-2 0 kΩ…3.00 GΩ for 1 kΩ from ±(3% m.v. + 8 digits )

Resistance of protective and equalizing conductors

Continuity measurement of protective and equipotential bonding with ±200 mA 0.00 Ω…400 Ω da 0.01 Ω ±(2% m.v. + 3 digits)

Low current resistance measurement 0.0 Ω…1999 Ω 0.0 Ω&hellip ;1999 Ω da 0.1 Ω ±(3% m.v. + 3 digits)

Phase Sequence Indication Perfect, Opposite, UL-L Voltage: 95V…500V (45Hz…65Hz)

Power measurement 0.0VA…200,000 VA, 0.0W…200,000W, 0.0V…200,000V 0.0VA…200,000VA, 0.0W…200,000W, 0.0V…200 000 var from 0.1 VA, from 0.1 W, from 0.1 var from ±(7% m.v. + 3 digits)

Bipolar voltage indicator

Ergonomics, durability, reliability

The bipolar voltage indicator Sonel P-6 is a reliable, extremely durable and safe tester that enables you to check the voltage, circuit continuity and phase sequence . It has been designed to work in the toughest conditions, both industrial and commercial. Advanced technology, high level of safety and ease of use are the key features of the P-6 device.

Product description

Bipolar voltage indicator Sonel P- 6 is a reliable, extremely durable and safe tester that allows you to check voltage, circuit continuity and phase sequence. It has been designed to work in the toughest conditions, both industrial and commercial. Advanced technology, high-level safety and ease of use are the key features of the P-6 device.

Key features and attributes of the P-6 device

phase identification - a unique feature among voltage indicators from all over the world
automatic voltage measurement up to 1000 V AC and DC
optical indications using a diode bar and additionally an LCD display
sound indications when dangerous voltages of 50 V AC and 120 V DC are exceeded< /li>
RCD trip test with additional load
continuity indication, automatically when connected to the object
< strong>bipolar phase rotation direction test
unipolar indication of the presence of voltages above 100 V
resistance measurement until 1999 Ω
possibility of holding the measurement result thanks to the HOLD function
reinforced two-component housing to prevent mechanical damage and falls
built-in flashlight and backlit display for measurements in low light conditions
IP65 degree of protection guarantees dust-proof and protection against flooding
safety thanks to the measurement category CAT IV 600 V and CAT III 1000 V

Checking operation of residual current circuit breakers

In response to the needs of customers, the new series of P voltage indicators allows you to test RCDs in a fully controlled way. Using the buttons on both probes, the user lowers the internal impedance of the device, which enables safe tripping of the circuit breaker. In addition, pressing both buttons activates an additional load in the form of a vibrating motor. When the voltage is checked, it allows to eliminate stray currents affecting the measurement result.

Durability and comfort of use

The housing of the device is designed in such a way that way to enable work in difficult industrial conditions, where the use of personal protective equipment is required, including insulating gloves. At the same time, the ergonomic shape allows the device to be operated with one hand when testing voltage in standard electrical sockets.

Multitasking and safety

Voltage indicators are equipped with a set of endsó measuring cases. They restrict access to the metal blade to 4 mm, which reduces the risk of accidentally touching another conductor during harness testing. Additional screw-on tips allow you to increase the diameter of the blades to 4 mm. This is especially important when measurements are carried out in electrical sockets, where the user needs to be sure that contact is maintained between the device and the conductor. The whole set is housed in a special container, which guarantees access to the tips at any time. In addition, the container has a tab useful for opening the security devices in British sockets.

< tr> < /tr> < td>2000m < td>display

Parameter	Description
measurement category	CAT III 1000V / IV 600V
voltage range	6.0 …. 1000 V AC/DC
LED bar	7 segments
backlit LCD display	√
continuity test	√
test 10 mA / 30 mA RCD tripping	√
built-in flashlight	√
unipolar phase indicator	√
bipolar phase indicator	√
IP65 protection rating	√
resistance measurement	√
freeze function	√
phase identification	√
kind of insulation according to PN-EN 61010-1	double, class II
meter power supply	2 x LR03 AAA 1.5 V (alkaline cells recommended)
operating frequency range	16…400 Hz
min. pause time after activation for 30 s	240 s
continuity test: light and sound signal	for R ≤ 400kΩ
resistance measurement range	1…1999 Ω
input impedance	ok. 300 kΩ
range of the phase sequence tester	100…1000 V
minimum switch-on voltage< /td>	±6V AC/DC
operating / storage temperature	-15…+55°C / -20…+ 70°C
maximum humidity	95%
maximum working altitude
time to auto power off	10s / 30s (HOLD mode)
LCD, 3½ digits, readout 1999 with function indicators
electromagnetic compatibility according to the requirements of the standards	EN 61326-1, EN 61326-2-2
compliance with the requirements of the standards	EN 61010-1, EN 61243-3
quality standard	ISO 9001

Technické údaje

Model

MPI-520 P-6

Podrobnosti o výrobci

Výrobce

SONEL SPÓŁKA AKCYJNA
Adresa

58-100 UL. STANISŁAWA WOKULSKIEGO 11
E-mail

sonel@sonel.pl
DIČ

8840033448

Nahlásit chybu

Measurement functions	Measurement range	Display range	Resolution	Accuracy
Fault loop impedance
ZL-PE, ZL-N, ZL-L fault loop	0.13 Ω …1999 Ω to IEC 61557	0.00 Ω…1999 Ω	da 0.01 Ω	±(5% m.v. + 3 digits)
ZL-PE fault loop in RCD mode	from 0.50 Ω…1999 Ω to IEC 61557	0.00 Ω…1999 Ω	da 0.01 Ω	from ±(6% m.v. + 5 digits )
Measurements of RCD Parameters
RCD tripping test and tripping time measurement tA measuring current 0.5 IΔn, 1 IΔ n, 2 IΔn, 5 IΔn
RCD of general type and short delay	0 ms…300 ms	0 ms…300 ms	1 ms	±(2% m.v. + 2 digits)
Selective RCD	0 ms…500 ms	0 ms…500 ms	1 ms	±(2% m.v. + 2 digits)
RCD tripping current measurement IA measuring current 0.2 IΔn…2.0 IΔn
for sinusoidal residual current (AC type)	3.0 mA…1000 mA	3.0 mA…1000 mA	gives 0.1 mA	±5% IΔn
for current 1-way and 1-way differential with 6 mA DC bias (type A)	3.5 mA…700 mA	3.5 mA…700 mA	da 0.1 mA	±10% IΔn
for DC residual current (type B)	2.0mA…1000mA	2.0mA…1000mA	da 0.1mA	±10% I&Delta ;n
Ground resistance
3-wire method	from 0.5 Ω…1.99 kΩ to IEC 61557-5	0.00 Ω…1.99 kΩ	da 0.01 Ω	from ±(2% m.m. + 3 digits)
Insulation resistance
Measuring voltage 50 V	50 kΩ…250 MΩ according to IEC 61557-2	0 kΩ…250 MΩ	is 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
Measuring voltage 100 V	100 kΩ…500 MΩ according to IEC 61557-2	0 kΩ…500 MΩ	is 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
Measuring voltage 250 V	250 kΩ…999 MΩ to IEC 61557-22	0 kΩ…999 MΩ	equivalent to 1 kΩ	from ±(3% m.v. + 8 digits)< /td>
500 V test voltage	500 kΩ…2.00 GΩ to IEC 61557-2	0 kΩ…2.00 GΩ	for 1 kΩ	from ±(3% m.v. + 8 digits )
Measuring voltage 1000 V	1000 kΩ…3.00 GΩ to IEC 61557-2	0 kΩ…3.00 GΩ	for 1 kΩ	from ±(3% m.v. + 8 digits )
Resistance of protective and equalizing conductors
Continuity measurement of protective and equipotential bonding with ±200 mA	0.00 Ω…400 Ω	da 0.01 Ω	±(2% m.v. + 3 digits)
Low current resistance measurement	0.0 Ω…1999 Ω	0.0 Ω&hellip ;1999 Ω	da 0.1 Ω	±(3% m.v. + 3 digits)
Phase Sequence Indication	Perfect, Opposite, UL-L Voltage: 95V…500V (45Hz…65Hz)
Power measurement	0.0VA…200,000 VA, 0.0W…200,000W, 0.0V…200,000V	0.0VA…200,000VA, 0.0W…200,000W, 0.0V…200 000 var	from 0.1 VA, from 0.1 W, from 0.1 var	from ±(7% m.v. + 3 digits)
