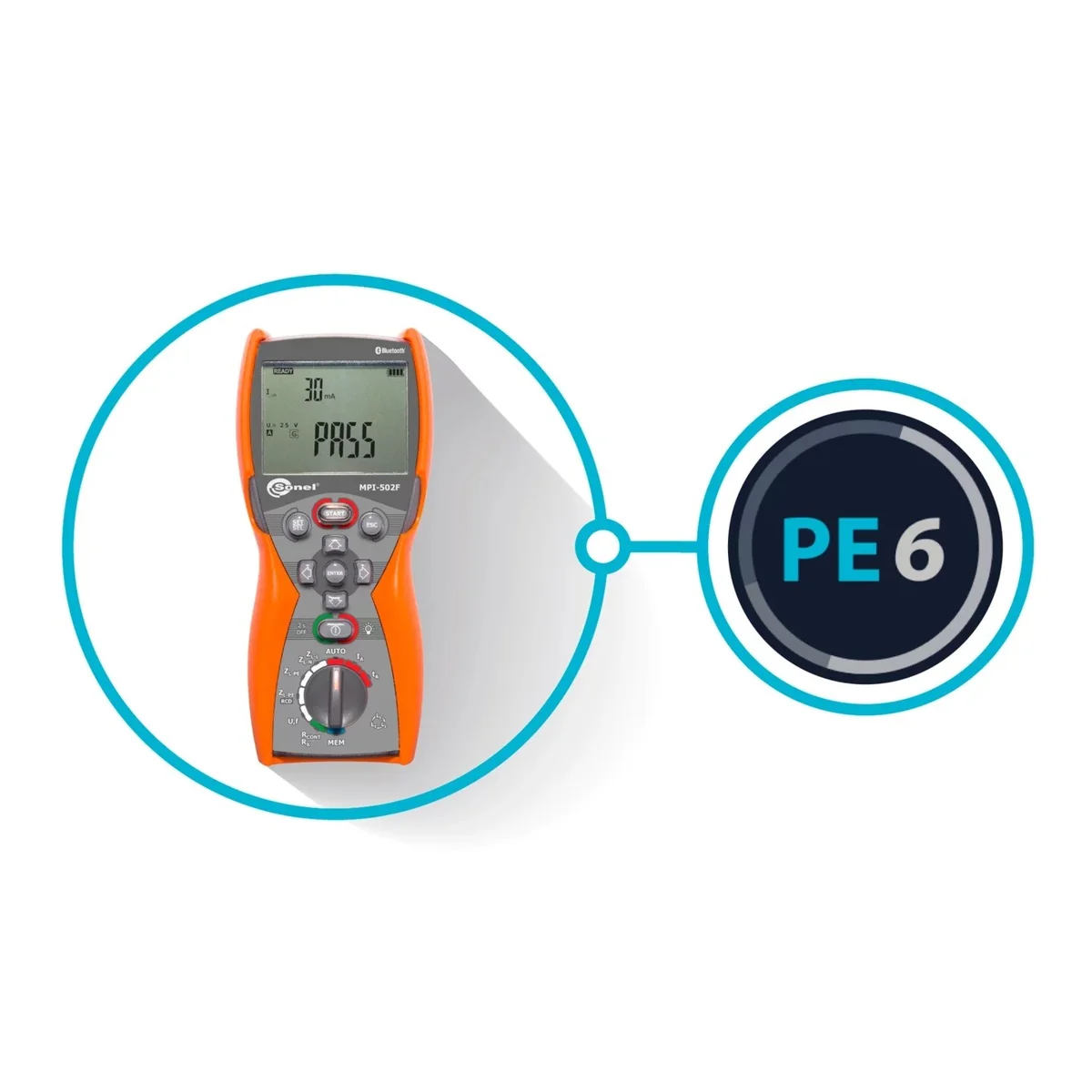

MPI-502F multifunctional meter + license for the SONEL PE6 program WMPLMPI502FSPE6

Multifunctional meter of electrical installation parameters

Great little multitasker

Multifunctional meter of electrical installation parameters Sonel MPI-502F is a unique model of a handheld meter used to perform precise measurements of electrical installation parameters. In its neat and small dimensions, the meter hides a wealth of measurement functions. An additional advantage of this device is its extremely handy and ergonomic form, which facilitates carrying and increases the comfort of work.

The Sonel MPI-502F meter is one of the smallest multifunctional measuring instruments on the market, it surprises with its intuitive operation and extensive capabilities. It is a versatile device that is ready to work in all conditions. Developed for specialists in the installation and electrical industries, as well as for professional measuring technicians.

With this instrument, it is possible to perform basic measurements of various types, including measurement of parameters in the short-circuit loop, measurement of the resistance of protective and equalizing connections, as well as testing of AC residual current devices and A. Due to its compact form and favorable price, the meter will appeal especially to novice users. The excellent precision of work makes its advantages also appreciated by advanced measuring technicians.

Features

• Measurement of parameters in the fault loop
  • Fault loop impedance measurement in networks with rated voltages: 220/380 V, 230/400 V, 240/415 V with frequencies of 45...65 Hz, operating voltage range: 180...460  V
  • Indication of short-circuit loop resistance R and short-circuit loop reactance X
  • Measurement of short-circuit loop impedance with 15 mA current without tripping residual current circuit breakers
  • Maximum measuring current: 7.6A (at 230V), 13.3A (at 400V)
• Testing of residual current circuit breakers type AC, A
  • Measurement of instantaneous, short delay and selective residual current circuit breakers with rated residual currents of 10, 15, 30, 100, 300, 500 mA
  • Measurement of tripping current IA and tripping time tA for currents 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
  • RE and UB measurement without RCD tripping
  • Extended AUTO function of RCD measurement, with the possibility of measuring ZL-PE with low current
  • IA and tA measurement with one RCD tripping
• Resistance measurement of protective and equipotential bonding
  • Measurement of the continuity of protective connections with ±200 mA current in accordance with the PN-EN 61557-4 standard
  • Autocalibration of test leads - any leads can be used
  • Low current resistance measurement

Additional Features

• Checking the correct connection of the PE wire using a touch electrode.
• Measurement of voltage (0...500 V) and mains frequency.
• Memory 990 results.
• Wireless data transmission to a computer.
• Illuminated buttons.

Simplicity and sophistication

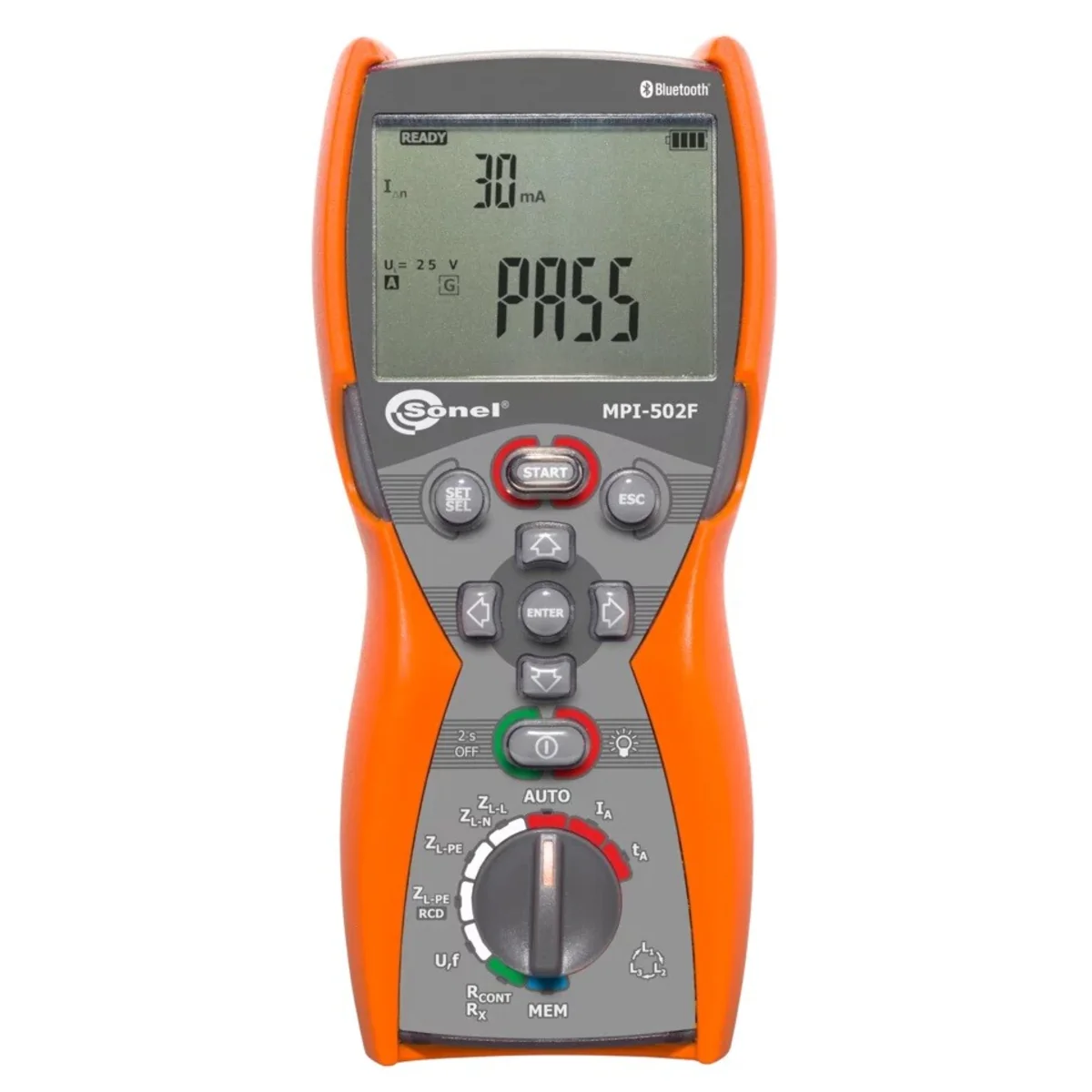

Probably the world's smallest meter with so many measurement functions. Their selection is carried out using a rotary switch. Additional parameters are set with buttons located on the front of the housing. The settings are remembered by the device even when the battery is completely discharged. All buttons are backlit, as is the segment display, making it easy to use in low light. Extensive memory eliminates the need to keep notes during measurements.

Installation security check

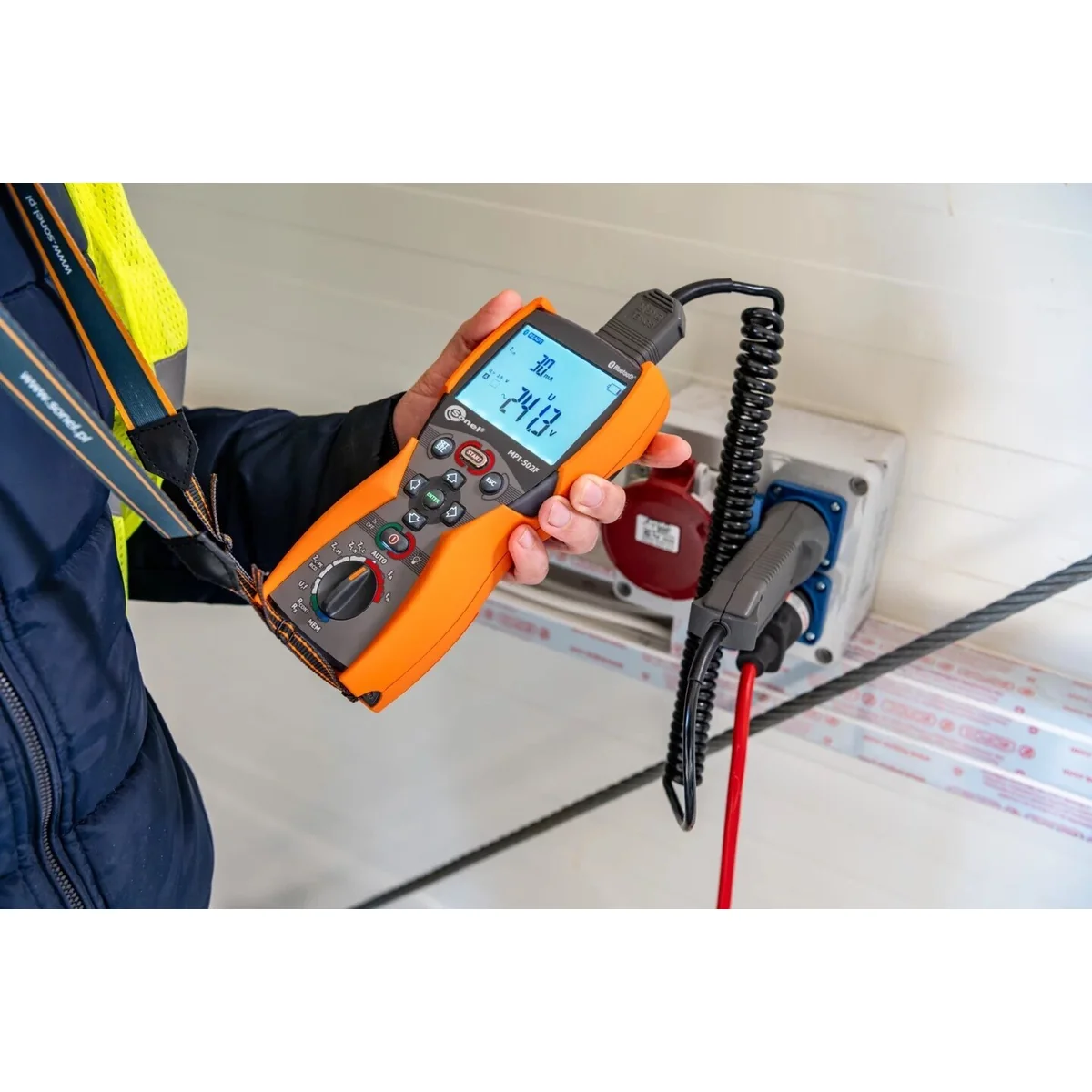

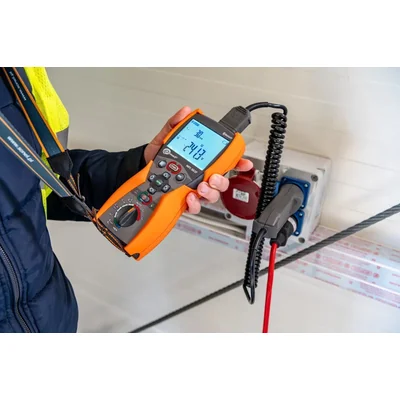

With the instrument, you can control home and industrial electrical installations in terms of safety. Its advantage is quick measurement (several seconds!) of short-circuit loop impedance in circuits with RCDs.

Research can be easily automated by:

• testing of RCDs in Auto mode,
• using the WS type adapter to test the installation through a standard 230 V socket.

Increased resistance to environmental conditions

The meter will cope well in harsh environmental conditions. Protection against dust and water ingress is provided by a casing with an IP67 tightness level.

Communications and Software

You can transfer measurement data to a computer using Bluetooth wireless communication. In order to generate a test report in the field of electric shock protection, use the Sonel Electrical Measurements program. Saving the downloaded resources to the simplest formats and printing is provided by Sonel Reader.

Program for creating protocols from installation security tests

The latest version of the popular program for creating protocols from electrical measurements. PE6 simplifies the documentation process. It minimizes its time. It automates. All thanks to numerous built-in mechanisms, tools and functions.

Program features:

• compliance of the printed protocol with the new standards PN-HD 60364-6:2016-07, PN-HD 60364-4-41:2017-09
• cooperation with SONEL S.A. meters,
• tree structure of the document,
• extensive databases of security and measuring points,
• automatic calculation of required values,
• automatic evaluation of measured results,
• measurement schedule,
• inserting photos and drawings to protocols,
• printing measurement controls and table descriptive labels,
• calculation of performed measurements,
• printing invoices,
• automatically populating protocols with a series of data.

The program supports the creation of documentation after tests in the field of comprehensive control of measurement points and:

• trip efficiency (TN-S, TN-C, TN-C-S, TT, IT),
• parameterów of RCD's,
• circuit insulation status (TN-S, TN-C, TN-C-S, TT, IT),
• the condition of insulation of electric cables,
• the condition of the lightning protection system and earthing,
• wire continuity,
• insulation resistance of short-circuited and open-circuit motors,
• resistance of contactors,
• resistance of circuit breakers,
• transformer devices.

Hardware requirements:

• Operating system: Windows 10
• Minimum resolution: 1024x768
• Recommended resolution: 1920x1080
