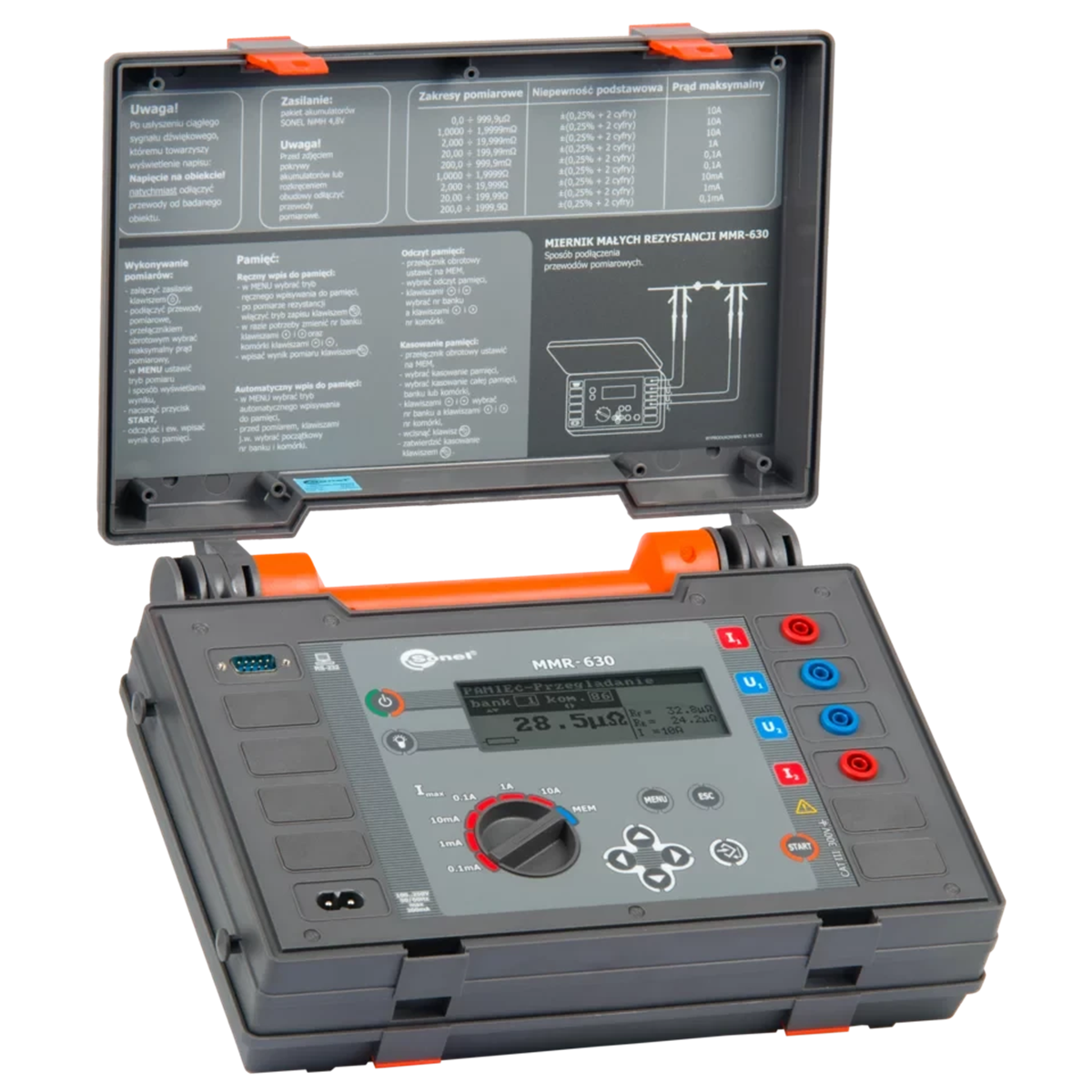

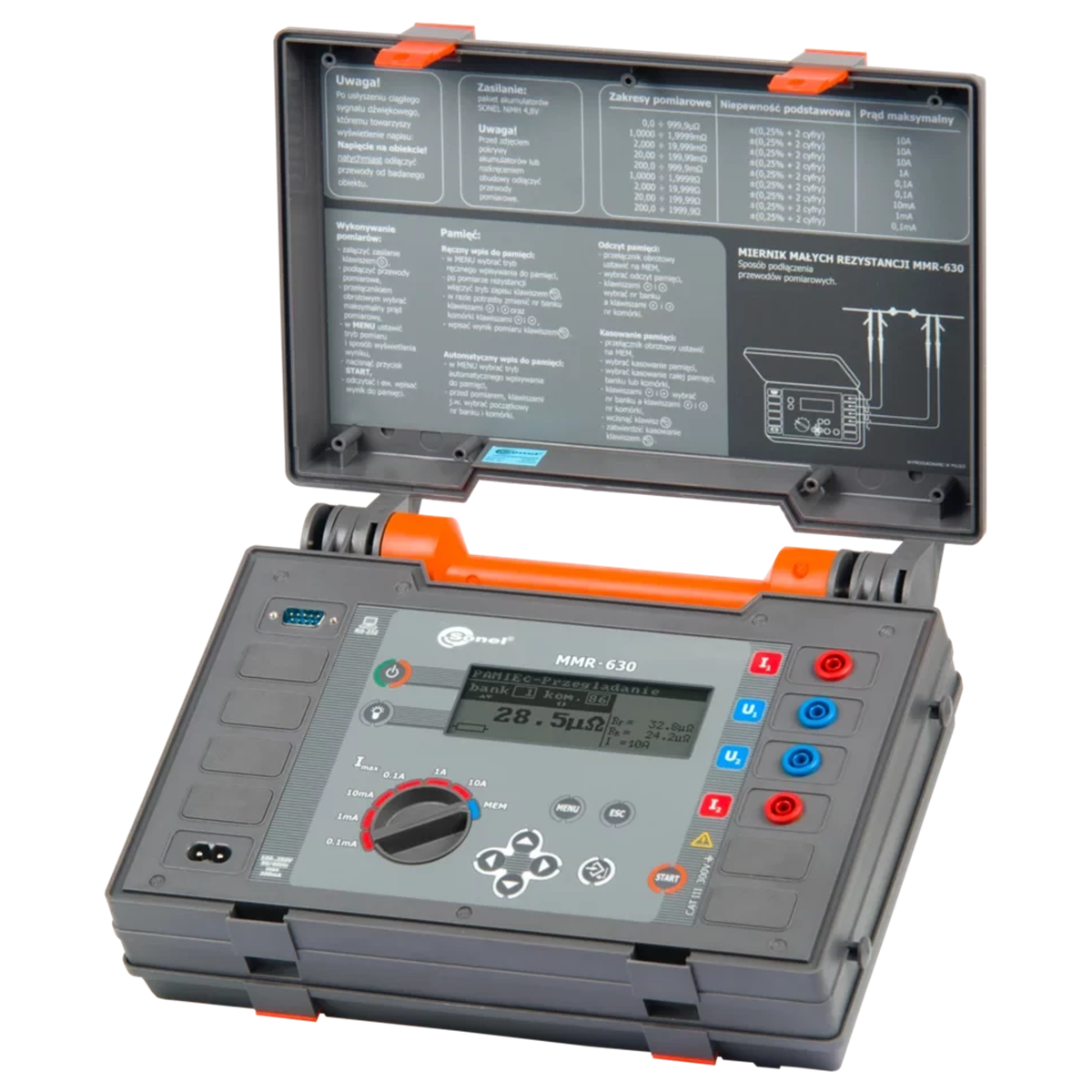

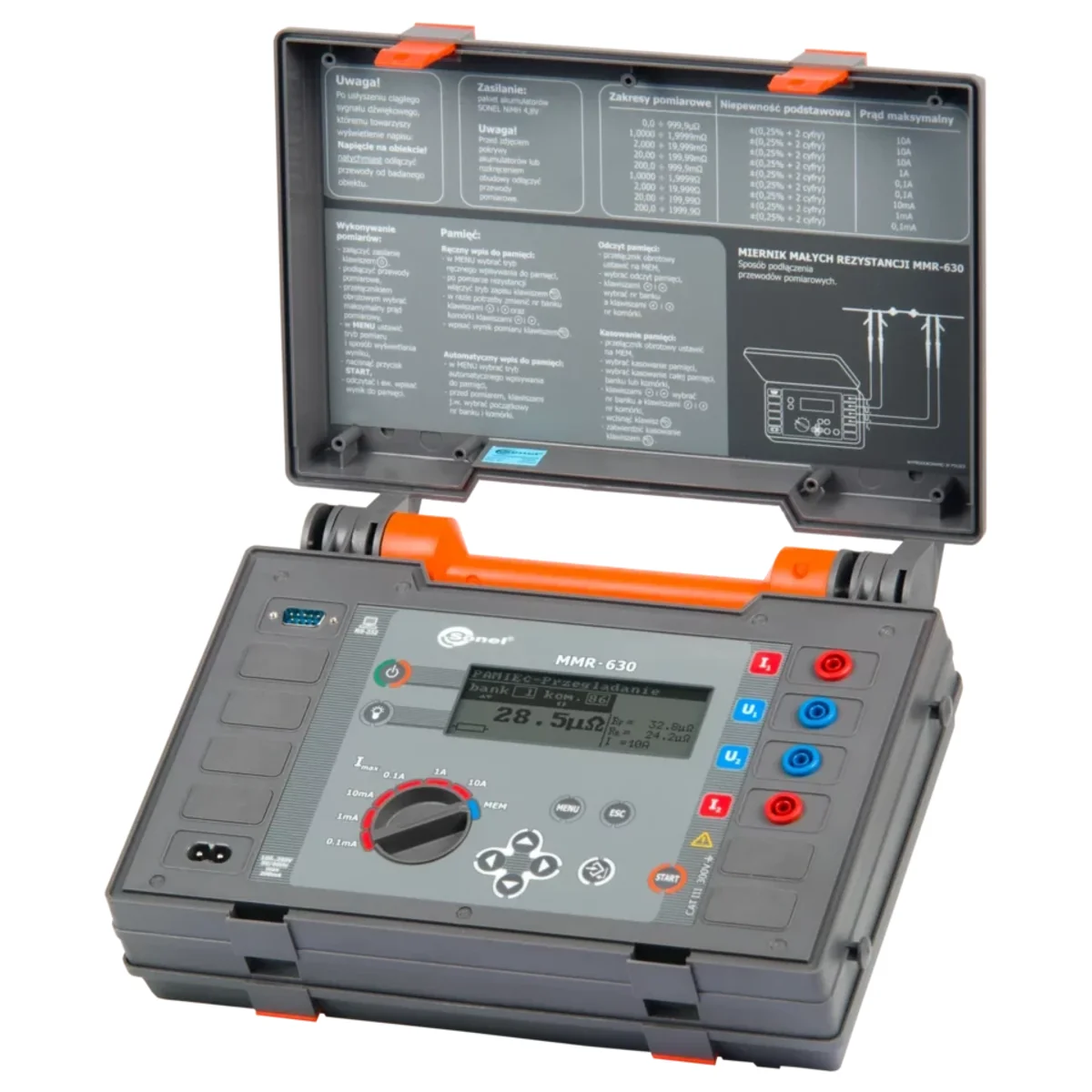

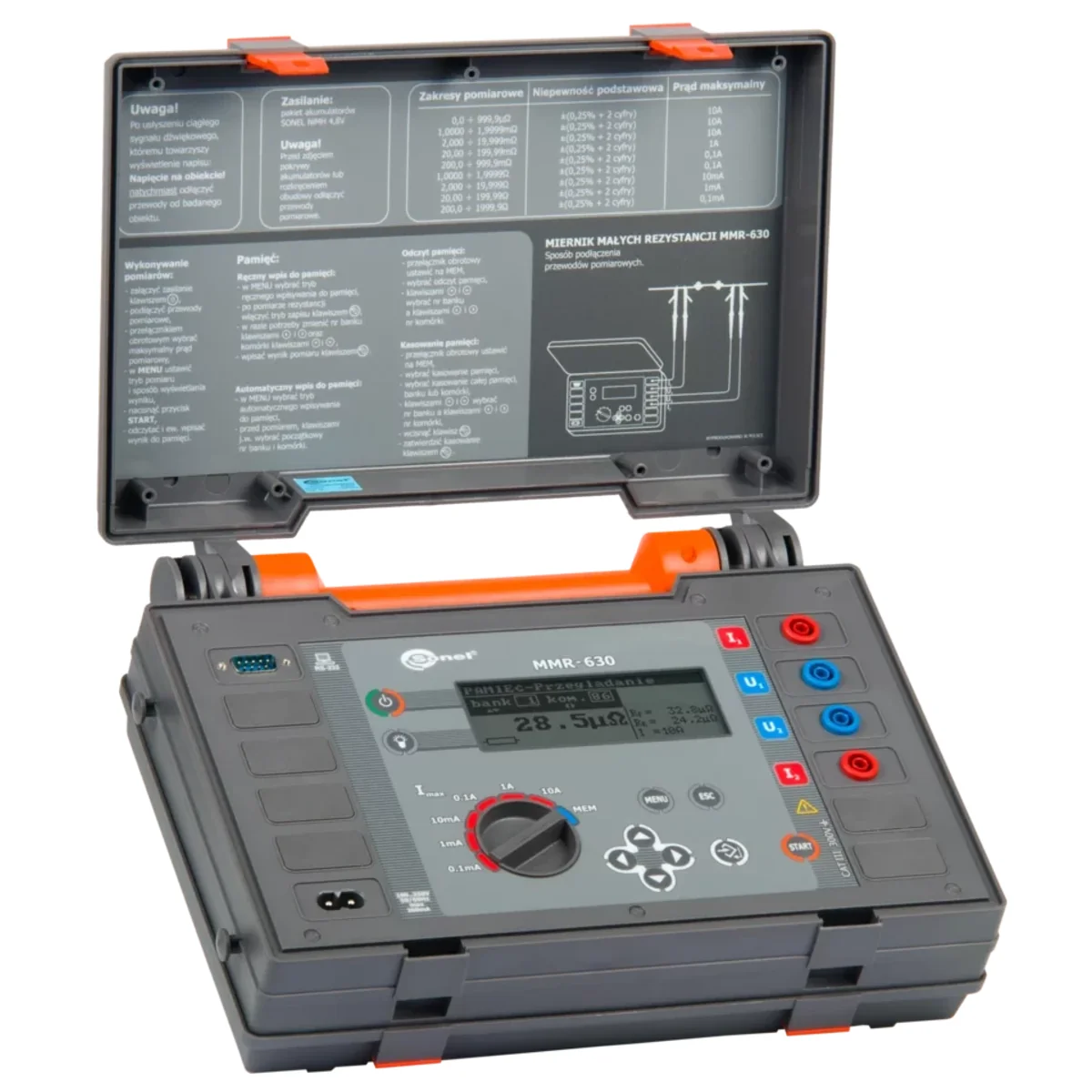

MMR-630 low resistance meter with calibration certificate WMPLMMR630

local index:
NPP033SONE
Catalog No:
WMPLMMR630
EAN code:
5907624015388
Manufacturer: SONEL
Level of security: IP54
Price:
3003,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

Low resistance meter providing very high accuracy (measurement resolution 0.1 µΩ). High measuring current for individual sub-ranges and appropriate operating modes enable measurements of inductive objects (transformers, motors). The versatility of use is determined by special functions that allow the device to be used also in the production cycle for serial measurements, for example when controlling large batches.

Measurements of resistive objects:

< ul>
  • welded and soldered joints, equipotential bonding bars, grounding conductors,
  • contacts, railway rail welds, wires and cables,
  • four-wire measurement.
  • < /ul>

    Measurements of inductive objects:

    • windings of motors, transformers, low-resistance coils,
    • automatic measurement range selection or manual (measurement of inductive objects),
    • four-wire method.

    Selection of the measurement mode adapted to the type of the measured object:

    • quick measurement (3 seconds) for measuring resistive objects,
    • extended measurement for testing inductive objects (short mode possible with slightly limited accuracy); with automatic unloading of the object after measurement.

    Selection of the measurement mode depending on the application (e.g. control of product series):

      < li> measurement in normal mode - triggered each time the "START" button is pressed,
    • measurement in automatic mode - the device waits for all four test leads to be connected to the object, and then automatically starts the current measurement in one or both directions and calculates the average value of the resistance,
    • measurement in continuous mode - the meter repeats successive measurement cycles with breaks every 3 seconds (for resistive objects), or performs the measurement continuously (for inductive objects).

    Window mode:

    • allows you to set the upper and lower limits between which the measurement result should be placed, sound signaling of going out of range.

    Possibility to perform measurements even with disturbances five times higher than the measured signal.

    Memory of 990 measurement results with the possibility of sending them to a PC.

    Electrical safety:

    • measurement category: CAT III 300 V

    Technical data

    • Level of security
      IP54

    Manufacturer's description

    Measure motor winding resistance and other low resistances

    Perform precise tests of objects of resistive and inductive nature using one instrument - small resistance meter Sonel MMR-630.

    We present a versatile small resistance meter that provides very high measurement accuracy. The measurement resolution is 0.1 µΩ. The MMR-630 model enables measurements of objects of resistive as well as inductive nature, such as electric motors. This is due to the large measurement current for the individual subranges and the corresponding operating modes. When testing objects of a resistive nature, rapid measurement (3 seconds) is applicable. When testing inductive objects, extended measurement is used (there is also the possibility of a shortened mode with a slightly lower measurement accuracy).

    The MMR-630 has been enhanced with special functions that allow it to be used also in the production cycle for serial measurements, for example, during the inspection of large batches.



    Product features

    MMR-630 microohmmeter enables accurate measurements of both connections resistance (welded, soldered, bolted) and winding resistance of electrical motors.

    • Measurements of objects resistive in nature:
      • welded and soldered connections, equipotential bondings, earthing conductors,
      • contacts, welds of rails, conductors and cables,
      • measurement according to the four-lead method.
    • Measurements of objects inductive in nature:
      • motor windings,
      • low-resistance coils.

    Additional functions

    • Automatic or manual selection of measuring range (measurement of objects of an inductive nature).
    • Selection of measurement mode according to the type of measured object:
      • fast measurement (3 seconds) for measurement of objects of a resistive nature,
      • extended measurement for testing of objects of an inductive nature (accelerated mode, with slightly worse accuracy, available); with automatic discharging of the object after measurement.
    • Selection of measurement mode depending on application (including control of product series):
      • measurement in normal mode - triggered when the “START” button is pressed,
      • measurement in automatic mode - the instrument awaits connection of all four test leads to the object, after which it automatically start measurement in one or both directions and calculates the mean resistance value,
      • measurement in continuous mode - the meter repeats successive measurement cycles with breaks every 3 seconds (for objects of a resistive nature) or performs measurement continuously (for objects of an inductive nature)
    • Window mode:
      • makes possible to set an upper and lower limit within the measurement result should remain; sound signal triggered when the result is beyond set range,
      • capability of performing measurements even under disturbances of a value five times greater than the measured signal.

    Manufacturer details

    • Manufacturer
      SONEL S.A.
    • Address
      58-100 Świdnica Wokulskiego 11 Polska
