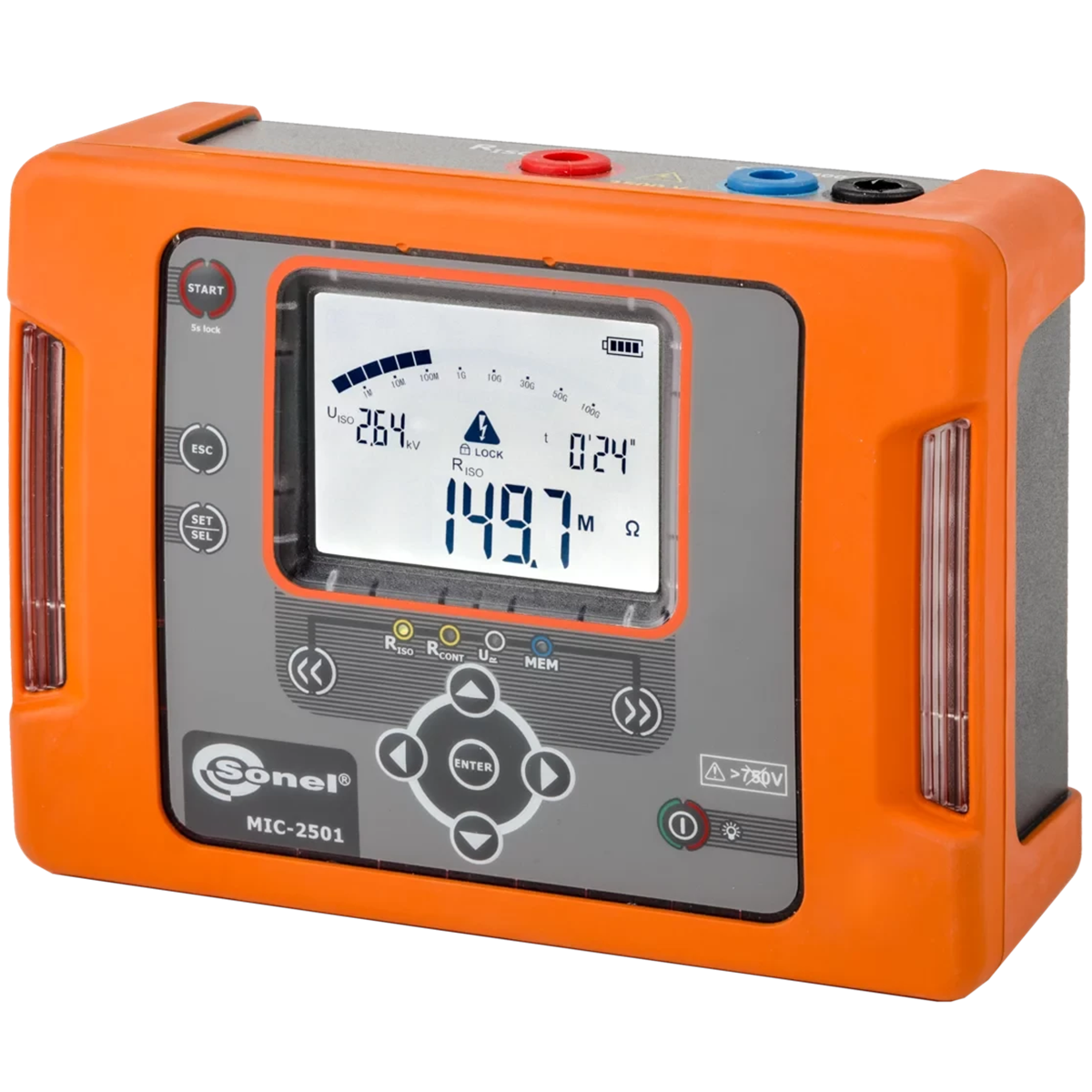

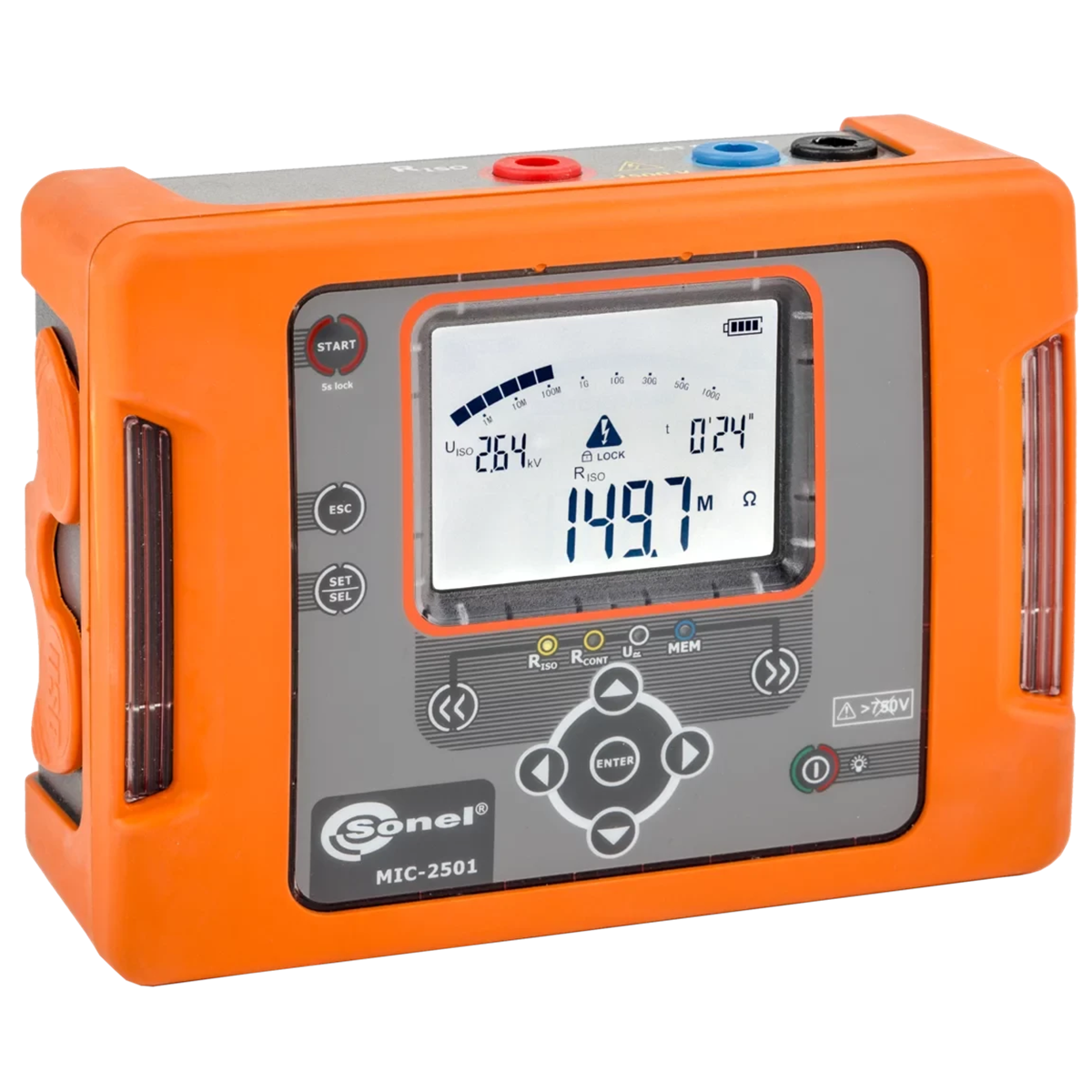

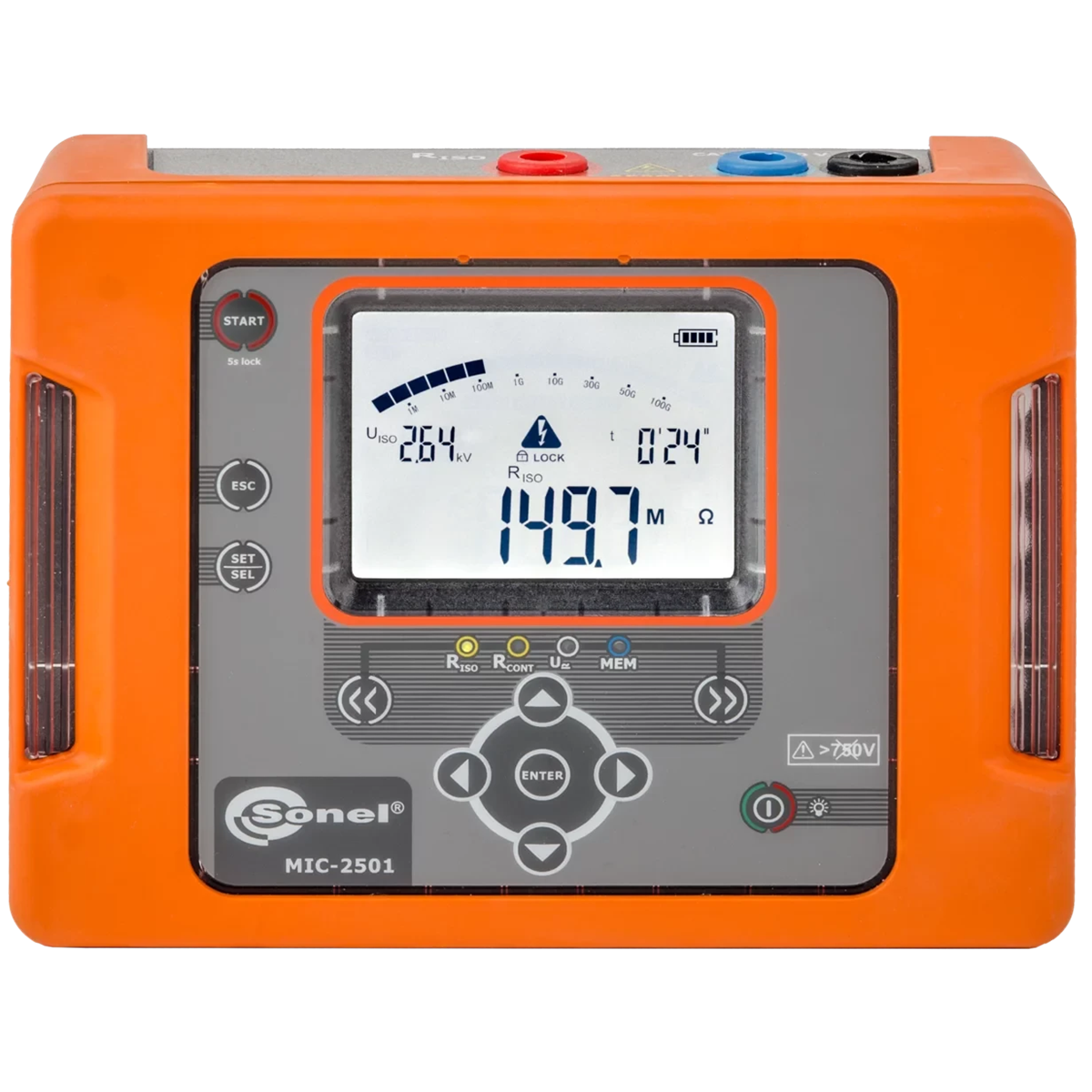

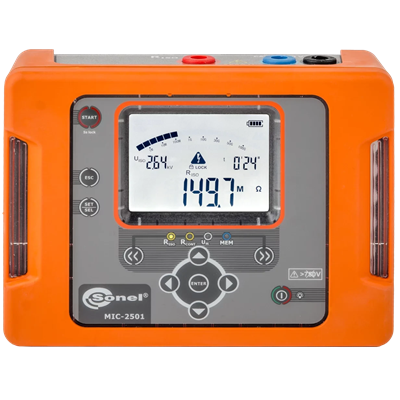

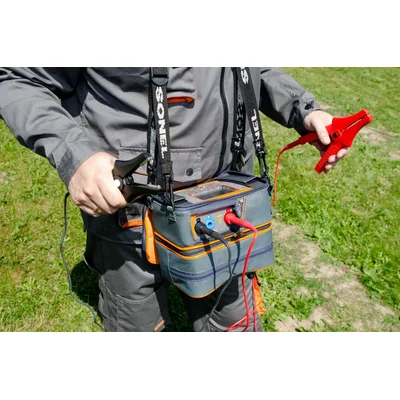

MIC-2501 insulation resistance meter WMPLMIC2501

local index:
NPP052SONE
Catalog No:
WMPLMIC2501
EAN code:
5907624023512
Manufacturer: SONEL
Level of security: IP65
Weight [g]: 900
Dimensions [mm]: 200x180x77
Price:
846,17 €
gross / pcs.
(including VAT 23%)
940,19 € gross/kg.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

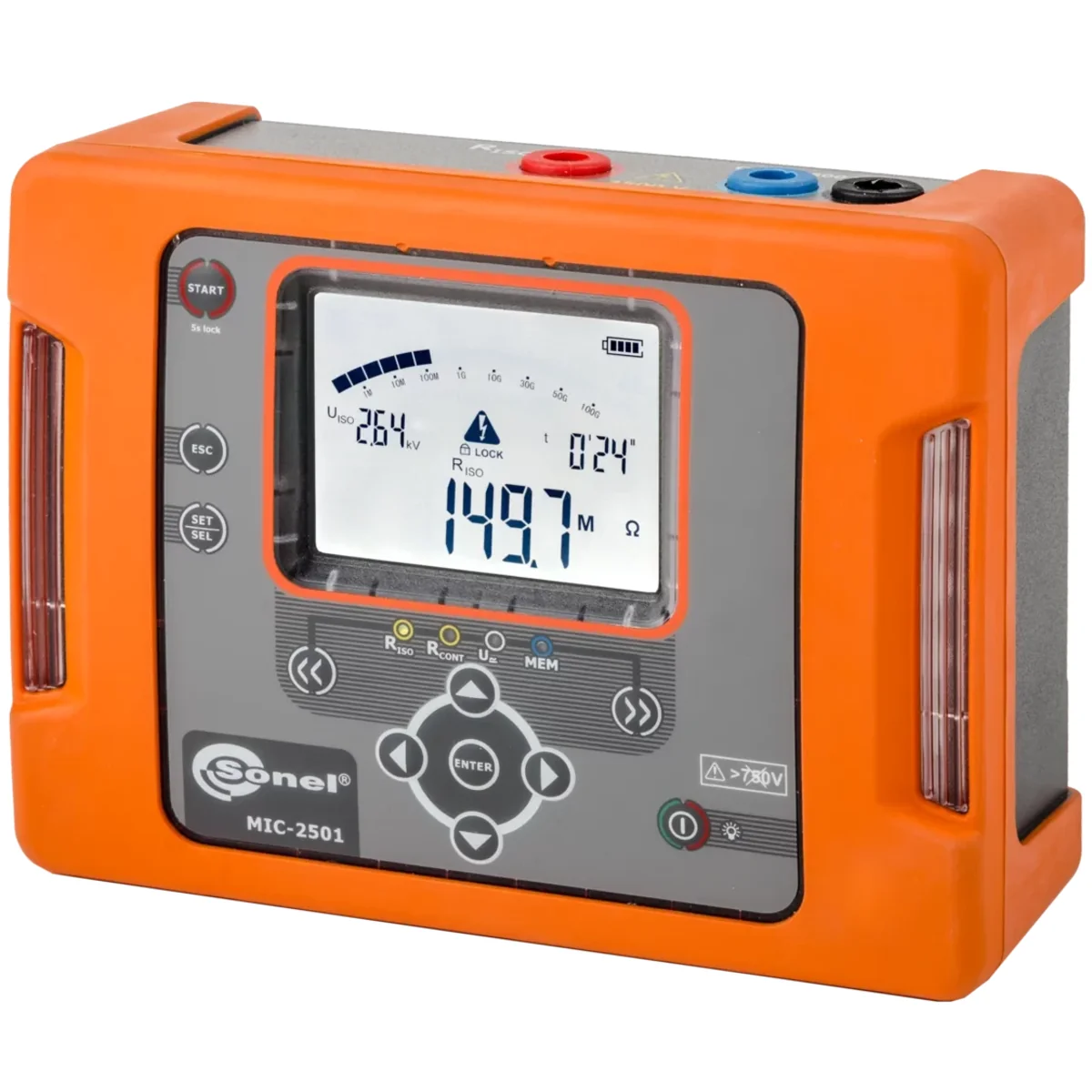

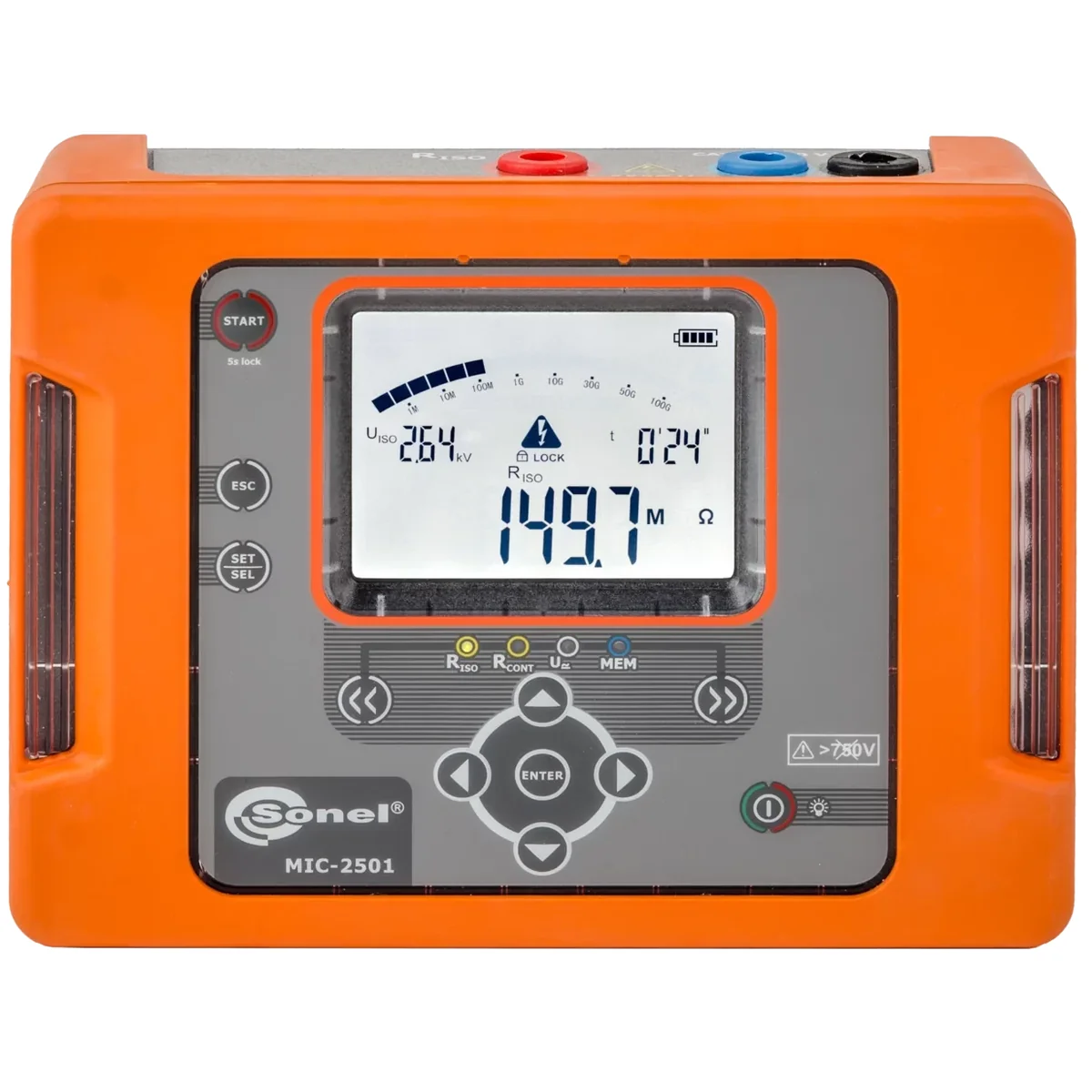

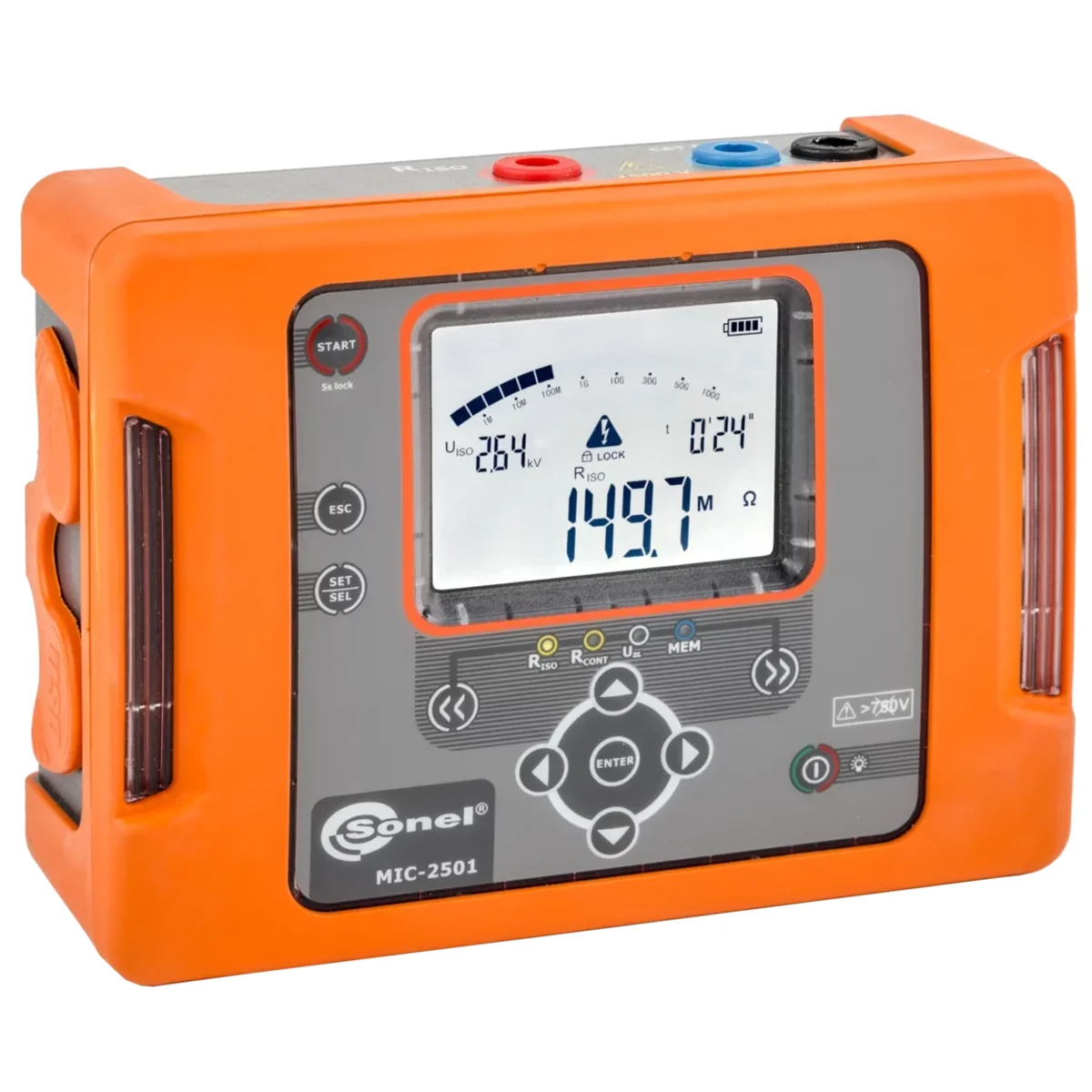

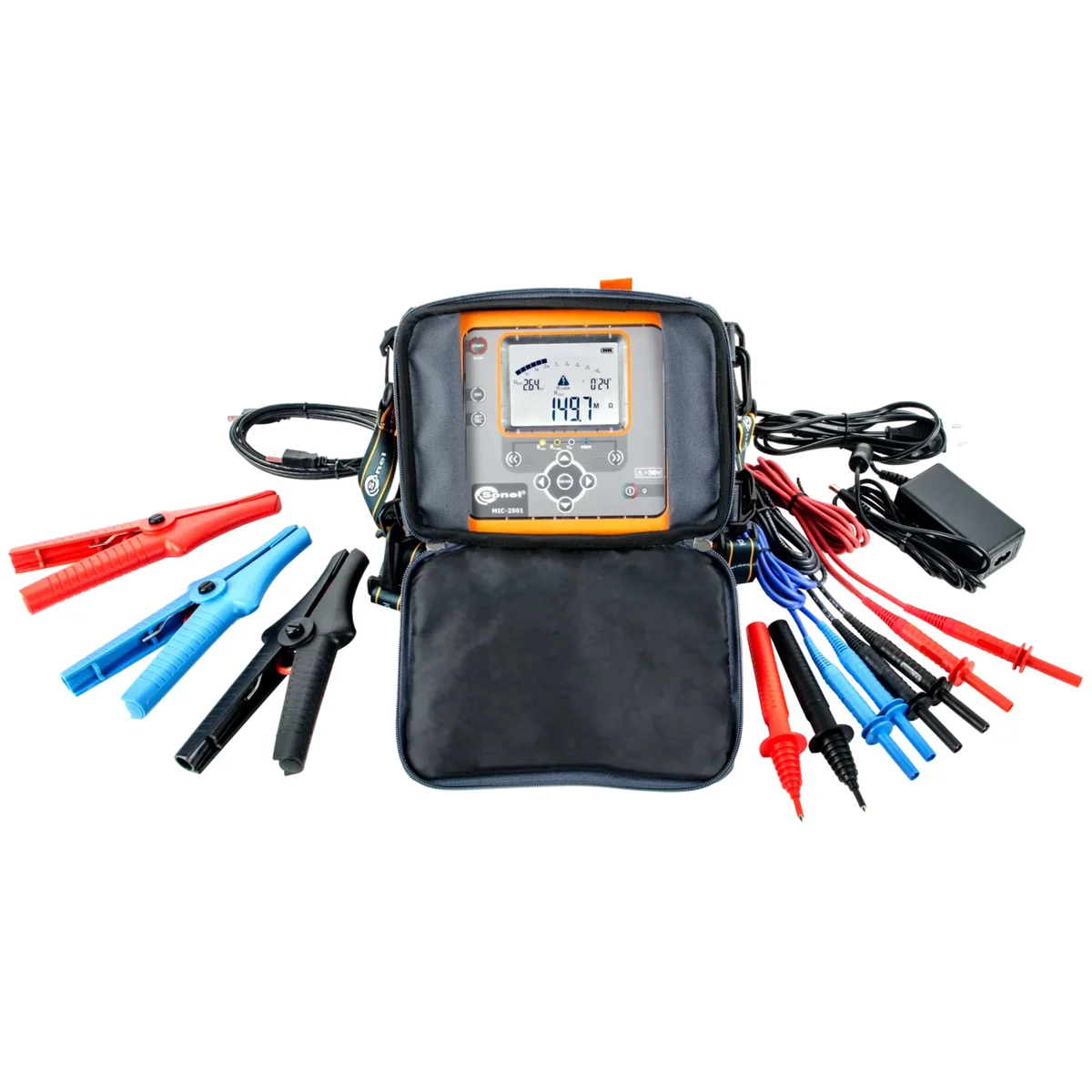

Insulation resistance meter MIC-2501.

Insulation resistance measurement:

  • selectable measurement voltage 100. ..2500 V selected in steps of 100 V,
  • continuous indication of the measured insulation resistance or leakage current,
  • automatic discharge of the capacitance of the measured object after completing the insulation resistance measurement,
  • acoustic determination of five-second time intervals to facilitate the capture of time characteristics,
  • measured measurement times T1, T2 and T3 for the measurement of two absorption coefficients for 15, 60 and 600 s,
  • indication of the actual measurement voltage during the measurement,
  • protection against the measurement of live objects.

Insulation resistance measurement using the two- and three-wire method.
Low-voltage measurement of circuit continuity and resistance :
Leakage current measurement during insulation resistance measurement.
Measurement of direct and alternating voltages in the range of 0...750 V.
Memory of 990 cells (11880 entries) data transfer to a PC via USB cable .
Rechargeable battery.

Electrical safety:

  • type of insulation: double, in accordance with PN-EN 61010 -1 and IEC 61557
  • measurement category: IV 600 V (III 1000 V)
  • degree of protection: IP65

Others technical data:

  • meter power supply: SONEL L-1 NiMH 9.6 V battery pack; external power supply 12 V 2.5 A
  • display: segment LCD
  • memory of measurement results: 990 cells, 11880 entries,
  • transmission of results: isolated USB connection< /li>

Technical data

  • Level of security
    IP65
  • Dimensions [mm]
    200x180x77
  • Weight [g]
    900
