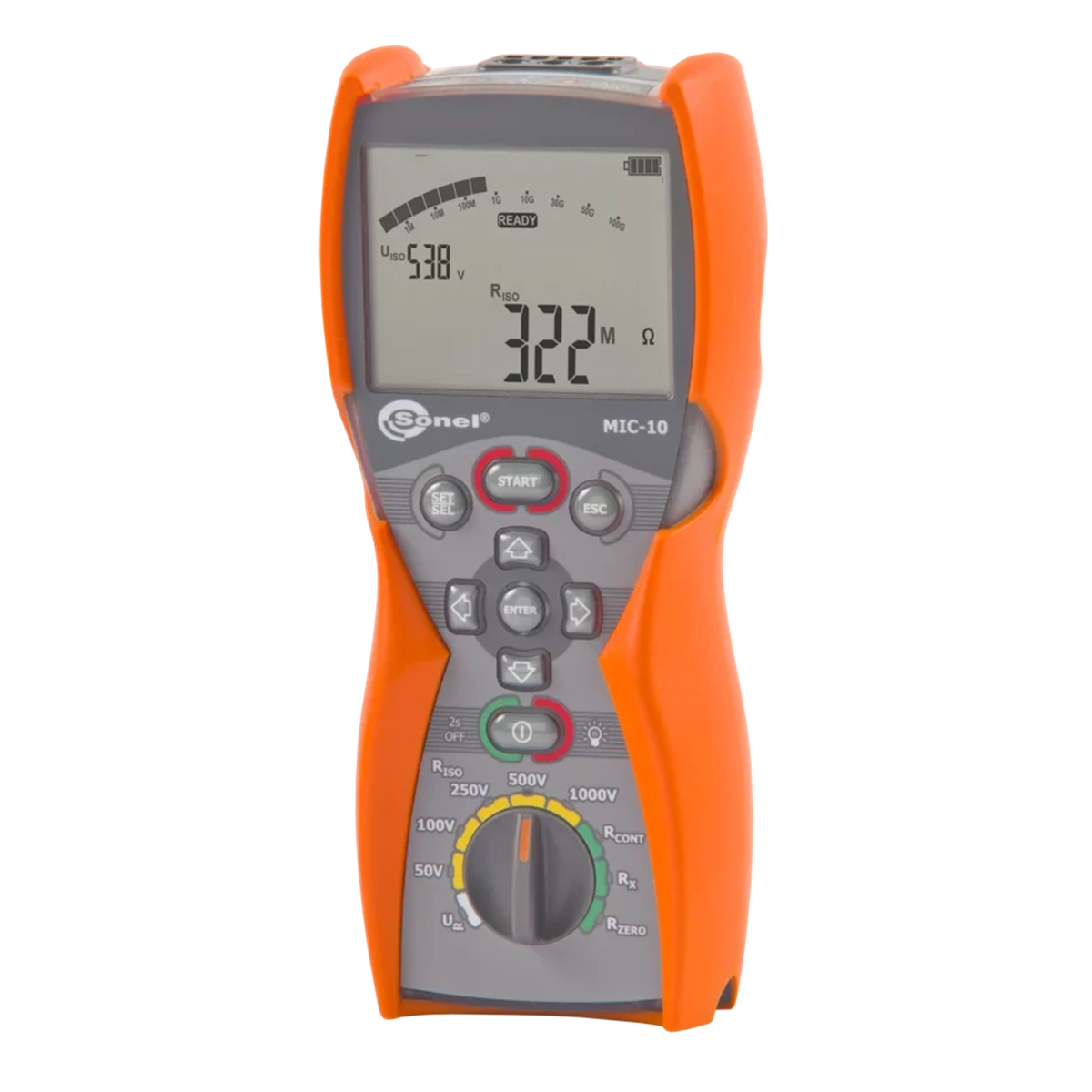

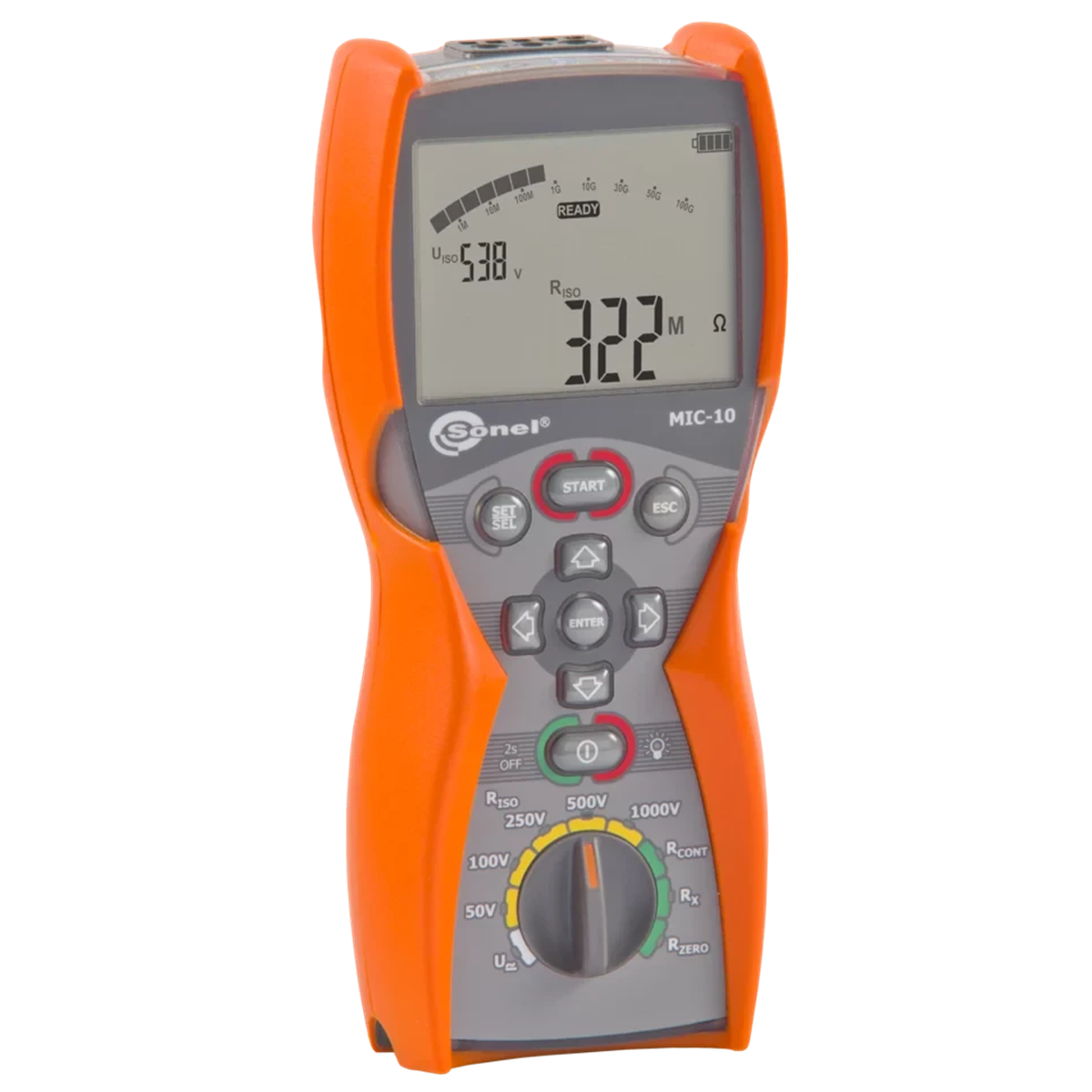

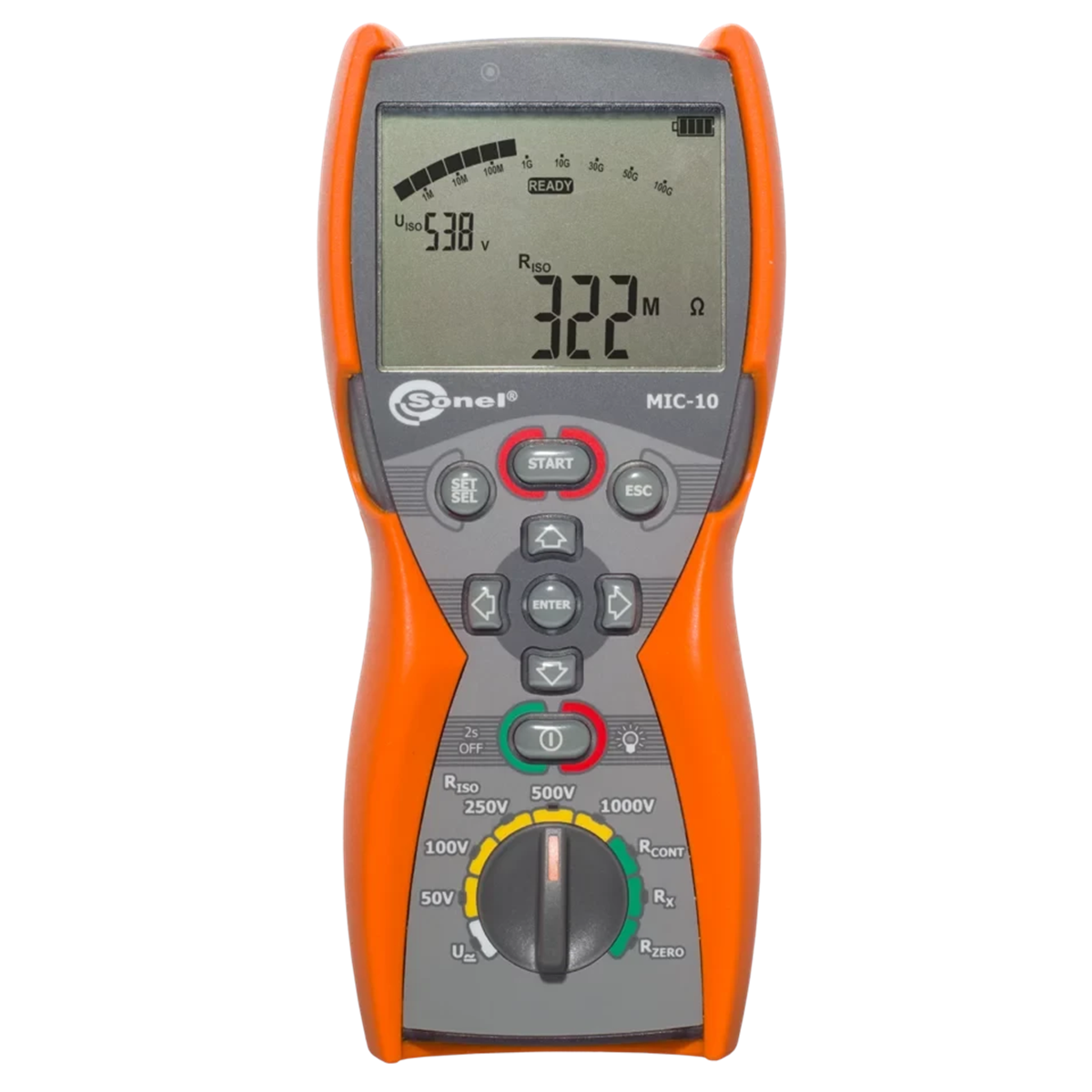

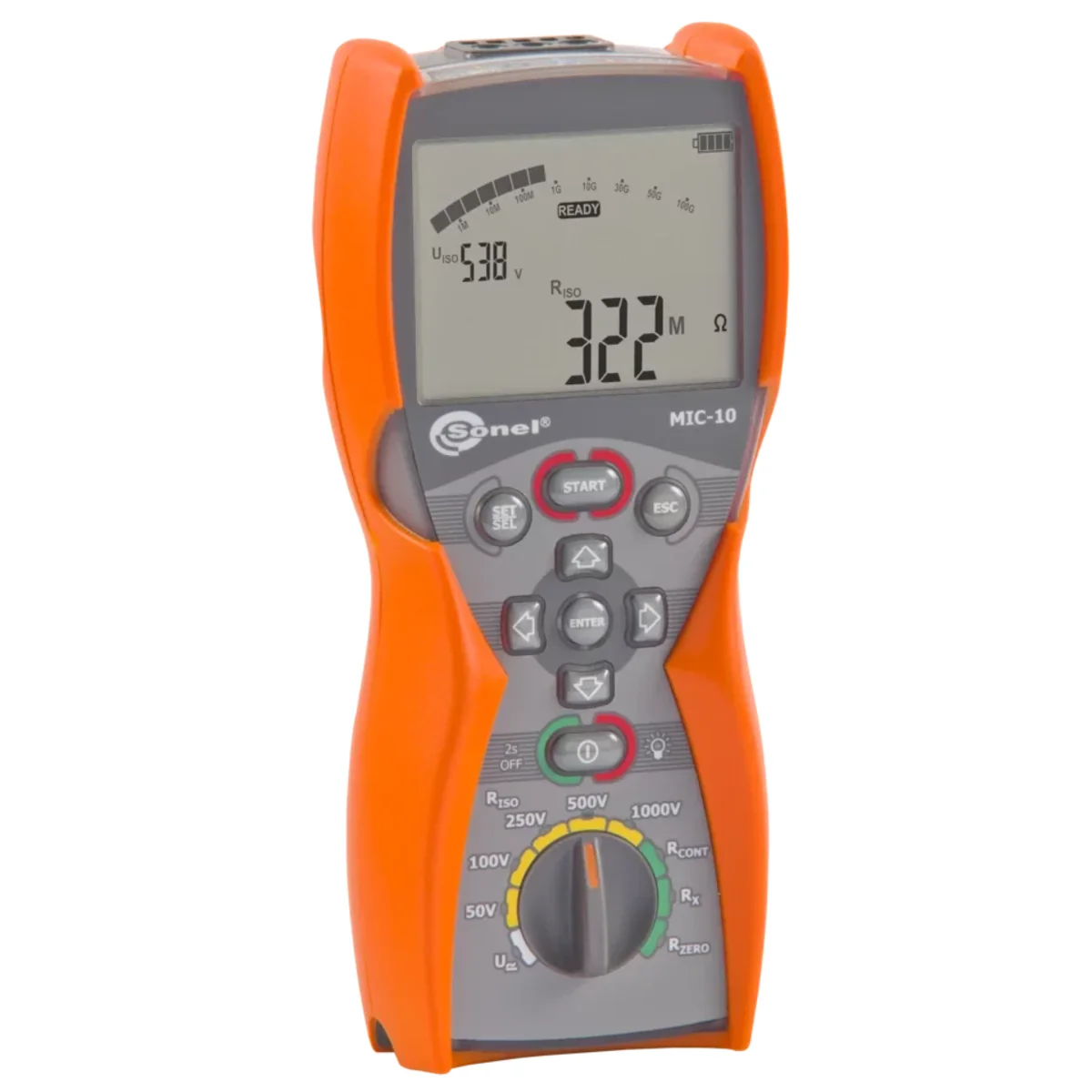

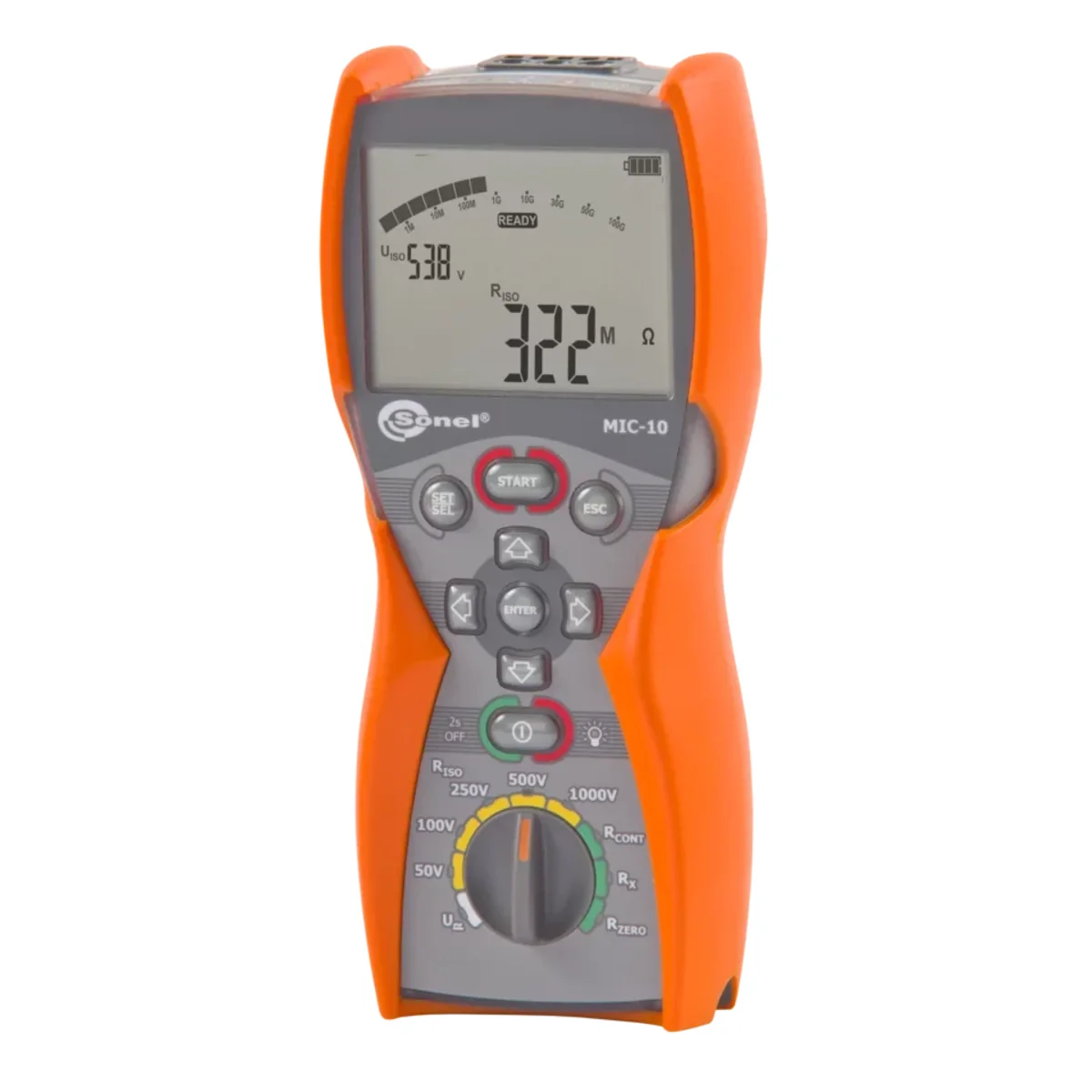

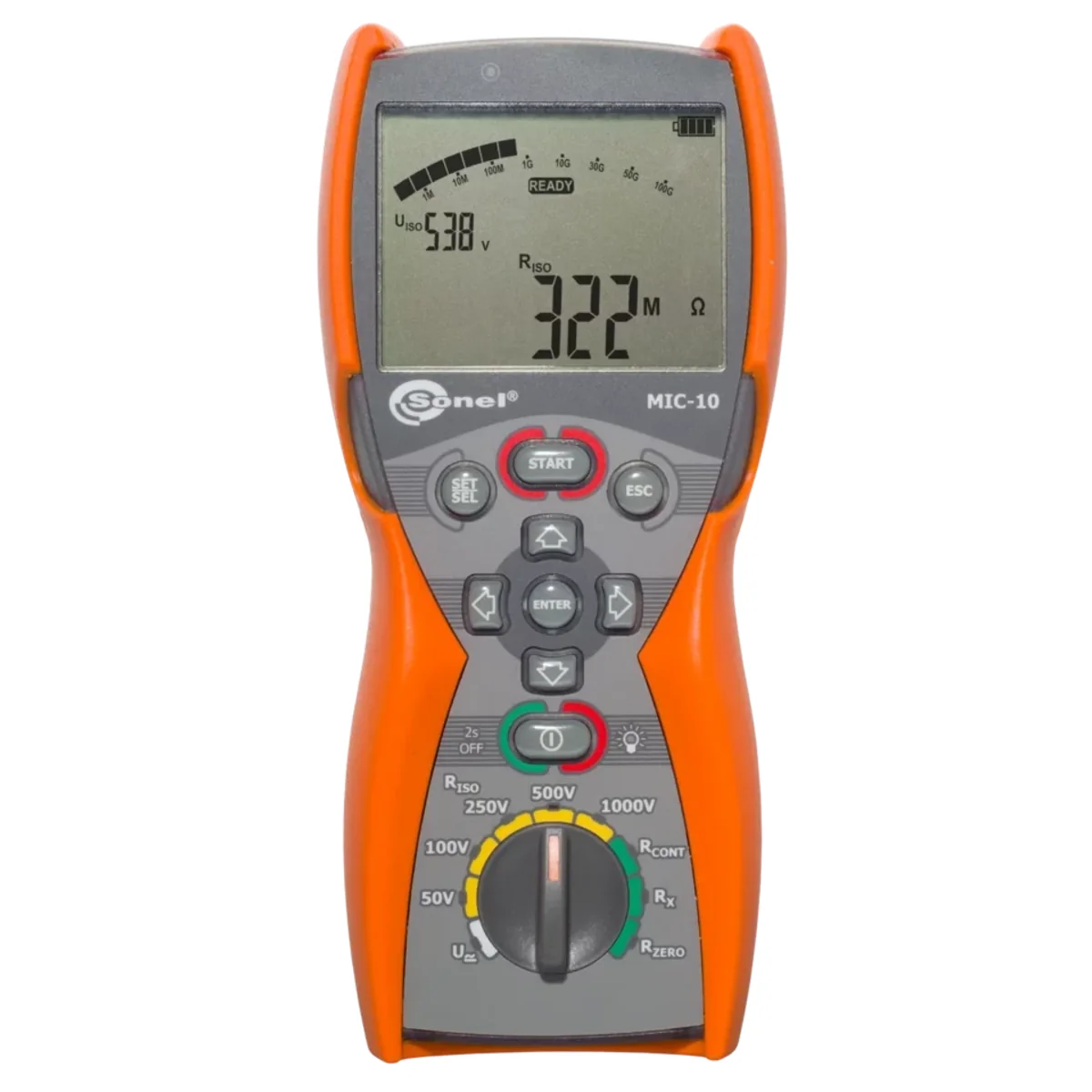

MIC-10 insulation resistance meter WMPLMIC10

Name: MIC-10 insulation resistance meter
Brand: SONEL
SKU: NPP116SONE
Price: 545.82 PLN

local index:

NPP116SONE

Catalog No:

WMPLMIC10

EAN code:

5907624013438

Click on the photo to enlarge

Manufacturer: SONEL

Level of security: IP67

Weight [g]: 600

Dimensions [mm]: 220x100x60

See full description

Price:

545,82 €

gross / pcs.

(including VAT 23%)

909,70 € gross/kg.

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer's description Manufacturer details Files to download

Product description

The MIC-10 meter is designed to measure insulation resistance with voltages up to 1000 V. The device has a choice of measurement voltages: 50, 100, 250, 500, 1000 V.

Additionally:

< ul>

capacitance measurement during RISO measurement,

continuity measurement of protective and equipotential bonding with current > 200 mA,

low-voltage measurement of circuit continuity and resistance

measurement AC and DC voltages.

Modern, ergonomic housing and very simple intuitive operation are particularly important when performing a large number of measurements. All settings of modes and measurement voltages are made by means of a rotary switch. Illuminated keyboard/display and IP67 damage-resistant housing greatly facilitates work in unfavorable conditions.

Specialist accessories ensure user safety during measurements, additionally the device supervises working conditions (e.g. it ensures blocking the measurement when there is voltage on the object greater than 50V), and discharges the object after the measurement.

Insulation resistance measurement:

selectable measurement voltage: 50, 100, 250, 500, 1000 V
continuous indication of the measured insulation resistance,
automatic discharge of the capacitance of the tested object after completing the insulation resistance measurement,
acoustic determination of five-second time intervals to facilitate the removal of characteristics time,
indication of the actual test voltage during the measurement,
protection against the measurement of live objects,
three-wire measurement.

Continuity measurement of protective and equipotential bonding connections in accordance with PN-EN 61557-4 with >200 mA current.

Low-voltage measurement of circuit continuity and resistance:

measurement of circuit resistance (<1999 Ω) with current <15 mA,
quick acoustic signaling for circuit with resistance lower than 30 Ω.
Measurement capacitance during RISO measurement.
Measurement of DC and AC voltages in the range of 0...600 V.

Electrical safety:

type of insulation: double, in accordance with PN-EN 61010-1 and IEC 61557
measurement category: IV 600 V (III 1000 V)
degree of protection housing: IP67

Other technical data:

meter power supply: 4 alkaline batteries or Ni-Cd batteries size AAA< /li>
display: segmented LCD

Technical data

Level of security

IP67
Dimensions [mm]

220x100x60

Weight [g]

600

Manufacturer's description

Measure insulation resistance up to 10 GΩ

Sonel MIC-10 insulation resistance meter is a reliable device for measuring insulation resistance up to 10 GΩ. Due to its compact dimensions, ergonomic design and versatile application, this compact meter is a must for every professional working on electrical installations. It works flawlessly in areas with low voltage, such as electrical installations in single- and multi-family buildings, public facilities, as well as workshops and factories.

Main features

measurement of insulation resistance up to 10 GΩ thanks to max 1000 V measurement voltage
designed for harsh environmental conditions - IP67 ingress protection
allows for testing electrical continuity - R_CONT 200 mA function
checking start capacitors in motors thanks to capacity measurement function

…and much more

measurement voltage selected from: 50, 100, 250, 500, 1000 V
continuous reading of measured insulation resistance
automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
sound signalling of five-second time intervals, facilitating capture of time characteristics
readings of actual measurement voltage during measurement
protection against measurement of live objects
three-lead measurement
capacitance measurement during measurement of R_ISO
low-voltage measurement of circuit continuity and resistance
continuity test of protective conductors and equipotential bonding with current ≥200 mA flowing in two directions in compliance with EN 61557-4
measurement of direct and alternating voltages within the range of 0…600 V

Application

MIC-10 is an insulation resistance meter, which may be very useful for various electrical works (even the simplest), in locations with Low Voltage power supply, including: electrical systems in single- and multi-family buildings as well as in public buildings and in small workshops or factories. With its test voltage settings of 50 V, 100 V or 250 V the device is perfect for quick checking of the insulation condition in telecommunications systems and control cables.

Features

Test voltage settings of 500 V or 1000 V perfectly match the requirements for assessing the protection of power supply lines but also of floors and walls - PRS-1 probe (optional accessory) is very useful for this purpose.

With MIC-10 meter you can check whether an object is under voltage (measuring range up to 600 V), both in overhead and cable networks (measuring category of the device: CAT IV 600 V). You can verify the continuity of cables, e.g. PE connections and equipotential bonding - using the current of at least 200 mA, according to EN 61557-4. You can check the capacity of the start-up capacitors in household appliances and drives of any type (measuring range up to 10 µF).

This makes MIC-10 meter an essential tool for every service technician.

Durable housing

Handy and ergonomic housing provides protection of IP67, ensuring reliability of the meter even in the harshest environmental conditions (moisture, dust, high temperature, etc.).
