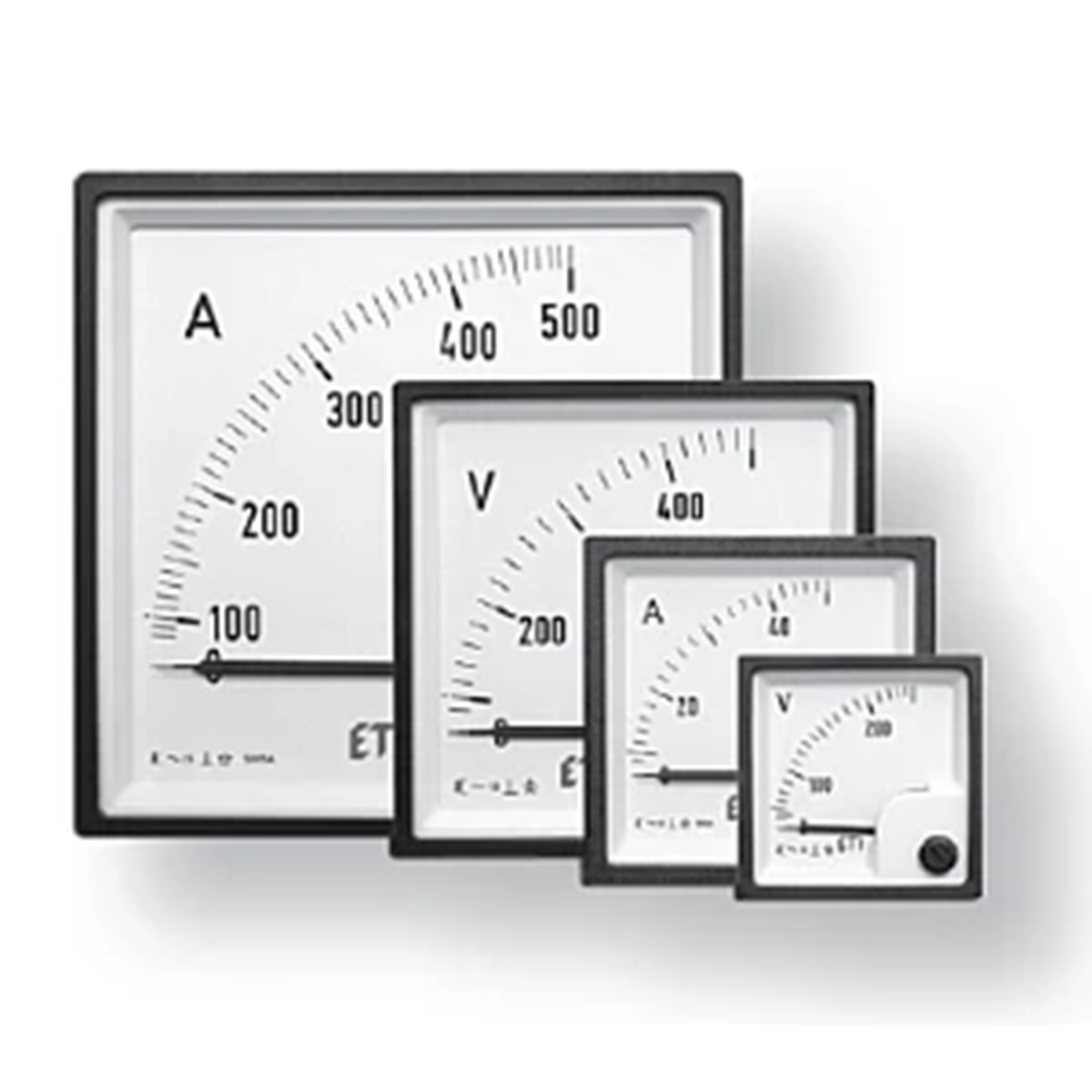

magnetoelectric meter. 96x96 90 degrees 60A direct measurement PQ96 60A 004805285

local index:
NPM007ETIP
Catalog No:
004805285
EAN code:
3838895439318
Manufacturer: ETI POLAM
Scale [°]: 90
Weight [g]: 0.282
Dimensions [mm]: 96x96
Price:
52,69 €
gross / pcs.
(including VAT 23%)
186843,97 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Magnetoelectric measuring instruments are used to measure electric current and DC voltage.


Advantages:

  •  measuring system with a magnetic core, insensitive to external electromagnetic fields,
  •  resistance to vibrations and mechanical shocks,
  •  interchangeable linear scale,
  •  high measurement accuracy,
  •  high sensitivity,
  •  very low power consumption



Technical data

  • Scale [°]
    90
  • Dimensions [mm]
    96x96
  • PKWIU
    26.51.45.0
  • Weight [g]
    0.282
  • Measurement range
    60A

Other technical data

  • Measuring range
    0 ... 60 A
  • Voltage type
    DC
  • Width
    96 mm
  • Max. needle deflection
    90 °
  • Accuracy class
    1.5
  • Model
    Built-in
  • Height
    96 mm
  • Measurement system
    Moving coil
