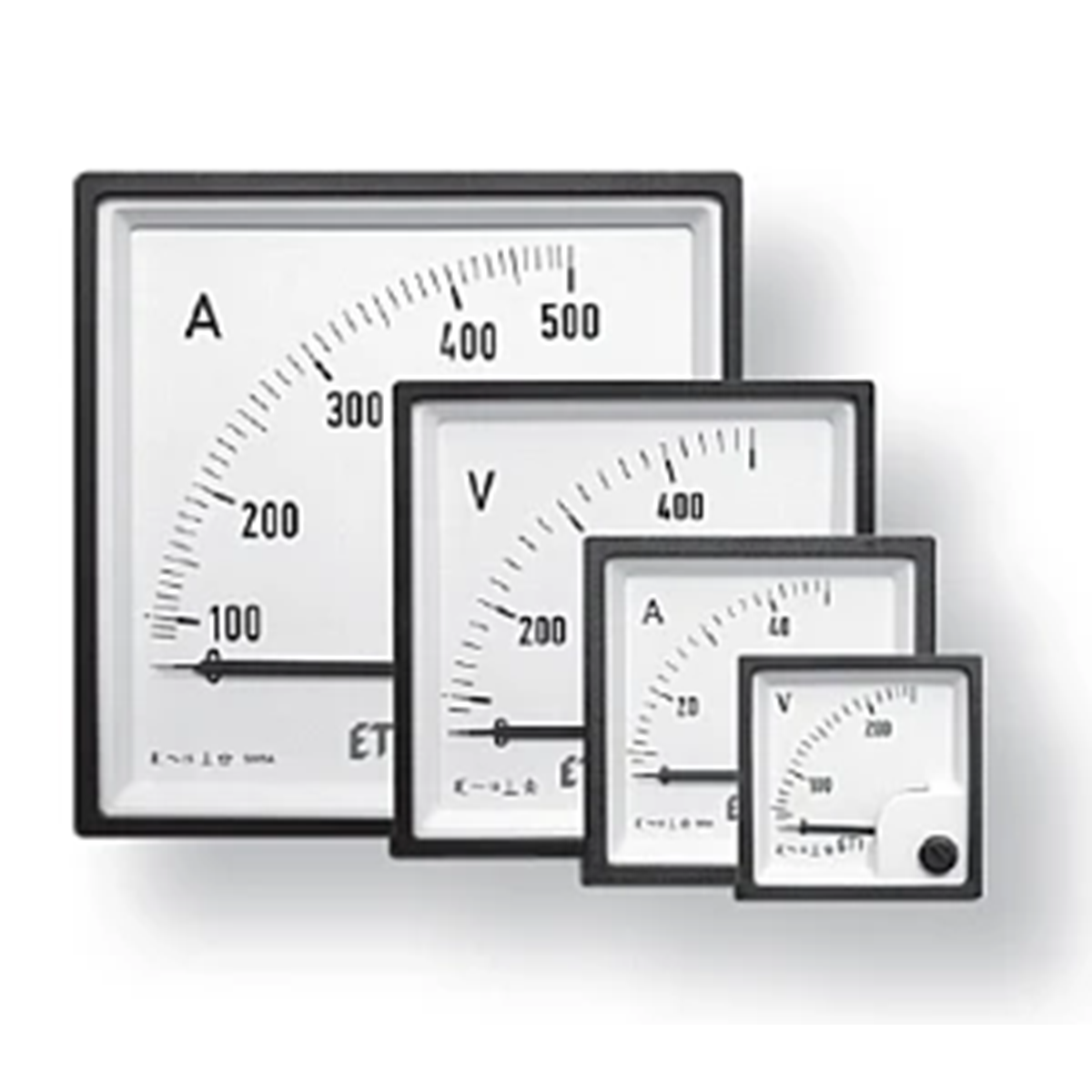

Magnetoelectric meter 96x96 90 degrees 150V direct measurement PQ96 150V 004805289

local index:
NPM003ETIP
Catalog No:
004805289
EAN code:
3838895439356
Manufacturer: ETI POLAM
Accuracy class: 1, 5
Scale [°]: 90°
Weight [kg]: 0.282
Price:
53,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Magnetoelectric measuring instruments are used to measure electric current and DC voltage.


Advantages:

  •  measuring system with a magnetic core, insensitive to external electromagnetic fields,
  •  resistance to vibrations and mechanical shocks,
  •  interchangeable linear scale,
  •  high measurement accuracy,
  •  high sensitivity,
  •  very low power consumption



Technical data

  • Accuracy class
    1, 5
  • Weight [kg]
    0.282
  • Measurement range
    150V
  • Scale [°]
    90°
  • Dimensions [mm]
    96x96
  • PKWIU
    26.51.45.0

Other technical data

  • Accuracy class
    1.5
  • Model
    Built-in
  • Height
    96 mm
  • Measurement system
    Moving coil
  • Voltage type
    DC
  • Width
    96 mm
  • Max. needle deflection
    90 °
